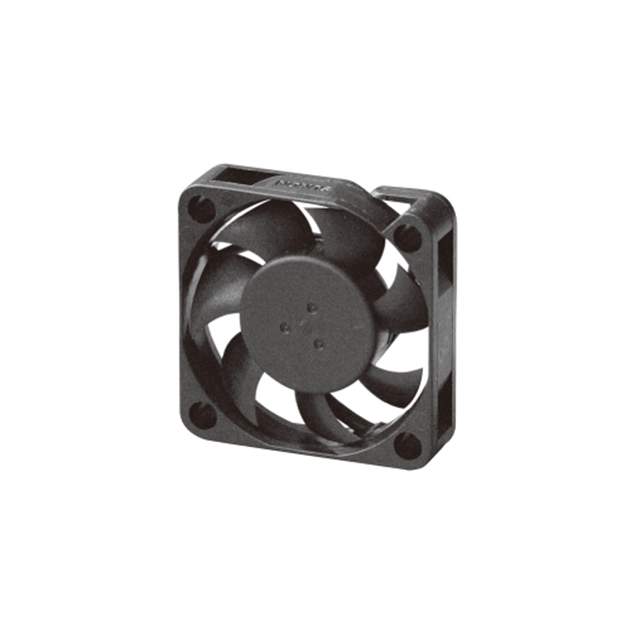

HA40101V4-1000U-A99 HA40101V4-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.4 CFM (0.151m?min)
Static Pressure : 0.090 in H2O (22.4 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 15.7 dB(A)
Power (Watts) : 380mW
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.034 lb (15.42g)
0
2859 in stock

HA40201V4-000U-999 HA40201V4-000U-999

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 5.5 CFM (0.154m?min)
Static Pressure : 0.080 in H2O (19.9 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : -
Noise : 12.8 dB(A)
Power (Watts) : 600mW
RPM : 4700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.067 lb (30.39g)
0
2074 in stock

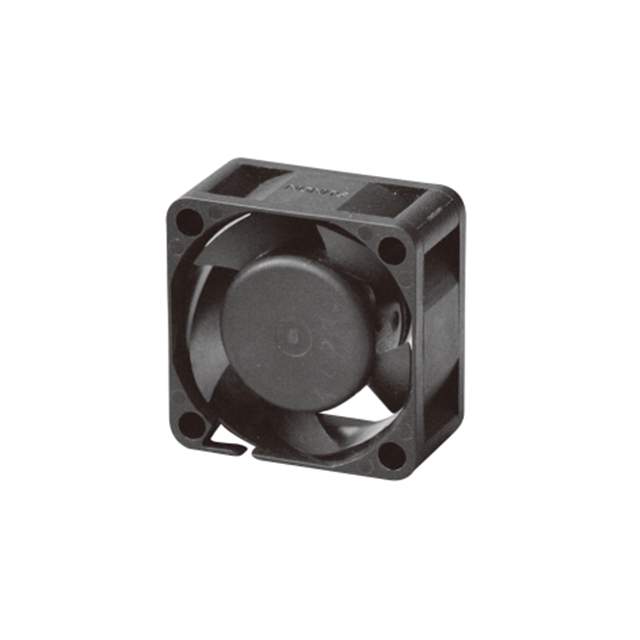

HA40201V4-1000U-A99 HA40201V4-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 5.5 CFM (0.154m?min)
Static Pressure : 0.100 in H2O (24.9 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 12.3 dB(A)
Power (Watts) : 380mW
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.067 lb (30.39g)
0
2487 in stock

HA50151V4-1000U-A99 HA50151V4-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 7.7 CFM (0.216m?min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 15.4 dB(A)
Power (Watts) : 300mW
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.073 lb (33.11g)
0
100 in stock

HA60150V3-E02U-A99 HA60150V3-E02U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Round - 84.9mm Dia
Width : 15.40mm
Air Flow : 13.2 CFM (0.370m?min)
Static Pressure : 0.034 in H2O (8.5 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 16.1 dB(A)
Power (Watts) : 400mW
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.06 lb (27.22g)
0
64 in stock

HA60150V3-E03U-A99 HA60150V3-E03U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Round - 84.9mm Dia
Width : 15.40mm
Air Flow : 9.7 CFM (0.272m?min)
Static Pressure : 0.034 in H2O (8.5 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 27.8 dB(A)
Power (Watts) : 260mW
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
97 in stock

HA60151V3-E00U-A99 HA60151V3-E00U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Round - 84.9mm Dia
Width : 15.40mm
Air Flow : 9.7 CFM (0.272m?min)
Static Pressure : 0.034 in H2O (8.5 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 27.8 dB(A)
Power (Watts) : 280mW
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
60 in stock

HA60151V3-E01U-A99 HA60151V3-E01U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Round - 84.9mm Dia
Width : 15.40mm
Air Flow : 13.2 CFM (0.370m?min)
Static Pressure : 0.034 in H2O (8.5 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 30.3 dB(A)
Power (Watts) : 340mW
RPM : 2300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.06 lb (27.22g)
0
371 in stock

HA60151V4-000U-999 HA60151V4-000U-999

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 10.8 CFM (0.302m?min)
Static Pressure : 0.040 in H2O (10.0 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : -
Noise : 14.5 dB(A)
Power (Watts) : 600mW
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CUR, TUV, UL
Weight : 0.079 lb (35.83g)
0
1710 in stock

HA60151V4-1000U-A99 HA60151V4-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 12.7 CFM (0.356m?min)
Static Pressure : 0.040 in H2O (10.0 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 14.5 dB(A)
Power (Watts) : 270mW
RPM : 2200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.077 lb (34.93g)
0
819 in stock

HA60251V4-000U-999 HA60251V4-000U-999

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 13.8 CFM (0.386m?min)
Static Pressure : 0.040 in H2O (10.0 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : -
Noise : 13.8 dB(A)
Power (Watts) : 700mW
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.091 lb (41.28g)
0
4535 in stock

HA60251V4-1000U-A99 HA60251V4-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® HA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 13.8 CFM (0.386m?min)
Static Pressure : 0.060 in H2O (14.9 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 10.7 dB(A)
Power (Watts) : 240mW
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.099 lb (44.91g)
0
100 in stock
