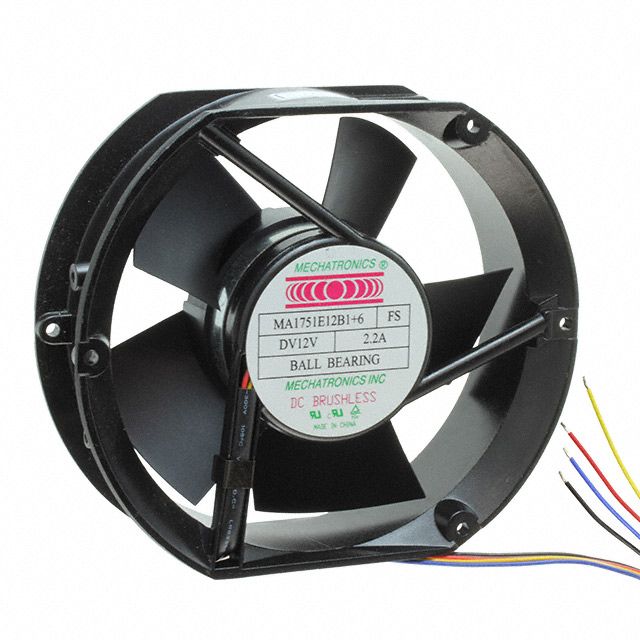

MA1751E12B1+6-FSR-EM
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 4 Wire Leads
Ingress Protection : IP57 - Dust Protected, Waterproof
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 4 Wire Leads
Ingress Protection : IP57 - Dust Protected, Waterproof
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
100 in stock
MA1751E12B-FSR
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
307 in stock
MA1751E24B-FSR
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
4 in stock
MA1751E48B2-FSR-TTL
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 269.2 CFM (7.54m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 61.0 dB(A)
Power (Watts) : -
RPM : 3150 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
5 in stock
MA1751H24B1+6-FSR
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 243.6 CFM (6.82m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 58.4 dB(A)
Power (Watts) : -
RPM : 2850 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 243.6 CFM (6.82m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 58.4 dB(A)
Power (Watts) : -
RPM : 2850 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
40 in stock
MA1751H48B-FSR
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 243.6 CFM (6.82m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.4 dB(A)
Power (Watts) : -
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 243.6 CFM (6.82m鲁/min)
Static Pressure : 0.550 in H2O (137.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.4 dB(A)
Power (Watts) : -
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
5 in stock
MA1751L12B-FSR
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 205.0 CFM (5.74m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.5 dB(A)
Power (Watts) : -
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 205.0 CFM (5.74m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.5 dB(A)
Power (Watts) : -
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
2 in stock
MA1751U48B-FSR
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 324.8 CFM (9.09m鲁/min)
Static Pressure : 0.980 in H2O (244.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.2 dB(A)
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 324.8 CFM (9.09m鲁/min)
Static Pressure : 0.980 in H2O (244.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.2 dB(A)
Power (Watts) : -
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
4 in stock
MA1751X24B2-FSR
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
6 in stock

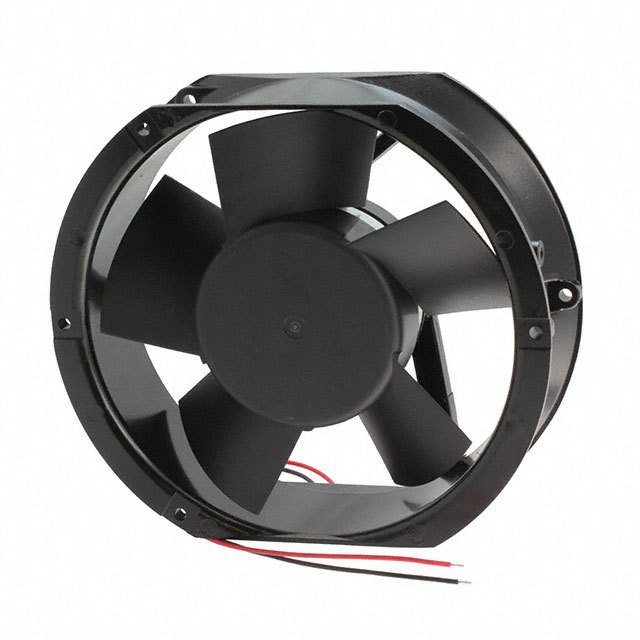

MA1751X24B-FSR
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
101 in stock
MA1751X24B-FSR-CC
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
5 in stock
MA1751X48B1-FSR
Mechatronics
Manufacturer : Mechatronics Fan Group
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
Series : MA1751
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 290.6 CFM (8.14m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 63.0 dB(A)
Power (Watts) : -
RPM : 3400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, cUL, TUV, UL
Weight : 1.7 lbs (771.1g)
0
75 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
