MF40101V1-1000U-A99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 8.0 CFM (0.224m?min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 27.3 dB(A)
Power (Watts) : 620mW
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.034 lb (15.42g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 8.0 CFM (0.224m?min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 27.3 dB(A)
Power (Watts) : 620mW
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.034 lb (15.42g)
0
75 in stock
MF40101V1-1000U-F99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 8.0 CFM (0.224m?min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 27.3 dB(A)
Power (Watts) : 620mW
RPM : 7000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.035 lb (15.88g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 8.0 CFM (0.224m?min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 27.3 dB(A)
Power (Watts) : 620mW
RPM : 7000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.035 lb (15.88g)
0
484 in stock
MF40101V1-1000U-G99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 8.0 CFM (0.224m?min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 27.3 dB(A)
Power (Watts) : 620mW
RPM : 7000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.035 lb (15.88g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 8.0 CFM (0.224m?min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 27.3 dB(A)
Power (Watts) : 620mW
RPM : 7000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.035 lb (15.88g)
0
4636 in stock
MF40101V2-1000U-A99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 7.0 CFM (0.196m?min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 20.6 dB(A)
Power (Watts) : 480mW
RPM : 5800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.034 lb (15.42g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 7.0 CFM (0.196m?min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 20.6 dB(A)
Power (Watts) : 480mW
RPM : 5800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.034 lb (15.42g)
0
738 in stock
MF40101VX-1000U-A99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 9.9 CFM (0.277m?min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 31.4 dB(A)
Power (Watts) : 1.17W
RPM : 8500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.034 lb (15.42g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 9.9 CFM (0.277m?min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 31.4 dB(A)
Power (Watts) : 1.17W
RPM : 8500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.034 lb (15.42g)
0
5405 in stock
MF40101VX-1000U-F99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 9.9 CFM (0.277m?min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 31.4 dB(A)
Power (Watts) : 1.05W
RPM : 8500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.035 lb (15.88g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 9.9 CFM (0.277m?min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 31.4 dB(A)
Power (Watts) : 1.05W
RPM : 8500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.035 lb (15.88g)
0
327 in stock
MF40101VX-1000U-G99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 9.9 CFM (0.277m?min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 31.4 dB(A)
Power (Watts) : 1.05W
RPM : 8500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.034 lb (15.42g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 9.9 CFM (0.277m?min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 31.4 dB(A)
Power (Watts) : 1.05W
RPM : 8500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.034 lb (15.42g)
0
1144 in stock
MF40200V1-1000U-A99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 8.9 CFM (0.249m?min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 25.5 dB(A)
Power (Watts) : 750mW
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 8.9 CFM (0.249m?min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 25.5 dB(A)
Power (Watts) : 750mW
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
248 in stock
MF40200V1-1000U-F99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 8.9 CFM (0.249m?min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 25.5 dB(A)
Power (Watts) : 750mW
RPM : 7000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 8.9 CFM (0.249m?min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 25.5 dB(A)
Power (Watts) : 750mW
RPM : 7000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
185 in stock

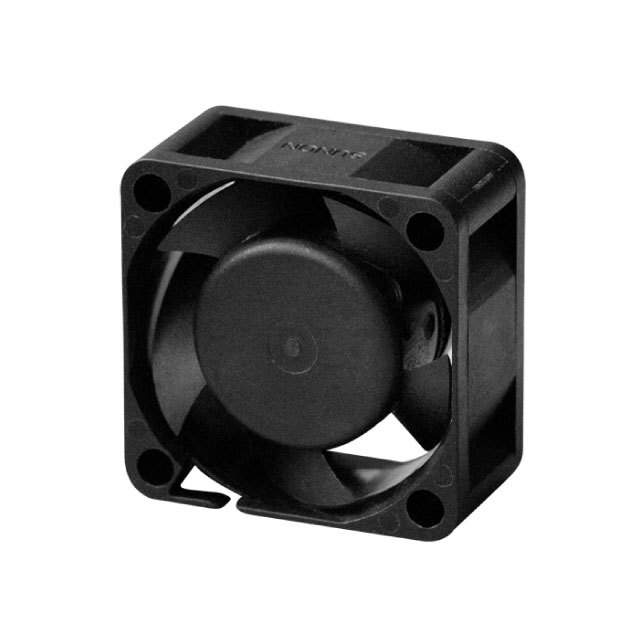

MF40200V1-1000U-G99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 8.9 CFM (0.249m?min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 25.5 dB(A)
Power (Watts) : 750mW
RPM : 7000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 8.9 CFM (0.249m?min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 25.5 dB(A)
Power (Watts) : 750mW
RPM : 7000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
195 in stock

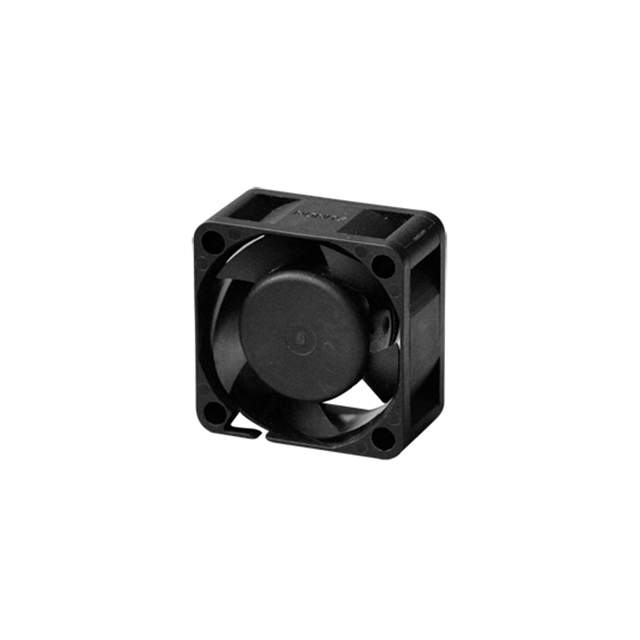

MF40200V2-1000U-A99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 7.7 CFM (0.216m?min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 21.0 dB(A)
Power (Watts) : 540mW
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 7.7 CFM (0.216m?min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 21.0 dB(A)
Power (Watts) : 540mW
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
24 in stock
MF40200V3-1000U-A99
Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 6.3 CFM (0.176m?min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 16.5 dB(A)
Power (Watts) : 380mW
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 6.3 CFM (0.176m?min)
Static Pressure : 0.110 in H2O (27.4 Pa)
Bearing Type : Vapo-Bearing?br/>Fan Type : Tubeaxial
Features : Auto Restart
Noise : 16.5 dB(A)
Power (Watts) : 380mW
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
453 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
