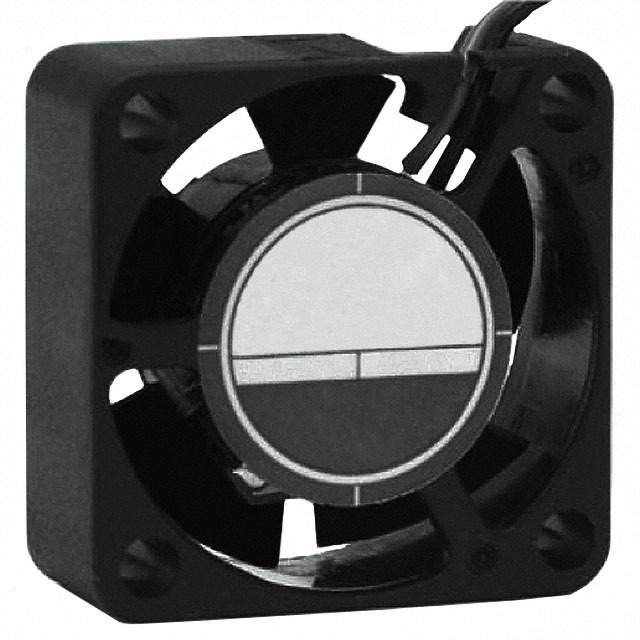

OD2510-05MB
Orion Fans
Manufacturer : Orion Fans
Series : OD2510
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25.5mm L x 25.5mm H
Width : 10.00mm
Air Flow : 2.2 CFM (0.061m?min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 24.0 dB
Power (Watts) : -
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD2510
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25.5mm L x 25.5mm H
Width : 10.00mm
Air Flow : 2.2 CFM (0.061m?min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 24.0 dB
Power (Watts) : -
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
179 in stock
OD2510-12HB
Orion Fans
Manufacturer : Orion Fans
Series : OD2510
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25.5mm L x 25.5mm H
Width : 10.00mm
Air Flow : 2.7 CFM (0.076m?min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB
Power (Watts) : -
RPM : 12000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD2510
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25.5mm L x 25.5mm H
Width : 10.00mm
Air Flow : 2.7 CFM (0.076m?min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.0 dB
Power (Watts) : -
RPM : 12000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
1132 in stock
OD2510-12LB
Orion Fans
Manufacturer : Orion Fans
Series : OD2510
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25.5mm L x 25.5mm H
Width : 10.00mm
Air Flow : 1.8 CFM (0.050m?min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 16.0 dB
Power (Watts) : -
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD2510
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25.5mm L x 25.5mm H
Width : 10.00mm
Air Flow : 1.8 CFM (0.050m?min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 16.0 dB
Power (Watts) : -
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
202 in stock
OD2510-12LLB
Orion Fans
Manufacturer : Orion Fans
Series : OD2510
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25.5mm L x 25.5mm H
Width : 10.00mm
Air Flow : 1.5 CFM (0.042m?min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 15.0 dB(A)
Power (Watts) : 840mW
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD2510
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25.5mm L x 25.5mm H
Width : 10.00mm
Air Flow : 1.5 CFM (0.042m?min)
Static Pressure : 0.070 in H2O (17.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 15.0 dB(A)
Power (Watts) : 840mW
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
60 in stock

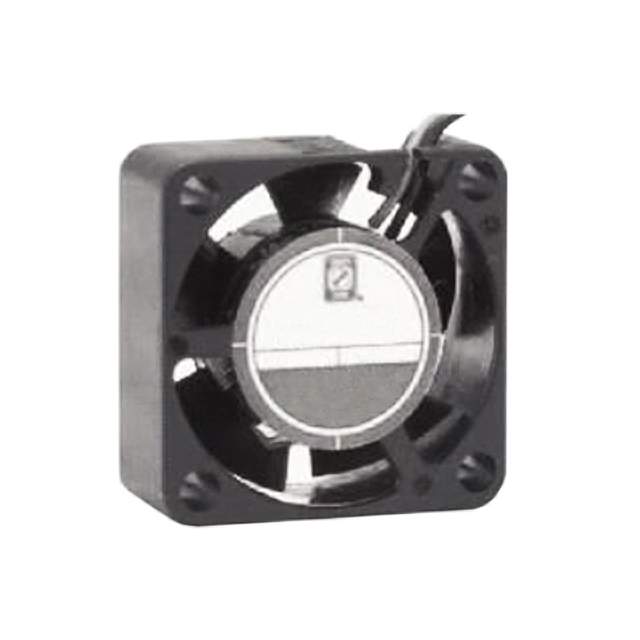

OD2510-12MB
Orion Fans
Manufacturer : Orion Fans
Series : OD2510
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25.5mm L x 25.5mm H
Width : 10.00mm
Air Flow : 2.2 CFM (0.061m?min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 24.0 dB
Power (Watts) : -
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD2510
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25.5mm L x 25.5mm H
Width : 10.00mm
Air Flow : 2.2 CFM (0.061m?min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 24.0 dB
Power (Watts) : -
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -13 ~ 158°F (-25 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
1288 in stock
OD2510-12MB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD2510
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.1 CFM (0.059m?min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 24.0 dB
Power (Watts) : 1.44W
RPM : 10000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.018 lb (8.16g)
Series : OD2510
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.1 CFM (0.059m?min)
Static Pressure : 0.160 in H2O (39.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 24.0 dB
Power (Watts) : 1.44W
RPM : 10000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.018 lb (8.16g)
0
160 in stock

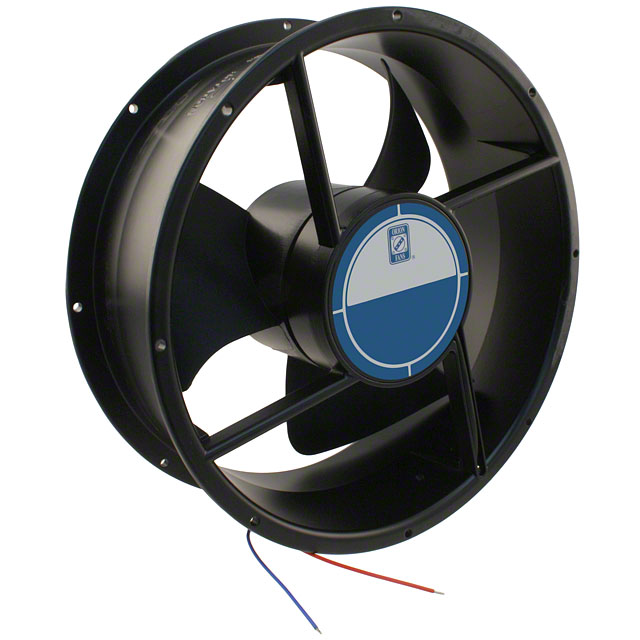

OD254AP-12HB
Orion Fans
Manufacturer : Orion Fans
Series : OD254AP
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 830.0 CFM (23.24m?min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB
Power (Watts) : 65.0W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD254AP
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 830.0 CFM (23.24m?min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB
Power (Watts) : 65.0W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
17 in stock

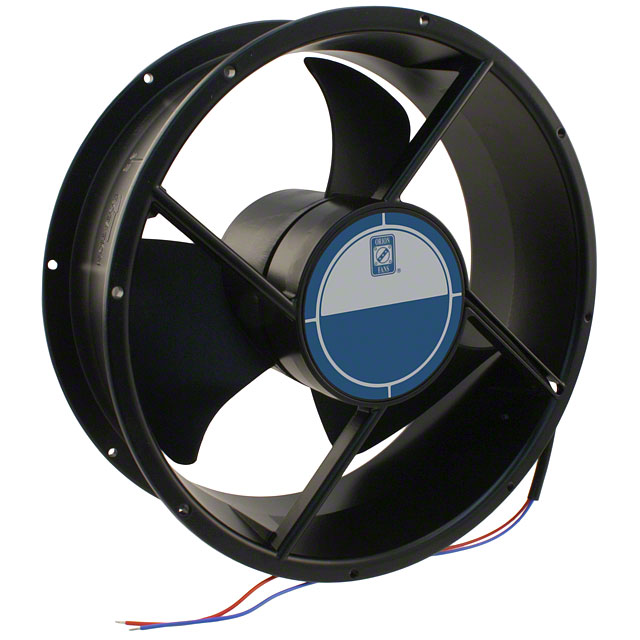

OD254AP-12MB
Orion Fans
Manufacturer : Orion Fans
Series : OD254AP
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 690.0 CFM (19.32m?min)
Static Pressure : 0.580 in H2O (144.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 23.00W
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD254AP
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 690.0 CFM (19.32m?min)
Static Pressure : 0.580 in H2O (144.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 23.00W
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
40 in stock

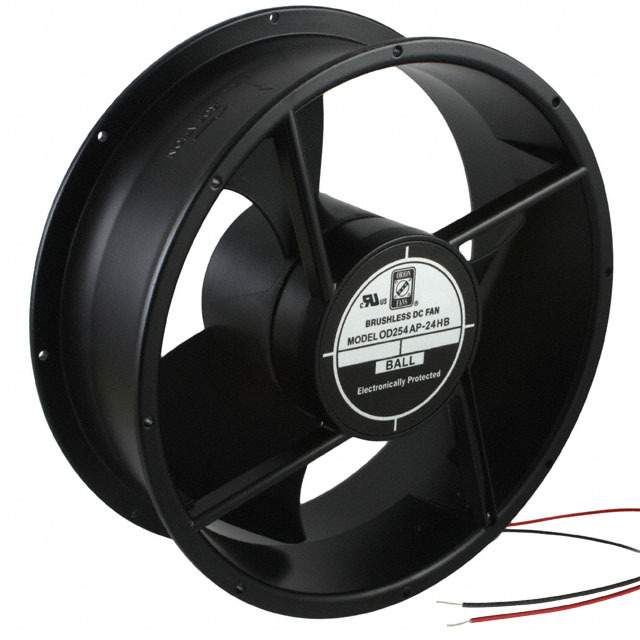

OD254AP-24HB
Orion Fans
Manufacturer : Orion Fans
Series : OD254AP
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 850.0 CFM (23.80m?min)
Static Pressure : 0.830 in H2O (206.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 64.0 dB
Power (Watts) : 64.0W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD254AP
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 850.0 CFM (23.80m?min)
Static Pressure : 0.830 in H2O (206.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 64.0 dB
Power (Watts) : 64.0W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
148 in stock

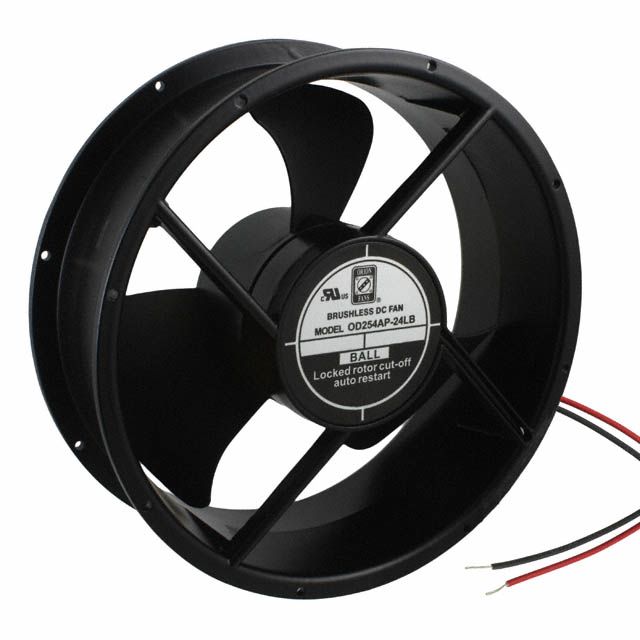

OD254AP-24LB
Orion Fans
Manufacturer : Orion Fans
Series : OD254AP
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 550.0 CFM (15.40m?min)
Static Pressure : 0.370 in H2O (92.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB
Power (Watts) : 13.00W
RPM : 1500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD254AP
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 550.0 CFM (15.40m?min)
Static Pressure : 0.370 in H2O (92.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB
Power (Watts) : 13.00W
RPM : 1500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
16 in stock

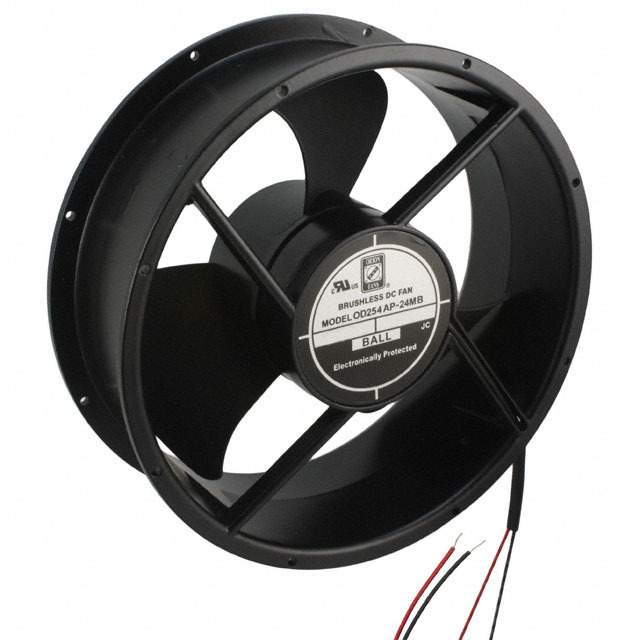

OD254AP-24MB
Orion Fans
Manufacturer : Orion Fans
Series : OD254AP
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 690.0 CFM (19.32m?min)
Static Pressure : 0.580 in H2O (144.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 24.00W
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD254AP
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 690.0 CFM (19.32m?min)
Static Pressure : 0.580 in H2O (144.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 24.00W
RPM : 2000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
121 in stock
OD254AP-24MTB
Orion Fans
Manufacturer : Orion Fans
Series : OD254AP
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 690.0 CFM (19.32m?min)
Static Pressure : 0.580 in H2O (144.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 24.00W
RPM : 2000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD254AP
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 690.0 CFM (19.32m?min)
Static Pressure : 0.580 in H2O (144.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 24.00W
RPM : 2000 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
36 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
