Part Number

Manufacturer

Description

Unit Price

In Stock

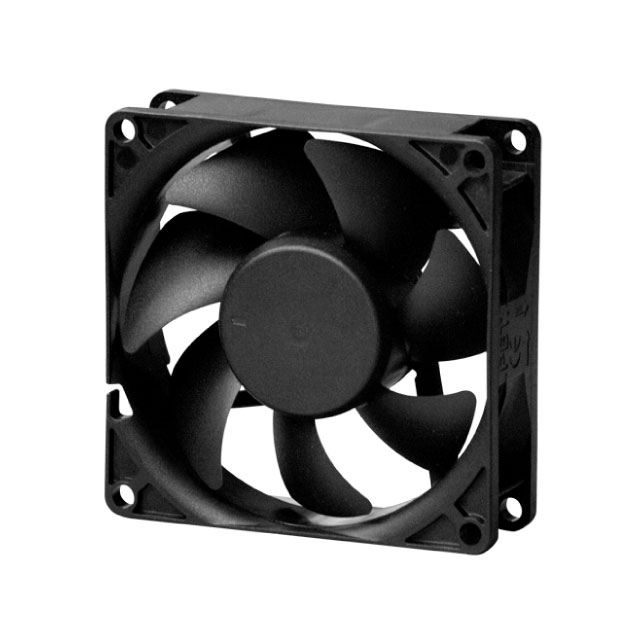

PF80251V1-1000U-F99

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 44.7 dB(A)
Power (Watts) : 3.72W
RPM : 4800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)

194 in stock

PF80251V1-1000U-G99

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 44.7 dB(A)
Power (Watts) : 3.72W
RPM : 4800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)

173 in stock

PF80251V3-1000U-F99

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 41.5 dB(A)
Power (Watts) : 2.40W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)

158 in stock

PF80251V3-1000U-G99

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 41.5 dB(A)
Power (Watts) : 2.40W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)

196 in stock

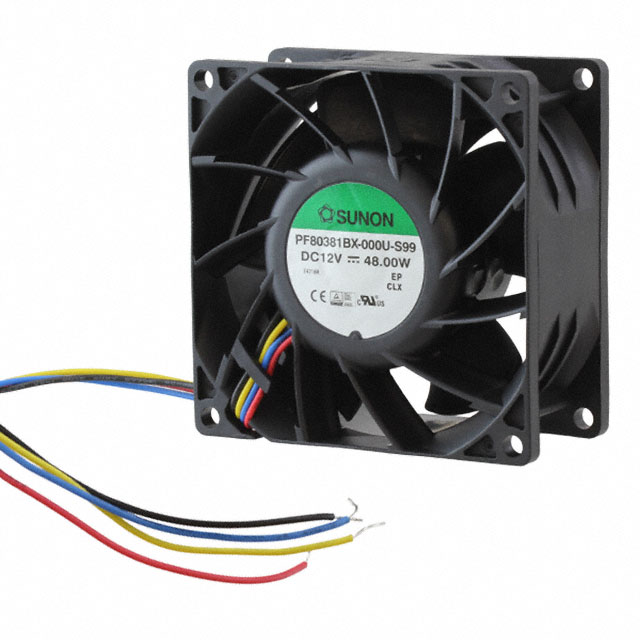

PF80381BX-000U-S99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 141.9 CFM (3.97m鲁/min)
Static Pressure : 3.200 in H2O (797.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 74.1 dB(A)
Power (Watts) : 48.00W
RPM : 14000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.43 lb (195.04g)

1250 in stock

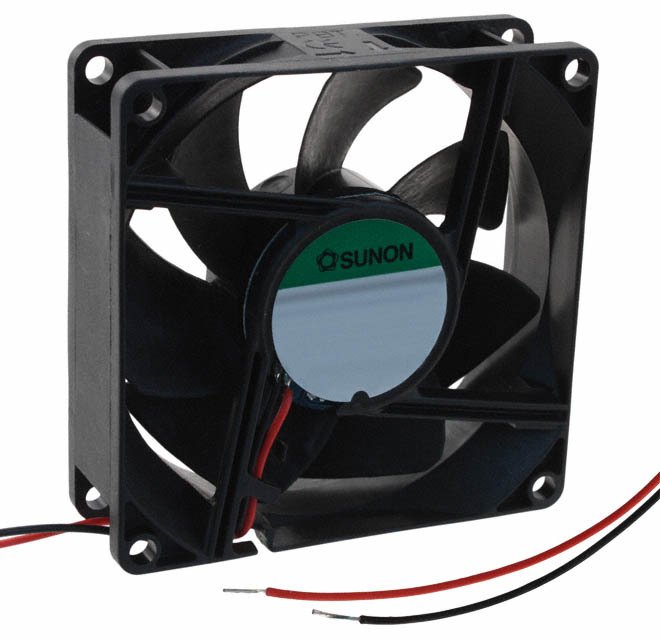

PF92251B1-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 47.0 dB(A)
Power (Watts) : 4.70W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.216 lb (97.98g)

776 in stock

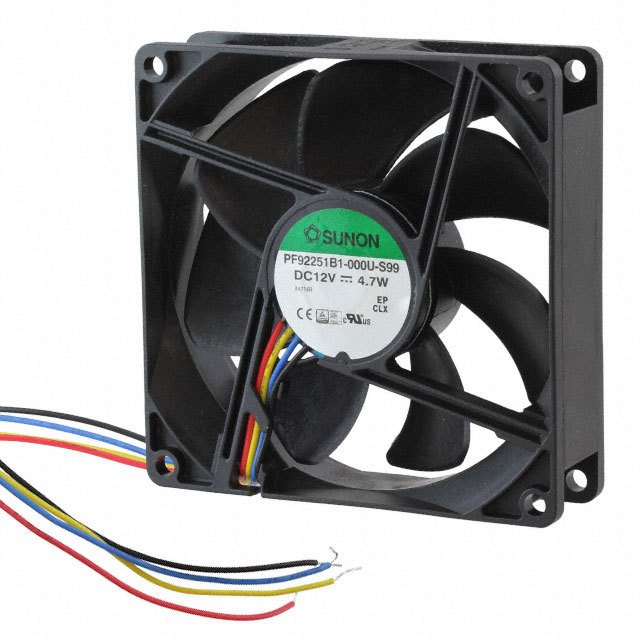

PF92251B1-000U-S99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 47.0 dB(A)
Power (Watts) : 4.70W
RPM : 4500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.228 lb (103.42g)

8386 in stock

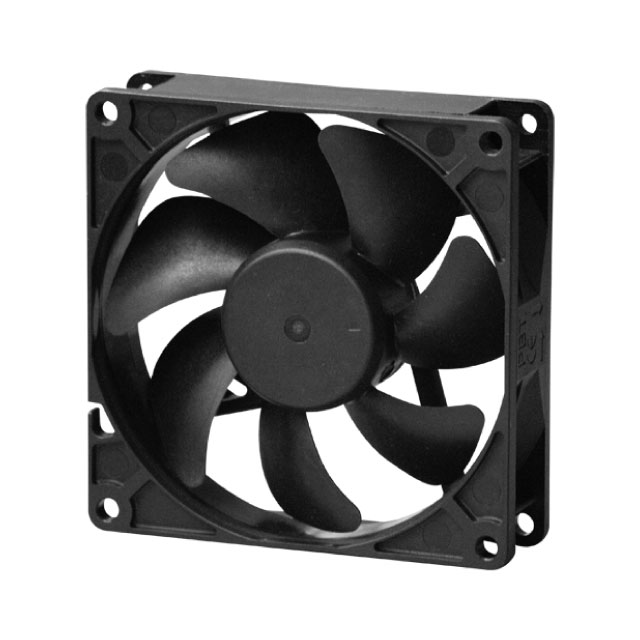

PF92251V1-1000U-F99

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 45.5 dB(A)
Power (Watts) : 4.44W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.234 lb (106.14g)

172 in stock

PF92251V1-1000U-G99

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 45.5 dB(A)
Power (Watts) : 4.44W
RPM : 4500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.234 lb (106.14g)

170 in stock

PF92251V3-1000U-F99

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 65.0 CFM (1.82m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 41.6 dB(A)
Power (Watts) : 2.76W
RPM : 3900 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, TUV
Weight : 0.234 lb (106.14g)

190 in stock

PF92251V3-1000U-G99

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 65.0 CFM (1.82m鲁/min)
Static Pressure : 0.250 in H2O (62.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 41.6 dB(A)
Power (Watts) : 2.76W
RPM : 3900 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.234 lb (106.14g)

178 in stock

PF92381BX-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 182.4 CFM (5.11m鲁/min)
Static Pressure : 2.940 in H2O (732.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 74.1 dB(A)
Power (Watts) : 48.00W
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.463 lb (210.01g)

30 in stock
