Welcome to Weijie Semiconductor
Part Number
Manufacturer
Description
Unit Price
In Stock
PFB0924DHE
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 175.0 CFM (4.90m鲁/min)
Static Pressure : 1.819 in H2O (453.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.5 dB(A)
Power (Watts) : 34.80W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 175.0 CFM (4.90m鲁/min)
Static Pressure : 1.819 in H2O (453.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.5 dB(A)
Power (Watts) : 34.80W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
0
100 in stock

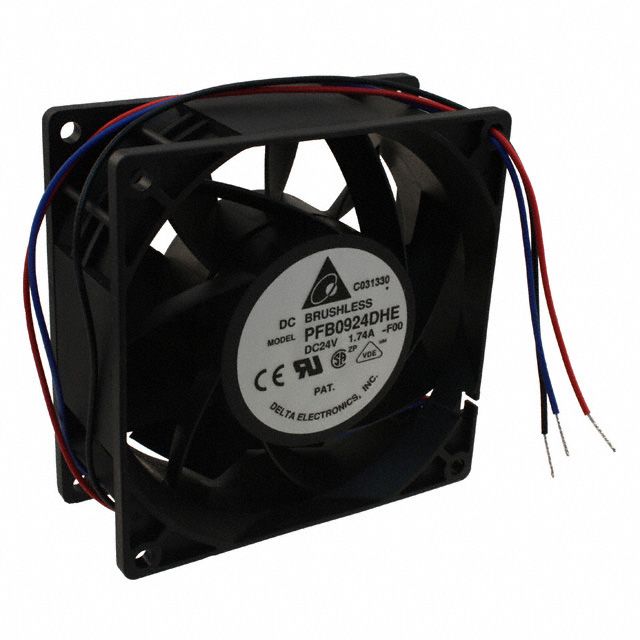

PFB0924DHE-F00
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 175.0 CFM (4.90m鲁/min)
Static Pressure : 1.819 in H2O (453.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 66.5 dB(A)
Power (Watts) : 34.80W
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 175.0 CFM (4.90m鲁/min)
Static Pressure : 1.819 in H2O (453.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 66.5 dB(A)
Power (Watts) : 34.80W
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
0
233 in stock
PFB0924DHE-R00
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 175.0 CFM (4.90m鲁/min)
Static Pressure : 1.819 in H2O (453.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 66.5 dB(A)
Power (Watts) : 34.80W
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 175.0 CFM (4.90m鲁/min)
Static Pressure : 1.819 in H2O (453.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 66.5 dB(A)
Power (Watts) : 34.80W
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
0
87 in stock

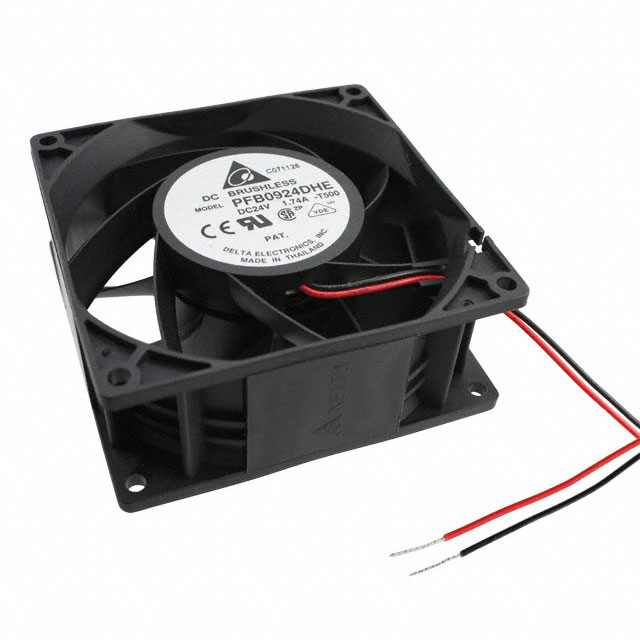

PFB0924DHE-T500
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 175.0 CFM (4.90m鲁/min)
Static Pressure : 1.819 in H2O (453.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.5 dB(A)
Power (Watts) : 34.80W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 175.0 CFM (4.90m鲁/min)
Static Pressure : 1.819 in H2O (453.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.5 dB(A)
Power (Watts) : 34.80W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
0
528 in stock

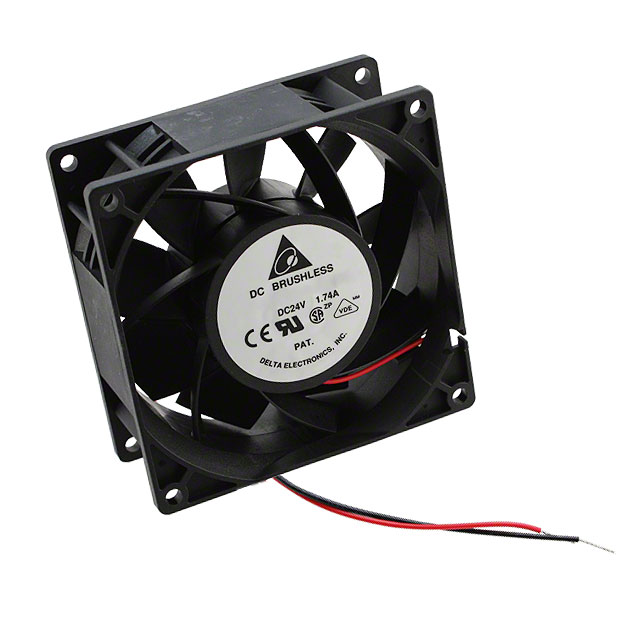

PFB0924GHE
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 129.3 CFM (3.62m鲁/min)
Static Pressure : 1.015 in H2O (252.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.5 dB(A)
Power (Watts) : 15.12W
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 129.3 CFM (3.62m鲁/min)
Static Pressure : 1.015 in H2O (252.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.5 dB(A)
Power (Watts) : 15.12W
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
0
66 in stock
PFB0948EHE
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 103.7 CFM (2.90m鲁/min)
Static Pressure : 0.691 in H2O (172.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 10.08W
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
Series : PFB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 103.7 CFM (2.90m鲁/min)
Static Pressure : 0.691 in H2O (172.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 10.08W
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
0
36 in stock

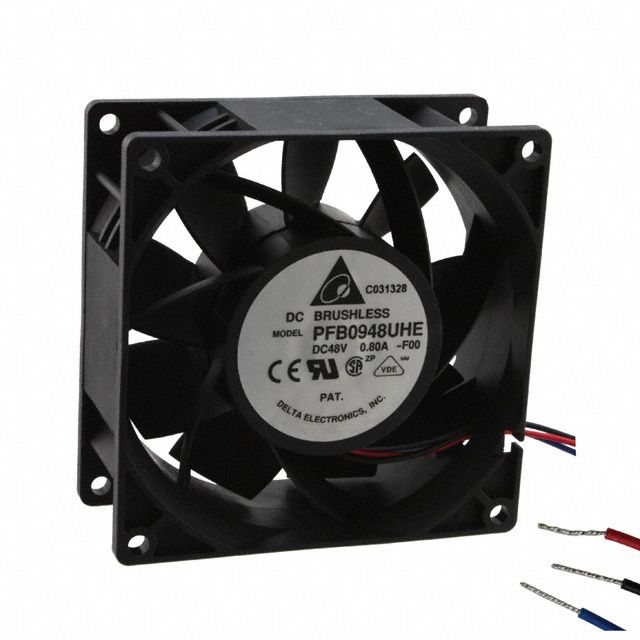

PFB0948UHE-F00
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 153.5 CFM (4.30m鲁/min)
Static Pressure : 1.449 in H2O (360.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 28.80W
RPM : 7000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
Series : PFB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 153.5 CFM (4.30m鲁/min)
Static Pressure : 1.449 in H2O (360.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 28.80W
RPM : 7000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
0
92 in stock

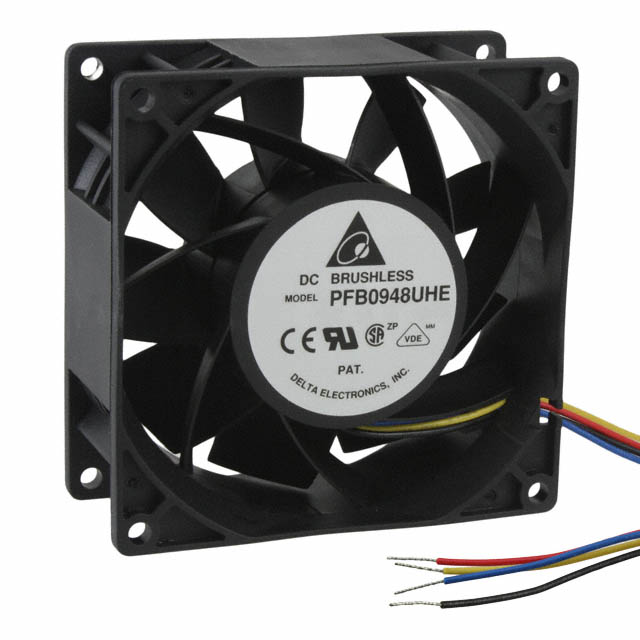

PFB0948UHE-TP16
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 153.5 CFM (4.30m鲁/min)
Static Pressure : 1.449 in H2O (360.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 25.00W
RPM : 7000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
Series : PFB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 153.5 CFM (4.30m鲁/min)
Static Pressure : 1.449 in H2O (360.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 25.00W
RPM : 7000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.551 lb (249.93g)
0
4355 in stock

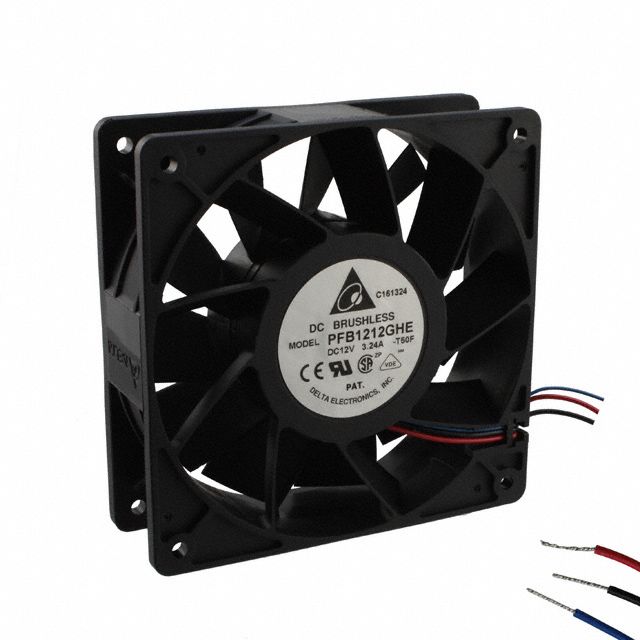

PFB1212GHE-T50F
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 217.8 CFM (6.10m鲁/min)
Static Pressure : 1.075 in H2O (267.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 32.40W
RPM : 4800 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.838 lb (380.11g)
Series : PFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 217.8 CFM (6.10m鲁/min)
Static Pressure : 1.075 in H2O (267.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 64.0 dB(A)
Power (Watts) : 32.40W
RPM : 4800 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.838 lb (380.11g)
0
94 in stock

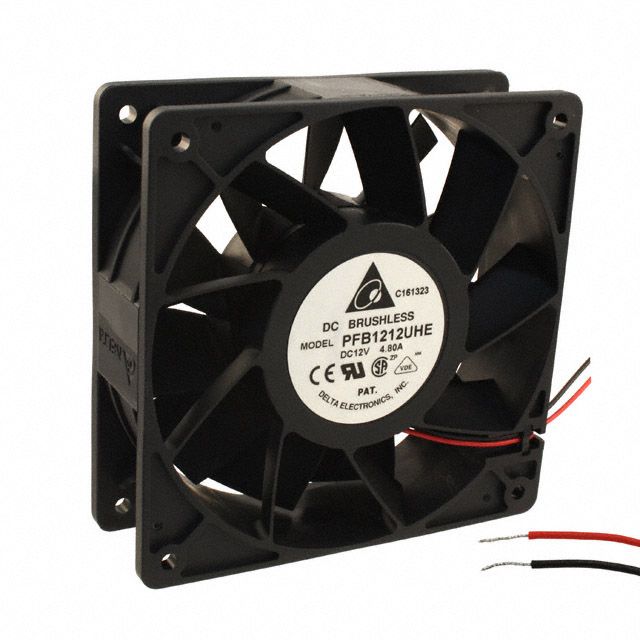

PFB1212UHE
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 252.9 CFM (7.08m鲁/min)
Static Pressure : 1.412 in H2O (351.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.5 dB(A)
Power (Watts) : 48.00W
RPM : 5500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.838 lb (380.11g)
Series : PFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 252.9 CFM (7.08m鲁/min)
Static Pressure : 1.412 in H2O (351.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 66.5 dB(A)
Power (Watts) : 48.00W
RPM : 5500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.838 lb (380.11g)
0
100 in stock

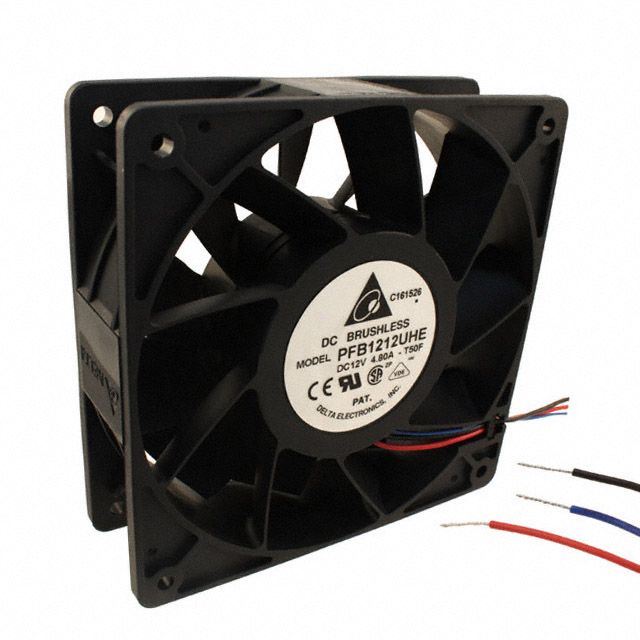

PFB1212UHE-T50F
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 252.8 CFM (7.08m鲁/min)
Static Pressure : 1.412 in H2O (351.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 66.5 dB(A)
Power (Watts) : 48.00W
RPM : 5500 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.838 lb (380.11g)
Series : PFB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 252.8 CFM (7.08m鲁/min)
Static Pressure : 1.412 in H2O (351.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 66.5 dB(A)
Power (Watts) : 48.00W
RPM : 5500 RPM
Termination : 3 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.838 lb (380.11g)
0
100 in stock

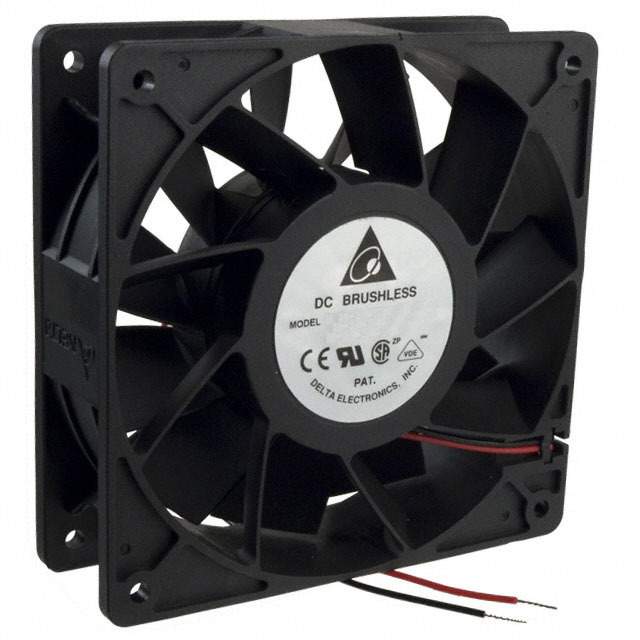

PFB1224EHE
Delta Electronics
Manufacturer : Delta Electronics
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 181.3 CFM (5.08m鲁/min)
Static Pressure : 0.751 in H2O (187.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 21.60W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.838 lb (380.11g)
Series : PFB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 181.3 CFM (5.08m鲁/min)
Static Pressure : 0.751 in H2O (187.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 21.60W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.838 lb (380.11g)
0
168 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
