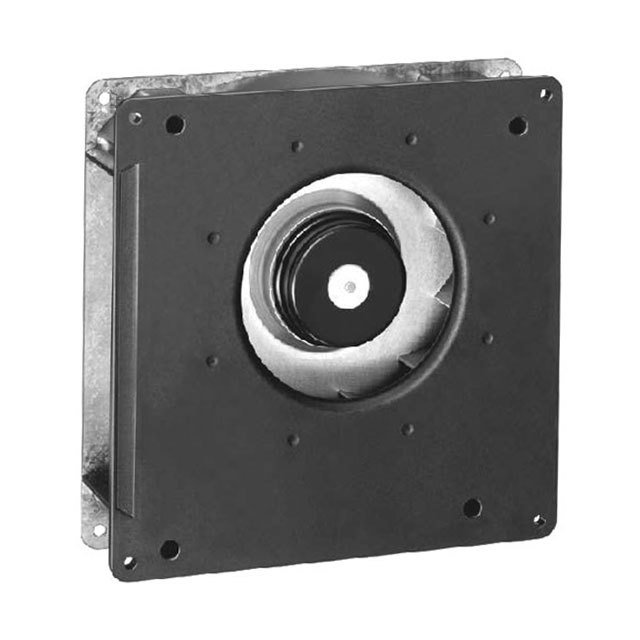

RG125-19/12N/12
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG125N
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 180mm L x 180mm H
Width : 40.00mm
Air Flow : 51.5 CFM (1.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower, Centrifugal
Features : Speed Sensor (Tach)
Noise : -
Power (Watts) : 5.20W
RPM : 2550 RPM
Termination : 3 Wire Leads
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 167°F (-30 ~ 75°C)
Approvals : -
Weight : 1.6 lbs (725.7g)
Series : RG125N
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 180mm L x 180mm H
Width : 40.00mm
Air Flow : 51.5 CFM (1.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower, Centrifugal
Features : Speed Sensor (Tach)
Noise : -
Power (Watts) : 5.20W
RPM : 2550 RPM
Termination : 3 Wire Leads
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 167°F (-30 ~ 75°C)
Approvals : -
Weight : 1.6 lbs (725.7g)
0
21 in stock
RG125-19/14N
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG125N
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 180mm L x 180mm H
Width : 40.00mm
Air Flow : 51.5 CFM (1.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 5.00W
RPM : 2550 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 167°F (-30 ~ 75°C)
Approvals : -
Weight : 1.6 lbs (725.7g)
Series : RG125N
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 180mm L x 180mm H
Width : 40.00mm
Air Flow : 51.5 CFM (1.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 5.00W
RPM : 2550 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 167°F (-30 ~ 75°C)
Approvals : -
Weight : 1.6 lbs (725.7g)
0
25 in stock
RG125-19/14N/2
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG125N
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 180mm L x 180mm H
Width : 40.00mm
Air Flow : 51.5 CFM (1.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 58.0 dB(A)
Power (Watts) : 5.00W
RPM : 2550 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 167°F (-30 ~ 75°C)
Approvals : -
Weight : 1.6 lbs (725.7g)
Series : RG125N
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 180mm L x 180mm H
Width : 40.00mm
Air Flow : 51.5 CFM (1.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 58.0 dB(A)
Power (Watts) : 5.00W
RPM : 2550 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 167°F (-30 ~ 75°C)
Approvals : -
Weight : 1.6 lbs (725.7g)
0
152 in stock
RG125-19/18N
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG125N
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 180mm L x 180mm H
Width : 40.00mm
Air Flow : 51.5 CFM (1.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 5.00W
RPM : 2550 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 167°F (-30 ~ 75°C)
Approvals : -
Weight : 1.6 lbs (725.7g)
Series : RG125N
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 180mm L x 180mm H
Width : 40.00mm
Air Flow : 51.5 CFM (1.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 5.00W
RPM : 2550 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -22 ~ 167°F (-30 ~ 75°C)
Approvals : -
Weight : 1.6 lbs (725.7g)
0
25 in stock
RG160-28/12N
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG160N
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 66.0 dB(A)
Power (Watts) : 21.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
Series : RG160N
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 66.0 dB(A)
Power (Watts) : 21.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
0
25 in stock
RG160-28/12N/12
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG160N
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 66.0 dB(A)
Power (Watts) : 21.00W
RPM : 2850 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
Series : RG160N
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 66.0 dB(A)
Power (Watts) : 21.00W
RPM : 2850 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
0
23 in stock

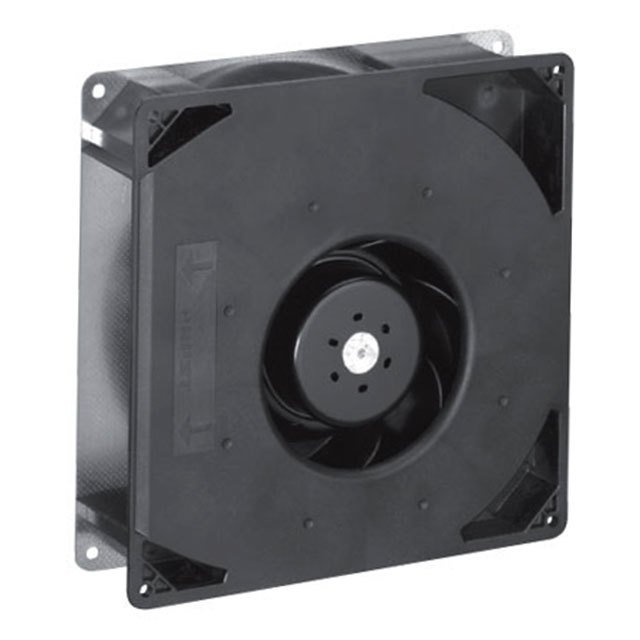

RG160-28/14N
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG160N
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 66.0 dB(A)
Power (Watts) : 20.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
Series : RG160N
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 66.0 dB(A)
Power (Watts) : 20.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
0
20 in stock

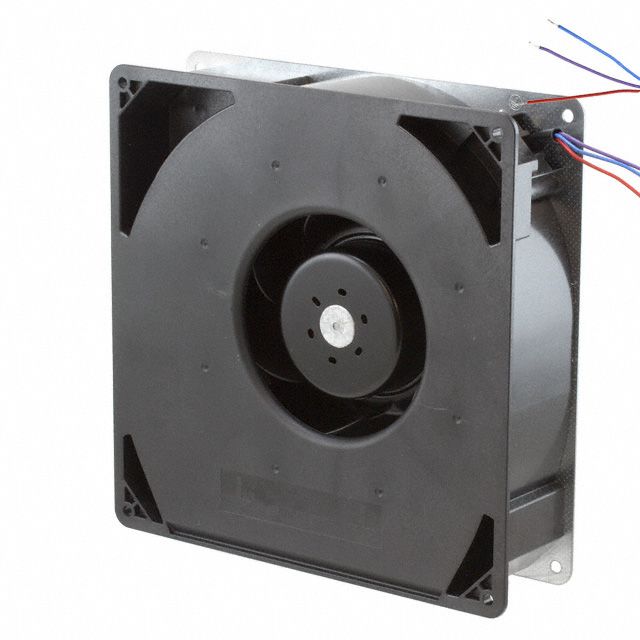

RG160-28/14NTDA
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG160NTD
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 181.3 CFM (5.08m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : Temperature Sensor
Noise : -
Power (Watts) : 64.0W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : IP20
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
Series : RG160NTD
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 181.3 CFM (5.08m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : Temperature Sensor
Noise : -
Power (Watts) : 64.0W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : IP20
Operating Temperature : -4 ~ 140°F (-20 ~ 60°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
0
311 in stock

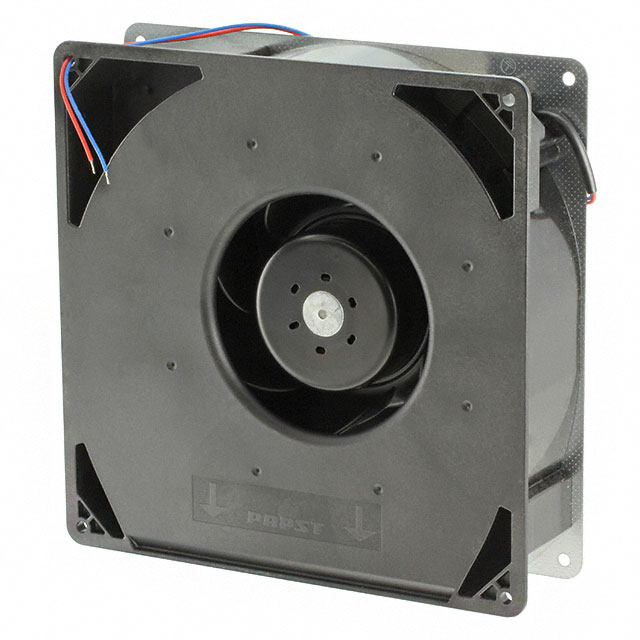

RG160-28/14NU
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG160NU
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : -
Power (Watts) : 20.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 131°F (-20 ~ 55°C)
Approvals : UL
Weight : 3 lbs (1.4kg)
Series : RG160NU
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : -
Noise : -
Power (Watts) : 20.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 131°F (-20 ~ 55°C)
Approvals : UL
Weight : 3 lbs (1.4kg)
0
82 in stock
RG160-28/18N
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG160N
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 66.0 dB(A)
Power (Watts) : 20.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
Series : RG160N
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 66.0 dB(A)
Power (Watts) : 20.00W
RPM : 2850 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
0
25 in stock
RG160-28/18N/12
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG160N
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 66.0 dB(A)
Power (Watts) : 20.00W
RPM : 2850 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
Series : RG160N
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 123.0 CFM (3.44m鲁/min)
Static Pressure : -
Bearing Type : Ball
Fan Type : Blower
Features : Speed Sensor (Tach)
Noise : 66.0 dB(A)
Power (Watts) : 20.00W
RPM : 2850 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : -
Weight : 3.1 lbs (1.4kg)
0
92 in stock

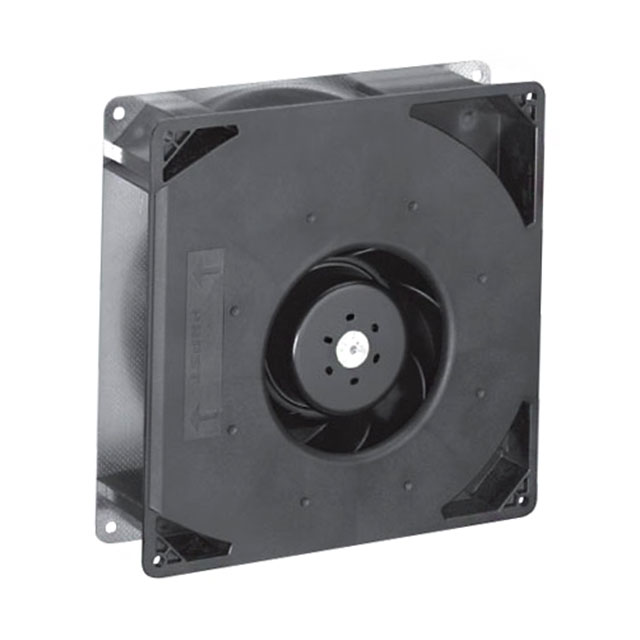

RG160-28/18N/2TDPU-331
ebm-papst Inc.
Manufacturer : ebm-papst Inc.
Series : RG160NTDU
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 182.5 CFM (5.11m鲁/min)
Static Pressure : 3.252 in H2O (810.0 Pa)
Bearing Type : Ball
Fan Type : Blower, Centrifugal
Features : Auto Restart, Capacitor, PWM Control, Locked Rotor Protection, Speed Sensor (Tach)
Noise : 75.0 dB(A)
Power (Watts) : 57.6W
RPM : 4270 RPM
Termination : 5 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : CCC, CE, EAC, UL
Weight : 3.5 lbs (1.6kg)
Series : RG160NTDU
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 220mm L x 220mm H
Width : 56.00mm
Air Flow : 182.5 CFM (5.11m鲁/min)
Static Pressure : 3.252 in H2O (810.0 Pa)
Bearing Type : Ball
Fan Type : Blower, Centrifugal
Features : Auto Restart, Capacitor, PWM Control, Locked Rotor Protection, Speed Sensor (Tach)
Noise : 75.0 dB(A)
Power (Watts) : 57.6W
RPM : 4270 RPM
Termination : 5 Wire Leads
Ingress Protection : IP68 - Dust Tight, Waterproof
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : CCC, CE, EAC, UL
Weight : 3.5 lbs (1.6kg)
0
56 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
