Part Number
Manufacturer
Description
Unit Price
In Stock

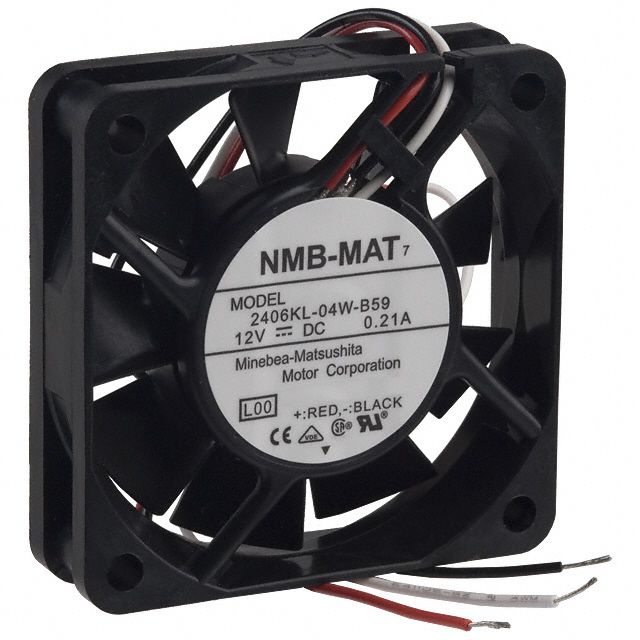

2406KL-04W-B59-L00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06015KA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 18.3 CFM (0.512m鲁/min)
Static Pressure : 0.205 in H2O (51.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 34.0 dB
Power (Watts) : 1.92W
RPM : 4600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.099 lb (44.91g)
Series : 06015KA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 18.3 CFM (0.512m鲁/min)
Static Pressure : 0.205 in H2O (51.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 34.0 dB
Power (Watts) : 1.92W
RPM : 4600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.099 lb (44.91g)
0
252 in stock
2406KL-05W-B10-L00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06015KA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 6.7 CFM (0.188m鲁/min)
Static Pressure : 0.034 in H2O (8.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 19.0 dB
Power (Watts) : 960mW
RPM : 1800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.099 lb (44.91g)
Series : 06015KA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 6.7 CFM (0.188m鲁/min)
Static Pressure : 0.034 in H2O (8.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 19.0 dB
Power (Watts) : 960mW
RPM : 1800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.099 lb (44.91g)
0
1 in stock
2406KL-05W-B30-L00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06015KA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 14.1 CFM (0.395m鲁/min)
Static Pressure : 0.125 in H2O (31.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : 1.44W
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.099 lb (44.91g)
Series : 06015KA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 14.1 CFM (0.395m鲁/min)
Static Pressure : 0.125 in H2O (31.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 28.0 dB
Power (Watts) : 1.44W
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.099 lb (44.91g)
0
3528 in stock

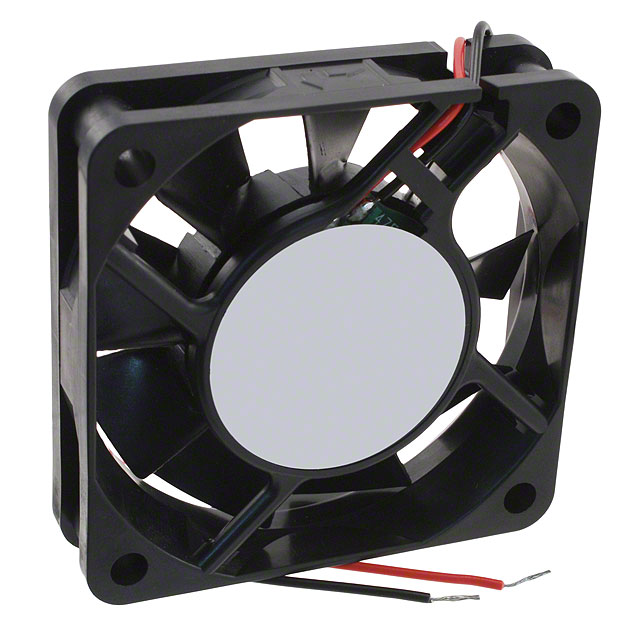

2406KL-05W-B50-L00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 06015KA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 18.3 CFM (0.512m鲁/min)
Static Pressure : 0.205 in H2O (51.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.0 dB
Power (Watts) : 2.40W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.099 lb (44.91g)
Series : 06015KA
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 15.00mm
Air Flow : 18.3 CFM (0.512m鲁/min)
Static Pressure : 0.205 in H2O (51.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 34.0 dB
Power (Watts) : 2.40W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 140°F (-10 ~ 60°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.099 lb (44.91g)
0
5445 in stock
2408NL-04W-B10-L00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 10.9 CFM (0.305m鲁/min)
Static Pressure : 0.067 in H2O (16.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.5 dB
Power (Watts) : 600mW
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 10.9 CFM (0.305m鲁/min)
Static Pressure : 0.067 in H2O (16.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.5 dB
Power (Watts) : 600mW
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
0
200 in stock

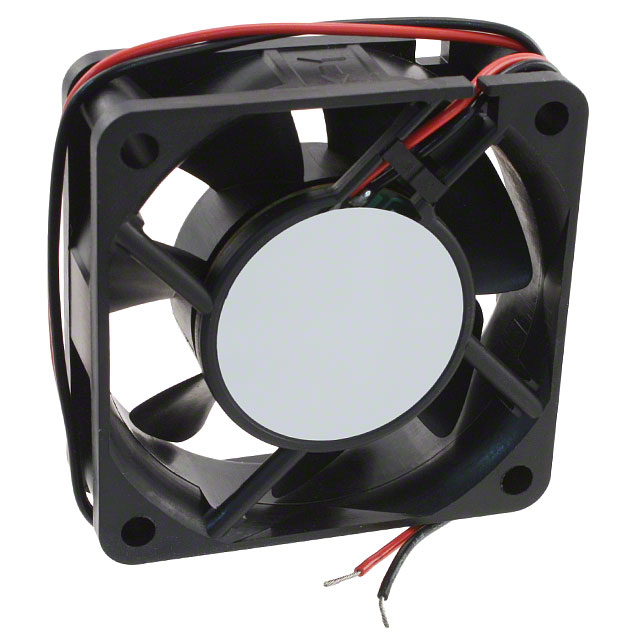

2408NL-04W-B30-L00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 14.8 CFM (0.414m鲁/min)
Static Pressure : 0.115 in H2O (28.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 27.0 dB
Power (Watts) : 960mW
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 14.8 CFM (0.414m鲁/min)
Static Pressure : 0.115 in H2O (28.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 27.0 dB
Power (Watts) : 960mW
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
0
144 in stock
2408NL-04W-B30-P00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 14.8 CFM (0.414m鲁/min)
Static Pressure : 0.115 in H2O (28.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 27.0 dB
Power (Watts) : 960mW
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 14.8 CFM (0.414m鲁/min)
Static Pressure : 0.115 in H2O (28.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 27.0 dB
Power (Watts) : 960mW
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
0
100 in stock
2408NL-04W-B40-P00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 15.9 CFM (0.445m鲁/min)
Static Pressure : 0.133 in H2O (33.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 29.0 dB
Power (Watts) : 1.08W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 15.9 CFM (0.445m鲁/min)
Static Pressure : 0.133 in H2O (33.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 29.0 dB
Power (Watts) : 1.08W
RPM : 4000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
0
232 in stock
2408NL-04W-B50-L00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 17.6 CFM (0.493m鲁/min)
Static Pressure : 0.162 in H2O (40.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.5 dB
Power (Watts) : 1.32W
RPM : 4400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 17.6 CFM (0.493m鲁/min)
Static Pressure : 0.162 in H2O (40.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.5 dB
Power (Watts) : 1.32W
RPM : 4400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
0
1563 in stock
2408NL-04W-B50-P00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 17.6 CFM (0.493m鲁/min)
Static Pressure : 0.162 in H2O (40.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.5 dB
Power (Watts) : 1.32W
RPM : 4400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 17.6 CFM (0.493m鲁/min)
Static Pressure : 0.162 in H2O (40.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 31.5 dB
Power (Watts) : 1.32W
RPM : 4400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
0
764 in stock

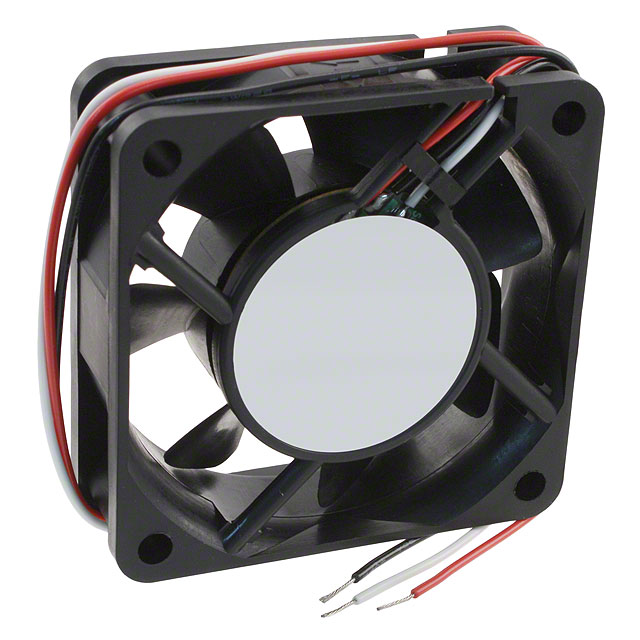

2408NL-04W-B59-P00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 17.6 CFM (0.493m鲁/min)
Static Pressure : 0.162 in H2O (40.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 31.5 dB
Power (Watts) : 1.32W
RPM : 4400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
Series : 2408NL
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 17.6 CFM (0.493m鲁/min)
Static Pressure : 0.162 in H2O (40.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 31.5 dB
Power (Watts) : 1.32W
RPM : 4400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
0
29 in stock
2408NL-05W-B10-L00
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 2408NL
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 10.9 CFM (0.305m鲁/min)
Static Pressure : 0.067 in H2O (16.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.5 dB
Power (Watts) : 960mW
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
Series : 2408NL
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 10.9 CFM (0.305m鲁/min)
Static Pressure : 0.067 in H2O (16.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 22.5 dB
Power (Watts) : 960mW
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CSA, UL, VDE
Weight : 0.187 lb (84.82g)
0
191 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
