Part Number
Manufacturer
Description
Unit Price
In Stock

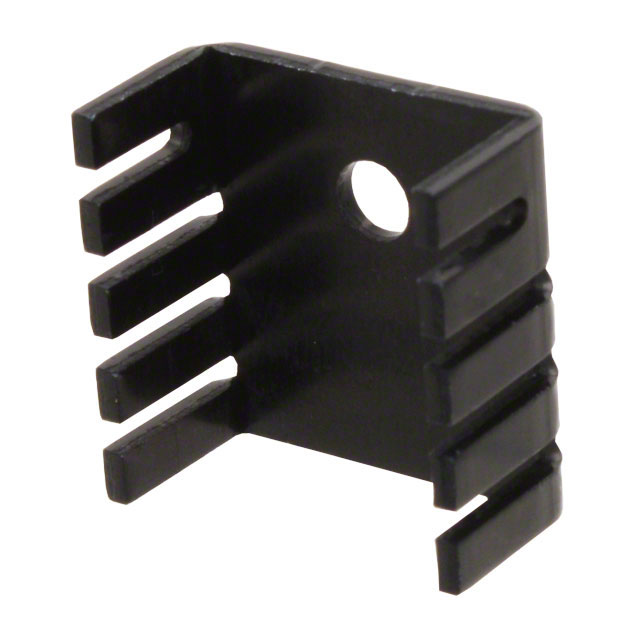

507302B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Square, Fins
Length : 0.750" (19.05mm)
Width : 0.750" (19.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.380" (9.65mm)
Power Dissipation @ Temperature Rise : 2.5W @ 60°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 24.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Square, Fins
Length : 0.750" (19.05mm)
Width : 0.750" (19.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.380" (9.65mm)
Power Dissipation @ Temperature Rise : 2.5W @ 60°C
Thermal Resistance @ Forced Air Flow : 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 24.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
54724 in stock

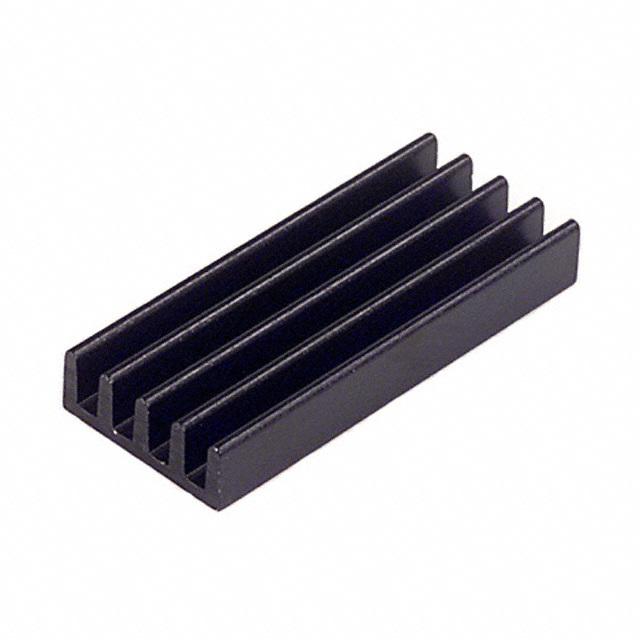

508500B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : 24-DIP
Attachment Method : Thermal Tape, Adhesive (Not Included)
Shape : Rectangular, Fins
Length : 1.250" (31.75mm)
Width : 0.530" (13.46mm)
Diameter : -
Height Off Base (Height of Fin) : 0.190" (4.83mm)
Power Dissipation @ Temperature Rise : 1.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 15.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 34.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : 24-DIP
Attachment Method : Thermal Tape, Adhesive (Not Included)
Shape : Rectangular, Fins
Length : 1.250" (31.75mm)
Width : 0.530" (13.46mm)
Diameter : -
Height Off Base (Height of Fin) : 0.190" (4.83mm)
Power Dissipation @ Temperature Rise : 1.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 15.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 34.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
20140 in stock

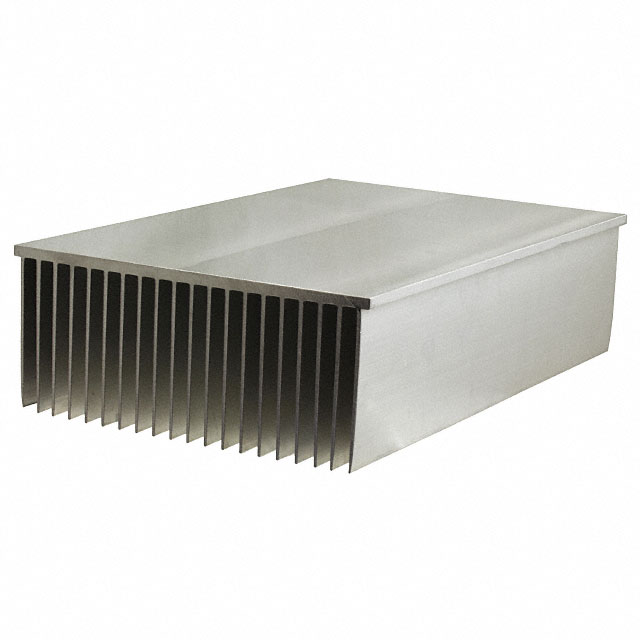

510-12M
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 12.000" (304.80mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.106" (78.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.24°C/W
Material : Aluminum
Material Finish : -
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 12.000" (304.80mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.106" (78.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.24°C/W
Material : Aluminum
Material Finish : -
0
18 in stock

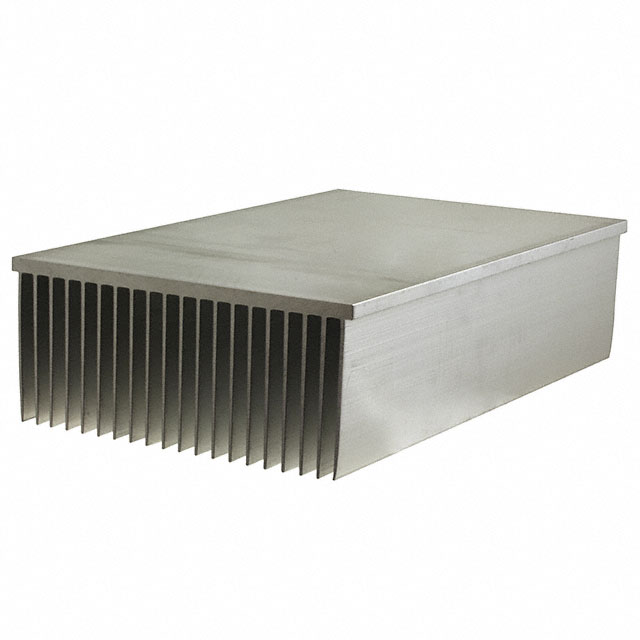

510-12U
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 12.000" (304.80mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.136" (79.65mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.24°C/W
Material : Aluminum
Material Finish : -
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 12.000" (304.80mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.136" (79.65mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.24°C/W
Material : Aluminum
Material Finish : -
0
23 in stock

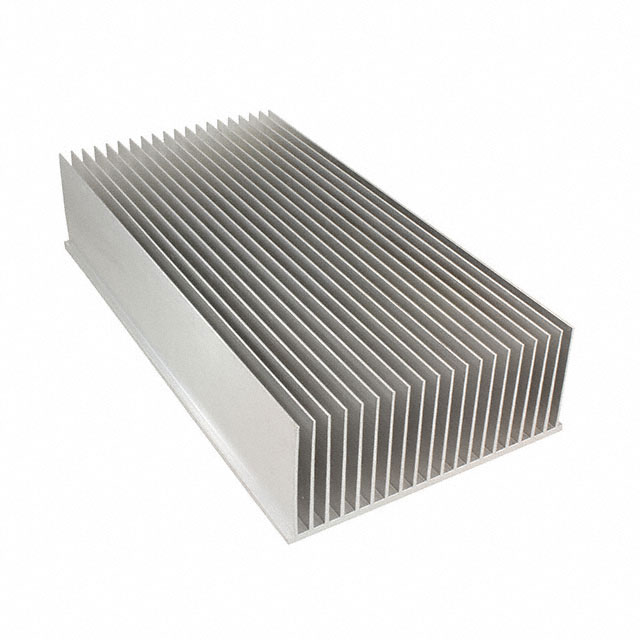

510-14M
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 14.000" (355.60mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.106" (78.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.21°C/W
Material : Aluminum
Material Finish : -
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 14.000" (355.60mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.106" (78.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.21°C/W
Material : Aluminum
Material Finish : -
0
7 in stock

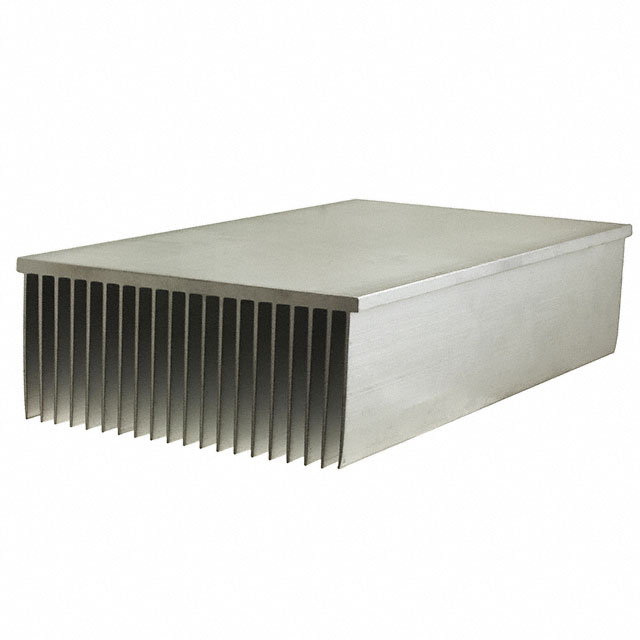

510-14U
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 14.000" (355.60mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.136" (79.65mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.21°C/W
Material : Aluminum
Material Finish : -
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 14.000" (355.60mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.136" (79.65mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.21°C/W
Material : Aluminum
Material Finish : -
0
18 in stock

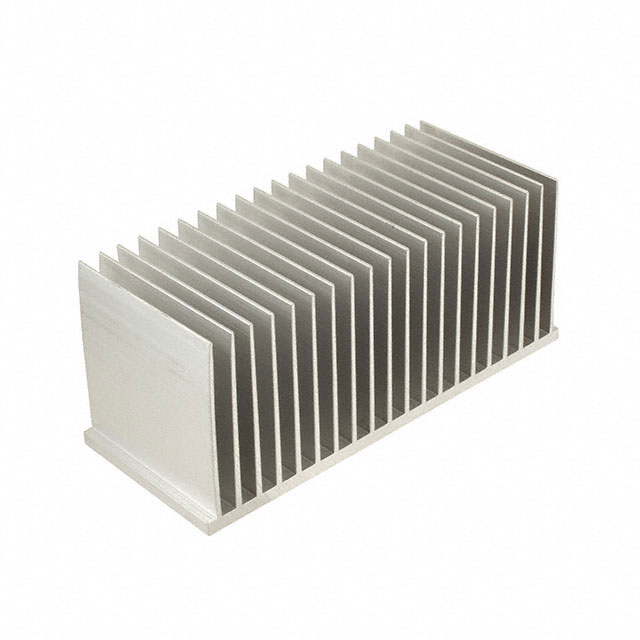

510-3M
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 510
Part Status : Active
Type : Top Mount
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.106" (78.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.56°C/W
Material : Aluminum
Material Finish : -
Series : 510
Part Status : Active
Type : Top Mount
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.106" (78.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.56°C/W
Material : Aluminum
Material Finish : -
0
25 in stock

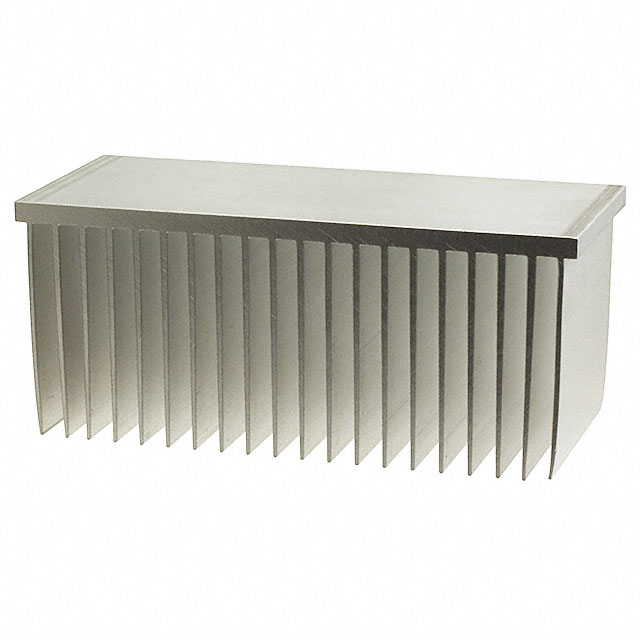

510-3U
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 510
Part Status : Active
Type : Top Mount
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.136" (79.65mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.56°C/W
Material : Aluminum
Material Finish : -
Series : 510
Part Status : Active
Type : Top Mount
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.136" (79.65mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.56°C/W
Material : Aluminum
Material Finish : -
0
48 in stock

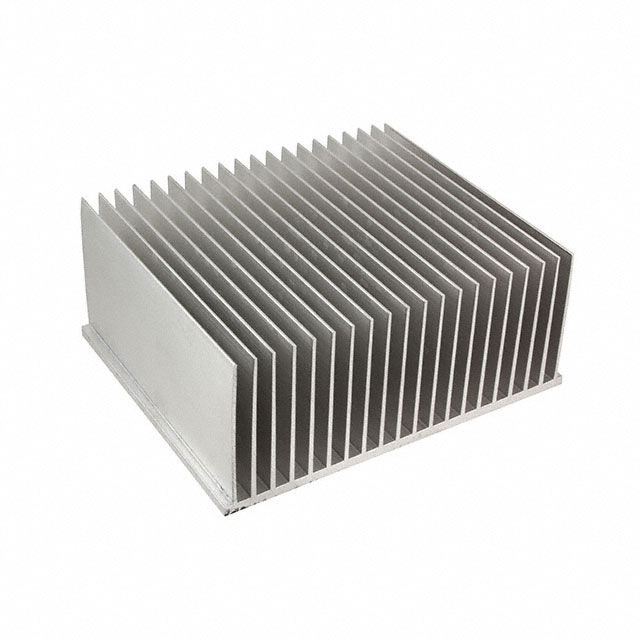

510-6M
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 6.000" (152.40mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.106" (78.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.38°C/W
Material : Aluminum
Material Finish : -
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 6.000" (152.40mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.106" (78.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.38°C/W
Material : Aluminum
Material Finish : -
0
77 in stock

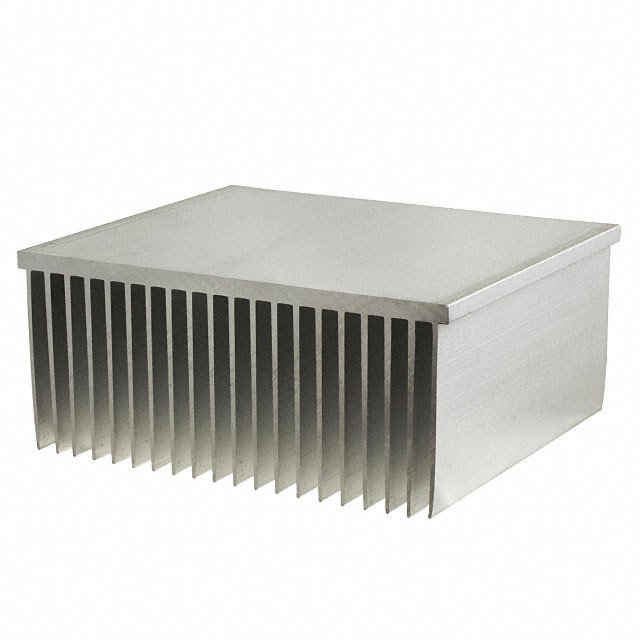

510-6U
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 6.000" (152.40mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.136" (79.65mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.38°C/W
Material : Aluminum
Material Finish : -
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 6.000" (152.40mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.136" (79.65mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.38°C/W
Material : Aluminum
Material Finish : -
0
24 in stock

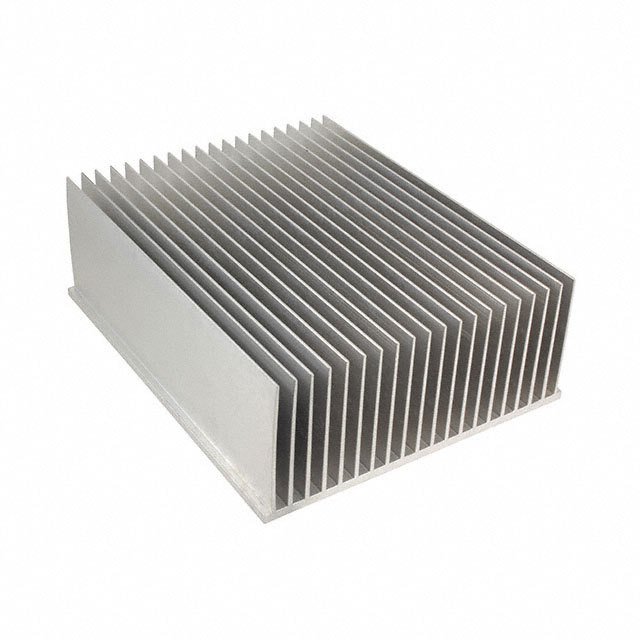

510-9M
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 9.000" (228.60mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.106" (78.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.29°C/W
Material : Aluminum
Material Finish : -
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 9.000" (228.60mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.106" (78.89mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.29°C/W
Material : Aluminum
Material Finish : -
0
21 in stock

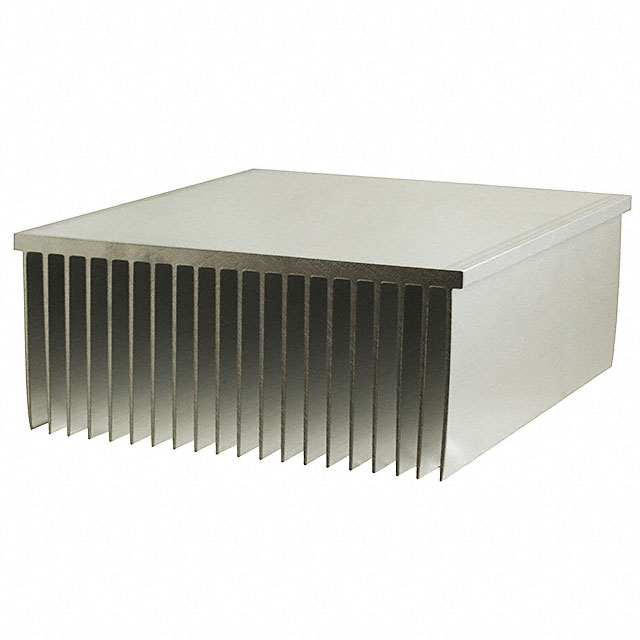

510-9U
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 9.000" (228.60mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.136" (79.65mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.29°C/W
Material : Aluminum
Material Finish : -
Series : 510
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Adhesive
Shape : Rectangular, Fins
Length : 9.000" (228.60mm)
Width : 7.380" (187.45mm)
Diameter : -
Height Off Base (Height of Fin) : 3.136" (79.65mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 0.29°C/W
Material : Aluminum
Material Finish : -
0
24 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
