Part Number
Manufacturer
Description
Unit Price
In Stock

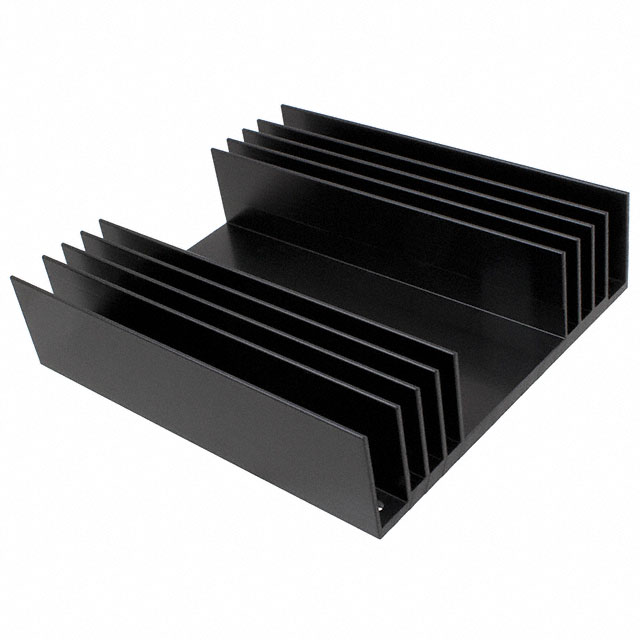

396-2AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 396
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 5.500" (139.70mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 1.382" (35.10mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.60°C/W @ 500 LFM
Thermal Resistance @ Natural : 1.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 396
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 5.500" (139.70mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 1.382" (35.10mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.60°C/W @ 500 LFM
Thermal Resistance @ Natural : 1.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
29 in stock

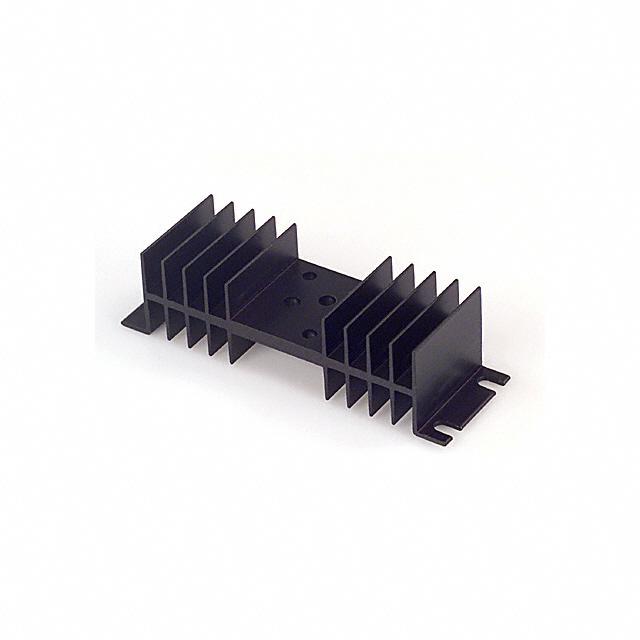

401A
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 401
Part Status : Active
Type : Board Level
Package Cooled : TO-3, Stud Mount
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 4.750" (120.65mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 30.0W @ 80°C
Thermal Resistance @ Forced Air Flow : 1.50°C/W @ 250 LFM
Thermal Resistance @ Natural : 2.60°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 401
Part Status : Active
Type : Board Level
Package Cooled : TO-3, Stud Mount
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 4.750" (120.65mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 30.0W @ 80°C
Thermal Resistance @ Forced Air Flow : 1.50°C/W @ 250 LFM
Thermal Resistance @ Natural : 2.60°C/W
Material : Aluminum
Material Finish : Black Anodized
0
199 in stock

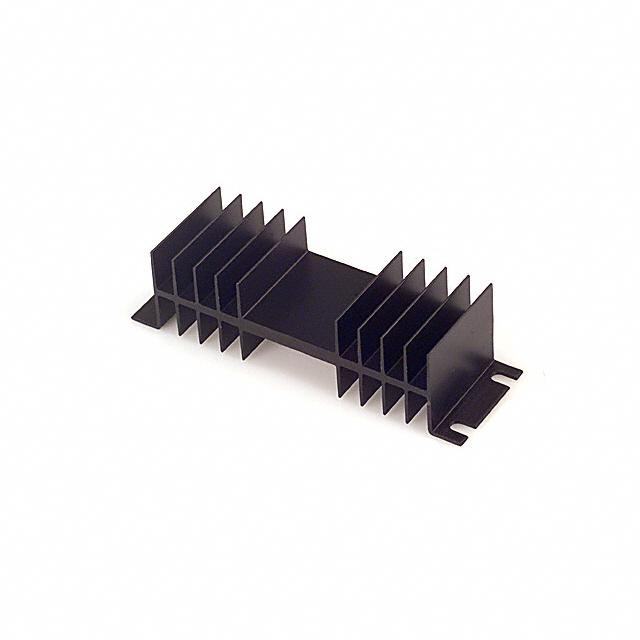

401K
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 401
Part Status : Active
Type : Board Level
Package Cooled : TO-3, Stud Mount
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 4.750" (120.65mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 30.0W @ 80°C
Thermal Resistance @ Forced Air Flow : 1.50°C/W @ 250 LFM
Thermal Resistance @ Natural : 3.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 401
Part Status : Active
Type : Board Level
Package Cooled : TO-3, Stud Mount
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 4.750" (120.65mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 30.0W @ 80°C
Thermal Resistance @ Forced Air Flow : 1.50°C/W @ 250 LFM
Thermal Resistance @ Natural : 3.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
102 in stock

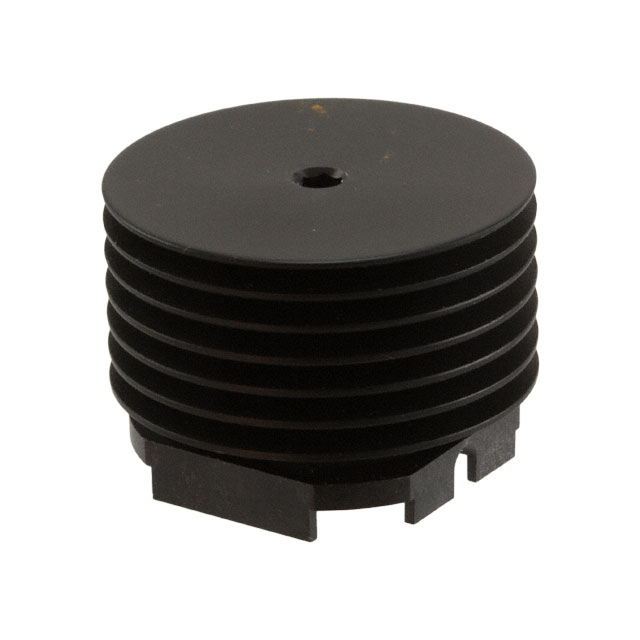

4-1542005-0
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity AMP Connectors
Series : -
Part Status : Active
Type : -
Package Cooled : BGA
Attachment Method : Clip
Shape : Cylindrical
Length : -
Width : -
Diameter : 1.375" (34.92mm) OD
Height Off Base (Height of Fin) : 0.894" (22.71mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 3.80°C/W @ 200 LFM
Thermal Resistance @ Natural : 10.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : -
Package Cooled : BGA
Attachment Method : Clip
Shape : Cylindrical
Length : -
Width : -
Diameter : 1.375" (34.92mm) OD
Height Off Base (Height of Fin) : 0.894" (22.71mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 3.80°C/W @ 200 LFM
Thermal Resistance @ Natural : 10.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
282 in stock

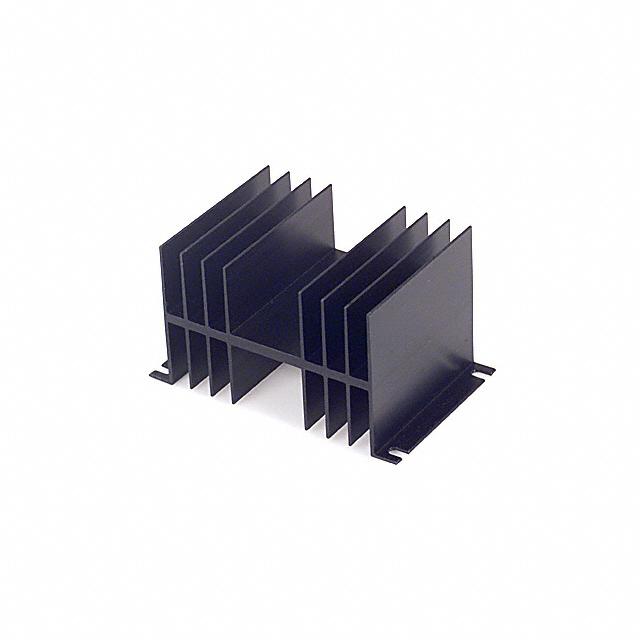

421K
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 421
Part Status : Active
Type : Board Level
Package Cooled : TO-3, DO-5, Stud Mount
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 4.750" (120.65mm)
Diameter : -
Height Off Base (Height of Fin) : 2.625" (66.67mm)
Power Dissipation @ Temperature Rise : 50.0W @ 58°C
Thermal Resistance @ Forced Air Flow : 0.70°C/W @ 250 LFM
Thermal Resistance @ Natural : 1.16°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 421
Part Status : Active
Type : Board Level
Package Cooled : TO-3, DO-5, Stud Mount
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 4.750" (120.65mm)
Diameter : -
Height Off Base (Height of Fin) : 2.625" (66.67mm)
Power Dissipation @ Temperature Rise : 50.0W @ 58°C
Thermal Resistance @ Forced Air Flow : 0.70°C/W @ 250 LFM
Thermal Resistance @ Natural : 1.16°C/W
Material : Aluminum
Material Finish : Black Anodized
0
92 in stock

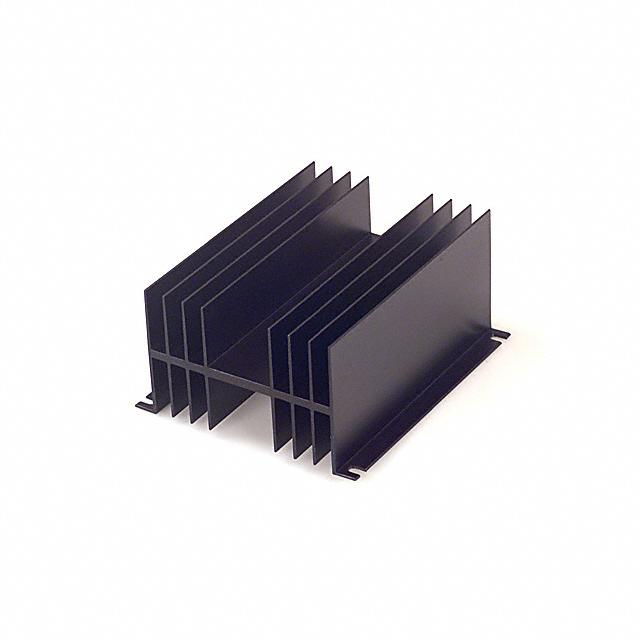

423K
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 423
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : TO-3, DO-5, Stud Mount
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 5.421" (139.70mm)
Width : 4.750" (120.65mm)
Diameter : -
Height Off Base (Height of Fin) : 2.625" (66.67mm)
Power Dissipation @ Temperature Rise : 50.0W @ 47°C
Thermal Resistance @ Forced Air Flow : 0.50°C/W @ 250 LFM
Thermal Resistance @ Natural : 0.96°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 423
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : TO-3, DO-5, Stud Mount
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 5.421" (139.70mm)
Width : 4.750" (120.65mm)
Diameter : -
Height Off Base (Height of Fin) : 2.625" (66.67mm)
Power Dissipation @ Temperature Rise : 50.0W @ 47°C
Thermal Resistance @ Forced Air Flow : 0.50°C/W @ 250 LFM
Thermal Resistance @ Natural : 0.96°C/W
Material : Aluminum
Material Finish : Black Anodized
0
153 in stock

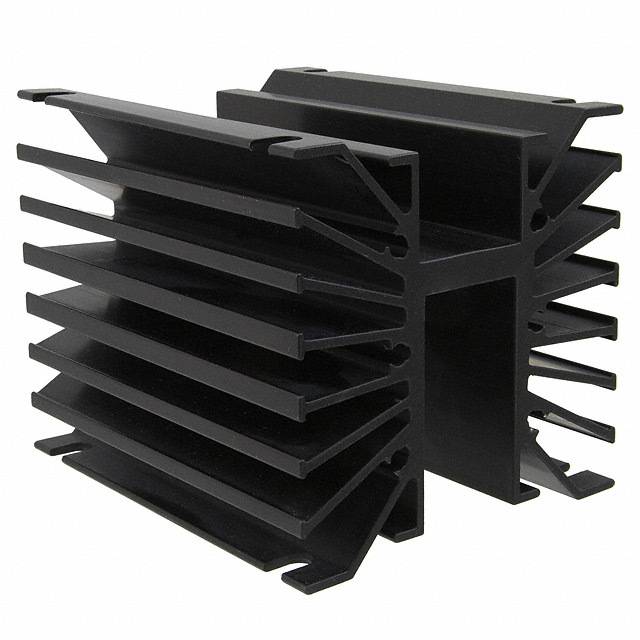

465K
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 465
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : Stud Mounted Diode
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 5.000" (127.00mm)
Width : 4.000" (101.60mm)
Diameter : -
Height Off Base (Height of Fin) : 4.000" (101.60mm)
Power Dissipation @ Temperature Rise : 50.0W @ 38°C
Thermal Resistance @ Forced Air Flow : 0.30°C/W @ 500 LFM
Thermal Resistance @ Natural : 0.76°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 465
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : Stud Mounted Diode
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 5.000" (127.00mm)
Width : 4.000" (101.60mm)
Diameter : -
Height Off Base (Height of Fin) : 4.000" (101.60mm)
Power Dissipation @ Temperature Rise : 50.0W @ 38°C
Thermal Resistance @ Forced Air Flow : 0.30°C/W @ 500 LFM
Thermal Resistance @ Natural : 0.76°C/W
Material : Aluminum
Material Finish : Black Anodized
0
60 in stock

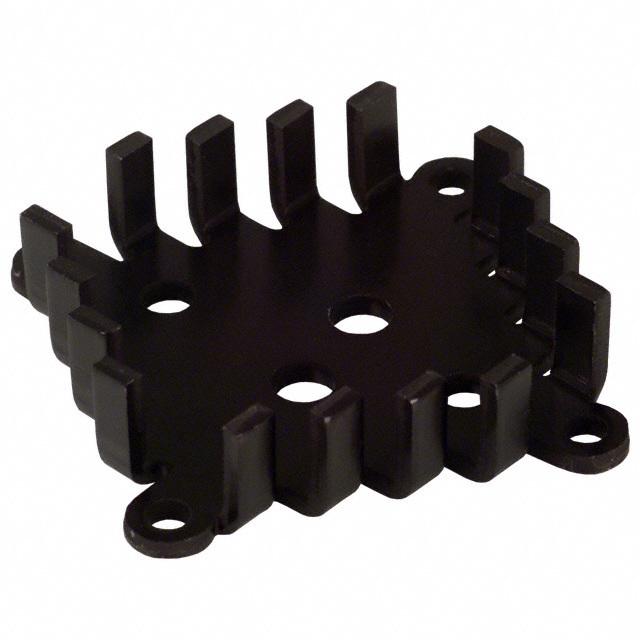

500103B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Square, Pin Fins
Length : 1.810" (45.97mm)
Width : 1.810" (45.97mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 6.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 400 LFM
Thermal Resistance @ Natural : 7.20°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Square, Pin Fins
Length : 1.810" (45.97mm)
Width : 1.810" (45.97mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 6.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 400 LFM
Thermal Resistance @ Natural : 7.20°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1386 in stock

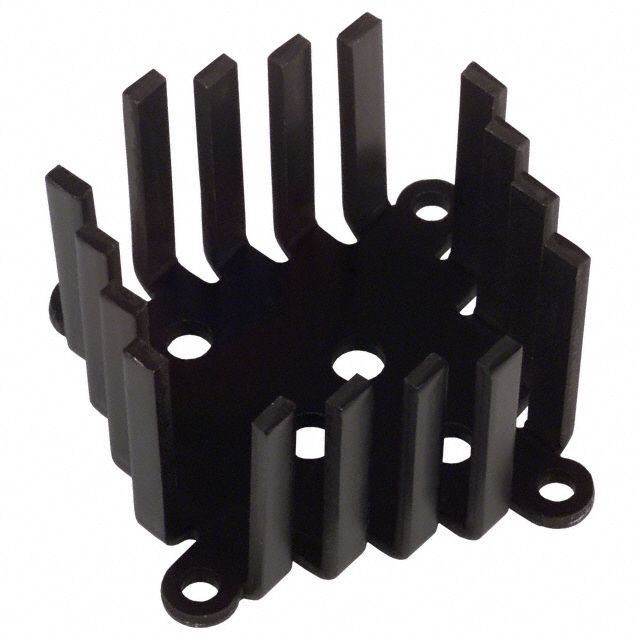

500403B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Square, Pin Fins
Length : 1.810" (45.97mm)
Width : 1.810" (45.97mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 2.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Square, Pin Fins
Length : 1.810" (45.97mm)
Width : 1.810" (45.97mm)
Diameter : -
Height Off Base (Height of Fin) : 1.250" (31.75mm)
Power Dissipation @ Temperature Rise : 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 2.00°C/W @ 400 LFM
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1379 in stock

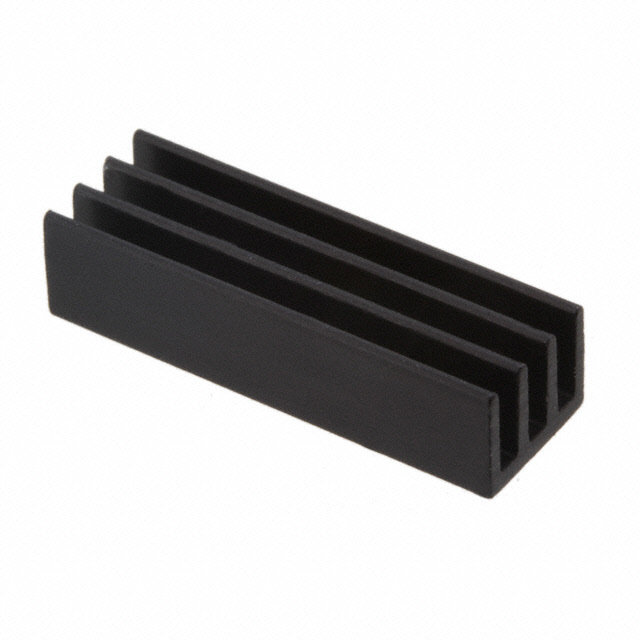

501100B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : 14-DIP and 16-DIP
Attachment Method : Thermal Tape, Adhesive (Not Included)
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.250" (6.35mm)
Diameter : -
Height Off Base (Height of Fin) : 0.190" (4.83mm)
Power Dissipation @ Temperature Rise : 0.4W @ 30°C
Thermal Resistance @ Forced Air Flow : 30.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 67.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : 14-DIP and 16-DIP
Attachment Method : Thermal Tape, Adhesive (Not Included)
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.250" (6.35mm)
Diameter : -
Height Off Base (Height of Fin) : 0.190" (4.83mm)
Power Dissipation @ Temperature Rise : 0.4W @ 30°C
Thermal Resistance @ Forced Air Flow : 30.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 67.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
13821 in stock

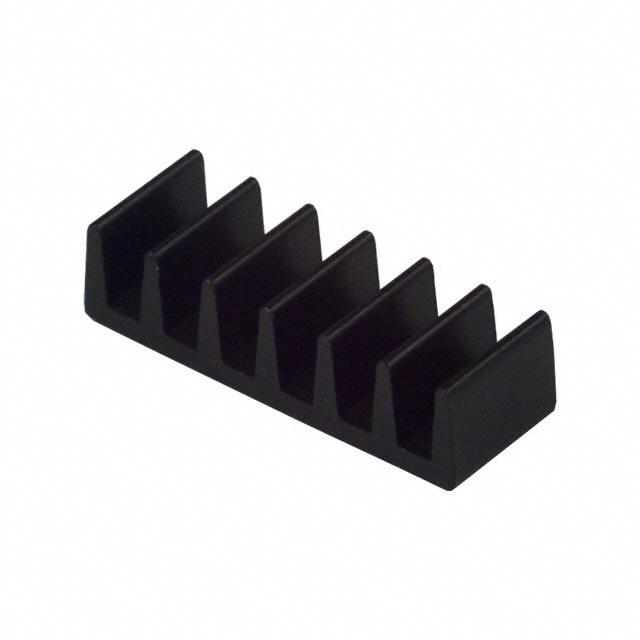

501200B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : 14-DIP and 16-DIP
Attachment Method : Thermal Tape, Adhesive (Not Included)
Shape : Rectangular, Fins
Length : 0.250" (6.35mm)
Width : 0.731" (18.57mm)
Diameter : -
Height Off Base (Height of Fin) : 0.190" (4.83mm)
Power Dissipation @ Temperature Rise : 0.4W @ 30°C
Thermal Resistance @ Forced Air Flow : 50.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 68.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : 14-DIP and 16-DIP
Attachment Method : Thermal Tape, Adhesive (Not Included)
Shape : Rectangular, Fins
Length : 0.250" (6.35mm)
Width : 0.731" (18.57mm)
Diameter : -
Height Off Base (Height of Fin) : 0.190" (4.83mm)
Power Dissipation @ Temperature Rise : 0.4W @ 30°C
Thermal Resistance @ Forced Air Flow : 50.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 68.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
15777 in stock
501303B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Rhombus
Length : 1.880" (47.75mm)
Width : 1.400" (35.56mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 12.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-3
Attachment Method : Bolt On
Shape : Rhombus
Length : 1.880" (47.75mm)
Width : 1.400" (35.56mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.00°C/W @ 300 LFM
Thermal Resistance @ Natural : 12.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
3965 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
