Thermal - Thermoelectric, Peltier Modules Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

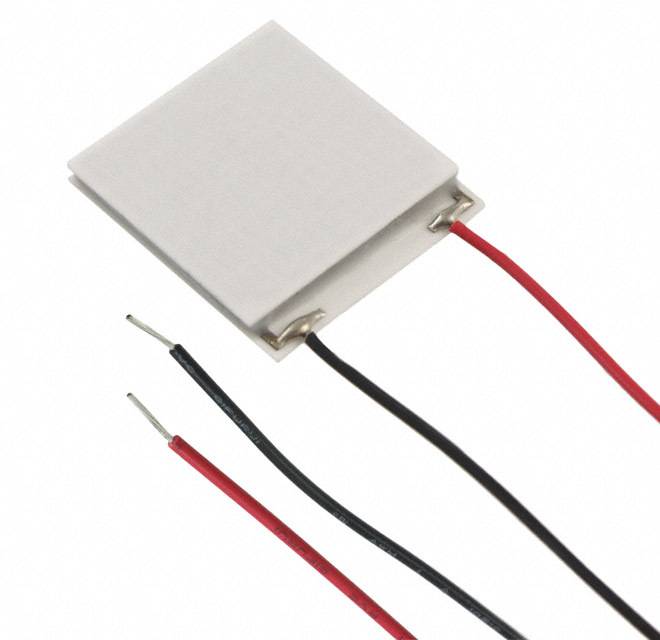

430027-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : PolarTEC™
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 3.81mm
Qmax @ Th : 29.2W @ 25°C
Delta Tmax @ Th : 65°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 8.0V
Resistance : 1.22 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

30 in stock

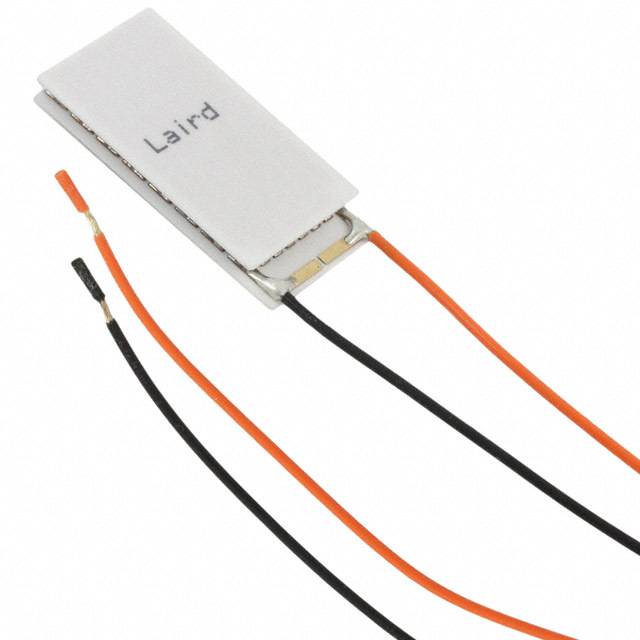

430028-509

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.20mm x 20.60mm x 3.81mm
Qmax @ Th : 16.4W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 7.2V
Resistance : 1.73 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed

0

14 in stock

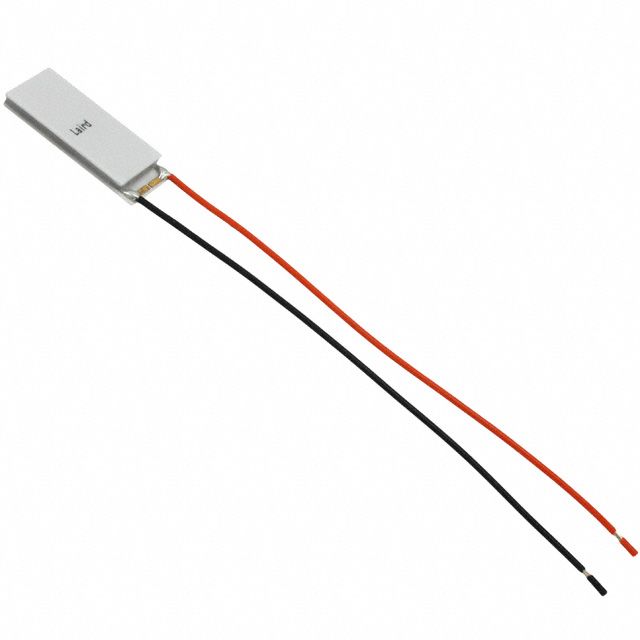

430028-513

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 43.20mm x 20.60mm x 3.81mm
Qmax @ Th : 16.4W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 7.2V
Resistance : 1.73 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV

0

14 in stock

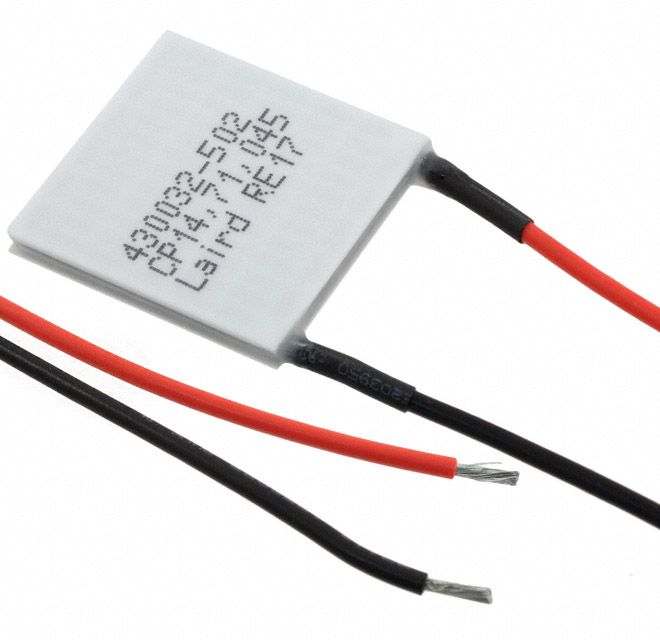

430032-502

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 3.33mm
Qmax @ Th : 41.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 8.0V
Resistance : 870 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV

0

30 in stock

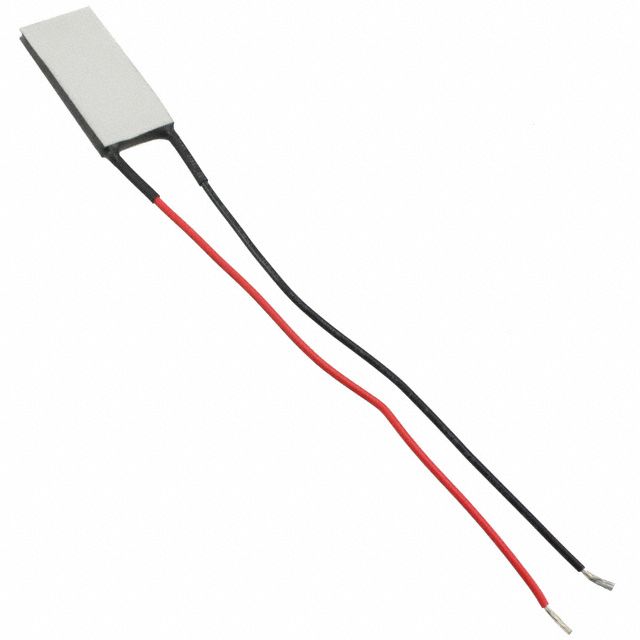

430036-504

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 15.00mm x 3.20mm
Qmax @ Th : 16.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 7.6V
Resistance : 1.66 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy

0

156 in stock

430037-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 7.20mm x 6.00mm x 2.69mm
Qmax @ Th : 1.5W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 2.1V
Resistance : 1.57 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed

0

20 in stock

430037-502

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 7.20mm x 6.00mm x 3.07mm
Qmax @ Th : 1.5W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 2.1V
Resistance : 1.57 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed

0

100 in stock

430037-512

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 7.20mm x 6.00mm x 2.69mm
Qmax @ Th : 1.5W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 2.1V
Resistance : 1.57 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Sealed - Silicone RTV

0

100 in stock

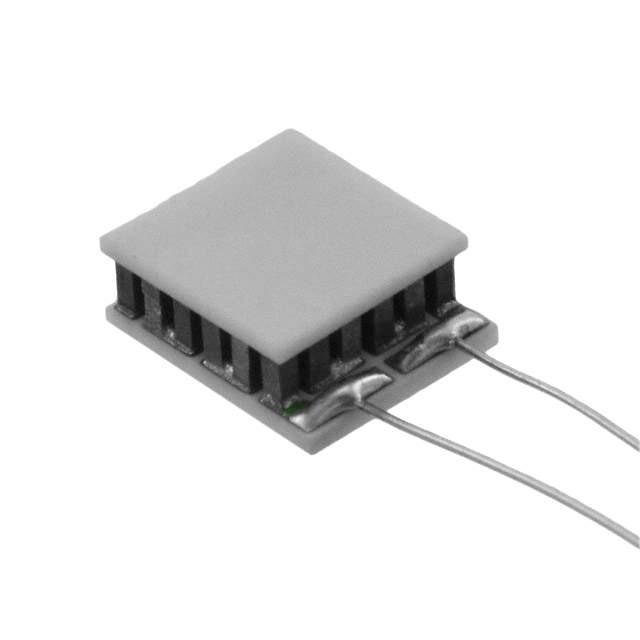

430037-515

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 7.20mm x 6.00mm x 2.69mm
Qmax @ Th : 1.5W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 2.1V
Resistance : 1.57 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed

0

40 in stock

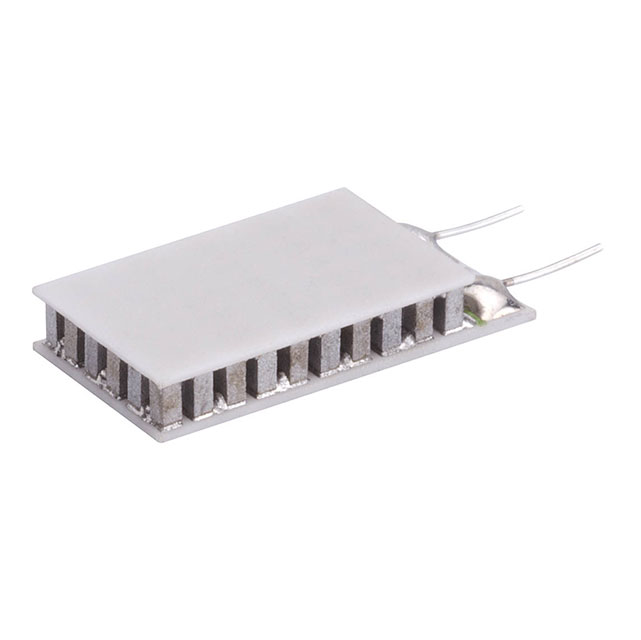

430039-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 11.00mm x 8.80mm x 2.18mm
Qmax @ Th : 4.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.5V
Resistance : 1.62 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed

0

89 in stock

430039-510

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 10.97mm x 8.79mm x 2.49mm
Qmax @ Th : 4.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.5V
Resistance : 1.62 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

100 in stock

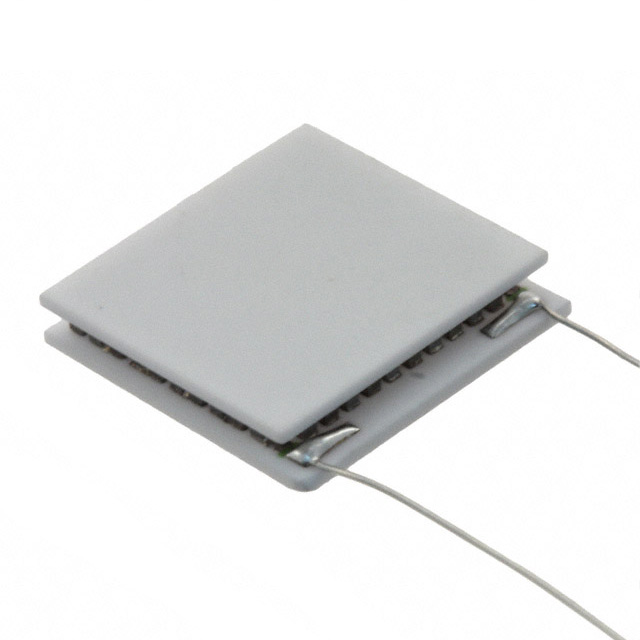

430040-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.20mm x 13.20mm x 2.18mm
Qmax @ Th : 8.9W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 7.4V
Resistance : 3.39 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

27 in stock
