Part Number

Manufacturer

Description

Unit Price

In Stock

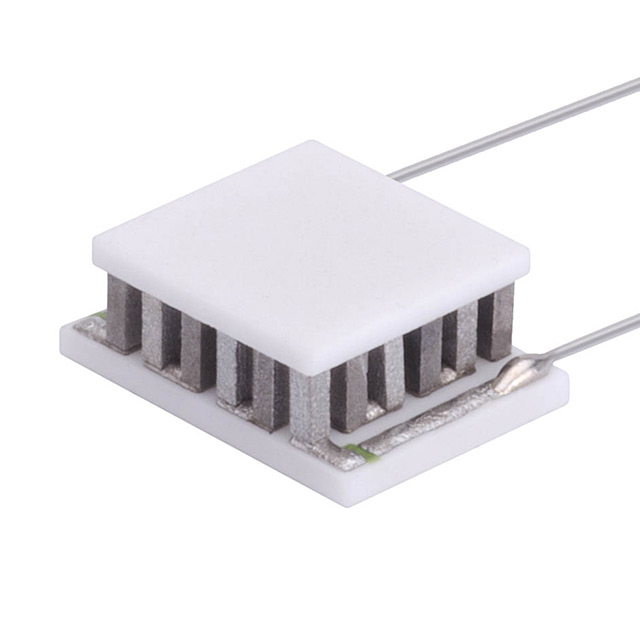

430828-502

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 6.70mm x 5.00mm x 2.79mm
Qmax @ Th : 1.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 2.1V
Resistance : 2.35 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

40 in stock

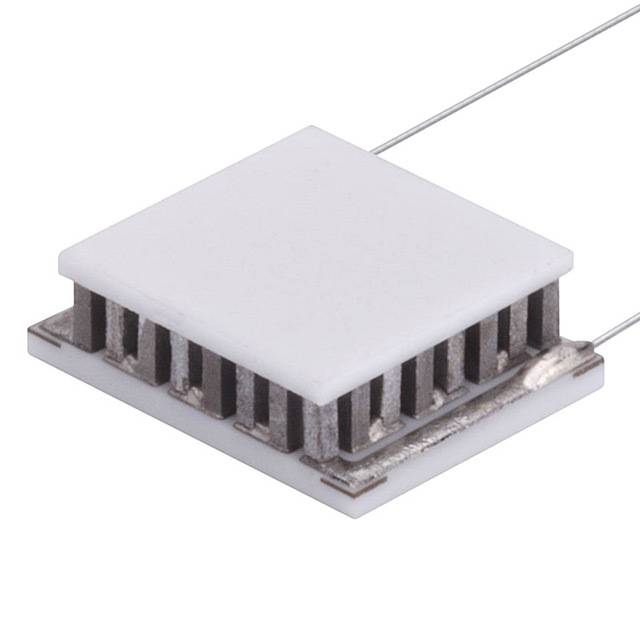

430831-504

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 8.13mm x 6.50mm x 2.79mm
Qmax @ Th : 1.7W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 3.7V
Resistance : 4.17 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

40 in stock

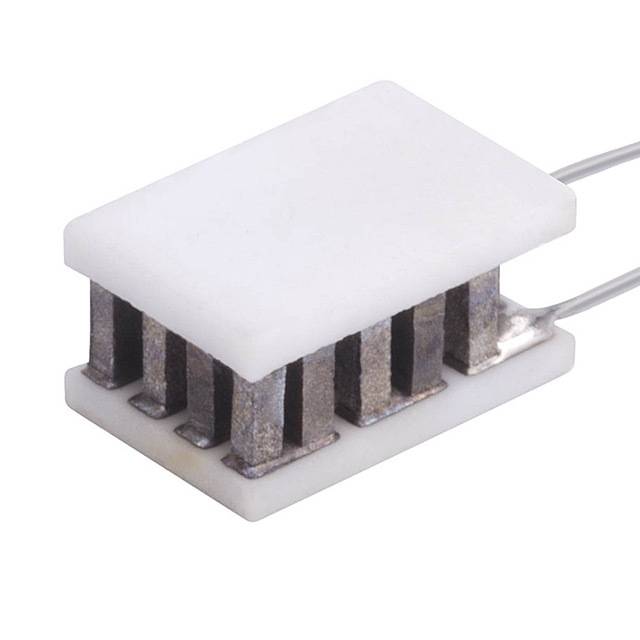

430834-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 4.88mm x 3.25mm x 2.44mm
Qmax @ Th : 0.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 1.3V
Resistance : 1.43 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

17 in stock

430834-502

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 4.88mm x 3.25mm x 2.44mm
Qmax @ Th : 0.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 1.3V
Resistance : 1.43 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

322 in stock

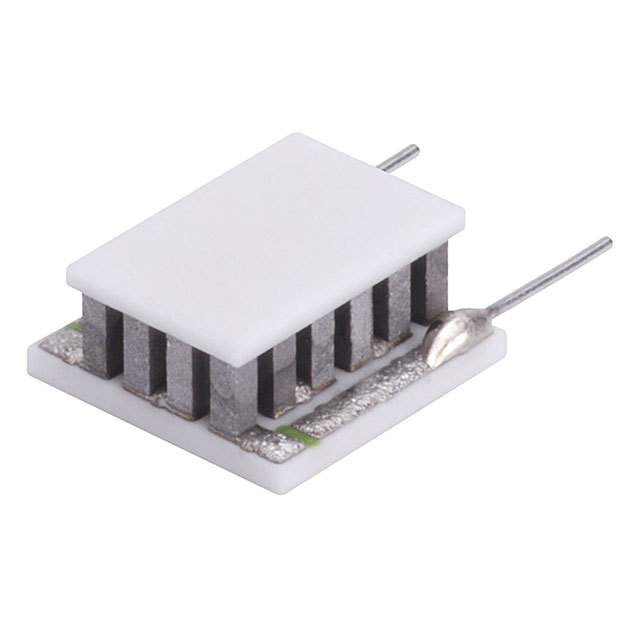

430834-503

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 4.88mm x 3.25mm x 2.73mm
Qmax @ Th : 0.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 1.3V
Resistance : 1.43 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

52 in stock

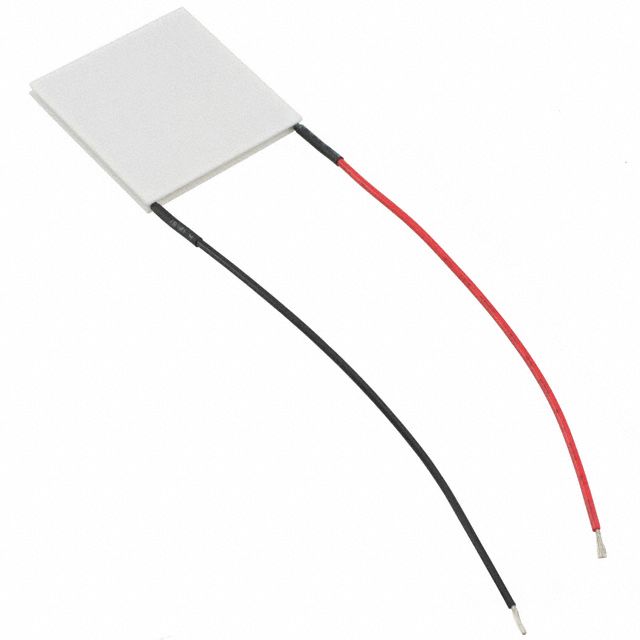

430848-502

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.20mm
Qmax @ Th : 79.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 7.3A
Voltage - Max : 18.4V
Resistance : 2.33 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

20 in stock

430848-504

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.61mm
Qmax @ Th : 52.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 4.8A
Voltage - Max : 18.3V
Resistance : 3.54 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

35 in stock

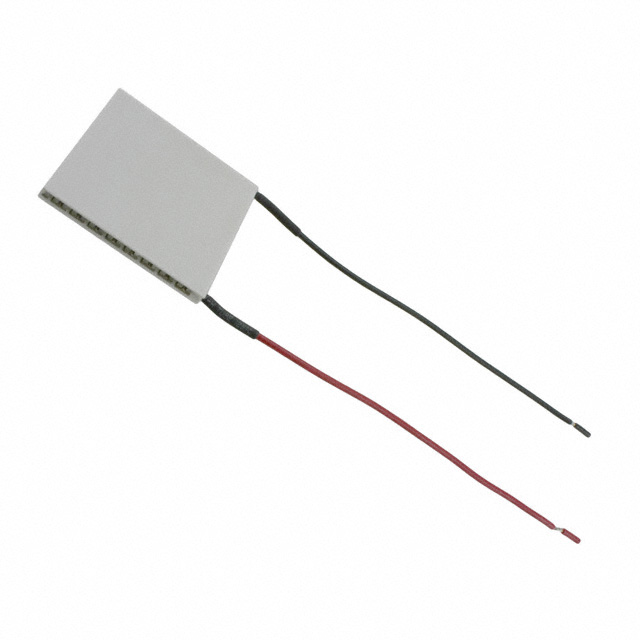

430848-506

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.61mm
Qmax @ Th : 52.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 4.8A
Voltage - Max : 18.3V
Resistance : 3.54 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV

0

20 in stock

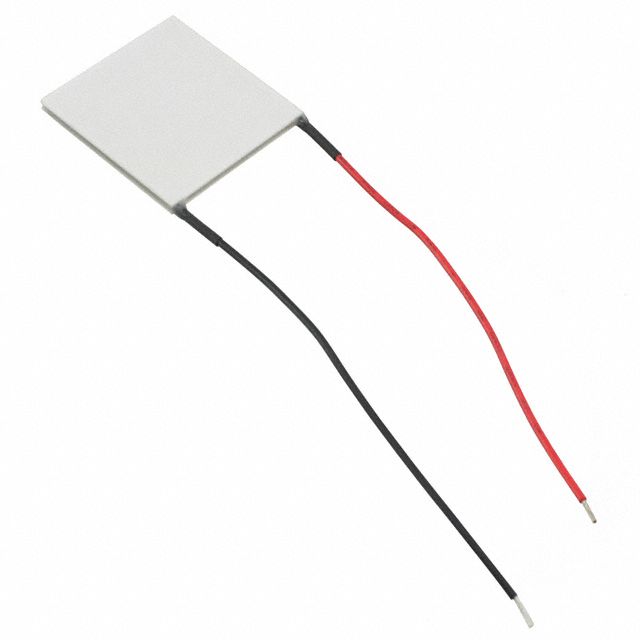

430848-509

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.20mm
Qmax @ Th : 79.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 7.3A
Voltage - Max : 18.4V
Resistance : 2.33 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV

0

79 in stock

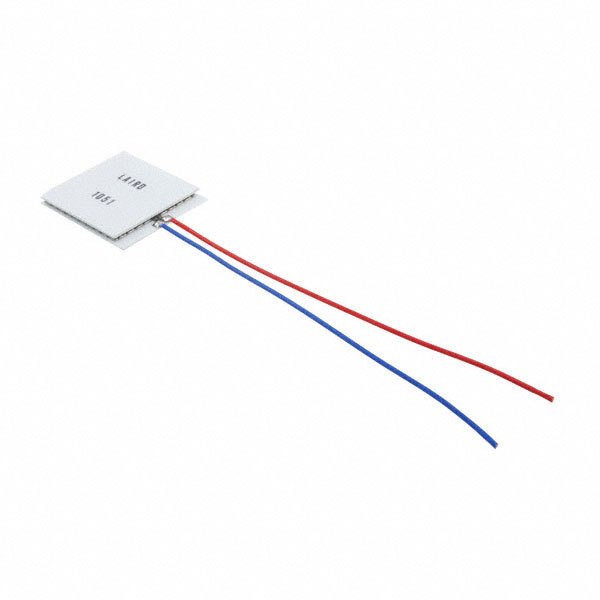

430854-500

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : UltraTEC™
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.81mm
Qmax @ Th : 127.5W @ 25°C
Delta Tmax @ Th : 71°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 24.9V
Resistance : 2.48 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

31 in stock

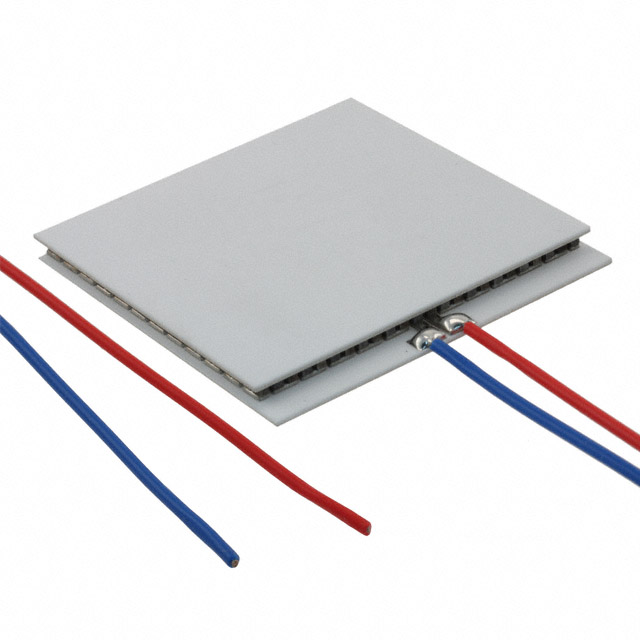

430855-500

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : UltraTEC™
Part Status : Active
Outline L x W x H : 52.00mm x 52.00mm x 3.81mm
Qmax @ Th : 182.6W @ 25°C
Delta Tmax @ Th : 71°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 35.9V
Resistance : 3.58 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

100 in stock

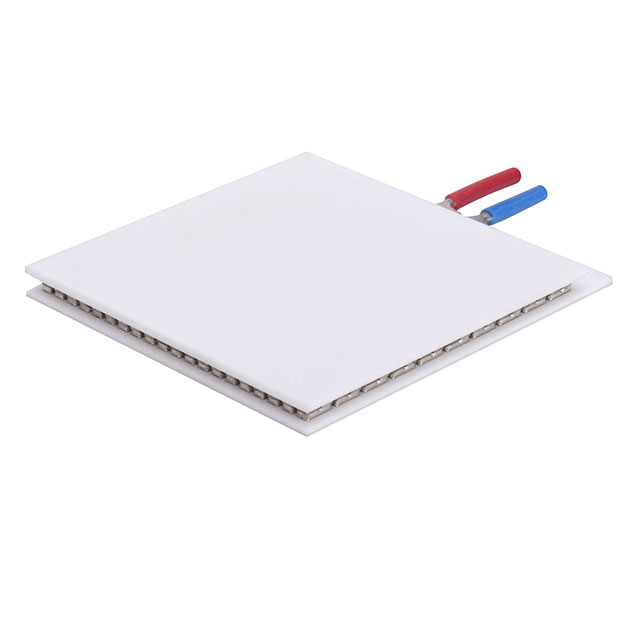

430856-500

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : UltraTEC™
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.30mm
Qmax @ Th : 236.6W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 15.4A
Voltage - Max : 25.0V
Resistance : 1.37 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

0

67 in stock
