Part Number

Manufacturer

Description

Unit Price

In Stock

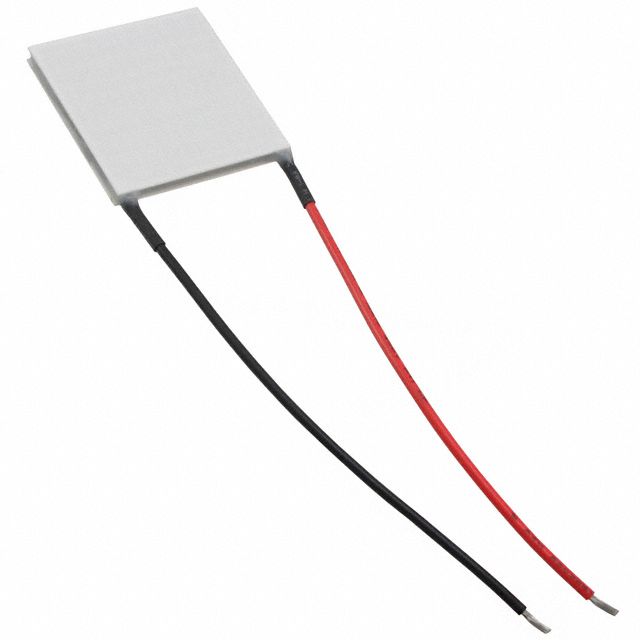

56760-505

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.81mm
Qmax @ Th : 51.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 14.5V
Resistance : 2.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

102 in stock

56760-512

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.90mm x 39.90mm x 3.81mm
Qmax @ Th : 51.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6A
Voltage - Max : 14.5V
Resistance : 2.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy

100 in stock

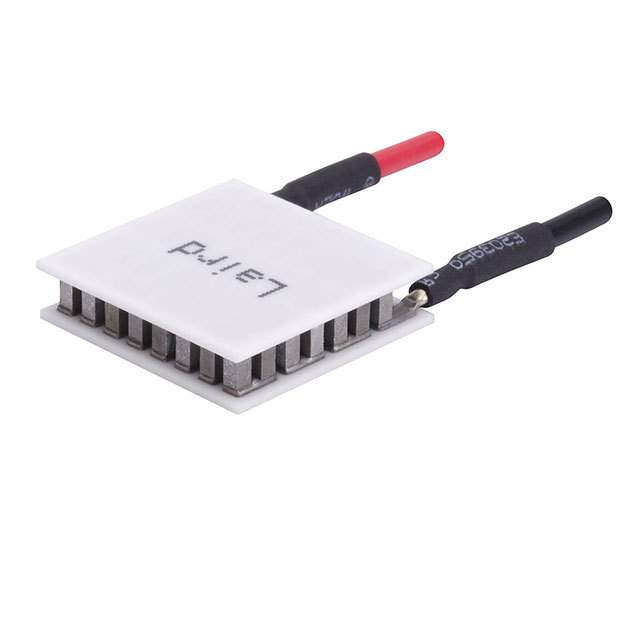

56850-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -

20 in stock

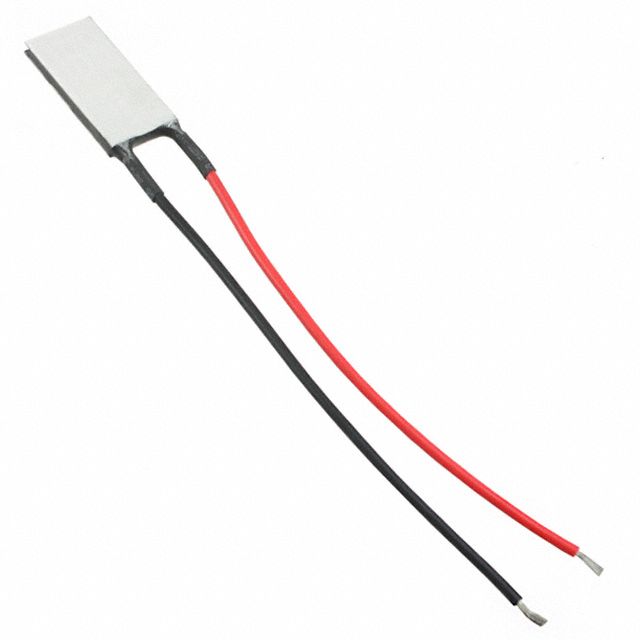

56860-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 14.86mm x 3.33mm
Qmax @ Th : 20.4W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 8.7A
Voltage - Max : 4.0V
Resistance : 430 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

48 in stock

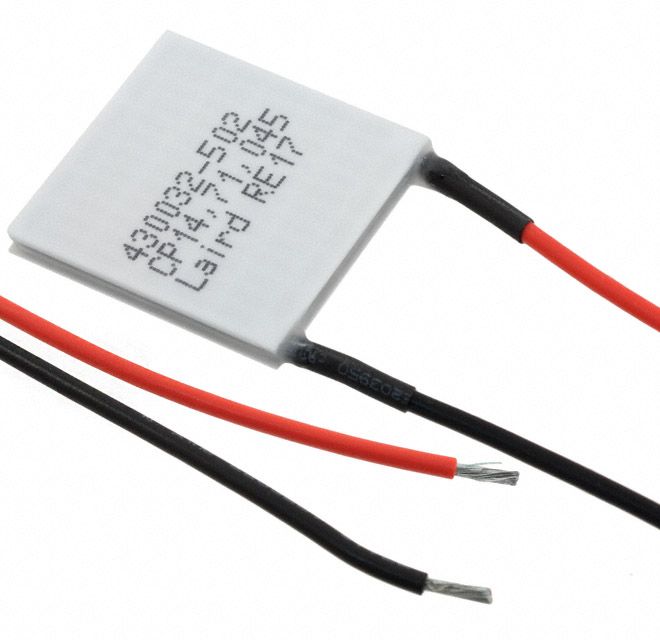

56890-503

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 3.33mm
Qmax @ Th : 41.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 8.0V
Resistance : 870 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

200 in stock

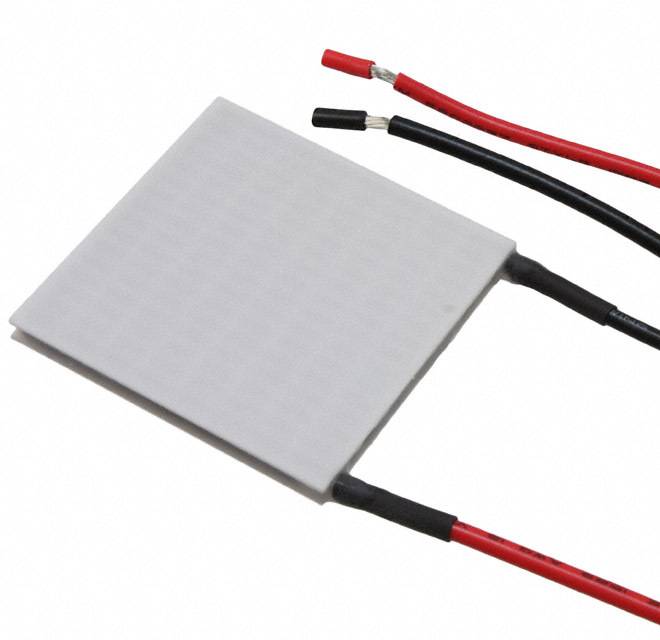

56910-502

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.33mm
Qmax @ Th : 72.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 14.5V
Resistance : 1.55 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

128 in stock

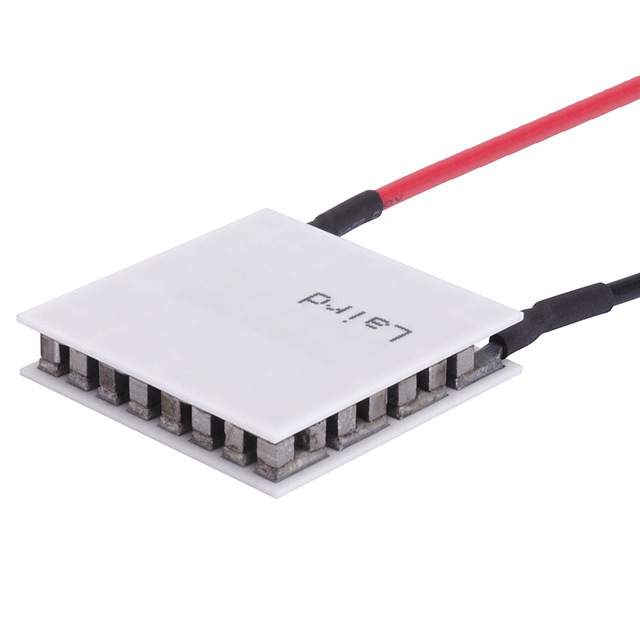

56995-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 5.59mm
Qmax @ Th : 18.8W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 9.0A
Voltage - Max : 3.8V
Resistance : 350 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

22 in stock

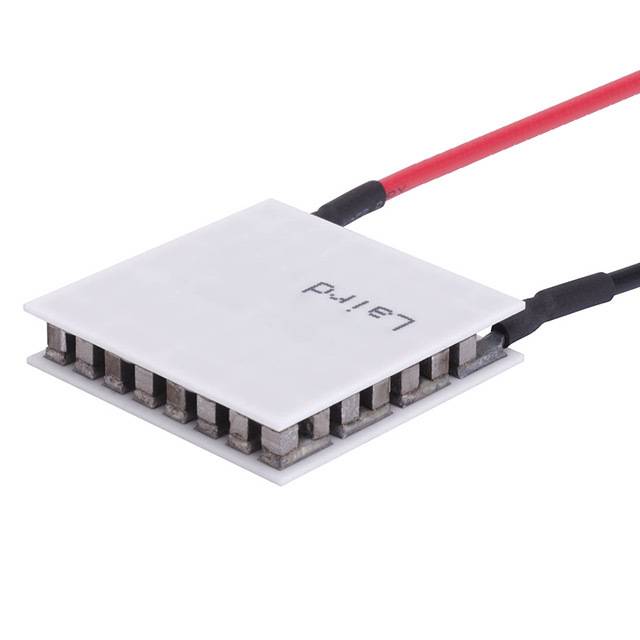

56995-503

Laird Thermal Materials

13 in stock

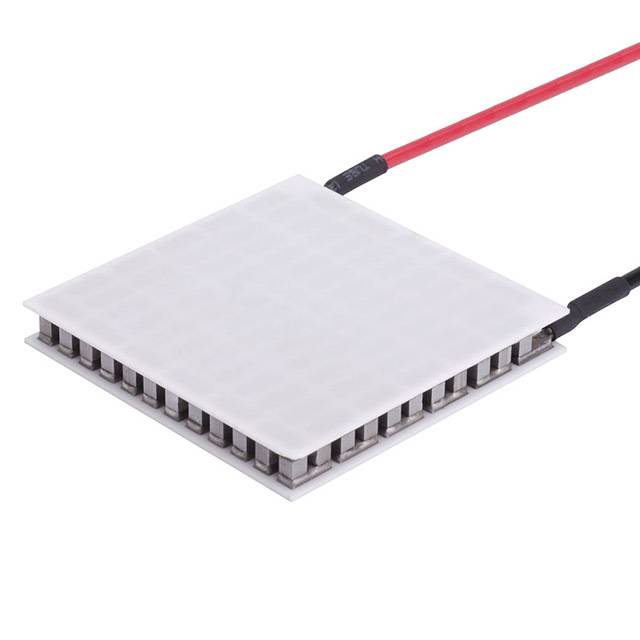

57040-500

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 43.94mm x 43.94mm x 5.59mm
Qmax @ Th : 44.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 9.0A
Voltage - Max : 7.9V
Resistance : 810 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

100 in stock

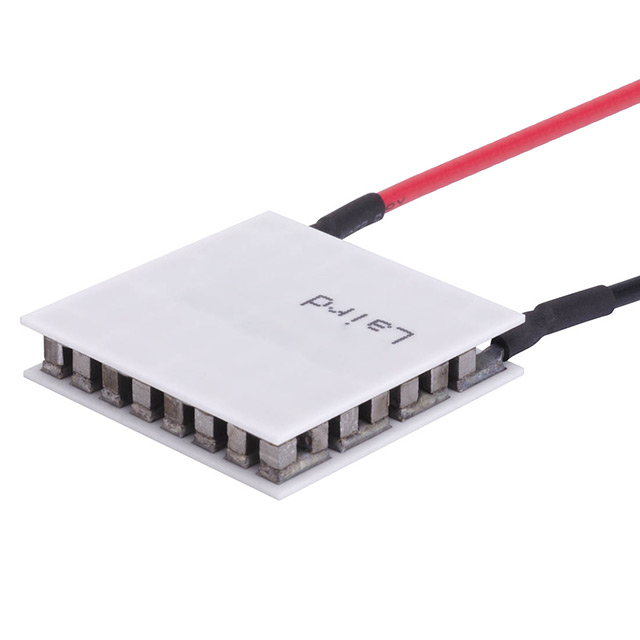

57125-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 4.57mm
Qmax @ Th : 29.3W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 14.0A
Voltage - Max : 3.5V
Resistance : 230 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

91 in stock

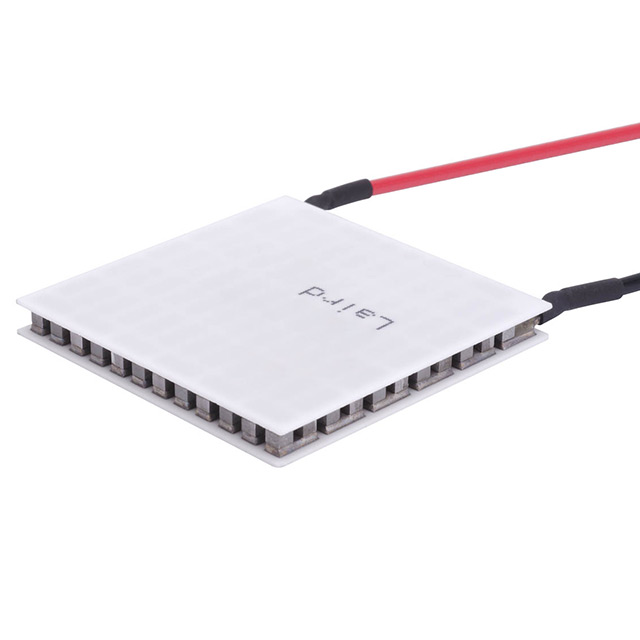

57180-501

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 43.94mm x 43.94mm x 4.57mm
Qmax @ Th : 68.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 14.3A
Voltage - Max : 8.1V
Resistance : 530 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed

16 in stock

58910-500

Laird Thermal Materials

Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Obsolete
Outline L x W x H : 39.88mm x 39.88mm x 3.33mm
Qmax @ Th : 72.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 14.5V
Resistance : 1.55 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV

100 in stock
