Welcome to Weijie Semiconductor
Part Number
Manufacturer
Description
Unit Price
In Stock
CP50241
CUI, Inc.
Manufacturer : CUI Inc.
Series : CP50
Part Status : Active
Outline L x W x H : 20.00mm x 20.00mm x 4.05mm
Qmax @ Th : 10.0W @ 27°C
Delta Tmax @ Th : 68°C @ 27°C
Current - Max : 5.0A
Voltage - Max : 3.8V
Resistance : 620 mOhms
Operating Temperature : 80°C
Features : Lead Wires
Series : CP50
Part Status : Active
Outline L x W x H : 20.00mm x 20.00mm x 4.05mm
Qmax @ Th : 10.0W @ 27°C
Delta Tmax @ Th : 68°C @ 27°C
Current - Max : 5.0A
Voltage - Max : 3.8V
Resistance : 620 mOhms
Operating Temperature : 80°C
Features : Lead Wires
0
76 in stock

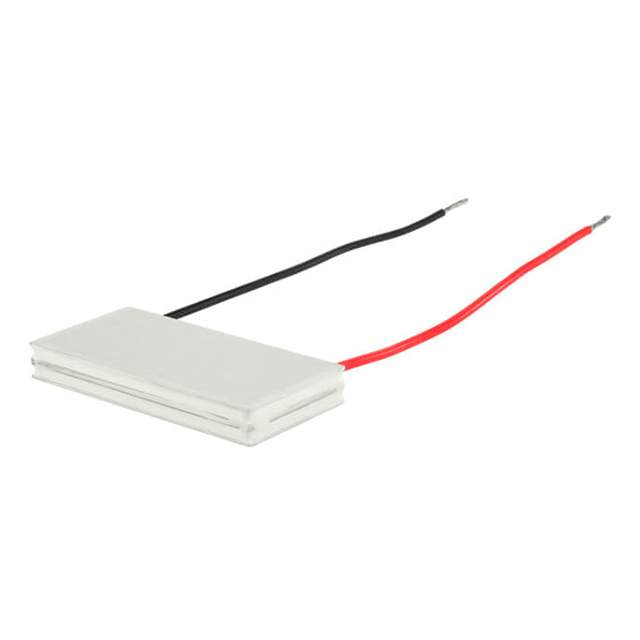

CP502550665-2
CUI, Inc.
Manufacturer : CUI Inc.
Series : CP50-2
Part Status : Active
Outline L x W x H : 50.00mm x 26.25mm x 6.65mm
Qmax @ Th : 23.0W @ 27°C
Delta Tmax @ Th : 82°C @ 27°C
Current - Max : 5.0A
Voltage - Max : 12.8V
Resistance : 2.40 Ohms
Operating Temperature : 100°C
Features : Lead Wires, Sealed - Silicone RTV
Series : CP50-2
Part Status : Active
Outline L x W x H : 50.00mm x 26.25mm x 6.65mm
Qmax @ Th : 23.0W @ 27°C
Delta Tmax @ Th : 82°C @ 27°C
Current - Max : 5.0A
Voltage - Max : 12.8V
Resistance : 2.40 Ohms
Operating Temperature : 100°C
Features : Lead Wires, Sealed - Silicone RTV
0
33 in stock
CP50301541
CUI, Inc.
Manufacturer : CUI Inc.
Series : CP50
Part Status : Active
Outline L x W x H : 30.00mm x 15.00mm x 4.05mm
Qmax @ Th : 11.0W @ 27°C
Delta Tmax @ Th : 68°C @ 27°C
Current - Max : 5.0A
Voltage - Max : 4.2V
Resistance : 690 mOhms
Operating Temperature : 80°C
Features : Lead Wires
Series : CP50
Part Status : Active
Outline L x W x H : 30.00mm x 15.00mm x 4.05mm
Qmax @ Th : 11.0W @ 27°C
Delta Tmax @ Th : 68°C @ 27°C
Current - Max : 5.0A
Voltage - Max : 4.2V
Resistance : 690 mOhms
Operating Temperature : 80°C
Features : Lead Wires
0
99 in stock
CP50341
CUI, Inc.
Manufacturer : CUI Inc.
Series : CP50
Part Status : Active
Outline L x W x H : 30.00mm x 30.00mm x 4.05mm
Qmax @ Th : 23.0W @ 27°C
Delta Tmax @ Th : 68°C @ 27°C
Current - Max : 5.0A
Voltage - Max : 8.6V
Resistance : 1.42 Ohms
Operating Temperature : 80°C
Features : Lead Wires
Series : CP50
Part Status : Active
Outline L x W x H : 30.00mm x 30.00mm x 4.05mm
Qmax @ Th : 23.0W @ 27°C
Delta Tmax @ Th : 68°C @ 27°C
Current - Max : 5.0A
Voltage - Max : 8.6V
Resistance : 1.42 Ohms
Operating Temperature : 80°C
Features : Lead Wires
0
93 in stock

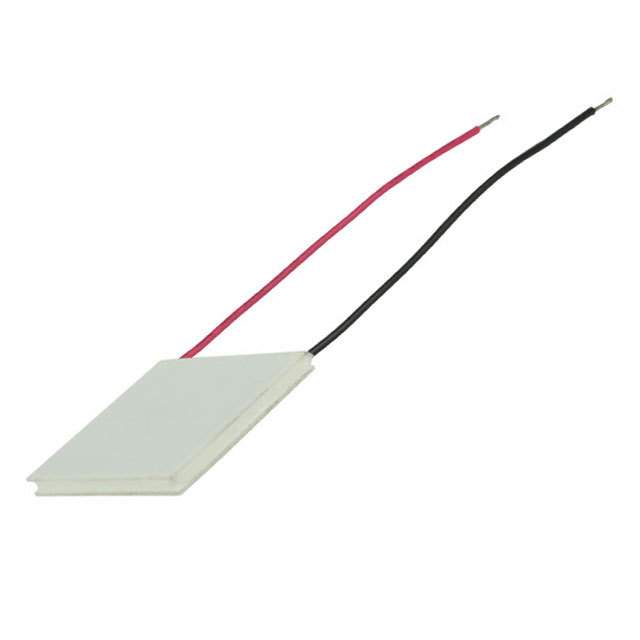

CP50441
CUI, Inc.
Manufacturer : CUI Inc.
Series : CP50
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 4.05mm
Qmax @ Th : 41.0W @ 27°C
Delta Tmax @ Th : 68°C @ 27°C
Current - Max : 5.0A
Voltage - Max : 15.4V
Resistance : 2.53 Ohms
Operating Temperature : 80°C
Features : Lead Wires
Series : CP50
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 4.05mm
Qmax @ Th : 41.0W @ 27°C
Delta Tmax @ Th : 68°C @ 27°C
Current - Max : 5.0A
Voltage - Max : 15.4V
Resistance : 2.53 Ohms
Operating Temperature : 80°C
Features : Lead Wires
0
60 in stock
CP5-31-10L
Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Obsolete
Outline L x W x H : 55.00mm L x 55.00mm W x 5.80mm H
Qmax @ Th : 81.5W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 39.0A
Voltage - Max : 3.8V
Resistance : -
Operating Temperature : -
Features : Lead Wires
Series : CP
Part Status : Obsolete
Outline L x W x H : 55.00mm L x 55.00mm W x 5.80mm H
Qmax @ Th : 81.5W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 39.0A
Voltage - Max : 3.8V
Resistance : -
Operating Temperature : -
Features : Lead Wires
0
100 in stock
CP60131H
CUI, Inc.
Manufacturer : CUI Inc.
Series : CP60H
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.10mm
Qmax @ Th : 13.0W @ 27°C
Delta Tmax @ Th : 70°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 3.8V
Resistance : 450 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
Series : CP60H
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.10mm
Qmax @ Th : 13.0W @ 27°C
Delta Tmax @ Th : 70°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 3.8V
Resistance : 450 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
140 in stock

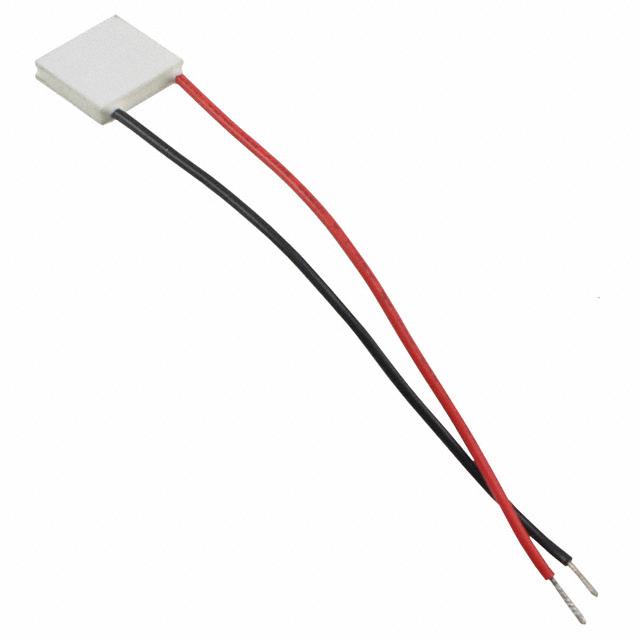

CP60133
CUI, Inc.
Manufacturer : CUI Inc.
Series : CP60
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.30mm
Qmax @ Th : 12.2W @ 27°C
Delta Tmax @ Th : 66°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 3.8V
Resistance : 500 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
Series : CP60
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.30mm
Qmax @ Th : 12.2W @ 27°C
Delta Tmax @ Th : 66°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 3.8V
Resistance : 500 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
475 in stock

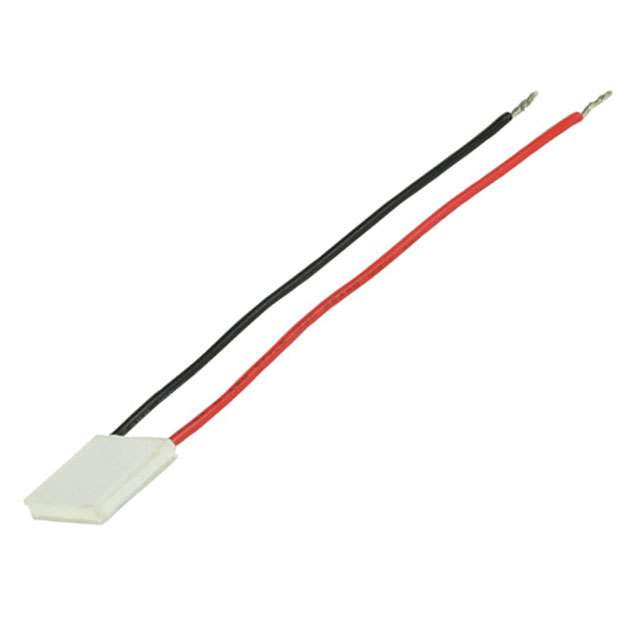

CP60139H
CUI, Inc.
Manufacturer : CUI Inc.
Series : CP60H
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.90mm
Qmax @ Th : 7.4W @ 27°C
Delta Tmax @ Th : 70°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 2.1V
Resistance : 300 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
Series : CP60H
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.90mm
Qmax @ Th : 7.4W @ 27°C
Delta Tmax @ Th : 70°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 2.1V
Resistance : 300 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
100 in stock

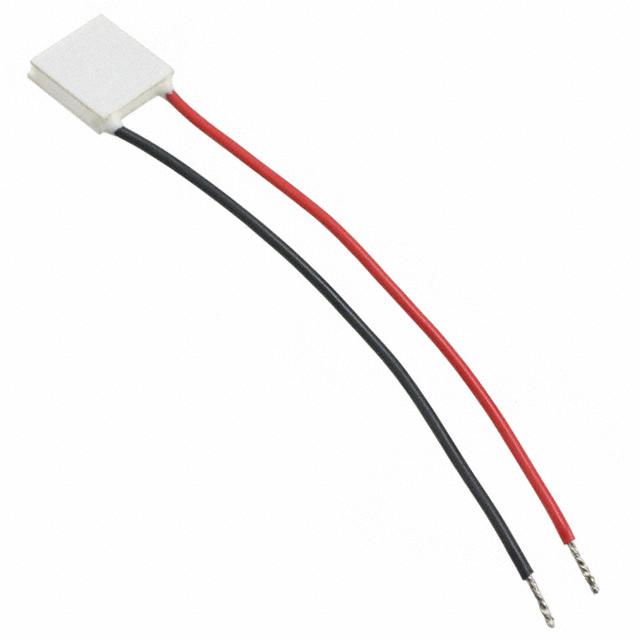

CP60140
CUI, Inc.
Manufacturer : CUI Inc.
Series : CP60
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.99mm
Qmax @ Th : 7.1W @ 27°C
Delta Tmax @ Th : 68°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 2.1V
Resistance : 290 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
Series : CP60
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.99mm
Qmax @ Th : 7.1W @ 27°C
Delta Tmax @ Th : 68°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 2.1V
Resistance : 290 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
170 in stock
CP602040395H
CUI, Inc.
Manufacturer : CUI Inc.
Series : CP60H
Part Status : Active
Outline L x W x H : 40.00mm x 20.00mm x 3.95mm
Qmax @ Th : 27.5W @ 27°C
Delta Tmax @ Th : 70°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 7.6V
Resistance : 1.09 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
Series : CP60H
Part Status : Active
Outline L x W x H : 40.00mm x 20.00mm x 3.95mm
Qmax @ Th : 27.5W @ 27°C
Delta Tmax @ Th : 70°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 7.6V
Resistance : 1.09 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
118 in stock
CP60231H
CUI, Inc.
Manufacturer : CUI Inc.
Series : CP60H
Part Status : Active
Outline L x W x H : 20.00mm x 20.00mm x 3.10mm
Qmax @ Th : 29.7W @ 27°C
Delta Tmax @ Th : 70°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 8.8V
Resistance : 1.05 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
Series : CP60H
Part Status : Active
Outline L x W x H : 20.00mm x 20.00mm x 3.10mm
Qmax @ Th : 29.7W @ 27°C
Delta Tmax @ Th : 70°C @ 27°C
Current - Max : 6.0A
Voltage - Max : 8.8V
Resistance : 1.05 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
185 in stock
