Part Number

Manufacturer

Description

Unit Price

In Stock

CMS2-6-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMS
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 230µH @ 100kHz
Current Rating (Max) : 1.85A
DC Resistance (DCR) (Max) : 44 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 160°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad

396 in stock

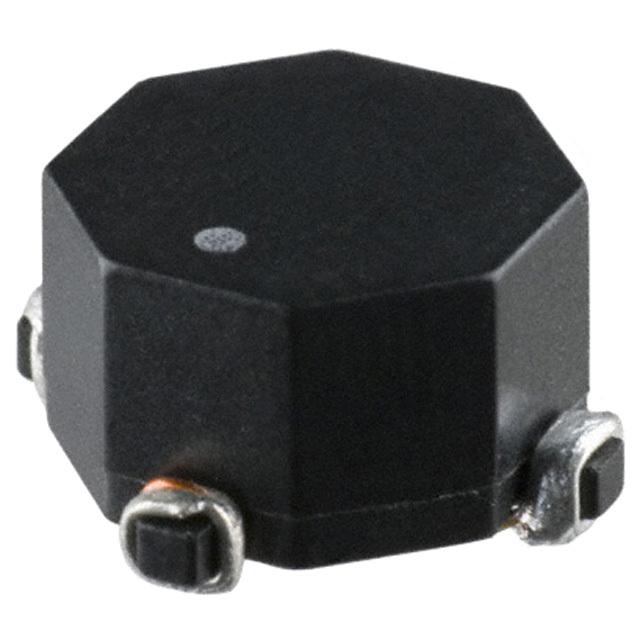

CMS2-7-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMS
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 270µH @ 100kHz
Current Rating (Max) : 1.6A
DC Resistance (DCR) (Max) : 60 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 160°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad

1520 in stock

CMS3-10-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMS
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 518µH @ 100kHz
Current Rating (Max) : 1.45A
DC Resistance (DCR) (Max) : 76 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 160°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad

977 in stock

CMS3-12-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : -
Series : *
Part Status : Active
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : -
Size / Dimension : -
Height (Max) : -
Package / Case : -

100 in stock

CMS3-14-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMS
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.31mH @ 100kHz
Current Rating (Max) : 750mA
DC Resistance (DCR) (Max) : 300 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 160°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad

1298 in stock

CMS3-1-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMS
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 28µH @ 100kHz
Current Rating (Max) : 5.7A
DC Resistance (DCR) (Max) : 5 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 160°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad

2893 in stock

CMS3-2-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMS
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 45µH @ 100kHz
Current Rating (Max) : 5.1A
DC Resistance (DCR) (Max) : 6 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 160°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad

416 in stock

CMS3-3-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMS
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 64µH @ 100kHz
Current Rating (Max) : 4.75A
DC Resistance (DCR) (Max) : 7 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 160°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad

1592 in stock

CMS3-4-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMS
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 88µH @ 100kHz
Current Rating (Max) : 3.95A
DC Resistance (DCR) (Max) : 10 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 160°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad

236 in stock

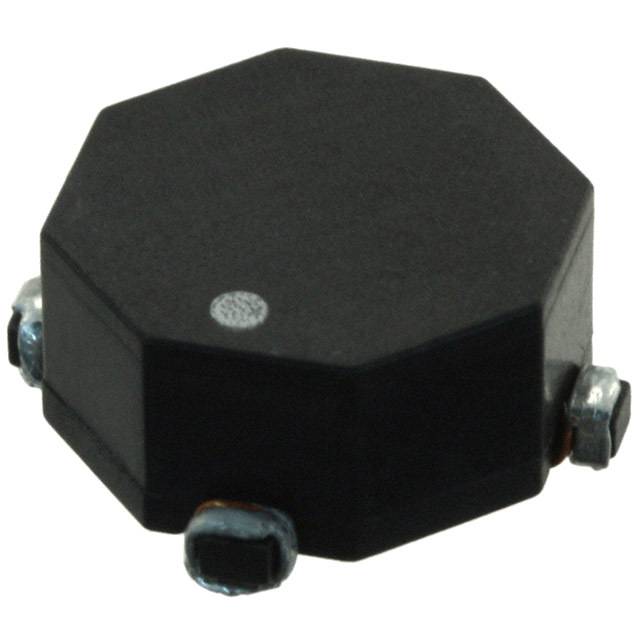

CMS3-5-R

Bussmann (Eaton)

100 in stock

CMS3-6-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMS
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 217µH @ 100kHz
Current Rating (Max) : 2.85A
DC Resistance (DCR) (Max) : 20 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 160°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad

15 in stock

CMS3-7-R

Bussmann (Eaton)

Manufacturer : Eaton
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMS
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 258µH @ 100kHz
Current Rating (Max) : 2.45A
DC Resistance (DCR) (Max) : 27 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 160°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad

719 in stock
