Welcome to Weijie Semiconductor
- Filters
- Common Mode Chokes
Part Number
Manufacturer
Description
Unit Price
In Stock
CMX1616Z112B-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Bulk
Series : CMX
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 30A
DC Resistance (DCR) (Max) : 2.8 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.575" L x 1.575" W (40.00mm x 40.00mm)
Height (Max) : 0.650" (16.50mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Bulk
Series : CMX
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 30A
DC Resistance (DCR) (Max) : 2.8 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.575" L x 1.575" W (40.00mm x 40.00mm)
Height (Max) : 0.650" (16.50mm)
Package / Case : Horizontal, 4 PC Pin
0
185 in stock
CMX1616Z162B-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Bulk
Series : CMX
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.584mH @ 100kHz
Current Rating (Max) : 24A
DC Resistance (DCR) (Max) : 4.1 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.654" L x 1.614" W (42.00mm x 41.00mm)
Height (Max) : 0.650" (16.50mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Bulk
Series : CMX
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.584mH @ 100kHz
Current Rating (Max) : 24A
DC Resistance (DCR) (Max) : 4.1 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.654" L x 1.614" W (42.00mm x 41.00mm)
Height (Max) : 0.650" (16.50mm)
Package / Case : Horizontal, 4 PC Pin
0
234 in stock
CMX1616Z171B-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Bulk
Series : CMX
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 176µH @ 100kHz
Current Rating (Max) : 62A
DC Resistance (DCR) (Max) : 0.65 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.614" L x 1.614" W (41.00mm x 41.00mm)
Height (Max) : 0.650" (16.50mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Bulk
Series : CMX
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 176µH @ 100kHz
Current Rating (Max) : 62A
DC Resistance (DCR) (Max) : 0.65 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.614" L x 1.614" W (41.00mm x 41.00mm)
Height (Max) : 0.650" (16.50mm)
Package / Case : Horizontal, 4 PC Pin
0
239 in stock
CMX1616Z401B-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Bulk
Series : CMX
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 396µH @ 100kHz
Current Rating (Max) : 46A
DC Resistance (DCR) (Max) : 1.15 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.614" L x 1.614" W (41.00mm x 41.00mm)
Height (Max) : 0.650" (16.50mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Bulk
Series : CMX
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 396µH @ 100kHz
Current Rating (Max) : 46A
DC Resistance (DCR) (Max) : 1.15 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.614" L x 1.614" W (41.00mm x 41.00mm)
Height (Max) : 0.650" (16.50mm)
Package / Case : Horizontal, 4 PC Pin
0
127 in stock
CMX1616Z701B-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Bulk
Series : CMX
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 704µH @ 100kHz
Current Rating (Max) : 33A
DC Resistance (DCR) (Max) : 2.3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.575" L x 1.575" W (40.00mm x 40.00mm)
Height (Max) : 0.650" (16.50mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Bulk
Series : CMX
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 704µH @ 100kHz
Current Rating (Max) : 33A
DC Resistance (DCR) (Max) : 2.3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.575" L x 1.575" W (40.00mm x 40.00mm)
Height (Max) : 0.650" (16.50mm)
Package / Case : Horizontal, 4 PC Pin
0
240 in stock

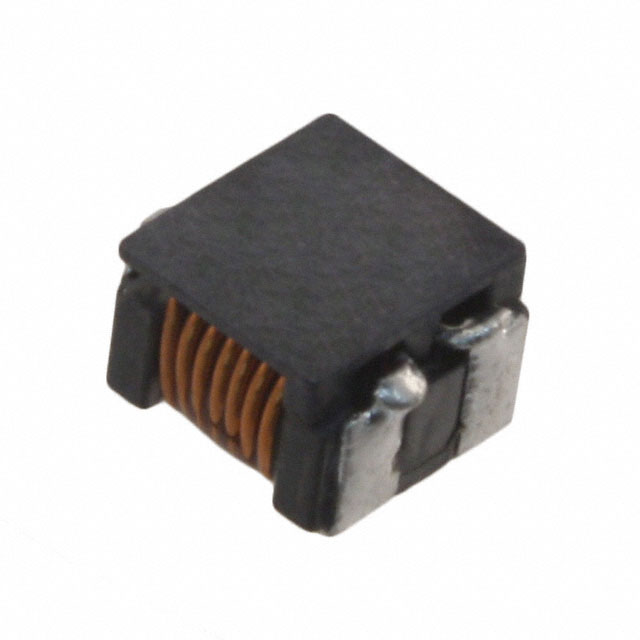

CPFC6D36NP-100M06
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 20 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.244" L x 0.209" W (6.20mm x 5.30mm)
Height (Max) : 0.150" (3.80mm)
Package / Case : Horizontal, 4 J-Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 20 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.244" L x 0.209" W (6.20mm x 5.30mm)
Height (Max) : 0.150" (3.80mm)
Package / Case : Horizontal, 4 J-Lead
0
84 in stock

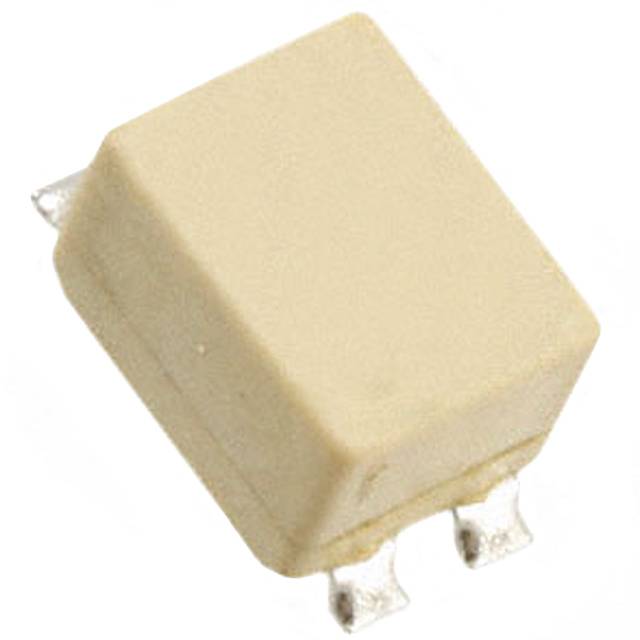

CPFC74NP-PS01H2A30
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 60 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 60 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
0
8574 in stock

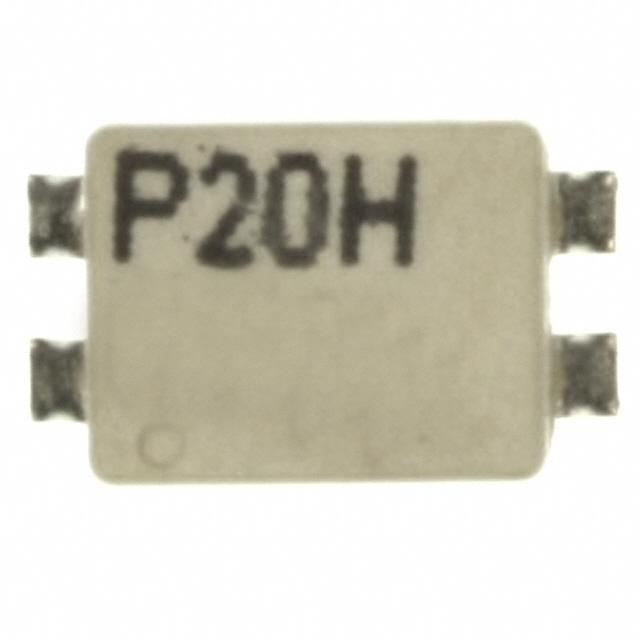

CPFC74NP-PS02H2A20
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 20MHz
Inductance @ Frequency : -
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 120 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 20MHz
Inductance @ Frequency : -
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 120 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
0
100 in stock

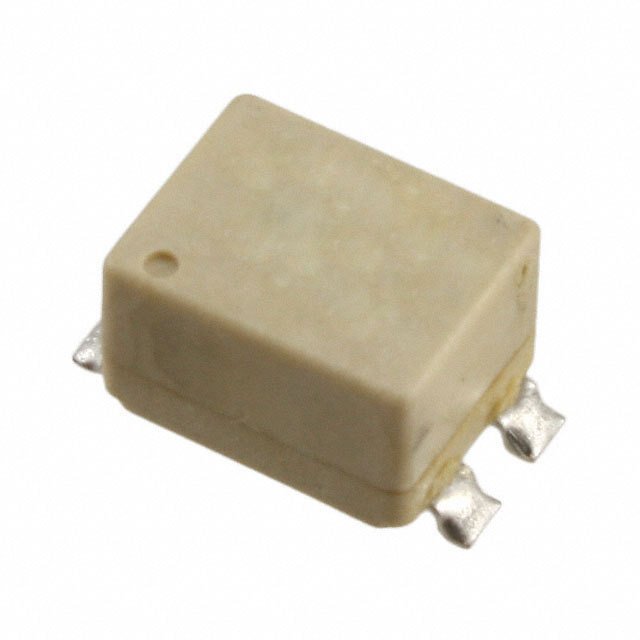

CPFC74NP-PS03H2A25
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 300 Ohms @ 160MHz
Inductance @ Frequency : -
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 120 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 300 Ohms @ 160MHz
Inductance @ Frequency : -
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 120 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
0
2063 in stock

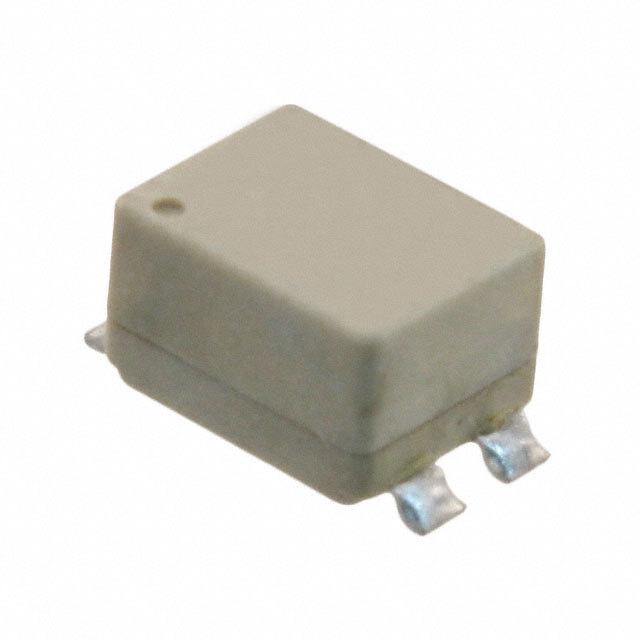

CPFC74NP-PS10H2A15
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 700 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 120 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 700 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 120 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max) : 0.200" (5.08mm)
Package / Case : Vertical, 4 Gull Wing
0
5711 in stock
CPFC805NP-100M05
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 500 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 4.5A
DC Resistance (DCR) (Max) : 15 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.311" L x 0.295" W (7.90mm x 7.50mm)
Height (Max) : 0.189" (4.80mm)
Package / Case : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 500 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 4.5A
DC Resistance (DCR) (Max) : 15 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.311" L x 0.295" W (7.90mm x 7.50mm)
Height (Max) : 0.189" (4.80mm)
Package / Case : -
0
3061 in stock
CPFC85-1M15NP
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Discontinued at
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.7mH @ 100kHz
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 2 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.366" L x 0.323" W (9.30mm x 8.20mm)
Height (Max) : 0.217" (5.50mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CPFC
Part Status : Discontinued at
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.7mH @ 100kHz
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 2 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.366" L x 0.323" W (9.30mm x 8.20mm)
Height (Max) : 0.217" (5.50mm)
Package / Case : Horizontal, 4 PC Pad
0
106 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
