Part Number
Manufacturer
Description
Unit Price
In Stock

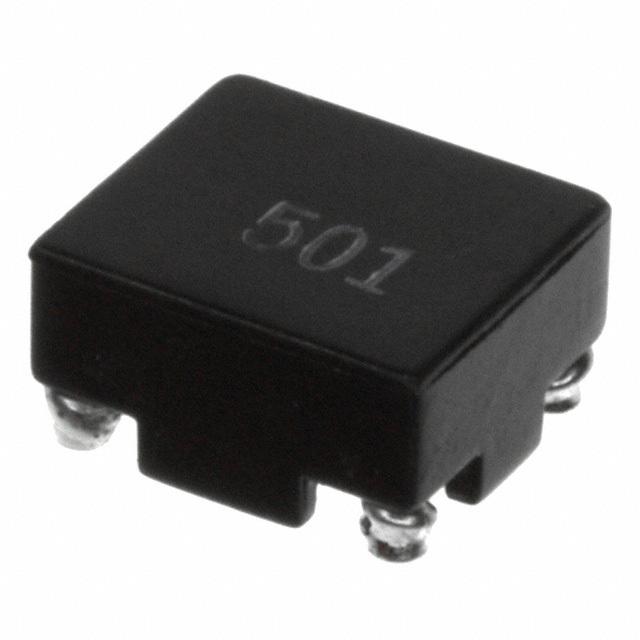

744273501
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL5
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 500 Ohms @ 130MHz
Inductance @ Frequency : 5µH @ 100kHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 5.5 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.327" W (9.50mm x 8.30mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL5
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 500 Ohms @ 130MHz
Inductance @ Frequency : 5µH @ 100kHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 5.5 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.327" W (9.50mm x 8.30mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
7373 in stock

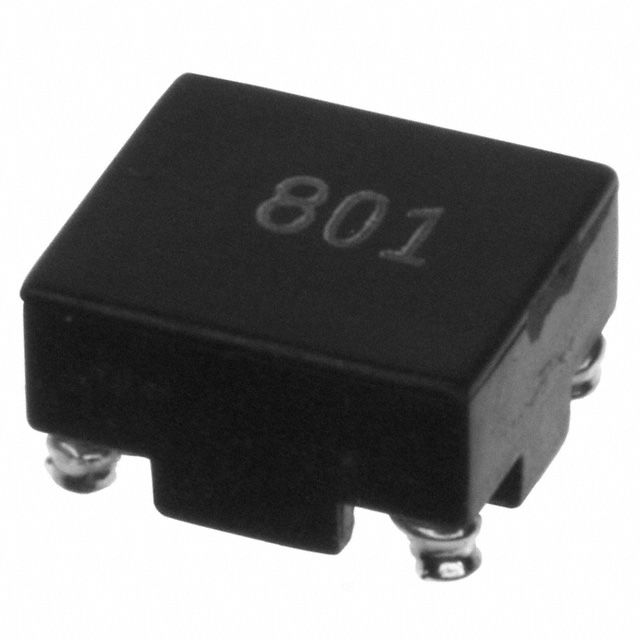

744273801
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL5
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 800 Ohms @ 120MHz
Inductance @ Frequency : 9µH @ 100kHz
Current Rating (Max) : 3.5A
DC Resistance (DCR) (Max) : 11 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.327" W (9.50mm x 8.30mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL5
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 800 Ohms @ 120MHz
Inductance @ Frequency : 9µH @ 100kHz
Current Rating (Max) : 3.5A
DC Resistance (DCR) (Max) : 11 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.374" L x 0.327" W (9.50mm x 8.30mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
803 in stock

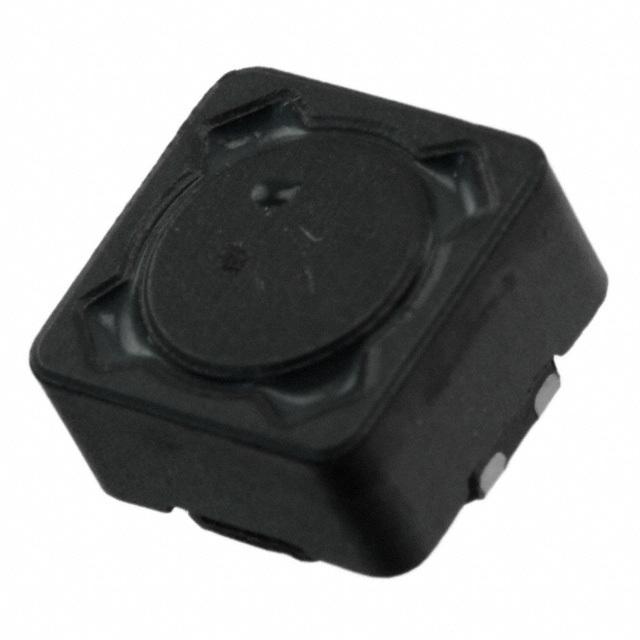

744281100
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 10 kOhms @ 25MHz
Inductance @ Frequency : 10µH @ 100kHz
Current Rating (Max) : 1.1A
DC Resistance (DCR) (Max) : 120 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height (Max) : 0.189" (4.80mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 10 kOhms @ 25MHz
Inductance @ Frequency : 10µH @ 100kHz
Current Rating (Max) : 1.1A
DC Resistance (DCR) (Max) : 120 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height (Max) : 0.189" (4.80mm)
Package / Case : Horizontal, 4 PC Pad
0
345 in stock
744281101
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 50 kOhms @ 7MHz
Inductance @ Frequency : 100µH @ 100kHz
Current Rating (Max) : 350mA
DC Resistance (DCR) (Max) : 950 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height (Max) : 0.189" (4.80mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 50 kOhms @ 7MHz
Inductance @ Frequency : 100µH @ 100kHz
Current Rating (Max) : 350mA
DC Resistance (DCR) (Max) : 950 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height (Max) : 0.189" (4.80mm)
Package / Case : Horizontal, 4 PC Pad
0
614 in stock
744281471
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 100 kOhms @ 3MHz
Inductance @ Frequency : 470µH @ 100kHz
Current Rating (Max) : 150mA
DC Resistance (DCR) (Max) : 4.3 Ohm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height (Max) : 0.189" (4.80mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 100 kOhms @ 3MHz
Inductance @ Frequency : 470µH @ 100kHz
Current Rating (Max) : 150mA
DC Resistance (DCR) (Max) : 4.3 Ohm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height (Max) : 0.189" (4.80mm)
Package / Case : Horizontal, 4 PC Pad
0
394 in stock

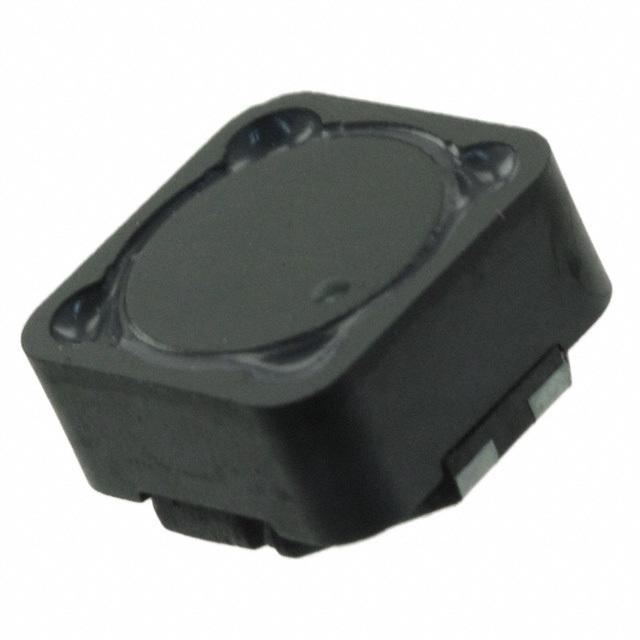

744282010
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.6 kOhms @ 90MHz
Inductance @ Frequency : 1µH @ 100kHz
Current Rating (Max) : 4.75A
DC Resistance (DCR) (Max) : 12 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.256" (6.50mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.6 kOhms @ 90MHz
Inductance @ Frequency : 1µH @ 100kHz
Current Rating (Max) : 4.75A
DC Resistance (DCR) (Max) : 12 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.256" (6.50mm)
Package / Case : Horizontal, 4 PC Pad
0
200 in stock

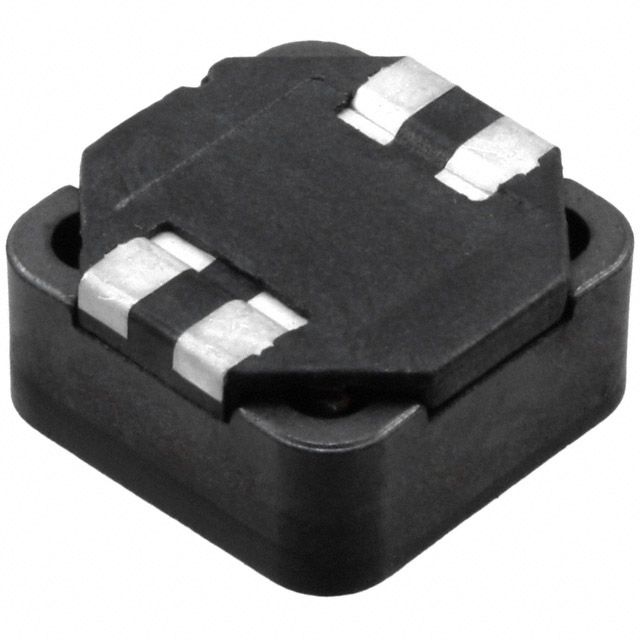

744282100
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 9 kOhms @ 20MHz
Inductance @ Frequency : 10µH @ 100kHz
Current Rating (Max) : 2.25A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.256" (6.50mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 9 kOhms @ 20MHz
Inductance @ Frequency : 10µH @ 100kHz
Current Rating (Max) : 2.25A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.256" (6.50mm)
Package / Case : Horizontal, 4 PC Pad
0
224 in stock

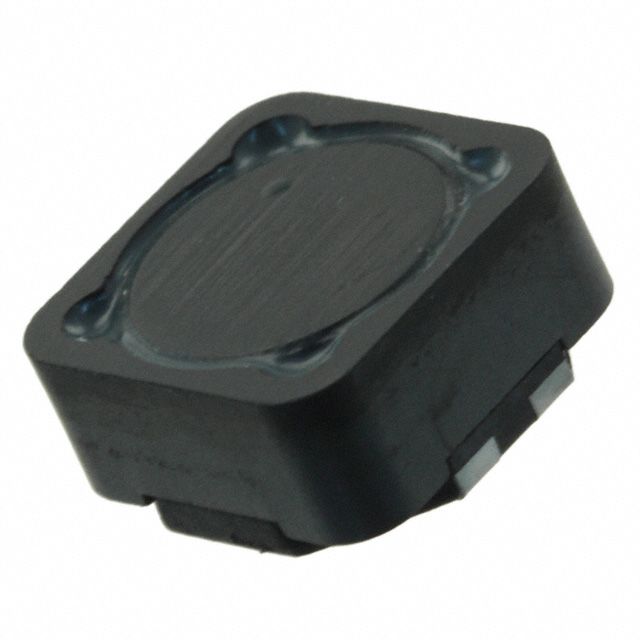

744282101
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 40 kOhms @ 7MHz
Inductance @ Frequency : 100µH @ 100kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 280 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.256" (6.50mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 40 kOhms @ 7MHz
Inductance @ Frequency : 100µH @ 100kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 280 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.256" (6.50mm)
Package / Case : Horizontal, 4 PC Pad
0
211 in stock

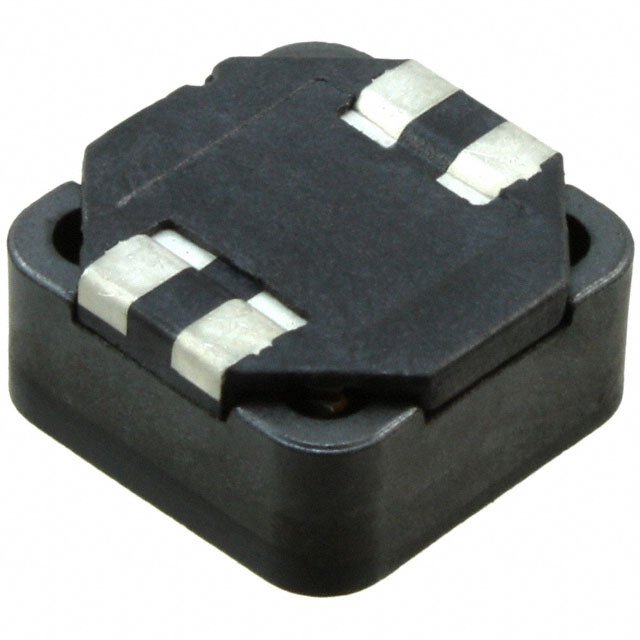

744282102
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 160 kOhms @ 2MHz
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 250mA
DC Resistance (DCR) (Max) : 2.8 Ohm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.256" (6.50mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 160 kOhms @ 2MHz
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 250mA
DC Resistance (DCR) (Max) : 2.8 Ohm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.256" (6.50mm)
Package / Case : Horizontal, 4 PC Pad
0
1516 in stock
744284100
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 10 kOhms @ 30MHz
Inductance @ Frequency : 10µH @ 100kHz
Current Rating (Max) : 2.75A
DC Resistance (DCR) (Max) : 40 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.413" (10.50mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 10 kOhms @ 30MHz
Inductance @ Frequency : 10µH @ 100kHz
Current Rating (Max) : 2.75A
DC Resistance (DCR) (Max) : 40 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.413" (10.50mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
744284101
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 40 kOhms @ 4MHz
Inductance @ Frequency : 100µH @ 100kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 280 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.413" (10.50mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 40 kOhms @ 4MHz
Inductance @ Frequency : 100µH @ 100kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 280 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.413" (10.50mm)
Package / Case : Horizontal, 4 PC Pad
0
248 in stock
744284102
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Discontinued at
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 160 kOhms @ 1MHz
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 2.5 Ohm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.413" (10.50mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SCC
Part Status : Discontinued at
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 160 kOhms @ 1MHz
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 2.5 Ohm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) : 0.413" (10.50mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
