Part Number
Manufacturer
Description
Unit Price
In Stock
ELF-18D618F
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : H
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 1kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 515 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.122" L x 1.142" W (28.50mm x 29.00mm)
Height (Max) : 0.925" (23.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : H
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 1kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 515 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.122" L x 1.142" W (28.50mm x 29.00mm)
Height (Max) : 0.925" (23.50mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
ELF-18D620
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : H
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 100mH @ 1kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 2.448 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.122" L x 1.142" W (28.50mm x 29.00mm)
Height (Max) : 0.925" (23.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : H
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 100mH @ 1kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 2.448 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.122" L x 1.142" W (28.50mm x 29.00mm)
Height (Max) : 0.925" (23.50mm)
Package / Case : Vertical, 4 PC Pin
0
1270 in stock

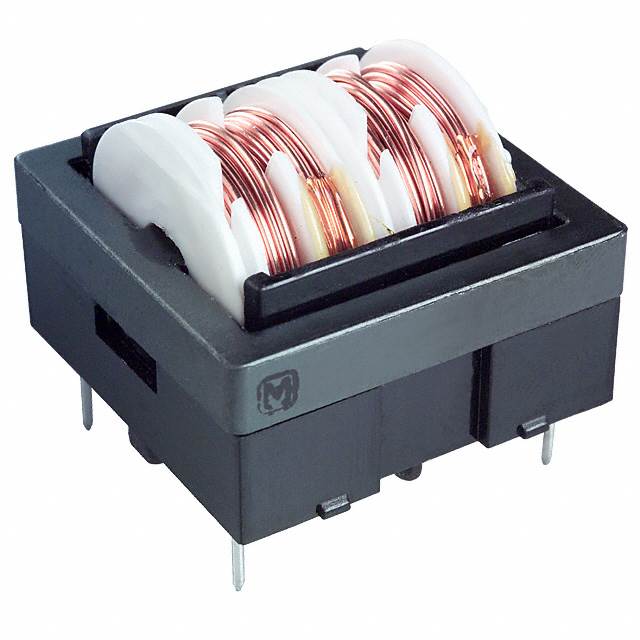

ELF-18D624F
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : H
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 33mH @ 1kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 707 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.122" L x 1.142" W (28.50mm x 29.00mm)
Height (Max) : 0.925" (23.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : H
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 33mH @ 1kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 707 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.122" L x 1.142" W (28.50mm x 29.00mm)
Height (Max) : 0.925" (23.50mm)
Package / Case : Vertical, 4 PC Pin
0
120 in stock
ELF-18D650B
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 2.4A
DC Resistance (DCR) (Max) : 101 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 2.4A
DC Resistance (DCR) (Max) : 101 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
ELF-18D650C
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.7A
DC Resistance (DCR) (Max) : 236 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.7A
DC Resistance (DCR) (Max) : 236 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
ELF-18D650G
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 2.8A
DC Resistance (DCR) (Max) : 62 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 2.8A
DC Resistance (DCR) (Max) : 62 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
0
150 in stock

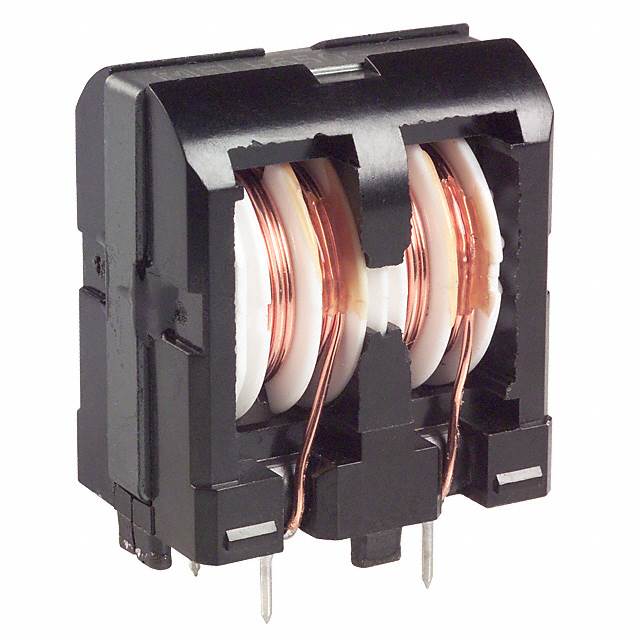

ELF-18D650H
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 806 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 806 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
0
2694 in stock
ELF-18D650J
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.3A
DC Resistance (DCR) (Max) : 309 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.3A
DC Resistance (DCR) (Max) : 309 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
ELF-18D650K
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.8A
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.8A
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
0
39 in stock
ELF-18D650L
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
ELF-18D650M
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 3.1A
DC Resistance (DCR) (Max) : 58 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 3.1A
DC Resistance (DCR) (Max) : 58 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
ELF-18D650P
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : V
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -20°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" L x 0.827" W (29.00mm x 21.00mm)
Height (Max) : 1.362" (34.60mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
