Part Number

Manufacturer

Description

Unit Price

In Stock

FE2X10-5-2

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.6A
DC Resistance (DCR) (Max) : 260 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.079" L x 0.724" W (27.41mm x 18.39mm)
Height (Max) : 1.197" (30.40mm)
Package / Case : Vertical, 4 PC Pin

205 in stock

FE2X10-6-2NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.8A
DC Resistance (DCR) (Max) : 240 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.276" L x 0.724" W (32.41mm x 18.39mm)
Height (Max) : 1.394" (35.40mm)
Package / Case : Vertical, 4 PC Pin

205 in stock

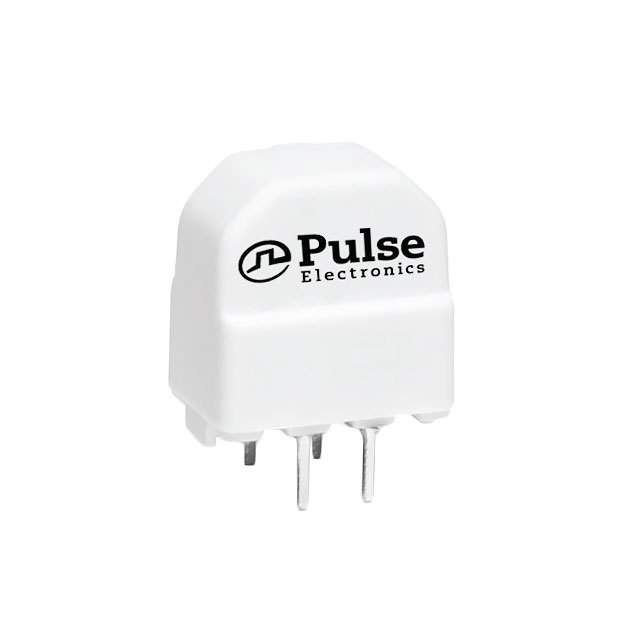

FE2X15-3-2NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 960 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.724" L x 0.528" W (18.39mm x 13.41mm)
Height (Max) : 0.803" (20.40mm)
Package / Case : Vertical, 4 PC Pin

183 in stock

FE2X15-4-2

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 530 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.921" L x 0.626" W (23.39mm x 15.90mm)
Height (Max) : 1.000" (25.40mm)
Package / Case : Vertical, 4 PC Pin

200 in stock

FE2X18-6-2NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.4A
DC Resistance (DCR) (Max) : 650 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.276" L x 0.724" W (32.41mm x 18.39mm)
Height (Max) : 1.394" (35.41mm)
Package / Case : Vertical, 4 PC Pin

202 in stock

FE2X27-3-2NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 1.7 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.724" L x 0.528" W (18.39mm x 13.41mm)
Height (Max) : 0.803" (20.40mm)
Package / Case : Vertical, 4 PC Pin

187 in stock

FE2X27-3-3NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 1.7 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.705" L x 0.705" W (17.91mm x 17.91mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

200 in stock

FE2X27-4-2

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 820 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.921" L x 0.626" W (23.39mm x 15.90mm)
Height (Max) : 1.000" (25.40mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

FE2X27-4-3NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 820 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.902" L x 0.902" W (22.91mm x 22.91mm)
Height (Max) : 0.606" (15.39mm)
Package / Case : Horizontal, 4 PC Pin

174 in stock

FE2X39-3-2NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 350mA
DC Resistance (DCR) (Max) : 2.6 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.724" L x 0.528" W (18.39mm x 13.41mm)
Height (Max) : 0.803" (20.40mm)
Package / Case : Vertical, 4 PC Pin

1360 in stock

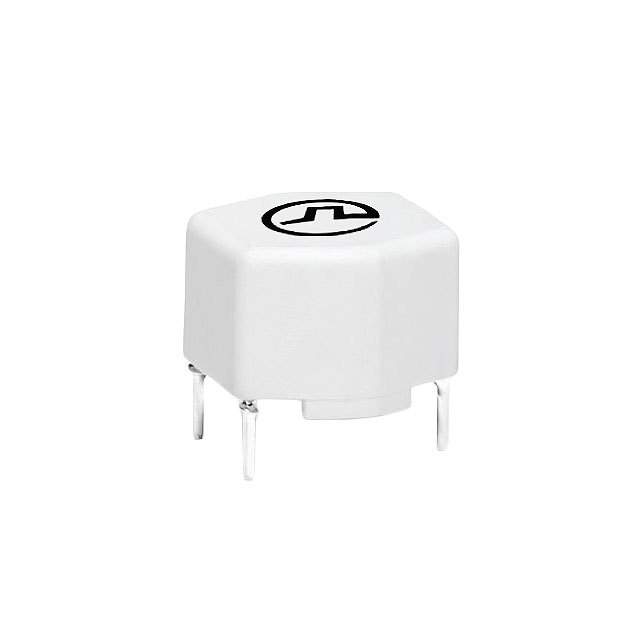

FE2X39-3-3NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 350mA
DC Resistance (DCR) (Max) : 2.6 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.705" L x 0.705" W (17.91mm x 17.91mm)
Height (Max) : 0.508" (12.90mm)
Package / Case : Horizontal, 4 PC Pin

1444 in stock

FE2X39-4-2NL

Pulse Electronics Corporation

Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : FE2X
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 1.5 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.921" L x 0.626" W (23.39mm x 15.90mm)
Height (Max) : 1.000" (25.40mm)
Package / Case : Horizontal, 4 PC Pin

197 in stock
