Part Number
Manufacturer
Description
Unit Price
In Stock
PE-1210ACC510STS
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : -
Series : ChipChoke™
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 2.6 kOhms @ 10MHz
Inductance @ Frequency : -
Current Rating (Max) : 200mA
DC Resistance (DCR) (Max) : 700 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) : 0.098" (2.50mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : -
Series : ChipChoke™
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 2.6 kOhms @ 10MHz
Inductance @ Frequency : -
Current Rating (Max) : 200mA
DC Resistance (DCR) (Max) : 700 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) : 0.098" (2.50mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
PE-1210CCMC102STS
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : -
Series : ChipChoke™
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 1 kOhms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 480mA
DC Resistance (DCR) (Max) : 350 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) : 0.079" (2.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : -
Series : ChipChoke™
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 1 kOhms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 480mA
DC Resistance (DCR) (Max) : 350 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) : 0.079" (2.00mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
PE-1210CCMC161STS
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : -
Series : ChipChoke™
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 160 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 680mA
DC Resistance (DCR) (Max) : 150 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) : 0.079" (2.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : -
Series : ChipChoke™
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 160 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 680mA
DC Resistance (DCR) (Max) : 150 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) : 0.079" (2.00mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
PE-1210CCMC271STS
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : -
Series : ChipChoke™
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 270 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) : 0.079" (2.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : -
Series : ChipChoke™
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 270 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) : 0.079" (2.00mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
PE-1210CCMC601STS
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : -
Series : ChipChoke™
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 120 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) : 0.079" (2.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : -
Series : ChipChoke™
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 120 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) : 0.079" (2.00mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
PE-1812ACC101STS
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ChipChoke™
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 7.5 kOhms @ 10MHz
Inductance @ Frequency : -
Current Rating (Max) : 200mA
DC Resistance (DCR) (Max) : 2 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ChipChoke™
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 7.5 kOhms @ 10MHz
Inductance @ Frequency : -
Current Rating (Max) : 200mA
DC Resistance (DCR) (Max) : 2 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
0
4562 in stock
PE-1812ACC110STS
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ChipChoke™
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 10MHz
Inductance @ Frequency : -
Current Rating (Max) : 360mA
DC Resistance (DCR) (Max) : 500 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ChipChoke™
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 10MHz
Inductance @ Frequency : -
Current Rating (Max) : 360mA
DC Resistance (DCR) (Max) : 500 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
0
25500 in stock

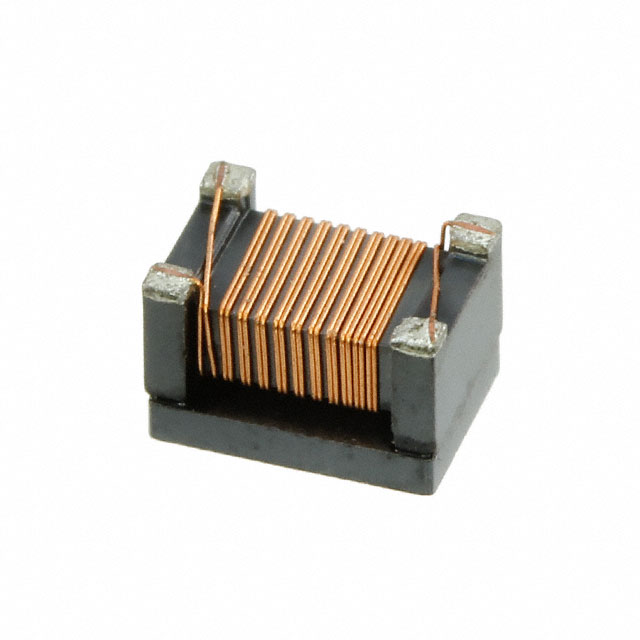

PE-1812ACC220STS
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ChipChoke™
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.2 kOhms @ 10MHz
Inductance @ Frequency : -
Current Rating (Max) : 310mA
DC Resistance (DCR) (Max) : 600 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ChipChoke™
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.2 kOhms @ 10MHz
Inductance @ Frequency : -
Current Rating (Max) : 310mA
DC Resistance (DCR) (Max) : 600 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
0
6635 in stock
PE-1812ACC510STS
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Network
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ChipChoke™
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3.5 kOhms @ 10MHz
Inductance @ Frequency : -
Current Rating (Max) : 230mA
DC Resistance (DCR) (Max) : 1 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ChipChoke™
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3.5 kOhms @ 10MHz
Inductance @ Frequency : -
Current Rating (Max) : 230mA
DC Resistance (DCR) (Max) : 1 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
0
13203 in stock
PE-53910NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 3.6A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) : 0.390" (9.90mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 3.6A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) : 0.390" (9.90mm)
Package / Case : Horizontal, 4 PC Pad
0
241 in stock
PE-53910NLT
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 3.6A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) : 0.390" (9.90mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 3.6A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) : 0.390" (9.90mm)
Package / Case : Horizontal, 4 PC Pad
0
290 in stock
PE-53911NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 60 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.645" L x 0.560" W (16.38mm x 14.22mm)
Height (Max) : 0.350" (8.89mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 60 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.645" L x 0.560" W (16.38mm x 14.22mm)
Height (Max) : 0.350" (8.89mm)
Package / Case : Horizontal, 4 PC Pad
0
302 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
