Part Number
Manufacturer
Description
Unit Price
In Stock
PH9455.156NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 10 kOhms @ 760kHz
Inductance @ Frequency : 15mH @ 760kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 30 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tube
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 10 kOhms @ 760kHz
Inductance @ Frequency : 15mH @ 760kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 30 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
0
360 in stock

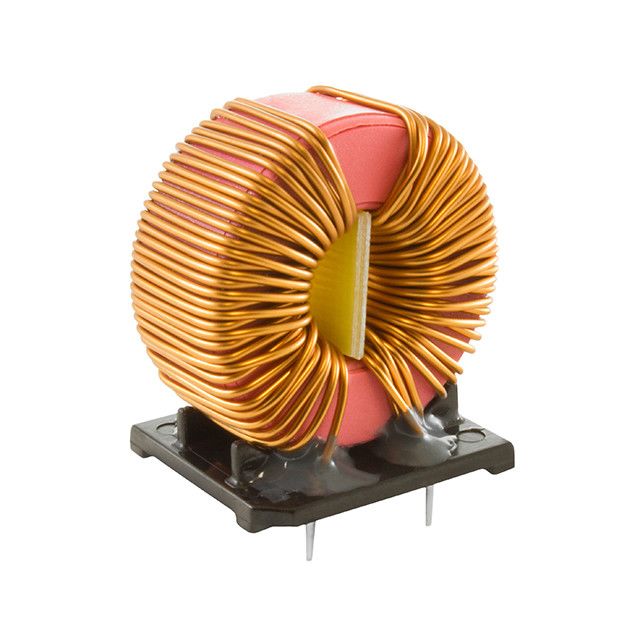

PH9455.205NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 2.6 kOhms @ 8.39MHz
Inductance @ Frequency : 2.2mH @ 8.39MHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 4.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tube
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 2.6 kOhms @ 8.39MHz
Inductance @ Frequency : 2.2mH @ 8.39MHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 4.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
0
287 in stock
PH9455.356NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tray
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 21 kOhms @ 330kHz
Inductance @ Frequency : 35mH @ 330kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 80 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 21 kOhms @ 330kHz
Inductance @ Frequency : 35mH @ 330kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 80 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
0
459 in stock
PH9455.405NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 4.4 kOhms @ 4MHz
Inductance @ Frequency : 4.5mH @ 4MHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 8.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tube
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 4.4 kOhms @ 4MHz
Inductance @ Frequency : 4.5mH @ 4MHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 8.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
PH9455.705NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 6.4 kOhms @ 1.52MHz
Inductance @ Frequency : 6.5mH @ 1.52MHz
Current Rating (Max) : 9A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tube
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 6.4 kOhms @ 1.52MHz
Inductance @ Frequency : 6.5mH @ 1.52MHz
Current Rating (Max) : 9A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
0
360 in stock
PH9455.826NL
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Packaging : Tube
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 37 kOhms @ 130kHz
Inductance @ Frequency : 82mH @ 130kHz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 150 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tube
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 37 kOhms @ 130kHz
Inductance @ Frequency : 82mH @ 130kHz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 150 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) : 1.102" (28.00mm)
Package / Case : Vertical, 4 PC Pin
0
201 in stock

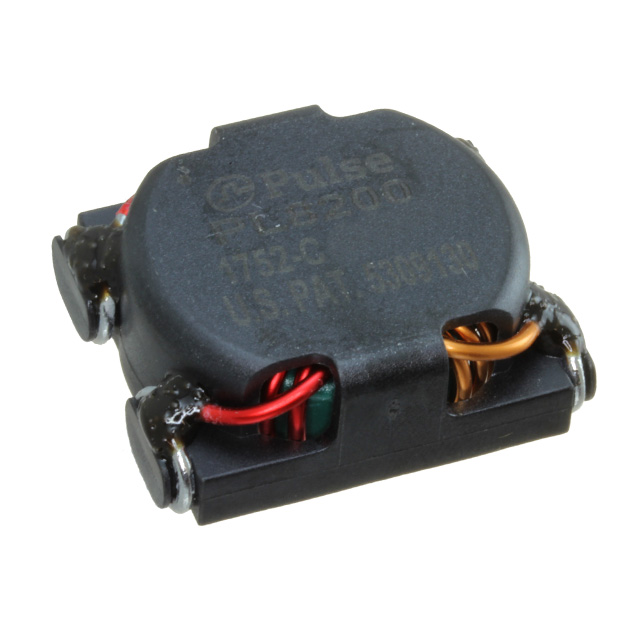

PL8200
Pulse Electronics Corporation
Manufacturer : PulseR
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 14A
DC Resistance (DCR) (Max) : 8 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max) : 0.500" (12.70mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 14A
DC Resistance (DCR) (Max) : 8 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max) : 0.500" (12.70mm)
Package / Case : Horizontal, 4 PC Pad
0
84 in stock
PL8200NL
Pulse Electronics Corporation
Manufacturer : PulseR
Packaging : -
Series : SLIC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 14A
DC Resistance (DCR) (Max) : 8 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max) : 0.500" (12.70mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : -
Series : SLIC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 14A
DC Resistance (DCR) (Max) : 8 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max) : 0.500" (12.70mm)
Package / Case : Horizontal, 4 PC Pad
0
74 in stock
PL8200T
Pulse Electronics Corporation
Manufacturer : PulseR
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 14A
DC Resistance (DCR) (Max) : 8 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max) : 0.500" (12.70mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 14A
DC Resistance (DCR) (Max) : 8 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max) : 0.500" (12.70mm)
Package / Case : Horizontal, 4 PC Pad
0
146 in stock
PL8202
Pulse Electronics Corporation
Manufacturer : PulseR
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 9.7A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max) : 0.500" (12.70mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 9.7A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max) : 0.500" (12.70mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
PL8204
Pulse Electronics Corporation
Manufacturer : PulseR
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 5.6A
DC Resistance (DCR) (Max) : 21 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) : 0.390" (9.91mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 5.6A
DC Resistance (DCR) (Max) : 21 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) : 0.390" (9.91mm)
Package / Case : Horizontal, 4 PC Pad
0
420 in stock
PL8205
Pulse Electronics Corporation
Manufacturer : PulseR
Packaging : -
Series : SLIC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 4.7A
DC Resistance (DCR) (Max) : 40 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) : 0.390" (9.91mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : -
Series : SLIC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 4.7A
DC Resistance (DCR) (Max) : 40 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 130°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) : 0.390" (9.91mm)
Package / Case : Horizontal, 4 PC Pad
0
210 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
