Part Number

Manufacturer

Description

Unit Price

In Stock

RN214-0.8-02-27M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 500 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

9707 in stock

RN214-1.2-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 1kHz
Current Rating (Max) : 1.2A (Typ)
DC Resistance (DCR) (Max) : 200 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RN214-1.2-02-10M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 195 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

4819 in stock

RN214-1.5-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.8mH @ 10kHz
Current Rating (Max) : 1.5A (Typ)
DC Resistance (DCR) (Max) : 130 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

890 in stock

RN214-1.5-02-6M8

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.8mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 123 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

376 in stock

RN214-1-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 1kHz
Current Rating (Max) : 1A (Typ)
DC Resistance (DCR) (Max) : 375 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RN214-1-02-15M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 370 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

2815 in stock

RN214-2.5-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 1kHz
Current Rating (Max) : 2.5A (Typ)
DC Resistance (DCR) (Max) : 72 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

95 in stock

RN214-2.5-02-3M3

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 63 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

898 in stock

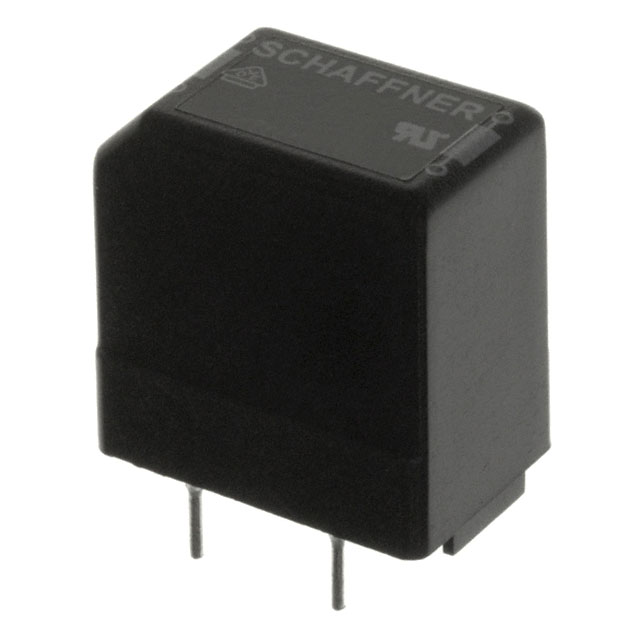

RN214-2-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.2mH @ 10kHz
Current Rating (Max) : 2A (Typ)
DC Resistance (DCR) (Max) : 102 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RN214-2-02-2.2

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 67 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RN214-2-02-2M2

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 67 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) : 0.996" (25.30mm)
Package / Case : Vertical, 4 PC Pin

459 in stock
