Welcome to Weijie Semiconductor
- Filters
- Common Mode Chokes
Part Number
Manufacturer
Description
Unit Price
In Stock
SRF0602-470Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0602
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 140 Ohms @ 4MHz
Inductance @ Frequency : 47µH @ 10kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 160 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max) : 0.071" (1.80mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0602
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 140 Ohms @ 4MHz
Inductance @ Frequency : 47µH @ 10kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 160 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max) : 0.071" (1.80mm)
Package / Case : Horizontal, 4 PC Pad
0
2449 in stock
SRF0905-100Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 20MHz
Inductance @ Frequency : 10µH @ 1kHz
Current Rating (Max) : 1.6A
DC Resistance (DCR) (Max) : 80 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 20MHz
Inductance @ Frequency : 10µH @ 1kHz
Current Rating (Max) : 1.6A
DC Resistance (DCR) (Max) : 80 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
65050 in stock
SRF0905-102Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.5 kOhms @ 1MHz
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 310 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.5 kOhms @ 1MHz
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 310 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
95708 in stock
SRF0905-202Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3 kOhms @ 1MHz
Inductance @ Frequency : 2mH @ 100kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 420 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3 kOhms @ 1MHz
Inductance @ Frequency : 2mH @ 100kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 420 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
25368 in stock
SRF0905-250Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 20MHz
Inductance @ Frequency : 25µH @ 1kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 160 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 20MHz
Inductance @ Frequency : 25µH @ 1kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 160 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
34648 in stock
SRF0905-251Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 3MHz
Inductance @ Frequency : 250µH @ 100kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 130 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 3MHz
Inductance @ Frequency : 250µH @ 100kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 130 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
41537 in stock
SRF0905-400Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 800 Ohms @ 20MHz
Inductance @ Frequency : 40µH @ 1kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 800 Ohms @ 20MHz
Inductance @ Frequency : 40µH @ 1kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
14540 in stock

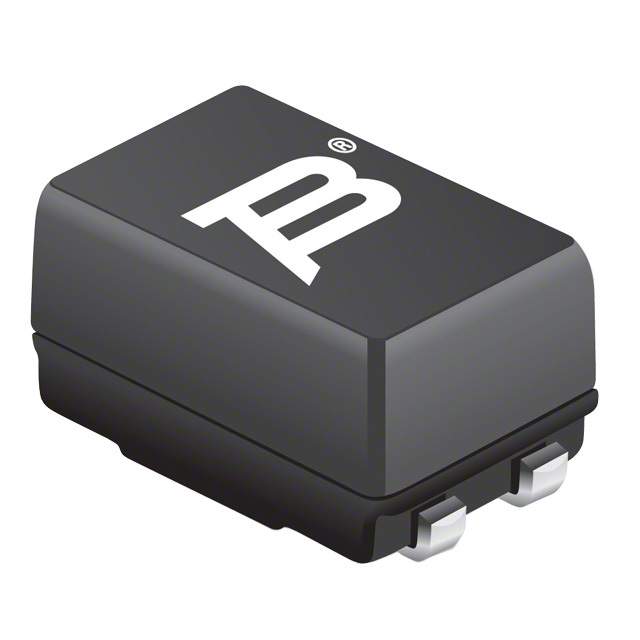

SRF0905-471Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1 kOhms @ 2MHz
Inductance @ Frequency : 470µH @ 100kHz
Current Rating (Max) : 1.1A
DC Resistance (DCR) (Max) : 140 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1 kOhms @ 2MHz
Inductance @ Frequency : 470µH @ 100kHz
Current Rating (Max) : 1.1A
DC Resistance (DCR) (Max) : 140 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
16586 in stock
SRF0905-472Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 4 kOhms @ 300kHz
Inductance @ Frequency : 4.7mH @ 100kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 900 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 4 kOhms @ 300kHz
Inductance @ Frequency : 4.7mH @ 100kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 900 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
41724 in stock
SRF0905-500Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.5 kOhms @ 20MHz
Inductance @ Frequency : 50µH @ 1kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 320 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.5 kOhms @ 20MHz
Inductance @ Frequency : 50µH @ 1kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 320 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
78081 in stock
SRF0905-501Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1 kOhms @ 1MHz
Inductance @ Frequency : 500µH @ 100kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 150 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1 kOhms @ 1MHz
Inductance @ Frequency : 500µH @ 100kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 150 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
54353 in stock
SRF0905-652Y
Bourns, Inc.
Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 5 kOhms @ 300kHz
Inductance @ Frequency : 6.5mH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 1.05 Ohm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SRF0905
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 5 kOhms @ 300kHz
Inductance @ Frequency : 6.5mH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 1.05 Ohm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
11717 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
