Common Mode Chokes Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

TCK-096

TRACO Power

Manufacturer : Traco Power
Packaging : -
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 160µH @ 100kHz
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 6.75 mOhm
Voltage Rating - DC : 500V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.433" L x 0.433" W (11.00mm x 11.00mm)
Height (Max) : 0.358" (9.10mm)
Package / Case : Horizontal, 4 PC Pin

70 in stock

TCK-097

TRACO Power

Manufacturer : Traco Power
Packaging : -
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2µH @ 100kHz
Current Rating (Max) : 11A
DC Resistance (DCR) (Max) : 12 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height (Max) : -
Package / Case : Nonstandard

10 in stock

TCK-098

TRACO Power

Manufacturer : Traco Power
Packaging : -
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 22µH @ 1kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 110 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height (Max) : 0.217" (5.50mm)
Package / Case : Nonstandard

10 in stock

TCK-099

TRACO Power

Manufacturer : Traco Power
Packaging : -
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 23.3 mOhms @ 100kHz
Inductance @ Frequency : 4.7µH @ 100kHz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height (Max) : -
Package / Case : Nonstandard

6 in stock

TCK-100

TRACO Power

Manufacturer : Traco Power
Packaging : -
Series : *
Part Status : Active
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : -
Size / Dimension : -
Height (Max) : -
Package / Case : -

10 in stock

TCK-101

TRACO Power

Manufacturer : Traco Power
Packaging : -
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 305µH @ 100kHz
Current Rating (Max) : -
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : 500V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : -
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

10 in stock

TCK-102

TRACO Power

Manufacturer : Traco Power
Packaging : -
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3µH @ 100kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 18 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height (Max) : -
Package / Case : Nonstandard

100 in stock

TCK-108

TRACO Power

Manufacturer : Traco Power
Packaging : -
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3µH @ 100kHz
Current Rating (Max) : 3.3A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height (Max) : 0.083" (2.10mm)
Package / Case : Nonstandard

6 in stock

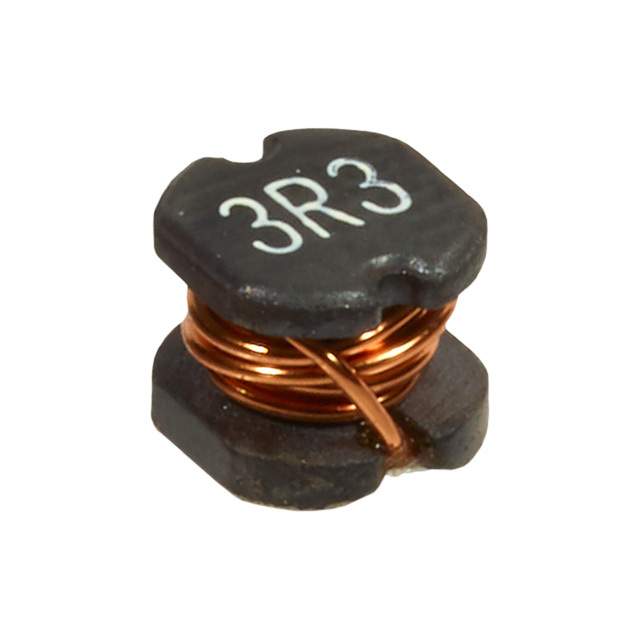

TCK-110

TRACO Power

Manufacturer : Traco Power
Packaging : -
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3µH @ 1kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 70 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height (Max) : 0.138" (3.50mm)
Package / Case : Nonstandard

80 in stock

TCK-111

TRACO Power

100 in stock

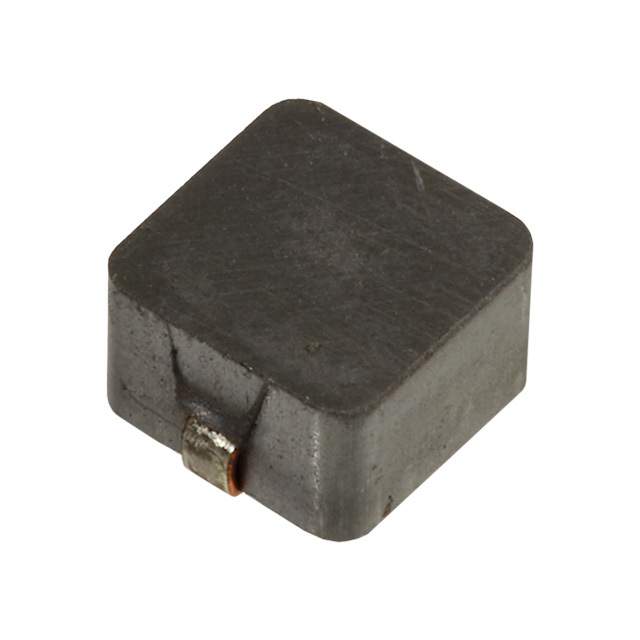

TCK-112

TRACO Power

Manufacturer : Traco Power
Packaging : -
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 12µH @ 100kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 53 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height (Max) : 0.157" (4.00mm)
Package / Case : Nonstandard

10 in stock

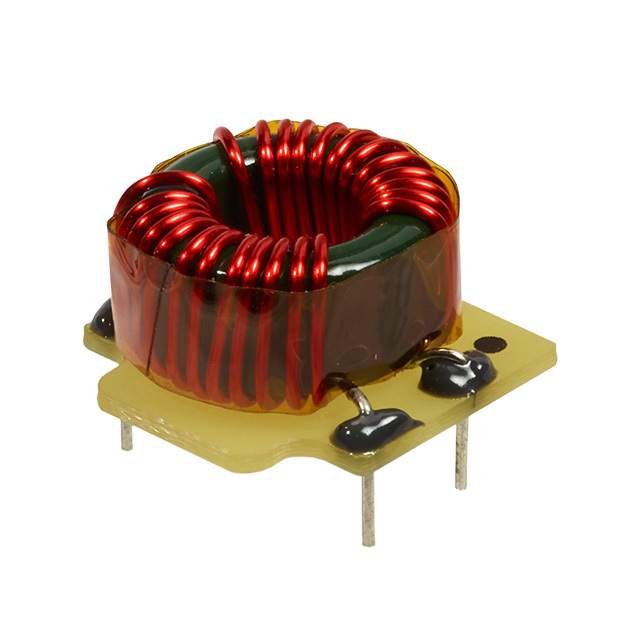

TCK-113

TRACO Power

Manufacturer : Traco Power
Packaging : -
Series : -
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 806µH @ 100kHz
Current Rating (Max) : 5.7A
DC Resistance (DCR) (Max) : 25 mOhm
Voltage Rating - DC : 500V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : -
Height (Max) : 0.492" (12.50mm)
Package / Case : Horizontal, 4 PC Pin

10 in stock
