Part Number
Manufacturer
Description
Unit Price
In Stock
ACM-0603-251-T
Abracon LLC.
Manufacturer : Abracon LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM-0603
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 250 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 280 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.063" L x 0.033" W (1.60mm x 0.85mm)
Height (Max) : 0.047" (1.20mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM-0603
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 250 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 280 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.063" L x 0.033" W (1.60mm x 0.85mm)
Height (Max) : 0.047" (1.20mm)
Package / Case : Horizontal, 4 PC Pad
0
2900 in stock
ACM-0603-450-T
Abracon LLC.
Manufacturer : Abracon LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM-0603
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 45 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 110 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.063" L x 0.033" W (1.60mm x 0.85mm)
Height (Max) : 0.047" (1.20mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM-0603
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 45 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 110 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.063" L x 0.033" W (1.60mm x 0.85mm)
Height (Max) : 0.047" (1.20mm)
Package / Case : Horizontal, 4 PC Pad
0
1396 in stock

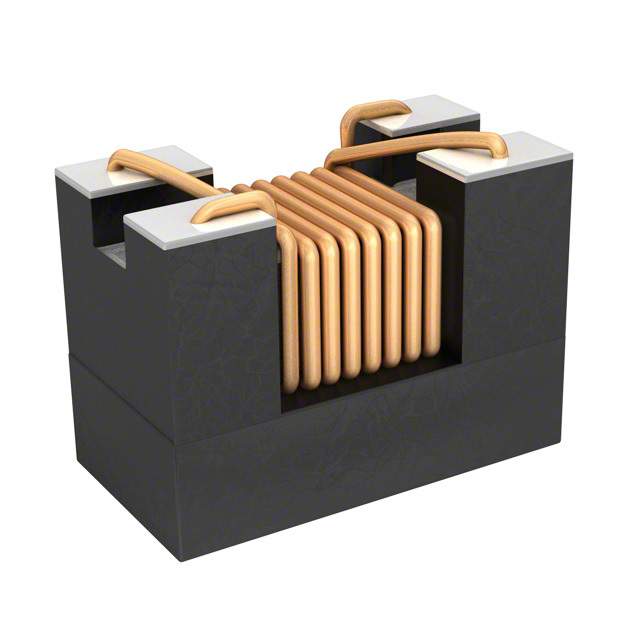

ACM-0603-900-T
Abracon LLC.
Manufacturer : Abracon LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM-0603
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 145 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.063" L x 0.033" W (1.60mm x 0.85mm)
Height (Max) : 0.047" (1.20mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM-0603
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 145 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.063" L x 0.033" W (1.60mm x 0.85mm)
Height (Max) : 0.047" (1.20mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
ACM1211-102-2PL-TL01
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 1 kOhms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 1 kOhms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
0
69656 in stock
ACM1211-701-2PL-TL01
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 700 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 6 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 700 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 6 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
0
48968 in stock

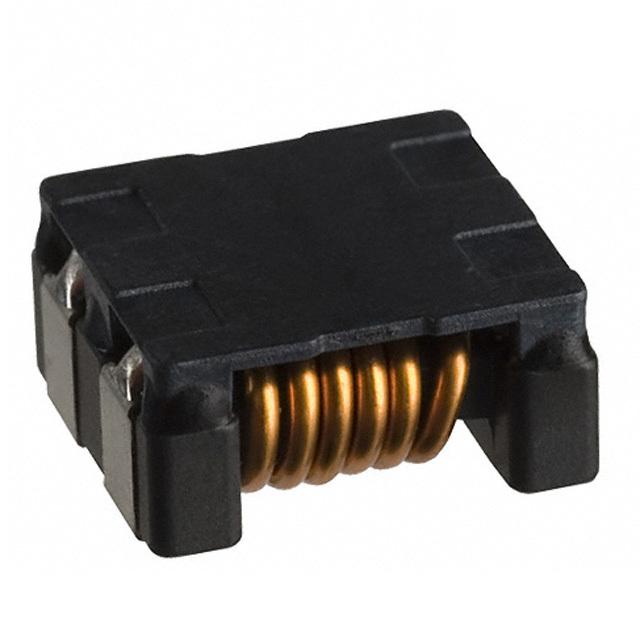

ACM12V-701-2PL-TL00
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM-V
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 700 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 6 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 J-Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM-V
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 700 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 6 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 J-Lead
0
24877 in stock
ACM1513-551-2PL-T
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : ACM
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 4 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.591" L x 0.512" W (15.00mm x 13.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Tape & Reel (TR)
Series : ACM
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 4 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.591" L x 0.512" W (15.00mm x 13.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock

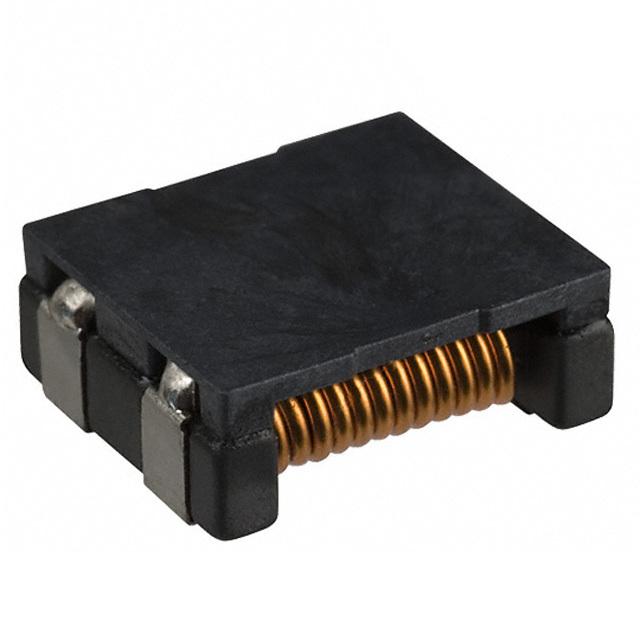

ACM1513-551-2PL-TL
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Series : ACM
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 550 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 4 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.591" L x 0.512" W (15.00mm x 13.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Tape & Reel (TR)
Series : ACM
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 550 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 4 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.591" L x 0.512" W (15.00mm x 13.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
ACM1513-551-2PL-TLHF
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 550 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 4 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.591" L x 0.512" W (15.00mm x 13.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : 550 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 4 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.591" L x 0.512" W (15.00mm x 13.00mm)
Height (Max) : 0.236" (6.00mm)
Package / Case : Horizontal, 4 PC Pad
0
3395 in stock
ACM2012-121-2P-T001
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 120 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 370mA
DC Resistance (DCR) (Max) : 220 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.051" (1.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 120 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 370mA
DC Resistance (DCR) (Max) : 220 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.051" (1.30mm)
Package / Case : Horizontal, 4 PC Pad
0
1361 in stock
ACM2012-121-2P-T002
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 120 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 370mA
DC Resistance (DCR) (Max) : 220 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.051" (1.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 120 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 370mA
DC Resistance (DCR) (Max) : 220 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.051" (1.30mm)
Package / Case : Horizontal, 4 PC Pad
0
94641 in stock
ACM2012-201-2P-T001
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 350mA
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.051" (1.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ACM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 350mA
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.051" (1.30mm)
Package / Case : Horizontal, 4 PC Pad
0
15306 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
