- Filters
- Common Mode Chokes
Part Number
Manufacturer
Description
Unit Price
In Stock

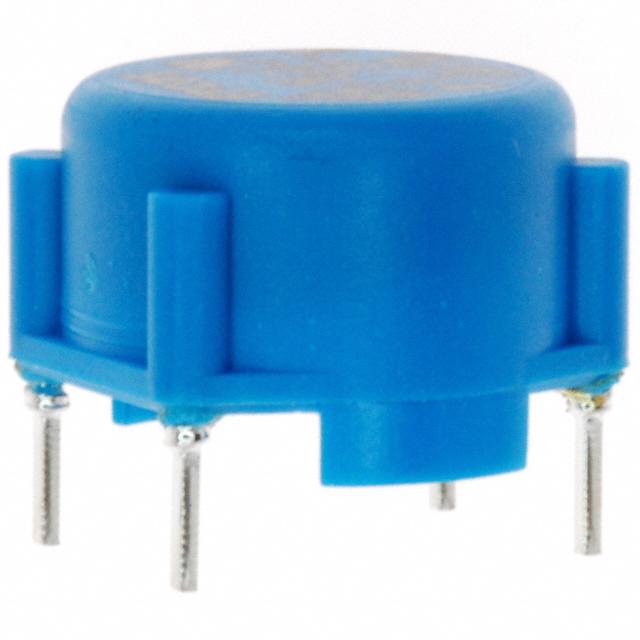

B82721A2501N001
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82721
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 18mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 1.4 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.705" L x 0.681" W (17.90mm x 17.30mm)
Height (Max) : 0.496" (12.60mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : B82721
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 18mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 1.4 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.705" L x 0.681" W (17.90mm x 17.30mm)
Height (Max) : 0.496" (12.60mm)
Package / Case : Horizontal, 4 PC Pin
0
1383 in stock

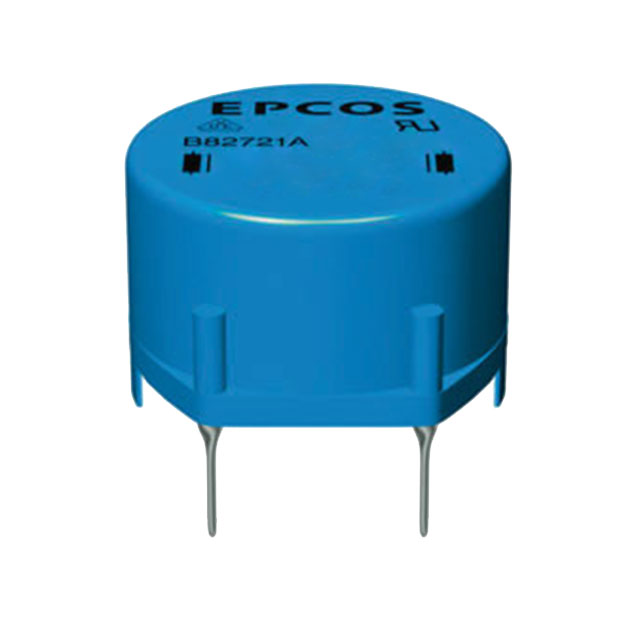

B82721A2601N020
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82721
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 700 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.705" L x 0.681" W (17.90mm x 17.30mm)
Height (Max) : 0.528" H (13.40mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : B82721
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 700 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.705" L x 0.681" W (17.90mm x 17.30mm)
Height (Max) : 0.528" H (13.40mm)
Package / Case : Horizontal, 4 PC Pin
0
595 in stock
B82721A2701N020
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82721
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 550 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.705" L x 0.681" W (17.90mm x 17.30mm)
Height (Max) : 0.496" (12.60mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : B82721
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 700mA
DC Resistance (DCR) (Max) : 550 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.705" L x 0.681" W (17.90mm x 17.30mm)
Height (Max) : 0.496" (12.60mm)
Package / Case : Horizontal, 4 PC Pin
0
600 in stock
B82721J2122N020
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.8mH @ 10kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 280 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.823" (20.90mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.8mH @ 10kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 280 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.823" (20.90mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
B82721J2152N001
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 180 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.823" (20.90mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 180 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.823" (20.90mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
B82721J2202N001
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 80 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 80 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
B82721J2252N020
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 600µH @ 100kHz
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 60 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 600µH @ 100kHz
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 60 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
B82721J2262N001
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 400µH @ 100kHz
Current Rating (Max) : 2.6A
DC Resistance (DCR) (Max) : 55 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 400µH @ 100kHz
Current Rating (Max) : 2.6A
DC Resistance (DCR) (Max) : 55 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.799" (20.30mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
B82721J2301N020
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 47mH @ 10kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 2.2 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.823" (20.90mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 47mH @ 10kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 2.2 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.823" (20.90mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
B82721J2301N021
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : -
Series : B82721
Part Status : Not For New Designs
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : -
Size / Dimension : -
Height (Max) : -
Package / Case : -
Packaging : -
Series : B82721
Part Status : Not For New Designs
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : -
Size / Dimension : -
Height (Max) : -
Package / Case : -
0
100 in stock
B82721J2401N020
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 10kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 2 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.823" (20.90mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 10kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 2 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.823" (20.90mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
B82721J2401N021
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 1.7 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.823" (20.90mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82721
Part Status : Not For New Designs
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 400mA
DC Resistance (DCR) (Max) : 1.7 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.717" L x 0.520" W (18.20mm x 13.20mm)
Height (Max) : 0.823" (20.90mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
