- Filters
- Common Mode Chokes
Part Number
Manufacturer
Description
Unit Price
In Stock
B82726S2243A020
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 750µH @ 100kHz
Current Rating (Max) : 24A
DC Resistance (DCR) (Max) : 3.2 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.772" Dia x 0.984" W (45.00mm x 25.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 750µH @ 100kHz
Current Rating (Max) : 24A
DC Resistance (DCR) (Max) : 3.2 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.772" Dia x 0.984" W (45.00mm x 25.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
0
321 in stock

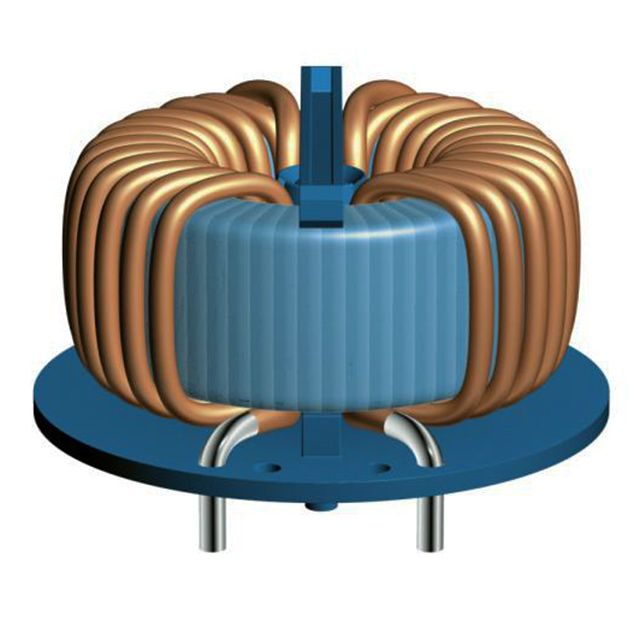

B82726S3223A340
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.7mH @ 10kHz
Current Rating (Max) : 25A
DC Resistance (DCR) (Max) : 2.75 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.165" Dia (55.00mm)
Height (Max) : 1.339" (34.00mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.7mH @ 10kHz
Current Rating (Max) : 25A
DC Resistance (DCR) (Max) : 2.75 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.165" Dia (55.00mm)
Height (Max) : 1.339" (34.00mm)
Package / Case : Horizontal, 4 PC Pin
0
631 in stock

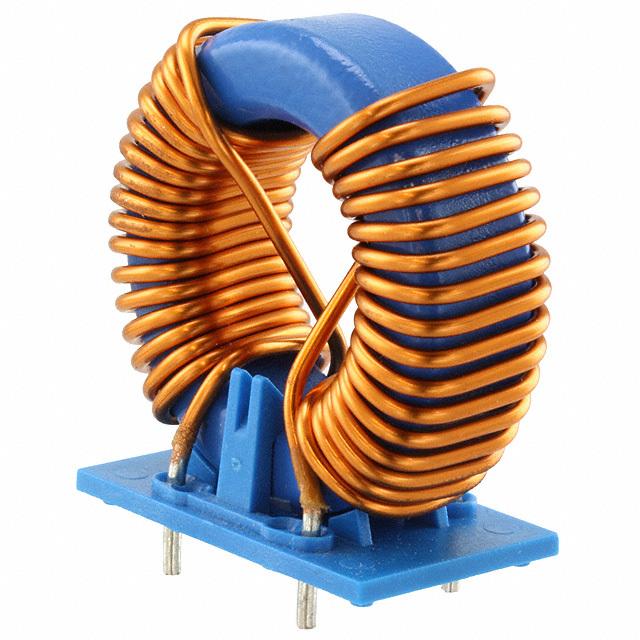

B82726S3543N040
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 190µH @ 100kHz
Current Rating (Max) : 54A
DC Resistance (DCR) (Max) : 1.1 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 0.906" W (50.00mm x 23.00mm)
Height (Max) : 1.929" (49.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 190µH @ 100kHz
Current Rating (Max) : 54A
DC Resistance (DCR) (Max) : 1.1 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 0.906" W (50.00mm x 23.00mm)
Height (Max) : 1.929" (49.00mm)
Package / Case : Vertical, 4 PC Pin
0
281 in stock
B82726S6103N001
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 12 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 0.906" W (50.00mm x 23.00mm)
Height (Max) : 1.929" (49.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 12 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 0.906" W (50.00mm x 23.00mm)
Height (Max) : 1.929" (49.00mm)
Package / Case : Vertical, 4 PC Pin
0
46 in stock
B82726S6123N020
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 8.4 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 0.906" W (50.00mm x 23.00mm)
Height (Max) : 1.929" (49.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 8.4 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 0.906" W (50.00mm x 23.00mm)
Height (Max) : 1.929" (49.00mm)
Package / Case : Vertical, 4 PC Pin
0
51 in stock
B82726S6203A040
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.5mH @ 10kHz
Current Rating (Max) : 24A
DC Resistance (DCR) (Max) : 3.2 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.165" L x 1.339" W (55.00mm x 34.00mm)
Height (Max) : 2.047" (52.00mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.5mH @ 10kHz
Current Rating (Max) : 24A
DC Resistance (DCR) (Max) : 3.2 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.165" L x 1.339" W (55.00mm x 34.00mm)
Height (Max) : 2.047" (52.00mm)
Package / Case : Horizontal, 4 PC Pin
0
103 in stock
B82726S6243A040
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 440µH @ 100kHz
Current Rating (Max) : 29A
DC Resistance (DCR) (Max) : 1.5 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.890" Dia x 1.024" L (48.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82726
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 440µH @ 100kHz
Current Rating (Max) : 29A
DC Resistance (DCR) (Max) : 1.5 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.890" Dia x 1.024" L (48.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 4 PC Pin
0
115 in stock
B82727E6223A040
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82727
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 22A
DC Resistance (DCR) (Max) : 4.6 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.890" Dia x 1.024" L (48.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 8 PC Pin
Packaging : Tray
Series : B82727
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 22A
DC Resistance (DCR) (Max) : 4.6 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.890" Dia x 1.024" L (48.00mm x 26.00mm)
Height (Max) : 1.772" (45.00mm)
Package / Case : Vertical, 8 PC Pin
0
22 in stock
B82727E6243A040
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82727
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 24A
DC Resistance (DCR) (Max) : 3.9 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.559" L x 1.378" W (65.00mm x 35.00mm)
Height (Max) : 2.402" (61.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Tray
Series : B82727
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 24A
DC Resistance (DCR) (Max) : 3.9 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.559" L x 1.378" W (65.00mm x 35.00mm)
Height (Max) : 2.402" (61.00mm)
Package / Case : Vertical, 4 PC Pin
0
76 in stock

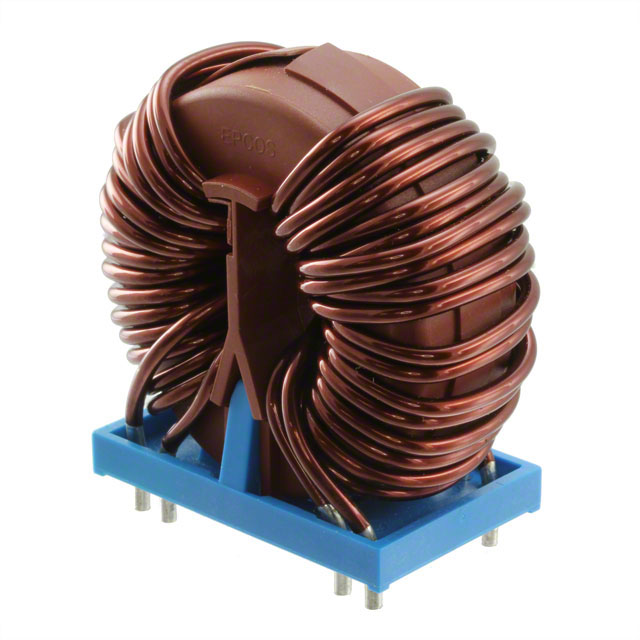

B82727E6403A040
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82727
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.5mH @ 10kHz
Current Rating (Max) : 40A
DC Resistance (DCR) (Max) : 1.7 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.559" L x 1.378" W (65.00mm x 35.00mm)
Height (Max) : 2.402" (61.00mm)
Package / Case : Vertical, 8 PC Pin
Packaging : Tray
Series : B82727
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.5mH @ 10kHz
Current Rating (Max) : 40A
DC Resistance (DCR) (Max) : 1.7 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.559" L x 1.378" W (65.00mm x 35.00mm)
Height (Max) : 2.402" (61.00mm)
Package / Case : Vertical, 8 PC Pin
0
121 in stock
B82727E6443A040
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82727
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 44A
DC Resistance (DCR) (Max) : 1.35 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.559" L x 1.378" W (65.00mm x 35.00mm)
Height (Max) : 2.402" (61.00mm)
Package / Case : Vertical, 8 PC Pin
Packaging : Tray
Series : B82727
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 44A
DC Resistance (DCR) (Max) : 1.35 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.559" L x 1.378" W (65.00mm x 35.00mm)
Height (Max) : 2.402" (61.00mm)
Package / Case : Vertical, 8 PC Pin
0
27 in stock
B82727E6503A040
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82727
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 570µH @ 100kHz
Current Rating (Max) : 50A
DC Resistance (DCR) (Max) : 1 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.559" L x 1.378" W (65.00mm x 35.00mm)
Height (Max) : 2.402" (61.00mm)
Package / Case : Vertical, 8 PC Pin
Packaging : Tray
Series : B82727
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 570µH @ 100kHz
Current Rating (Max) : 50A
DC Resistance (DCR) (Max) : 1 mOhm (Typ)
Voltage Rating - DC : 1000V (1kV)
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.559" L x 1.378" W (65.00mm x 35.00mm)
Height (Max) : 2.402" (61.00mm)
Package / Case : Vertical, 8 PC Pin
0
214 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
