Common Mode Chokes Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

B82734W2192C30

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : -
Series : B82734
Part Status : Obsolete
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : -
Size / Dimension : -
Height (Max) : -
Package / Case : -

100 in stock

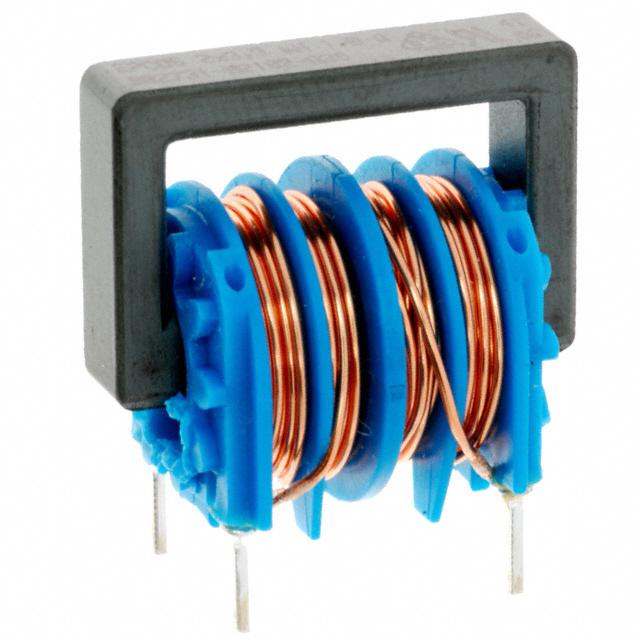

B82734W2192D30

EPCOS

100 in stock

B82734W2232B030

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82734
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 2.3A
DC Resistance (DCR) (Max) : 185 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.280" L x 1.220" W (32.50mm x 31.00mm)
Height (Max) : 0.854" (21.70mm)
Package / Case : Horizontal, 4 PC Pin

791 in stock

B82745C2A10

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82745
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 330µH @ 100kHz
Current Rating (Max) : 100A
DC Resistance (DCR) (Max) : 650 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 440/250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Chassis Mount
Size / Dimension : 5.709" L x 5.709" W (145.00mm x 145.00mm)
Height (Max) : 4.843" (123.00mm)
Package / Case : -

100 in stock

B82745C2A13

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82745
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 120µH @ 100kHz
Current Rating (Max) : 200A
DC Resistance (DCR) (Max) : 280 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 440/250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Chassis Mount
Size / Dimension : 5.709" L x 5.709" W (145.00mm x 145.00mm)
Height (Max) : 4.843" (123.00mm)
Package / Case : -

100 in stock

B82745C4A6

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : -
Series : B82745
Part Status : Active
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : -
Size / Dimension : -
Height (Max) : -
Package / Case : -

100 in stock

B82745C5A7

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82745
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 1.3mH @ 10kHz
Current Rating (Max) : 50A
DC Resistance (DCR) (Max) : 3.75 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 440/250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Chassis Mount
Size / Dimension : 4.803" L x 4.803" W (122.00mm x 122.00mm)
Height (Max) : 2.560" (65.00mm)
Package / Case : -

100 in stock

B82745C8A6

EPCOS

100 in stock

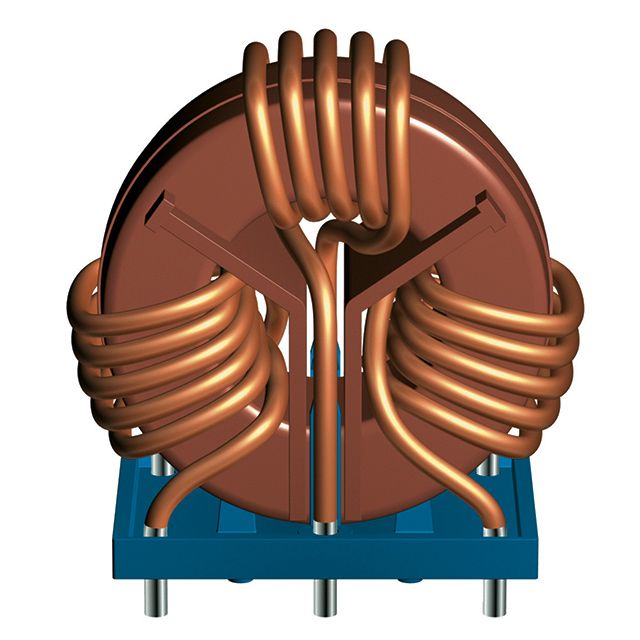

B82745S6123N002

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82745
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 350µH @ 100kHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 3.7 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 440/250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.953" Dia (75.00mm)
Height (Max) : 1.850" (47.00mm)
Package / Case : Vertical, 6 Flat Lead

417 in stock

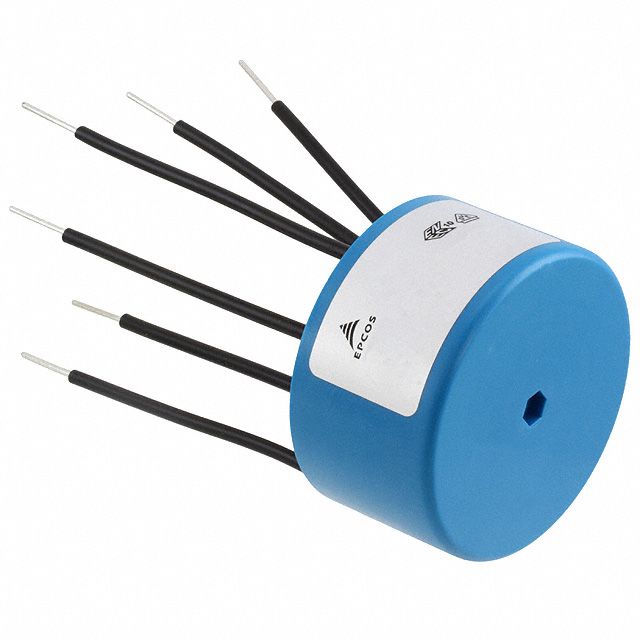

B82746S4103A020

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82747
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : 440/250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Chassis Mount
Size / Dimension : 2.874" Dia (73.00mm)
Height (Max) : 1.575" (40.00mm)
Package / Case : -

100 in stock

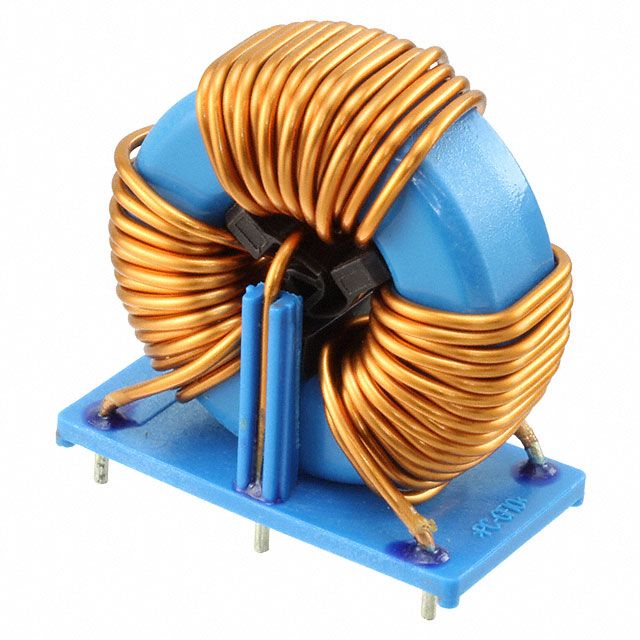

B82746S4103A021

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82746
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 2mH @ 10kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 9.6 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 500/300V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.772" L x 0.906" W (45.00mm x 23.00mm)
Height (Max) : 1.850" (47.00mm)
Package / Case : Vertical, 6 PC Pin

141 in stock

B82746S4143A040

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Tray
Series : B82746
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3.2mH @ 10kHz
Current Rating (Max) : 13A
DC Resistance (DCR) (Max) : 6.5 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 440/250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.047" Dia (52.00mm)
Height (Max) : 1.535" (39.00mm)
Package / Case : Horizontal, 6 PC Pin

99 in stock
