- Filters
- Common Mode Chokes
Part Number
Manufacturer
Description
Unit Price
In Stock
CM08RB01
Taiyo Yuden
Manufacturer : Taiyo Yuden
Packaging : Bulk
Series : CM08
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 2.5 kOhms @ 30MHz
Inductance @ Frequency : -
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 40 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) : 0.571" (14.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : CM08
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 2.5 kOhms @ 30MHz
Inductance @ Frequency : -
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 40 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) : 0.571" (14.50mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
CM08RB02
Taiyo Yuden
Manufacturer : Taiyo Yuden
Packaging : Bulk
Series : CM08
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 2 kOhms @ 50MHz
Inductance @ Frequency : -
Current Rating (Max) : 2.4A
DC Resistance (DCR) (Max) : 40 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) : 0.571" (14.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : CM08
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 2 kOhms @ 50MHz
Inductance @ Frequency : -
Current Rating (Max) : 2.4A
DC Resistance (DCR) (Max) : 40 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) : 0.571" (14.50mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
CM08RB03
Taiyo Yuden
Manufacturer : Taiyo Yuden
Packaging : Bulk
Series : CM08
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 4
Impedance @ Frequency : 1 kOhms @ 50MHz
Inductance @ Frequency : -
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) : 0.571" (14.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : CM08
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 4
Impedance @ Frequency : 1 kOhms @ 50MHz
Inductance @ Frequency : -
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) : 0.571" (14.50mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
CM08RB04
Taiyo Yuden
Manufacturer : Taiyo Yuden
Packaging : Bulk
Series : CM08
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 2 kOhms @ 70MHz
Inductance @ Frequency : -
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 40 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) : 0.571" (14.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : CM08
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 2 kOhms @ 70MHz
Inductance @ Frequency : -
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 40 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) : 0.571" (14.50mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
CM08RB05
Taiyo Yuden
Manufacturer : Taiyo Yuden
Packaging : Bulk
Series : CM08
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 450 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 20 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) : 0.571" (14.50mm)
Package / Case : Vertical, 4 PC Pin
Packaging : Bulk
Series : CM08
Part Status : Obsolete
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 450 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 20 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) : 0.571" (14.50mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock

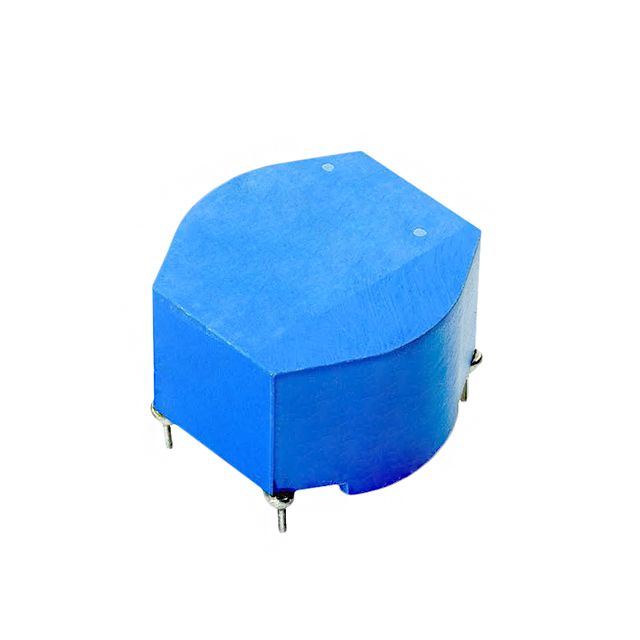

CM1011R-255
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM1011R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 1kHz
Current Rating (Max) : 2.8A
DC Resistance (DCR) (Max) : 73 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.098" L x 1.098" W (27.90mm x 27.90mm)
Height (Max) : 0.731" (18.56mm)
Package / Case : Horizontal, 4 PC Pin
Packaging : Bulk
Series : CM1011R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 1kHz
Current Rating (Max) : 2.8A
DC Resistance (DCR) (Max) : 73 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.098" L x 1.098" W (27.90mm x 27.90mm)
Height (Max) : 0.731" (18.56mm)
Package / Case : Horizontal, 4 PC Pin
0
64 in stock

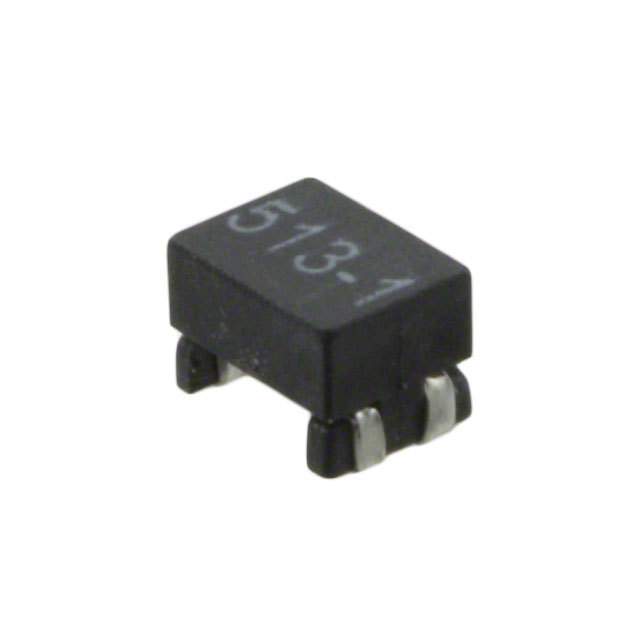

CM1812C282R-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CM
Part Status : Discontinued at
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 2.82 kOhms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 200mA
DC Resistance (DCR) (Max) : 500 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.205" L x 0.138" W (5.20mm x 3.50mm)
Height (Max) : 0.140" (3.55mm)
Package / Case : 1812 (4532 Metric), 4 Leads
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CM
Part Status : Discontinued at
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 2.82 kOhms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 200mA
DC Resistance (DCR) (Max) : 500 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.205" L x 0.138" W (5.20mm x 3.50mm)
Height (Max) : 0.140" (3.55mm)
Package / Case : 1812 (4532 Metric), 4 Leads
0
100 in stock
CM1812R600R-00
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 60 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.180" L x 0.120" W (4.57mm x 3.05mm)
Height (Max) : 0.103" (2.61mm)
Package / Case : 1812 (4532 Metric), 4 Leads
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 60 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.180" L x 0.120" W (4.57mm x 3.05mm)
Height (Max) : 0.103" (2.61mm)
Package / Case : 1812 (4532 Metric), 4 Leads
0
100 in stock
CM1812R600R-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 60 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.180" L x 0.120" W (4.57mm x 3.05mm)
Height (Max) : 0.103" (2.61mm)
Package / Case : 1812 (4532 Metric)
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 60 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.180" L x 0.120" W (4.57mm x 3.05mm)
Height (Max) : 0.103" (2.61mm)
Package / Case : 1812 (4532 Metric)
0
100 in stock
CM1812X330R-00
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 33 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.180" L x 0.120" W (4.57mm x 3.05mm)
Height (Max) : 0.103" (2.61mm)
Package / Case : 1812 (4532 Metric), 4 Leads
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 33 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.180" L x 0.120" W (4.57mm x 3.05mm)
Height (Max) : 0.103" (2.61mm)
Package / Case : 1812 (4532 Metric), 4 Leads
0
100 in stock
CM1812X330R-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 33 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.180" L x 0.120" W (4.57mm x 3.05mm)
Height (Max) : 0.063" (1.60mm)
Package / Case : 1812 (4532 Metric)
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : 33 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.180" L x 0.120" W (4.57mm x 3.05mm)
Height (Max) : 0.063" (1.60mm)
Package / Case : 1812 (4532 Metric)
0
100 in stock
CM1922X330R-00
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 33 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.220" L x 0.185" W (5.60mm x 4.70mm)
Height (Max) : 0.112" (2.85mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 33 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.220" L x 0.185" W (5.60mm x 4.70mm)
Height (Max) : 0.112" (2.85mm)
Package / Case : Horizontal, 4 PC Pad
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
