Part Number
Manufacturer
Description
Unit Price
In Stock
CM5740Z171R-00
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 4
Impedance @ Frequency : 170 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 1 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.570" L x 0.435" W (14.48mm x 11.05mm)
Height (Max) : 0.413" (10.49mm)
Package / Case : Vertical, 8 Flat Lead
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 4
Impedance @ Frequency : 170 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 1 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.570" L x 0.435" W (14.48mm x 11.05mm)
Height (Max) : 0.413" (10.49mm)
Package / Case : Vertical, 8 Flat Lead
0
100 in stock

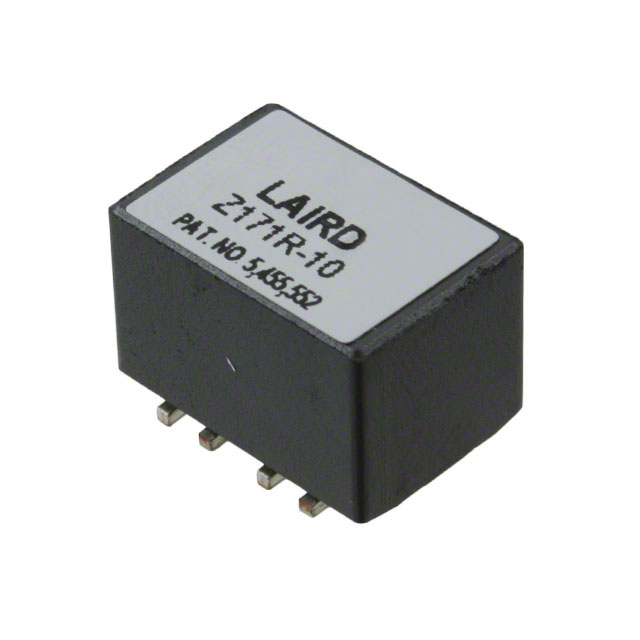

CM5740Z171R-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CM
Part Status : Active
Filter Type : Power Line
Number of Lines : 4
Impedance @ Frequency : 170 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 1 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.570" L x 0.435" W (14.48mm x 11.05mm)
Height (Max) : 0.413" (10.49mm)
Package / Case : Vertical, 8 Flat Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CM
Part Status : Active
Filter Type : Power Line
Number of Lines : 4
Impedance @ Frequency : 170 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 1 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.570" L x 0.435" W (14.48mm x 11.05mm)
Height (Max) : 0.413" (10.49mm)
Package / Case : Vertical, 8 Flat Lead
0
1380 in stock
CM5740Z241B-00
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Bulk
Series : CM
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 4
Impedance @ Frequency : 100 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 1.3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.570" L x 0.395" W (14.48mm x 10.03mm)
Height (Max) : 0.367" (9.32mm)
Package / Case : Vertical, 8 PC Pin
Packaging : Bulk
Series : CM
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 4
Impedance @ Frequency : 100 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 1.3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.570" L x 0.395" W (14.48mm x 10.03mm)
Height (Max) : 0.367" (9.32mm)
Package / Case : Vertical, 8 PC Pin
0
100 in stock

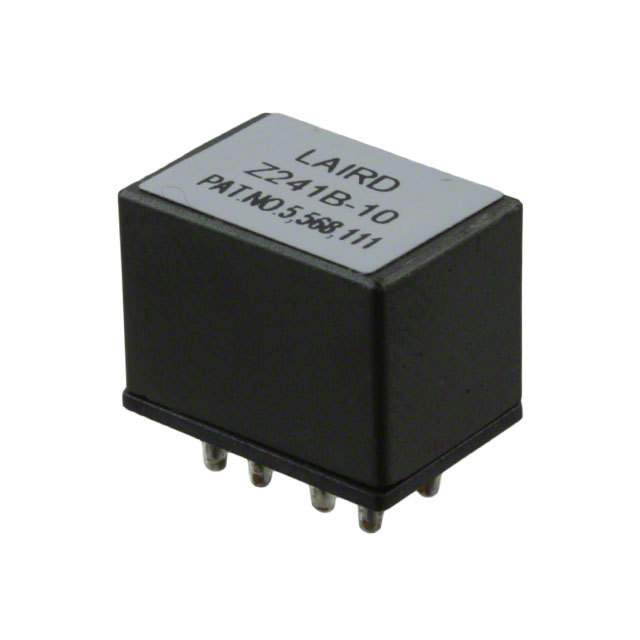

CM5740Z241B-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Bulk
Series : CM
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 4
Impedance @ Frequency : 100 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 1.3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.570" L x 0.395" W (14.48mm x 10.03mm)
Height (Max) : 0.424" (10.77mm)
Package / Case : Vertical, 8 PC Pin
Packaging : Bulk
Series : CM
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 4
Impedance @ Frequency : 100 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 1.3 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.570" L x 0.395" W (14.48mm x 10.03mm)
Height (Max) : 0.424" (10.77mm)
Package / Case : Vertical, 8 PC Pin
0
8329 in stock

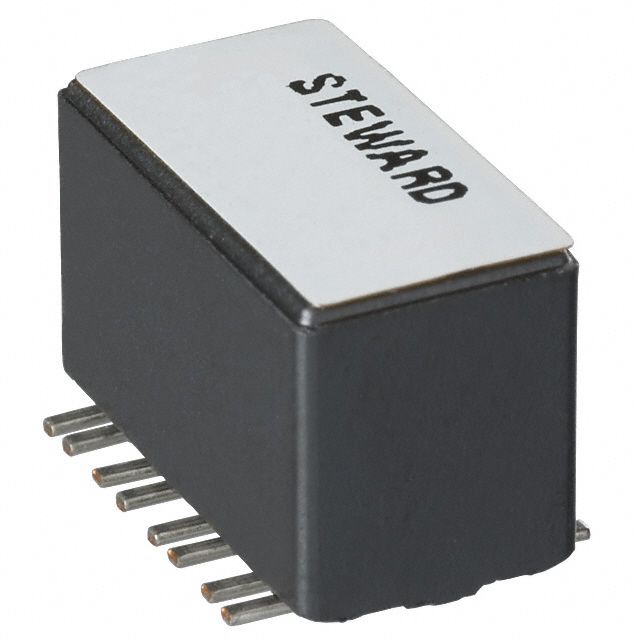

CM6032V201R-00
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 8
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.600" L x 0.320" W (15.24mm x 8.13mm)
Height (Max) : 0.382" (9.70mm)
Package / Case : Vertical, 16 Flat Lead
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 8
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.600" L x 0.320" W (15.24mm x 8.13mm)
Height (Max) : 0.382" (9.70mm)
Package / Case : Vertical, 16 Flat Lead
0
100 in stock
CM6032V201R-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CM
Part Status : Active
Filter Type : Power Line
Number of Lines : 8
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.600" L x 0.430" W (15.24mm x 10.92mm)
Height (Max) : 0.397" (10.08mm)
Package / Case : Vertical, 16 Flat Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CM
Part Status : Active
Filter Type : Power Line
Number of Lines : 8
Impedance @ Frequency : 200 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.600" L x 0.430" W (15.24mm x 10.92mm)
Height (Max) : 0.397" (10.08mm)
Package / Case : Vertical, 16 Flat Lead
0
553 in stock
CM6032V301R-00
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 8
Impedance @ Frequency : 300 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.600" L x 0.320" W (15.24mm x 8.13mm)
Height (Max) : 0.580" (14.73mm)
Package / Case : Vertical, 16 Flat Lead
Packaging : Tape & Reel (TR)
Series : CM
Part Status : Obsolete
Filter Type : Power, Signal Line
Number of Lines : 8
Impedance @ Frequency : 300 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.600" L x 0.320" W (15.24mm x 8.13mm)
Height (Max) : 0.580" (14.73mm)
Package / Case : Vertical, 16 Flat Lead
0
100 in stock

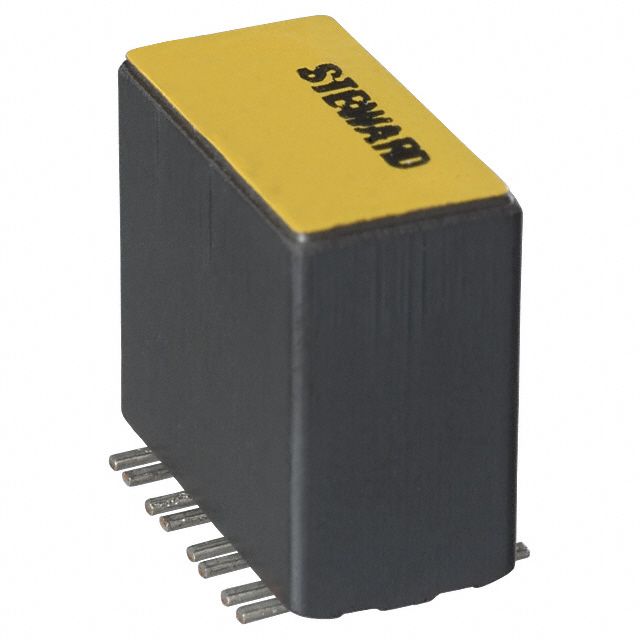

CM6032V301R-10
Laird
Manufacturer : Laird-Signal Integrity Products
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CM
Part Status : Active
Filter Type : Power Line
Number of Lines : 8
Impedance @ Frequency : 300 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.600" L x 0.430" W (15.24mm x 10.92mm)
Height (Max) : 0.595" (15.11mm)
Package / Case : Vertical, 16 Flat Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CM
Part Status : Active
Filter Type : Power Line
Number of Lines : 8
Impedance @ Frequency : 300 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 10 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.600" L x 0.430" W (15.24mm x 10.92mm)
Height (Max) : 0.595" (15.11mm)
Package / Case : Vertical, 16 Flat Lead
0
1967 in stock

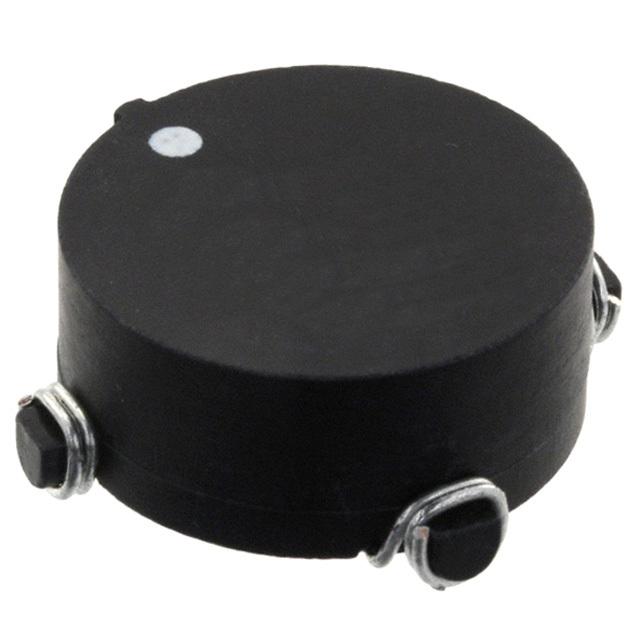

CM6296R-105
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 1kHz
Current Rating (Max) : 3.5A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 1kHz
Current Rating (Max) : 3.5A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
0
681 in stock
CM6296R-154
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 150µH @ 1kHz
Current Rating (Max) : 9.5A
DC Resistance (DCR) (Max) : 16 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 150µH @ 1kHz
Current Rating (Max) : 9.5A
DC Resistance (DCR) (Max) : 16 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
0
182 in stock
CM6296R-204
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 200µH @ 1kHz
Current Rating (Max) : 8.5A
DC Resistance (DCR) (Max) : 16 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 200µH @ 1kHz
Current Rating (Max) : 8.5A
DC Resistance (DCR) (Max) : 16 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
0
294 in stock
CM6296R-253
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 25µH @ 1kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Bulk
Series : CM6296R
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 25µH @ 1kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 14 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -55°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max) : 0.423" (10.74mm)
Package / Case : Horizontal, 4 PC Pad
0
1320 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
