Part Number
Manufacturer
Description
Unit Price
In Stock
NFL18ST307H1A3D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL18
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : 6dB @ 0MHz ~ 300MHz
Resistance - Channel (Ohms) : -
Current : 100mA
Values : L = 74nH, C = 16pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 10V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL18
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : 6dB @ 0MHz ~ 300MHz
Resistance - Channel (Ohms) : -
Current : 100mA
Values : L = 74nH, C = 16pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 10V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.035" (0.90mm)
0
7820 in stock
NFL18ST307X1C3D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL18
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 1.8
Current : 200mA
Values : L = 62nH, C = 18pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL18
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 1.8
Current : 200mA
Values : L = 62nH, C = 18pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.035" (0.90mm)
0
100 in stock
NFL18ST506H1A3D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL18
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 50MHz (Cutoff)
Attenuation Value : 6dB @ 0MHz ~ 50MHz
Resistance - Channel (Ohms) : -
Current : 75mA
Values : L = 350nH, C = 110pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 10V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL18
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 50MHz (Cutoff)
Attenuation Value : 6dB @ 0MHz ~ 50MHz
Resistance - Channel (Ohms) : -
Current : 75mA
Values : L = 350nH, C = 110pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 10V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.035" (0.90mm)
0
6635 in stock
NFL18ST507X1C3D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL18
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 500MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 1.5
Current : 200mA
Values : L = 43nH, C = 10pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL18
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 500MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 1.5
Current : 200mA
Values : L = 43nH, C = 10pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.035" (0.90mm)
0
12521 in stock

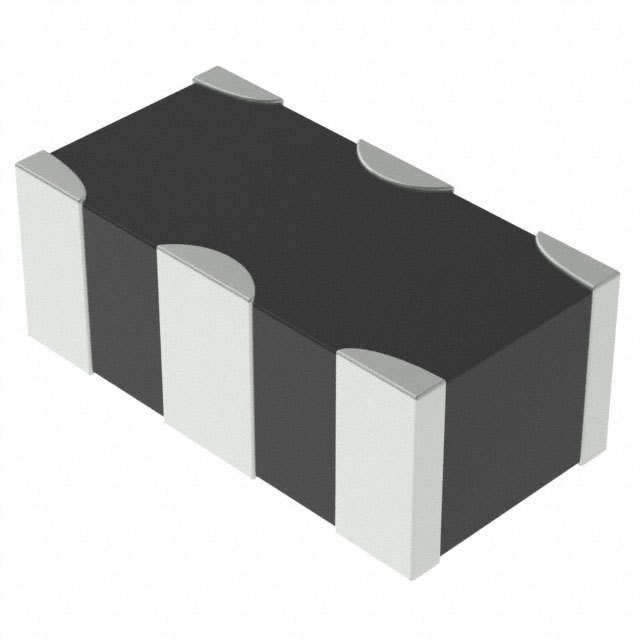

NFL18ST706H1A3D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL18
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 70MHz (Cutoff)
Attenuation Value : 6dB @ 0MHz ~ 70MHz
Resistance - Channel (Ohms) : -
Current : 75mA
Values : L = 230nH, C = 70pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 10V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL18
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 70MHz (Cutoff)
Attenuation Value : 6dB @ 0MHz ~ 70MHz
Resistance - Channel (Ohms) : -
Current : 75mA
Values : L = 230nH, C = 70pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 10V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.035" (0.90mm)
0
5671 in stock
NFL18ZT207H1A3D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 100mA
Values : L = 110nH, C = 22pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 10V
Mounting Type : Surface Mount, MLCC
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height : 0.028" (0.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 100mA
Values : L = 110nH, C = 22pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 10V
Mounting Type : Surface Mount, MLCC
Package / Case : 0603 (1608 Metric), 3 PC Pad
Size / Dimension : 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height : 0.028" (0.70mm)
0
8000 in stock
NFL21SP106X1C3D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL21
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 10MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 100mA
Values : L = 680nH, C = 670pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL21
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 10MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 100mA
Values : L = 680nH, C = 670pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
0
90284 in stock
NFL21SP107X1C3D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL21
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 100MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 200mA
Values : L = 135nH, C = 44pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL21
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 100MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 200mA
Values : L = 135nH, C = 44pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
0
50285 in stock

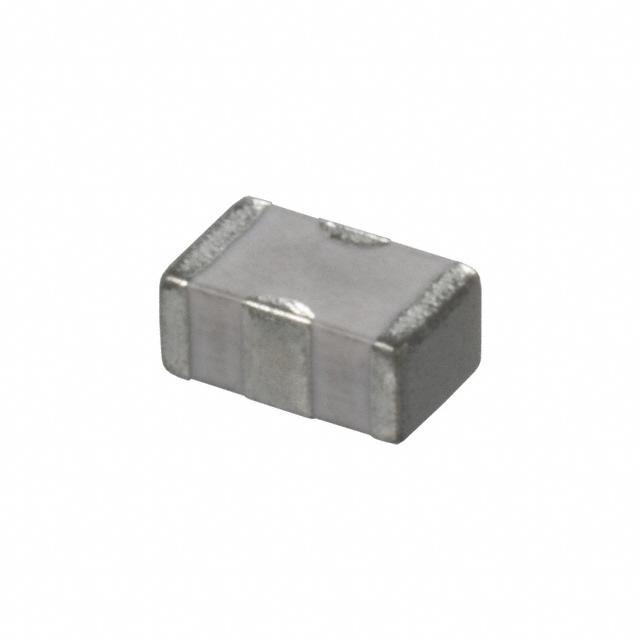

NFL21SP157X1C3D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL21
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 150MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 200mA
Values : L = 128nH, C = 28pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL21
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 150MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 200mA
Values : L = 128nH, C = 28pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
0
6416 in stock
NFL21SP206X1C3D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Tape & Reel (TR)
Series : EMIFIL®, NFL21
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 20MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 100mA
Values : L = 700nH, C = 240pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
Packaging : Tape & Reel (TR)
Series : EMIFIL®, NFL21
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 20MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 100mA
Values : L = 700nH, C = 240pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
0
100 in stock
NFL21SP206X1C7D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL21
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 20MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 100mA
Values : L = 700nH, C = 240pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL21
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 20MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 100mA
Values : L = 700nH, C = 240pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
0
48756 in stock
NFL21SP207X1C3D
Murata Electronics
Manufacturer : Murata Electronics North America
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL21
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 250mA
Values : L = 72nH, C = 22pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EMIFIL®, NFL21
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 250mA
Values : L = 72nH, C = 22pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), 3 PC Pad
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.037" (0.95mm)
0
17346 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
