- Filters
- EMI/RFI Filters (LC, RC Networks)
Part Number
Manufacturer
Description
Unit Price
In Stock
NUF2042XV6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 22
Current : -
Values : R = 22 Ohms, C = 42pF (Total)
ESD Protection : Yes
Operating Temperature : -55°C ~ 125°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.024" (0.60mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 22
Current : -
Values : R = 22 Ohms, C = 42pF (Total)
ESD Protection : Yes
Operating Temperature : -55°C ~ 125°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.024" (0.60mm)
0
1922 in stock

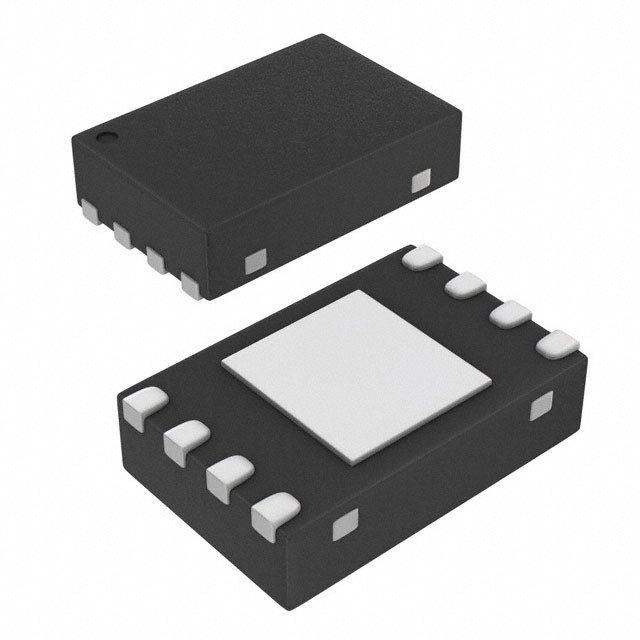

NUF2070MNT1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 50MHz (Cutoff)
Attenuation Value : -22.5dB @ 800MHz ~ 5GHz
Resistance - Channel (Ohms) : 2.4
Current : -
Values : L = 10nH, C = 64pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-VFDFN Exposed Pad
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height : 0.039" (1.00mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 50MHz (Cutoff)
Attenuation Value : -22.5dB @ 800MHz ~ 5GHz
Resistance - Channel (Ohms) : 2.4
Current : -
Values : L = 10nH, C = 64pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-VFDFN Exposed Pad
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height : 0.039" (1.00mm)
0
100 in stock
NUF2101MT1
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 30
Current : -
Values : R = 30 Ohms, C = 55pF (Total)
ESD Protection : Yes
Operating Temperature : -55°C ~ 125°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SC-74, SOT-457
Size / Dimension : 0.118" L x 0.059" W (3.00mm x 1.50mm)
Height : 0.043" (1.09mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 30
Current : -
Values : R = 30 Ohms, C = 55pF (Total)
ESD Protection : Yes
Operating Temperature : -55°C ~ 125°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SC-74, SOT-457
Size / Dimension : 0.118" L x 0.059" W (3.00mm x 1.50mm)
Height : 0.043" (1.09mm)
0
100 in stock
NUF2101MT1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 30
Current : -
Values : R = 30 Ohms, C = 55pF (Total)
ESD Protection : Yes
Operating Temperature : -55°C ~ 125°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SC-74, SOT-457
Size / Dimension : 0.118" L x 0.059" W (3.00mm x 1.50mm)
Height : 0.043" (1.09mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 30
Current : -
Values : R = 30 Ohms, C = 55pF (Total)
ESD Protection : Yes
Operating Temperature : -55°C ~ 125°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SC-74, SOT-457
Size / Dimension : 0.118" L x 0.059" W (3.00mm x 1.50mm)
Height : 0.043" (1.09mm)
0
2341 in stock
NUF2114MNT1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 50MHz (Cutoff)
Attenuation Value : -30dB @ 900MHz ~ 3GHz
Resistance - Channel (Ohms) : 9
Current : -
Values : R = 9 Ohms, C = 60pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-VFDFN Exposed Pad
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height : 0.039" (1.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 50MHz (Cutoff)
Attenuation Value : -30dB @ 900MHz ~ 3GHz
Resistance - Channel (Ohms) : 9
Current : -
Values : R = 9 Ohms, C = 60pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-VFDFN Exposed Pad
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height : 0.039" (1.00mm)
0
2894 in stock
NUF2116MNT1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 55MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 64
Current : -
Values : R = 64 Ohms, C = 50pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-VFDFN Exposed Pad
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height : 0.039" (1.00mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 55MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 64
Current : -
Values : R = 64 Ohms, C = 50pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Audio
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-VFDFN Exposed Pad
Size / Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height : 0.039" (1.00mm)
0
100 in stock
NUF2220XV6T1
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 275MHz (Cutoff)
Attenuation Value : -20dB @ 800MHz ~ 2.4GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 7pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.024" (0.60mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 275MHz (Cutoff)
Attenuation Value : -20dB @ 800MHz ~ 2.4GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 7pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.024" (0.60mm)
0
100 in stock
NUF2221W1T2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 22
Current : -
Values : R = 22 Ohms, C = 42pF (Total)
ESD Protection : Yes
Operating Temperature : -55°C ~ 125°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.043" (1.09mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 22
Current : -
Values : R = 22 Ohms, C = 42pF (Total)
ESD Protection : Yes
Operating Temperature : -55°C ~ 125°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.043" (1.09mm)
0
100 in stock
NUF2221W1T2G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 22
Current : -
Values : R = 22 Ohms, C = 42pF (Total)
ESD Protection : Yes
Operating Temperature : -55°C ~ 125°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.043" (1.09mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 22
Current : -
Values : R = 22 Ohms, C = 42pF (Total)
ESD Protection : Yes
Operating Temperature : -55°C ~ 125°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.043" (1.09mm)
0
11056 in stock
NUF2222FCT1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 190MHz (Cutoff)
Attenuation Value : -20dB @ 900MHz ~ 3GHz
Resistance - Channel (Ohms) : 33
Current : -
Values : R = 33 Ohms, C = 36pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-WFBGA, FCBGA
Size / Dimension : 0.050" L x 0.078" W (1.27mm x 1.97mm)
Height : 0.028" (0.70mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 190MHz (Cutoff)
Attenuation Value : -20dB @ 900MHz ~ 3GHz
Resistance - Channel (Ohms) : 33
Current : -
Values : R = 33 Ohms, C = 36pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : USB
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-WFBGA, FCBGA
Size / Dimension : 0.050" L x 0.078" W (1.27mm x 1.97mm)
Height : 0.028" (0.70mm)
0
100 in stock
NUF2230XV6T1
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 125MHz (Cutoff)
Attenuation Value : -30dB @ 800MHz ~ 900MHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 16pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.024" (0.60mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 125MHz (Cutoff)
Attenuation Value : -30dB @ 800MHz ~ 900MHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 16pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.024" (0.60mm)
0
100 in stock
NUF2230XV6T1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 125MHz (Cutoff)
Attenuation Value : -30dB @ 800MHz ~ 900MHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 16pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.024" (0.60mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 125MHz (Cutoff)
Attenuation Value : -30dB @ 800MHz ~ 900MHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 16pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.024" (0.60mm)
0
7663 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
