- Filters
- EMI/RFI Filters (LC, RC Networks)
Part Number
Manufacturer
Description
Unit Price
In Stock

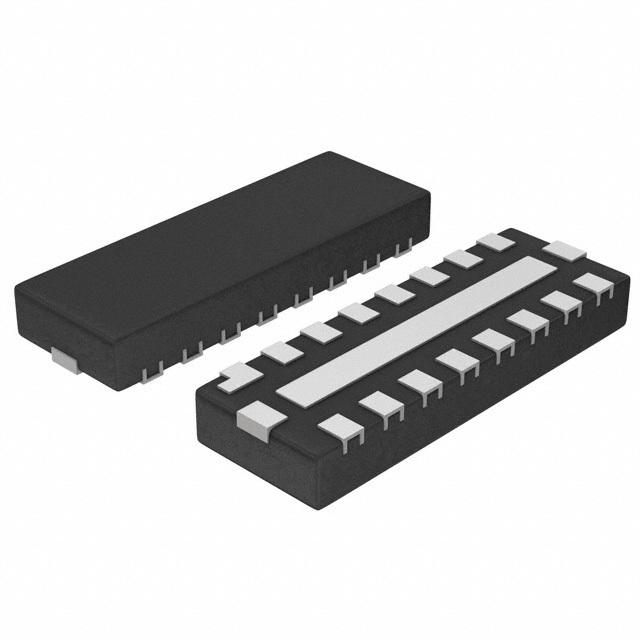

NUF8010MUT2G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 215MHz (Cutoff)
Attenuation Value : -20dB @ 800MHz ~ 5GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 7pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.138" L x 0.047" W (3.50mm x 1.20mm)
Height : 0.022" (0.55mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 215MHz (Cutoff)
Attenuation Value : -20dB @ 800MHz ~ 5GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 7pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.138" L x 0.047" W (3.50mm x 1.20mm)
Height : 0.022" (0.55mm)
0
3000 in stock
NUF8152MUT2G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 125MHz (Cutoff)
Attenuation Value : -25dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 28
Current : -
Values : R = 28 Ohms, C = 17pF, L = 1nH
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.138" L x 0.047" W (3.50mm x 1.20mm)
Height : 0.022" (0.55mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 125MHz (Cutoff)
Attenuation Value : -25dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 28
Current : -
Values : R = 28 Ohms, C = 17pF, L = 1nH
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.138" L x 0.047" W (3.50mm x 1.20mm)
Height : 0.022" (0.55mm)
0
100 in stock
NUF8401MNT4G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 175MHz (Cutoff)
Attenuation Value : -25dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 12pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-VFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.039" (1.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 175MHz (Cutoff)
Attenuation Value : -25dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 12pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-VFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.039" (1.00mm)
0
3520 in stock

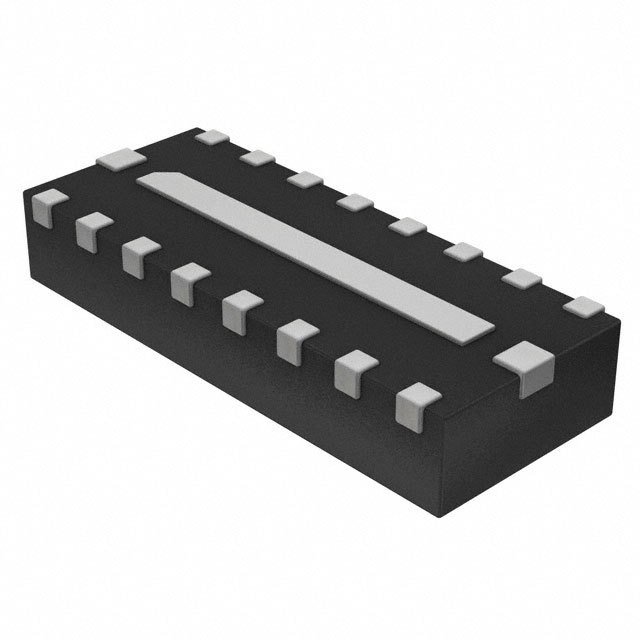

NUF8402MNT4G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 105MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 17pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-VFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.039" (1.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 105MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 17pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-VFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.039" (1.00mm)
0
15893 in stock
NUF8410MNT4G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 250MHz (Cutoff)
Attenuation Value : -20dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-VFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.039" (1.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 250MHz (Cutoff)
Attenuation Value : -20dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-VFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.039" (1.00mm)
0
4000 in stock
NUF8600MNTXG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 115MHz (Cutoff)
Attenuation Value : -25dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 50
Current : -
Values : R = 50 Ohms, C = 17pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-VFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.039" (1.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 115MHz (Cutoff)
Attenuation Value : -25dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 50
Current : -
Values : R = 50 Ohms, C = 17pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-VFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.039" (1.00mm)
0
4444 in stock

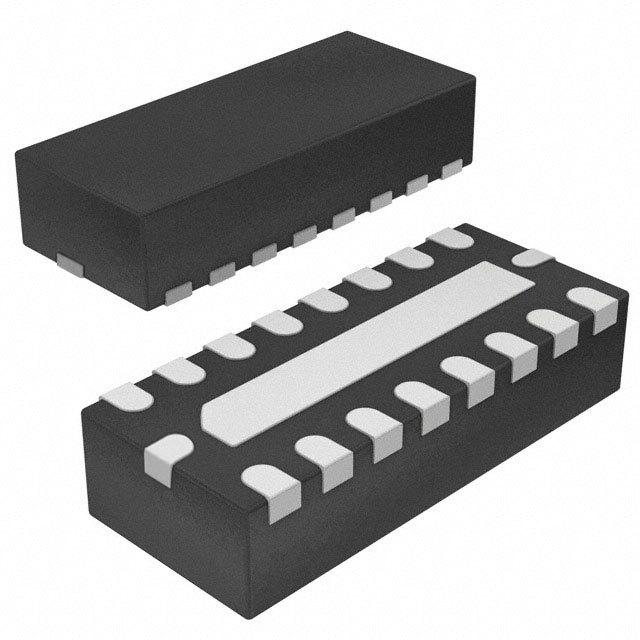

NUF8610MNTXG
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 260MHz (Cutoff)
Attenuation Value : -15dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 50
Current : -
Values : R = 50 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-VFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.039" (1.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 260MHz (Cutoff)
Attenuation Value : -15dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 50
Current : -
Values : R = 50 Ohms, C = 8.5pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-VFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.039" (1.00mm)
0
1694 in stock
NUF9001FCT1
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : 100MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 200
Current : -
Values : R = 100 Ohms, C = 45pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 25-UFBGA, FCBGA
Size / Dimension : 0.104" L x 0.104" W (2.65mm x 2.65mm)
Height : 0.026" (0.65mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : 100MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 200
Current : -
Values : R = 100 Ohms, C = 45pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 25-UFBGA, FCBGA
Size / Dimension : 0.104" L x 0.104" W (2.65mm x 2.65mm)
Height : 0.026" (0.65mm)
0
100 in stock

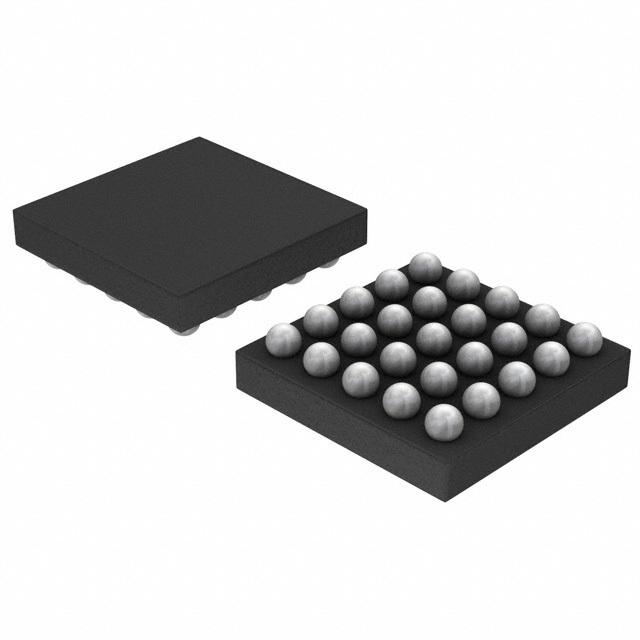

NUF9001FCT1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : 100MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 200
Current : -
Values : R = 100 Ohms, C = 45pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 25-UFBGA, FCBGA
Size / Dimension : 0.104" L x 0.104" W (2.65mm x 2.65mm)
Height : 0.026" (0.65mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : 100MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 200
Current : -
Values : R = 100 Ohms, C = 45pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 25-UFBGA, FCBGA
Size / Dimension : 0.104" L x 0.104" W (2.65mm x 2.65mm)
Height : 0.026" (0.65mm)
0
100 in stock
NUF9002FCT1
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : -25dB @ 900MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 28pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 25-UFBGA, FCBGA
Size / Dimension : 0.104" L x 0.104" W (2.65mm x 2.65mm)
Height : 0.026" (0.65mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : -25dB @ 900MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 28pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 25-UFBGA, FCBGA
Size / Dimension : 0.104" L x 0.104" W (2.65mm x 2.65mm)
Height : 0.026" (0.65mm)
0
100 in stock
NUF9002FCT1G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : -25dB @ 900MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 28pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 25-UFBGA, FCBGA
Size / Dimension : 0.104" L x 0.104" W (2.65mm x 2.65mm)
Height : 0.026" (0.65mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 10
Center / Cutoff Frequency : 110MHz (Cutoff)
Attenuation Value : -25dB @ 900MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 28pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 25-UFBGA, FCBGA
Size / Dimension : 0.104" L x 0.104" W (2.65mm x 2.65mm)
Height : 0.026" (0.65mm)
0
100 in stock
NZF220DFT1
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 220MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 110
Current : -
Values : R = 110 Ohms, C = 22pF
ESD Protection : Yes
Operating Temperature : -
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.043" (1.09mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : 220MHz (Cutoff)
Attenuation Value : -
Resistance - Channel (Ohms) : 110
Current : -
Values : R = 110 Ohms, C = 22pF
ESD Protection : Yes
Operating Temperature : -
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height : 0.043" (1.09mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
