Part Number

Manufacturer

Description

Unit Price

In Stock

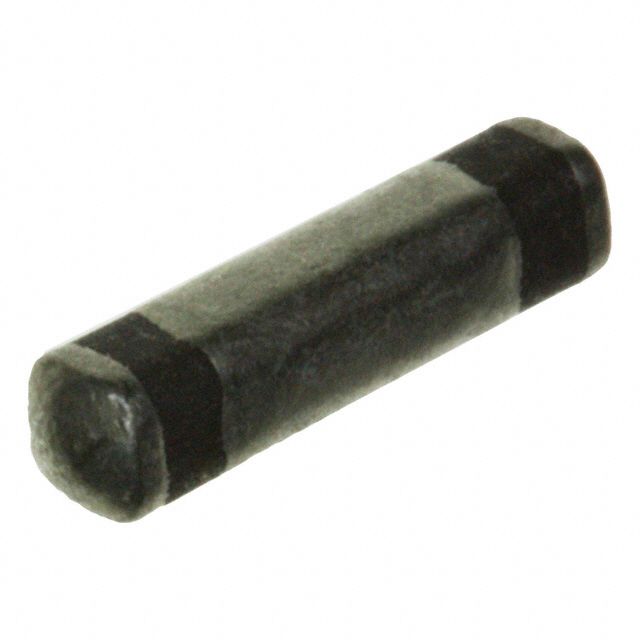

4701-002MLF

CTS Electronic Components

Manufacturer : Tusonix a Subsidiary of CTS Electronic Components
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 4700
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 60dB @ 100MHz
Resistance - Channel (Ohms) : -
Current : 10A
Values : L = 0.1µH, C = 6800pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Surface Mount
Package / Case : Pill, Square
Size / Dimension : 0.394" L x 0.090" W (10.00mm x 2.29mm)
Height : 0.095" (2.41mm)

3092 in stock

4701-002T

CTS Electronic Components

Manufacturer : Tusonix a Subsidiary of CTS Electronic Components
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : 4700
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 60dB @ 100MHz
Resistance - Channel (Ohms) : -
Current : 10A
Values : L = 0.1µH, C = 6800pF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Surface Mount
Package / Case : Pill, Square
Size / Dimension : 0.394" L x 0.090" W (10.00mm x 2.29mm)
Height : 0.095" (2.41mm)

100 in stock

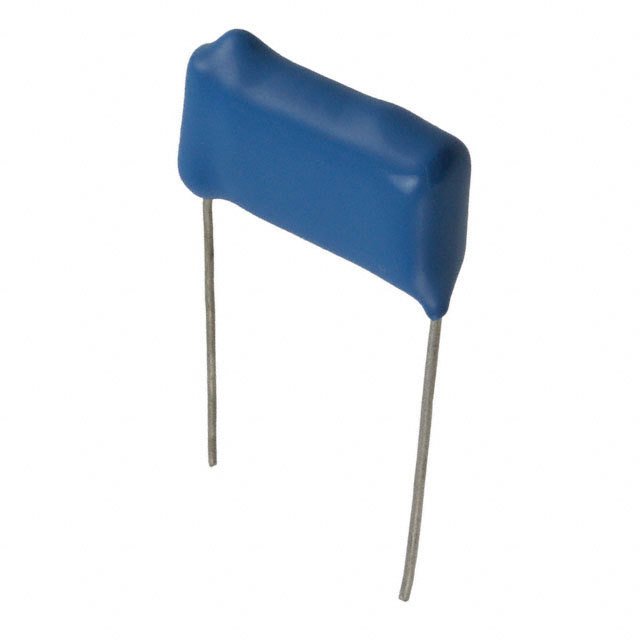

504M02QA100

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Quencharc®
Part Status : Active
Type : Low Pass
Filter Order : 1st
Technology : RC
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 0.50µF
ESD Protection : No
Operating Temperature : -55°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 200V
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.079" L x 0.370" W (27.40mm x 9.40mm)
Height : 0.892" (22.65mm)

356 in stock

504M02QA220

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Quencharc®
Part Status : Active
Type : Low Pass
Filter Order : 1st
Technology : RC
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 220
Current : -
Values : R = 220 Ohms, C = 0.50µF
ESD Protection : No
Operating Temperature : -55°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 200V
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.079" L x 0.370" W (27.40mm x 9.40mm)
Height : 0.892" (22.65mm)

1581 in stock

504M06QE100

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Quencharc®
Part Status : Active
Type : Low Pass
Filter Order : 1st
Technology : RC
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 0.5µF
ESD Protection : No
Operating Temperature : -55°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 600V
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.449" L x 0.591" W (36.80mm x 15.00mm)
Height : 0.921" (23.40mm)

353 in stock

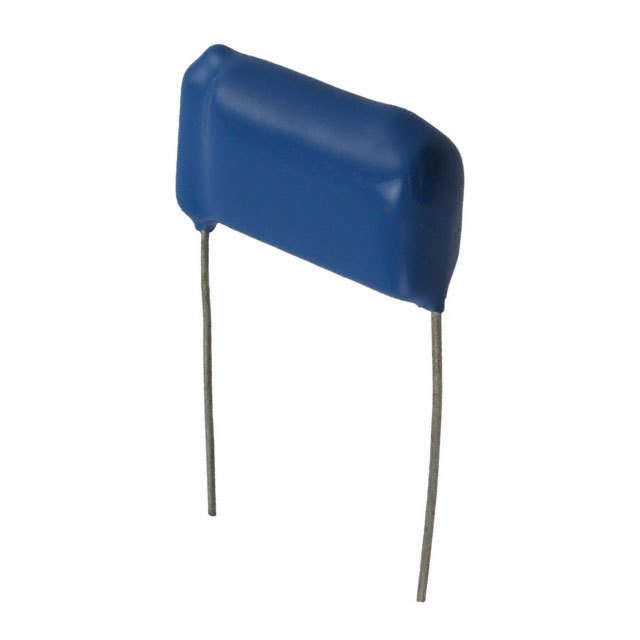

504M06QE150

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Quencharc®
Part Status : Active
Type : Low Pass
Filter Order : 1st
Technology : RC
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 150
Current : -
Values : R = 150 Ohms, C = 0.5µF
ESD Protection : No
Operating Temperature : -55°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 600V
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.449" L x 0.591" W (36.80mm x 15.00mm)
Height : 0.921" (23.40mm)

36 in stock

51-311-308

API Technologies Corp.

Manufacturer : API Technologies Corp
Packaging : Tray
Series : -
Part Status : Discontinued at
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 80dB @ 100MHz
Resistance - Channel (Ohms) : 0.25
Current : 1A
Values : C = 0.5µF
ESD Protection : No
Operating Temperature : -
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Chassis Mount
Package / Case : Axial, Bushing - 2 Solder Eyelets
Size / Dimension : 0.385" Dia x 0.788" L (9.78mm x 20.01mm)
Height : -

100 in stock

51-311-309

API Technologies Corp.

Manufacturer : API Technologies Corp
Packaging : Tray
Series : -
Part Status : Discontinued at
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 80dB @ 100MHz
Resistance - Channel (Ohms) : 0.05
Current : 3A
Values : C = 0.66µF
ESD Protection : No
Operating Temperature : -
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Chassis Mount
Package / Case : Axial, Bushing - 2 Solder Eyelets
Size / Dimension : 0.416" Dia x 0.788" L (10.57mm x 20.01mm)
Height : -

100 in stock

51-311-310

API Technologies Corp.

Manufacturer : API Technologies Corp
Packaging : Tray
Series : -
Part Status : Discontinued at
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 80dB @ 100MHz
Resistance - Channel (Ohms) : 0.015
Current : 5A
Values : C = 0.9µF
ESD Protection : No
Operating Temperature : -
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Chassis Mount
Package / Case : Axial, Bushing - 2 Solder Eyelets
Size / Dimension : 0.375" Dia x 0.818" L (9.53mm x 20.78mm)
Height : -

100 in stock

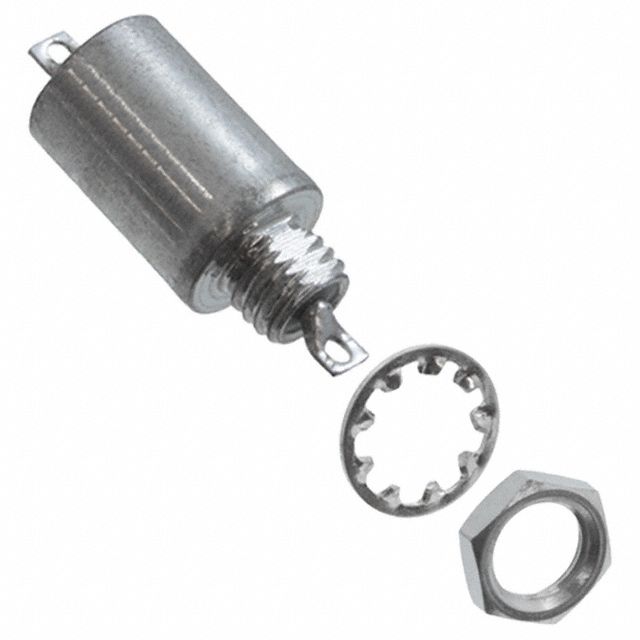

51-311-312

API Technologies Corp.

Manufacturer : API Technologies Corp
Packaging : Tray
Series : -
Part Status : Discontinued at
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 80dB @ 10MHz ~ 100MHz
Resistance - Channel (Ohms) : 0.05
Current : 3A
Values : C = 0.3µF
ESD Protection : No
Operating Temperature : -55°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 150V
Mounting Type : Chassis Mount
Package / Case : Axial, Bushing - 2 Solder Eyelets
Size / Dimension : 0.385" Dia x 0.788" L (9.78mm x 20.01mm)
Height : -

100 in stock

51-311-322

API Technologies Corp.

Manufacturer : API Technologies Corp
Packaging : Tray
Series : -
Part Status : Discontinued at
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 70dB @ 100MHz ~ 1GHz
Resistance - Channel (Ohms) : 0.015
Current : 5A
Values : C = 1µF
ESD Protection : No
Operating Temperature : -
Applications : General Purpose
Voltage - Rated : 100V
Mounting Type : Chassis Mount
Package / Case : Axial, Bushing - 2 Solder Eyelets
Size / Dimension : 0.375" Dia x 0.818" L (9.53mm x 20.78mm)
Height : -

100 in stock

51-320-015

API Technologies Corp.

Manufacturer : API Technologies Corp
Packaging : Tray
Series : -
Part Status : Discontinued at
Type : Low Pass
Filter Order : 2nd
Technology : LC
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 70dB @ 100MHz ~ 1GHz
Resistance - Channel (Ohms) : 0.033
Current : 3A
Values : C = 0.25µF
ESD Protection : No
Operating Temperature : -
Applications : General Purpose
Voltage - Rated : 200V
Mounting Type : Chassis Mount
Package / Case : Axial, Bushing - 2 Solder Eyelets
Size / Dimension : 0.687" Dia x 0.994" L (17.45mm x 25.25mm)
Height : -

100 in stock
