ACH4518-680-TD01
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ACH
Part Status : Not For New Designs
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 25dB @ 290MHz ~ 395MHz
Resistance - Channel (Ohms) : 0.06
Current : 2A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), 3 PC Pad
Size / Dimension : 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height : 0.138" (3.50mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ACH
Part Status : Not For New Designs
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 25dB @ 290MHz ~ 395MHz
Resistance - Channel (Ohms) : 0.06
Current : 2A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), 3 PC Pad
Size / Dimension : 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height : 0.138" (3.50mm)
0
1000 in stock

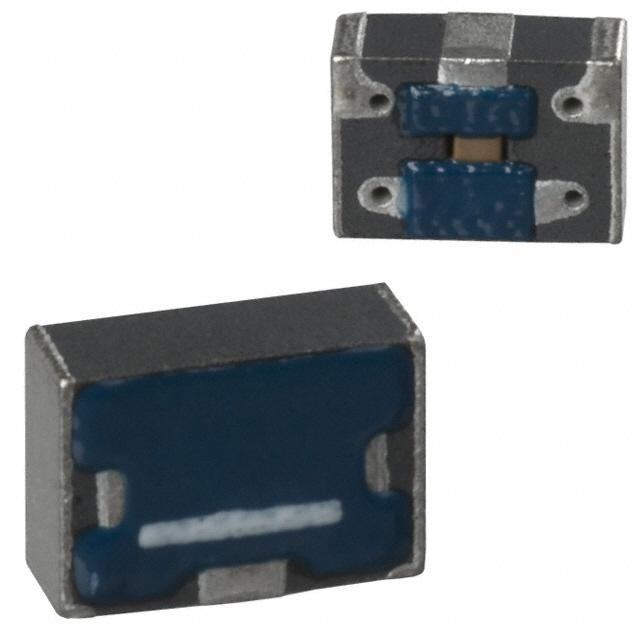

ACH4518-681-TD01
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ACH
Part Status : Not For New Designs
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 25dB @ 75MHz ~ 160MHz
Resistance - Channel (Ohms) : 0.06
Current : 2A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), 3 PC Pad
Size / Dimension : 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height : 0.138" (3.50mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ACH
Part Status : Not For New Designs
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 25dB @ 75MHz ~ 160MHz
Resistance - Channel (Ohms) : 0.06
Current : 2A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), 3 PC Pad
Size / Dimension : 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height : 0.138" (3.50mm)
0
100 in stock
ACH4518-682-TD01
TDK Corporation
Manufacturer : TDK Corporation
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ACH
Part Status : Not For New Designs
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 25dB @ 20MHz ~ 85MHz
Resistance - Channel (Ohms) : 0.06
Current : 2A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), 3 PC Pad
Size / Dimension : 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height : 0.138" (3.50mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ACH
Part Status : Not For New Designs
Type : Low Pass
Filter Order : 3rd
Technology : LC (T-Type)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 25dB @ 20MHz ~ 85MHz
Resistance - Channel (Ohms) : 0.06
Current : 2A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 125°C
Applications : General Purpose
Voltage - Rated : 50V
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), 3 PC Pad
Size / Dimension : 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height : 0.138" (3.50mm)
0
16000 in stock

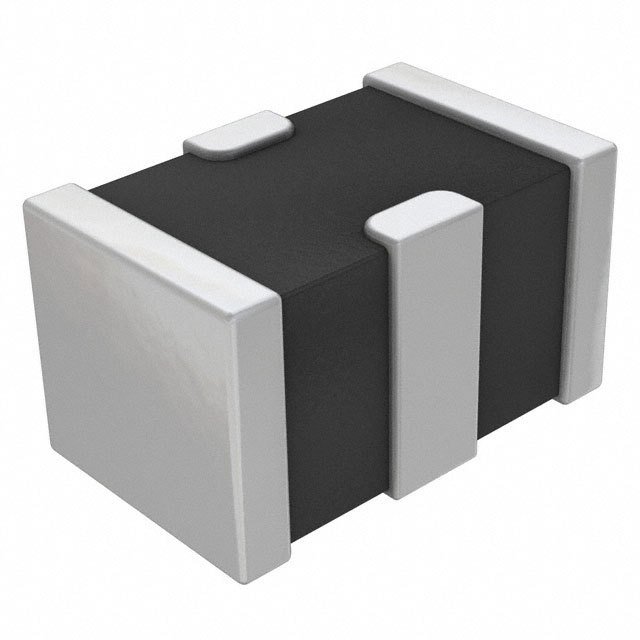

AEMIF-0603-401M-16-T
Abracon LLC.
Manufacturer : Abracon LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0603
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 400MHz (Cutoff)
Attenuation Value : 20dB @ 800MHz ~ 2GHz
Resistance - Channel (Ohms) : 0.8
Current : 300mA
Values : R = 0.8 Ohms
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.031" (0.79mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0603
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 400MHz (Cutoff)
Attenuation Value : 20dB @ 800MHz ~ 2GHz
Resistance - Channel (Ohms) : 0.8
Current : 300mA
Values : R = 0.8 Ohms
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height : 0.031" (0.79mm)
0
5384 in stock
AEMIF-0805-101M-16-T
Abracon LLC.
Manufacturer : Abracon LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 100MHz (Cutoff)
Attenuation Value : 20dB @ 250MHz ~ 2GHz
Resistance - Channel (Ohms) : 1.5
Current : 200mA
Values : R = 1.5 Ohms
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 100MHz (Cutoff)
Attenuation Value : 20dB @ 250MHz ~ 2GHz
Resistance - Channel (Ohms) : 1.5
Current : 200mA
Values : R = 1.5 Ohms
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
0
5122 in stock
AEMIF-0805-151M-16-T
Abracon LLC.
Manufacturer : Abracon LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 150MHz (Cutoff)
Attenuation Value : 20dB @ 350MHz ~ 2GHz
Resistance - Channel (Ohms) : 1
Current : 200mA
Values : R = 1 Ohm
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 150MHz (Cutoff)
Attenuation Value : 20dB @ 350MHz ~ 2GHz
Resistance - Channel (Ohms) : 1
Current : 200mA
Values : R = 1 Ohm
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
0
8000 in stock

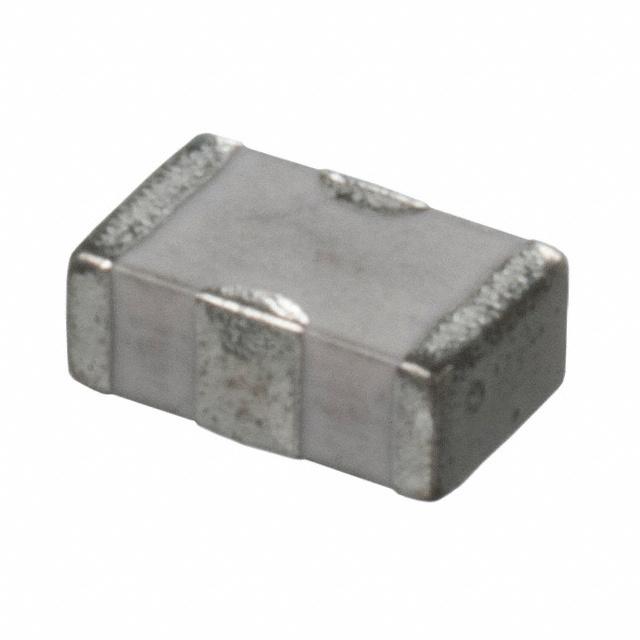

AEMIF-0805-201M-16-T
Abracon LLC.
Manufacturer : Abracon LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : 20dB @ 450MHz ~ 2GHz
Resistance - Channel (Ohms) : 1
Current : 250mA
Values : R = 1 Ohm
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 200MHz (Cutoff)
Attenuation Value : 20dB @ 450MHz ~ 2GHz
Resistance - Channel (Ohms) : 1
Current : 250mA
Values : R = 1 Ohm
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
0
7966 in stock
AEMIF-0805-301M-16-T
Abracon LLC.
Manufacturer : Abracon LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : 20dB @ 550MHz ~ 2GHz
Resistance - Channel (Ohms) : 1
Current : 300mA
Values : R = 1 Ohm
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 300MHz (Cutoff)
Attenuation Value : 20dB @ 550MHz ~ 2GHz
Resistance - Channel (Ohms) : 1
Current : 300mA
Values : R = 1 Ohm
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
0
7845 in stock
AEMIF-0805-401M-16-T
Abracon LLC.
Manufacturer : Abracon LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 400MHz (Cutoff)
Attenuation Value : 20dB @ 800MHz ~ 2GHz
Resistance - Channel (Ohms) : 0.8
Current : 300mA
Values : R = 0.8 Ohms
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 400MHz (Cutoff)
Attenuation Value : 20dB @ 800MHz ~ 2GHz
Resistance - Channel (Ohms) : 0.8
Current : 300mA
Values : R = 0.8 Ohms
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
0
7990 in stock
AEMIF-0805-501M-16-T
Abracon LLC.
Manufacturer : Abracon LLC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 500MHz (Cutoff)
Attenuation Value : 20dB @ 1GHz ~ 2GHz
Resistance - Channel (Ohms) : 0.8
Current : 300mA
Values : R = 0.8 Ohms
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : AEMIF-0805
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : 500MHz (Cutoff)
Attenuation Value : 20dB @ 1GHz ~ 2GHz
Resistance - Channel (Ohms) : 0.8
Current : 300mA
Values : R = 0.8 Ohms
ESD Protection : No
Operating Temperature : -40°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 16V
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height : 0.046" (1.17mm)
0
7960 in stock
AOZ8010DI
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 90MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 100
Current : 20mA
Values : R = 100 Ohms, C = 28pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 5V
Mounting Type : Surface Mount
Package / Case : 16-WFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.031" (0.79mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 90MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 100
Current : 20mA
Values : R = 100 Ohms, C = 28pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 5V
Mounting Type : Surface Mount
Package / Case : 16-WFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.031" (0.79mm)
0
100 in stock
AOZ8010DTL
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 90MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 100
Current : 20mA
Values : R = 100 Ohms, C = 28pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 5V
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.024" (0.60mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : 90MHz (Cutoff)
Attenuation Value : -35dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) : 100
Current : 20mA
Values : R = 100 Ohms, C = 28pF
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 5V
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height : 0.024" (0.60mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
