Part Number

Manufacturer

Description

Unit Price

In Stock

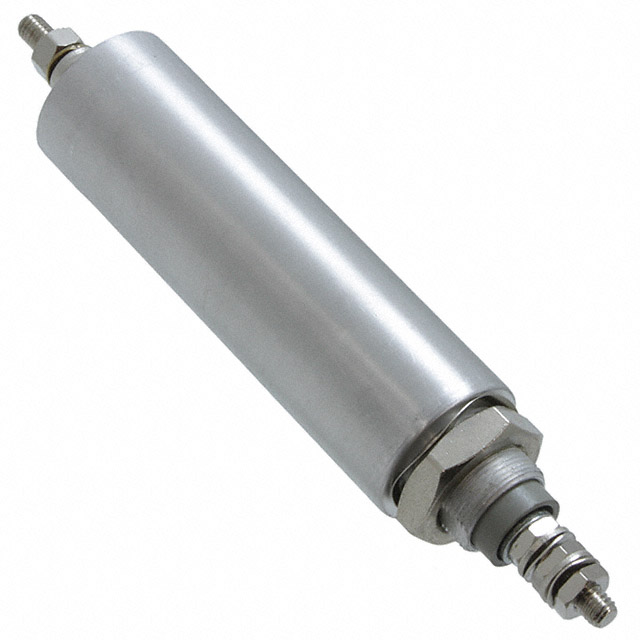

FN7611-63-M6S

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : FN 761X
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 0.00047
Current : 63A
Values : L = 186nH, C = 0.015µF
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 1000V (1kV)
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : -
Height : -

100 in stock

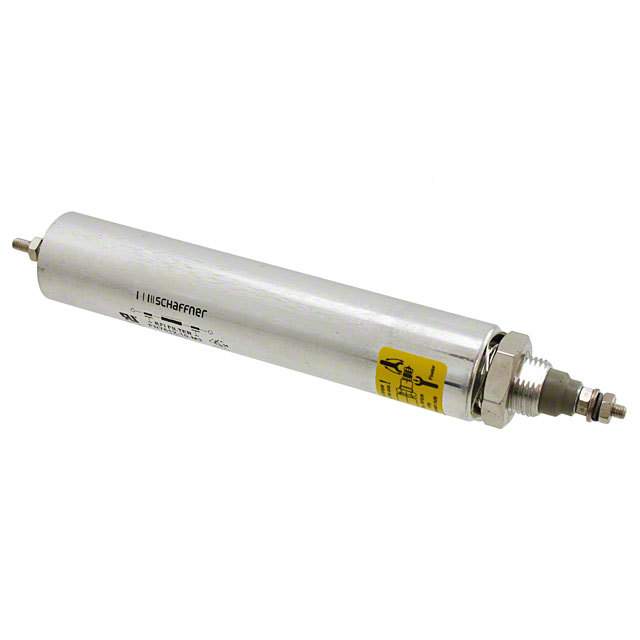

FN7612-10-M3

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : FN 761X
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 0.00152
Current : 10A
Values : L = 70nH, C = 0.047µF
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 1000V (1kV)
Mounting Type : -
Package / Case : Axial - Threaded Terminals
Size / Dimension : 0.787" Dia x 4.370" L (20.00mm x 111.00mm)
Height : -

27 in stock

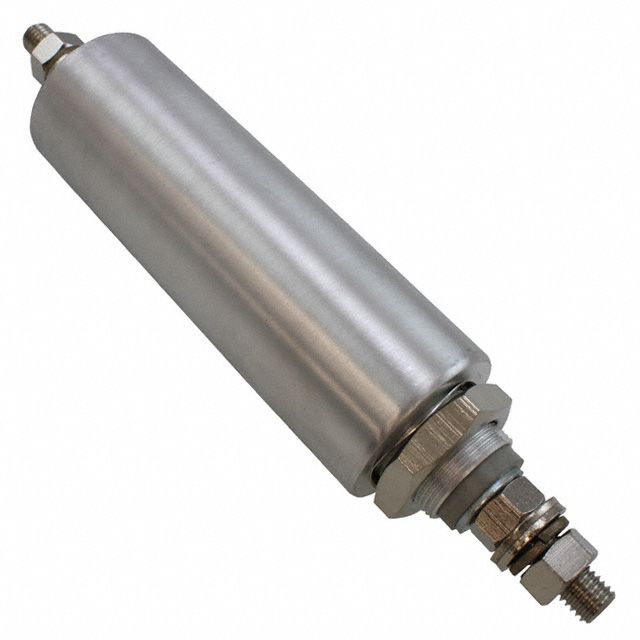

FN7612-250-M12

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : FN 761X
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 250A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 1000V (1kV)
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : 2.126" Dia x 7.047" L (54.00mm x 179.00mm)
Height : -

100 in stock

FN7612-32-M4

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : FN 761X
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 0.00092
Current : 32A
Values : L = 70nH, C = 0.1µF
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 1000V (1kV)
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : 0.984" Dia x 4.528" L (25.00mm x 115.00mm)
Height : -

64 in stock

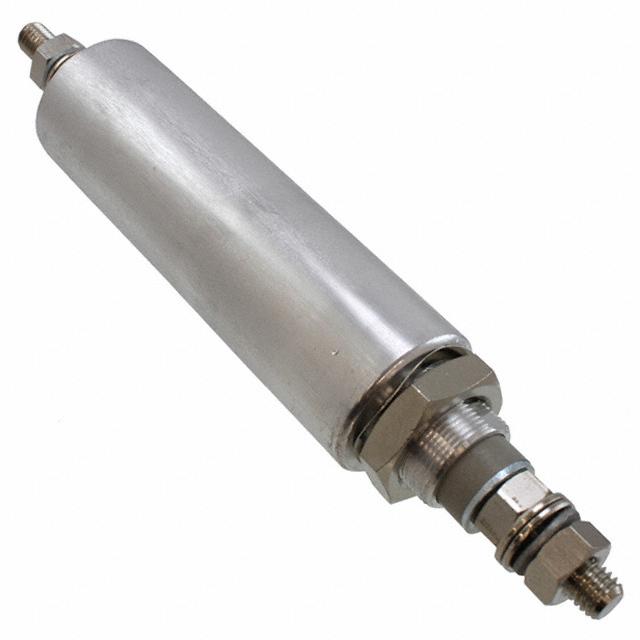

FN7660-100-M8

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : FN 766X
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 0.00025
Current : 100A
Values : L = 124nH, C = 0.47µF
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 130V
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : 1.260" Dia x 4.724" L (32.00mm x 120.00mm)
Height : -

10 in stock

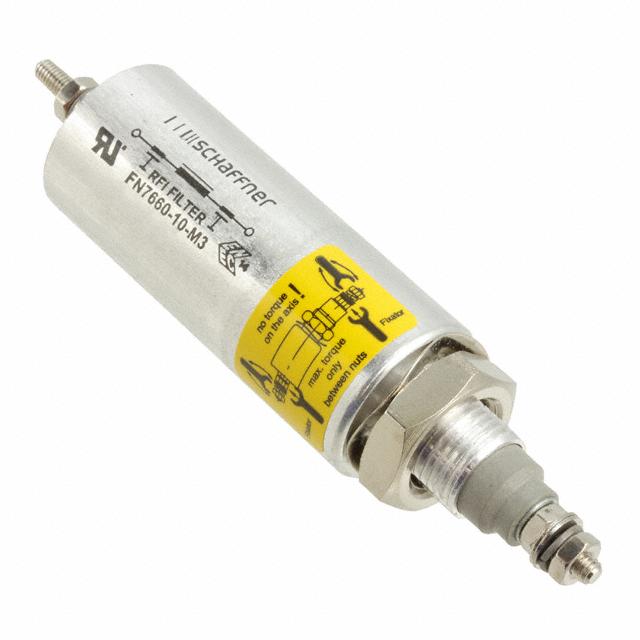

FN7660-10-M3

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : FN 766X
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 0.00106
Current : 10A
Values : L = 58nH, C = 10000pF
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 130V
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : 0.787" Dia x 2.402" L (20.00mm x 61.00mm)
Height : -

77 in stock

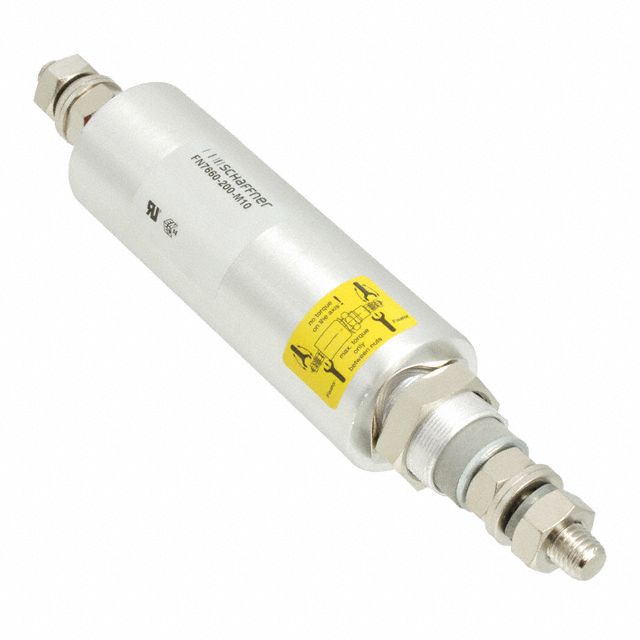

FN7660-200-M10

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : FN 766X
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 0.00024
Current : 200A
Values : L = 124nH, C = 0.47µF
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 130V
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : 1.496" Dia x 5.906" L (38.00mm x 150.00mm)
Height : -

26 in stock

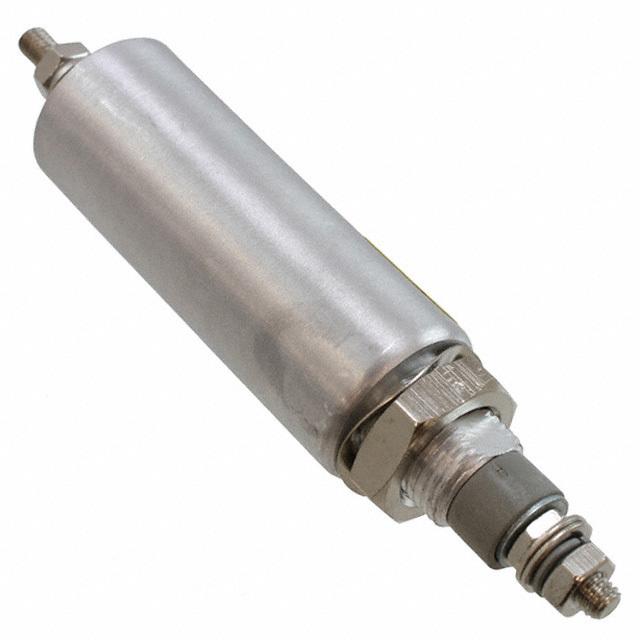

FN7660-32-M4

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : FN 766X
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 0.00065
Current : 32A
Values : L = 70nH, C = 10000pF
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 130V
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : 0.787" Dia x 2.874" L (20.00mm x 73.00mm)
Height : -

10 in stock

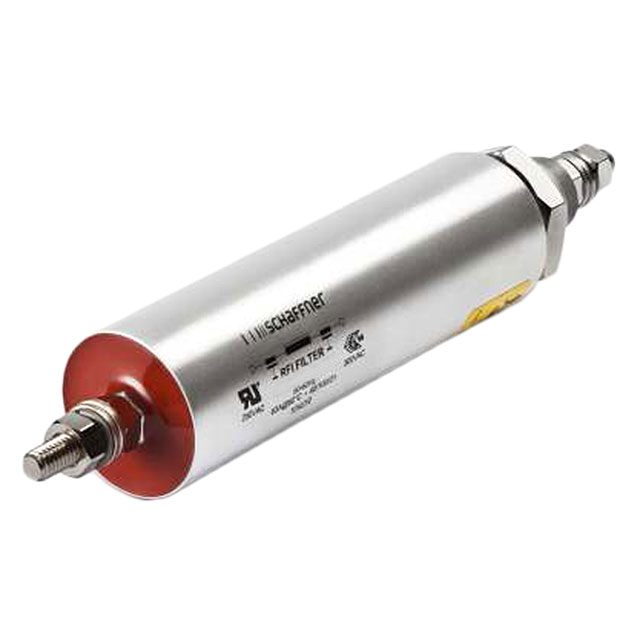

FN7660-63-M6

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : FN 766X
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 0.00042
Current : 63A
Values : L = 70nH, C = 0.1µF
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 130V
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : 0.984" Dia x 4.252" L (25.00mm x 108.00mm)
Height : -

5 in stock

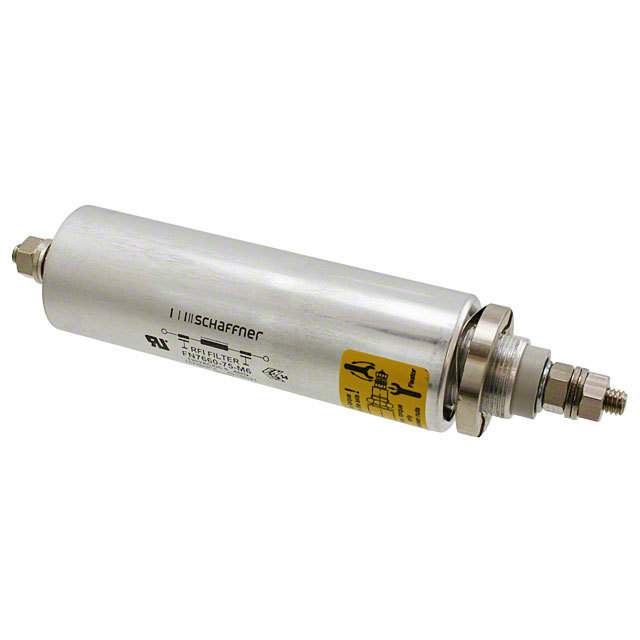

FN7660-75-M6

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : FN 766X
Part Status : Obsolete
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : -
Current : 75A
Values : -
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 130V
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height : -

100 in stock

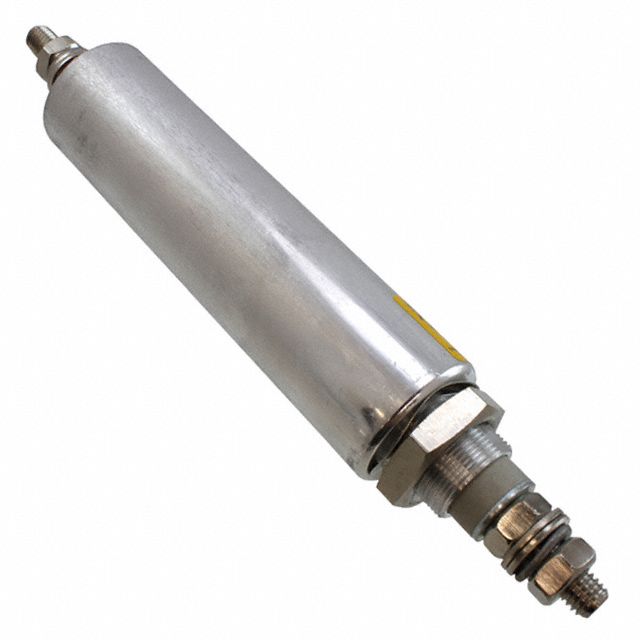

FN7661-100-M8

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : FN 766X
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 0.00028
Current : 100A
Values : L = 186nH, C = 1µF
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 130V
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : 1.260" Dia x 5.354" L (32.00mm x 136.00mm
Height : -

34 in stock

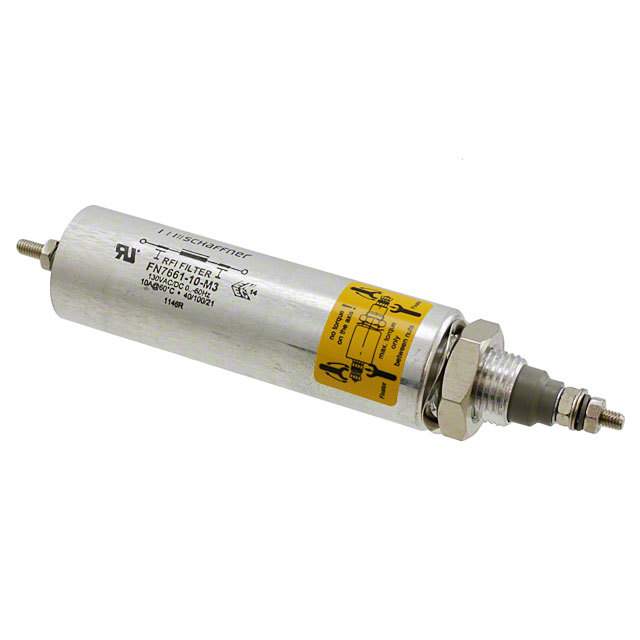

FN7661-10-M3

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : FN 766X
Part Status : Active
Type : Low Pass
Filter Order : 3rd
Technology : LC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 0.0012
Current : 10A
Values : L = 70nH, C = 0.1µF
ESD Protection : No
Operating Temperature : -40°C ~ 100°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : 130V
Mounting Type : Bolt Mount
Package / Case : Axial - Threaded Terminals
Size / Dimension : 0.787" Dia x 3.071" L (20.00mm x 78.00mm)
Height : -

14 in stock
