Part Number

Manufacturer

Description

Unit Price

In Stock

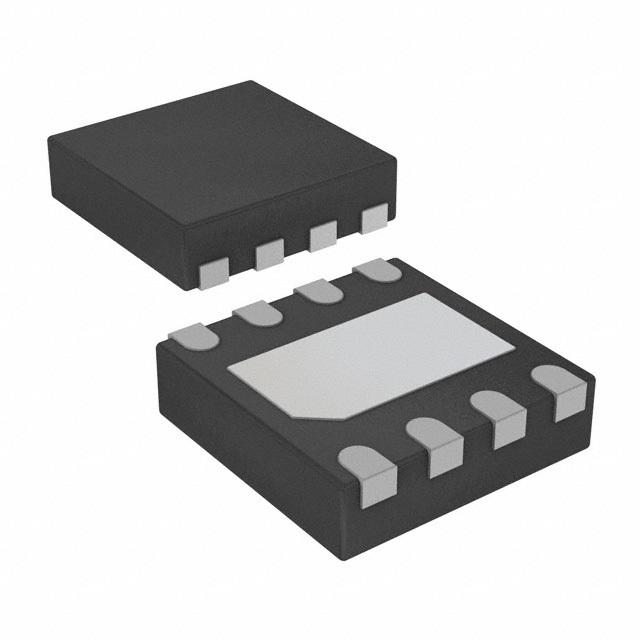

IP4253CZ8-4-TTL,13

Nexperia

Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : -
Attenuation Value : 33dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 200
Current : -
Values : R = 200 Ohms, C = 30pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : LAN, WAN
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.022" (0.55mm)

100 in stock

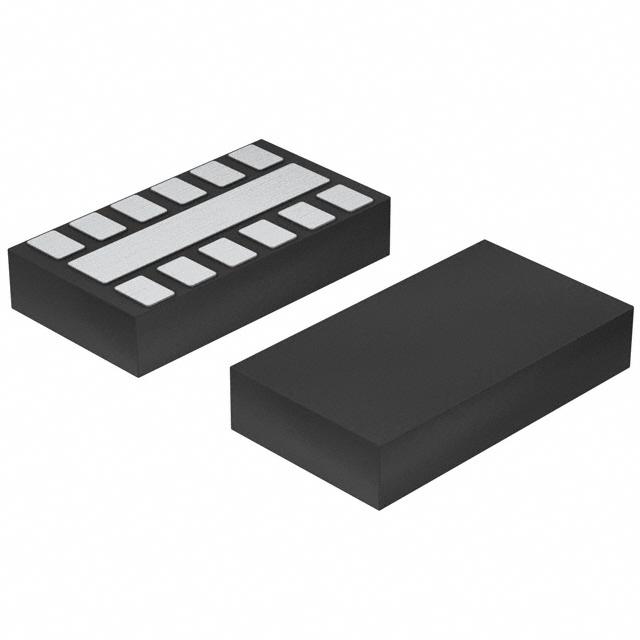

IP4254CZ12-6,118

NXP Semiconductors / Freescale

Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : -
Attenuation Value : 28dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : LAN, WAN
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-XFDFN Exposed Pad
Size / Dimension : 0.098" L x 0.053" W (2.50mm x 1.35mm)
Height : 0.020" (0.50mm)

100 in stock

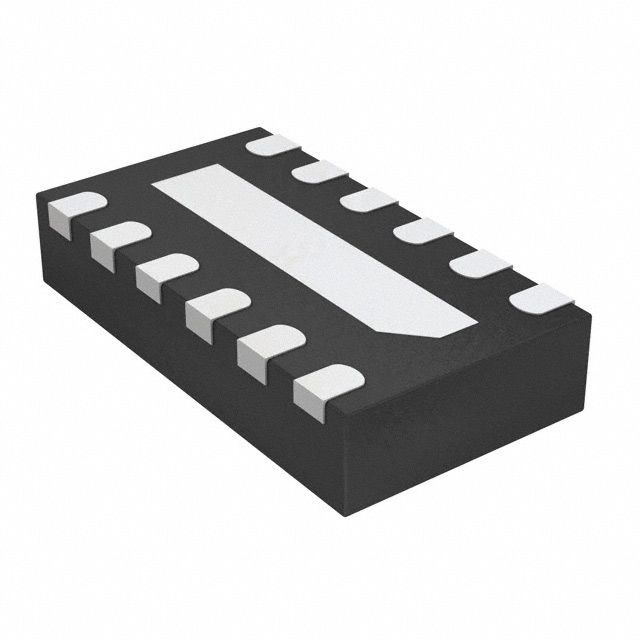

IP4254CZ12-6-TTL,1

Nexperia

Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 6
Center / Cutoff Frequency : -
Attenuation Value : 28dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : LAN, WAN
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 12-UFDFN Exposed Pad
Size / Dimension : 0.098" L x 0.053" W (2.50mm x 1.35mm)
Height : 0.022" (0.55mm)

100 in stock

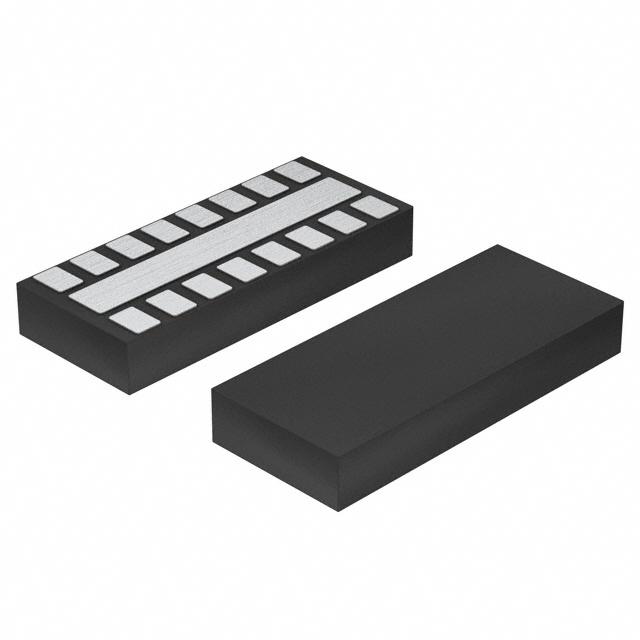

IP4254CZ16-8,118

NXP Semiconductors / Freescale

Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : -
Attenuation Value : 28dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : LAN, WAN
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-XFDFN Exposed Pad
Size / Dimension : 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height : 0.020" (0.50mm)

100 in stock

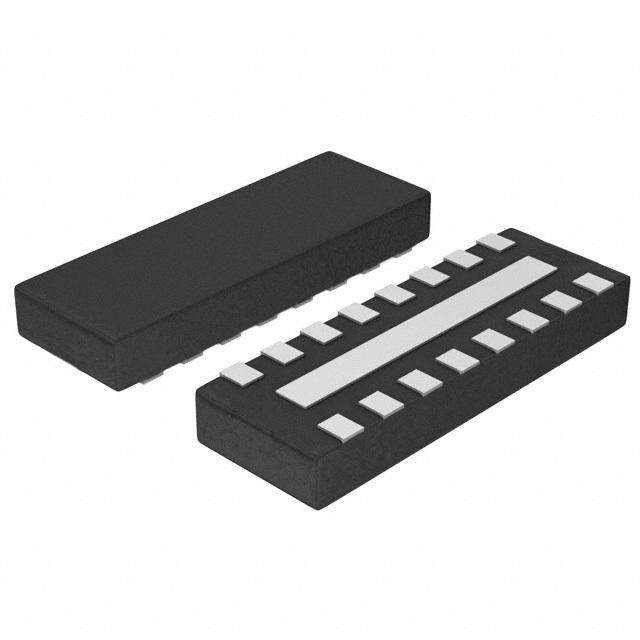

IP4254CZ16-8-TTL,1

Nexperia

Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 8
Center / Cutoff Frequency : -
Attenuation Value : 28dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : LAN, WAN
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 16-UFDFN Exposed Pad
Size / Dimension : 0.130" L x 0.053" W (3.30mm x 1.35mm)
Height : 0.022" (0.55mm)

15030 in stock

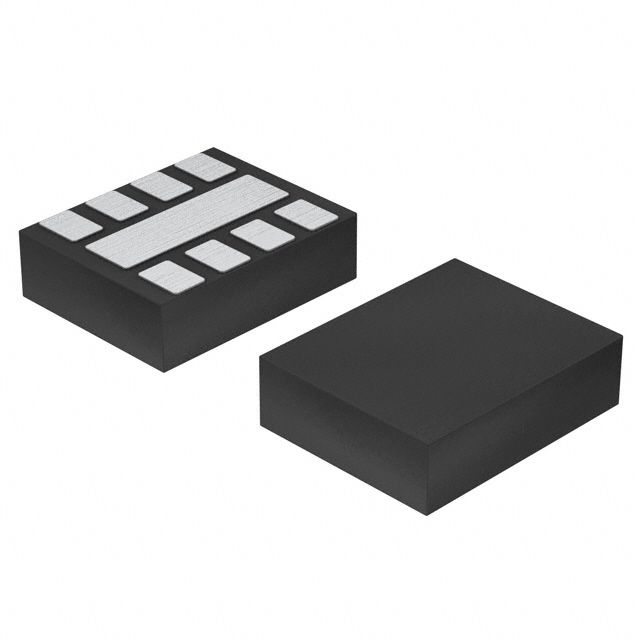

IP4254CZ8-4,118

NXP Semiconductors / Freescale

Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : -
Attenuation Value : 28dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : LAN, WAN
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-XFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.020" (0.50mm)

100 in stock

IP4254CZ8-4-TTL,13

Nexperia

Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 4
Center / Cutoff Frequency : -
Attenuation Value : 28dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 30pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : LAN, WAN
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.022" (0.55mm)

105966 in stock

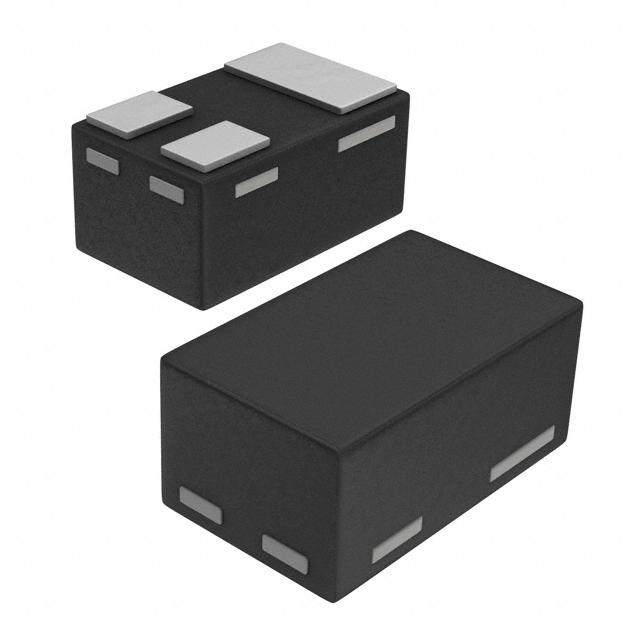

IP4256CZ3-M,315

Nexperia

Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : 20dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 19pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : LAN, WAN
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SC-101, SOT-883
Size / Dimension : 0.039" L x 0.024" W (1.00mm x 0.60mm)
Height : 0.020" (0.50mm)

100 in stock

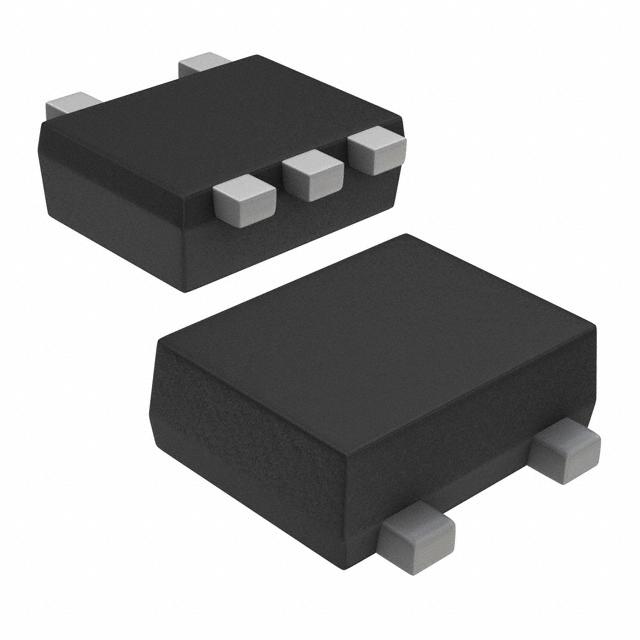

IP4256CZ5-W,115

Nexperia

Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : -
Attenuation Value : 20dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 19pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : LAN, WAN
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : SOT-665
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height : 0.024" (0.60mm)

100060 in stock

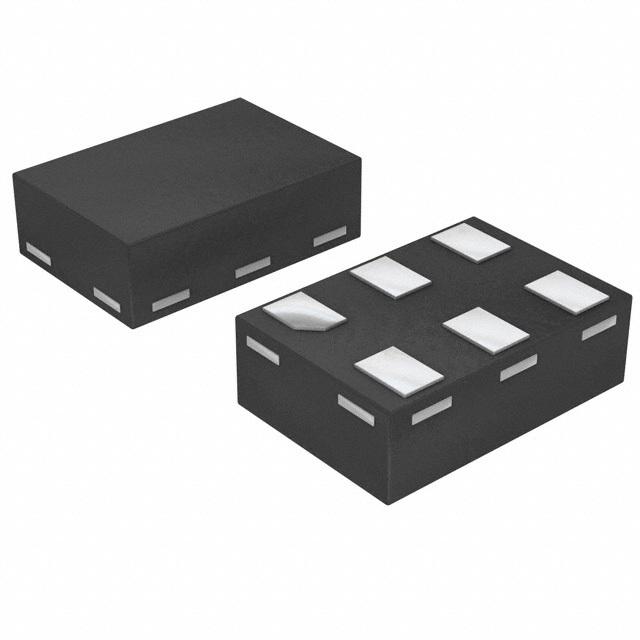

IP4256CZ6-F,115

Nexperia

Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 2
Center / Cutoff Frequency : -
Attenuation Value : 20dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 19pF (Total)
ESD Protection : Yes
Operating Temperature : -40°C ~ 85°C
Applications : LAN, WAN
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 6-XFDFN
Size / Dimension : 0.057" L x 0.039" W (1.45mm x 1.00mm)
Height : 0.020" (0.50mm)

100 in stock

IP4264CZ8-10-TTL,1

Nexperia

Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 6pF (Total)
ESD Protection : Yes
Operating Temperature : -30°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-UFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.022" (0.55mm)

100 in stock

IP4264CZ8-20,118

NXP Semiconductors / Freescale

Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Low Pass
Filter Order : 2nd
Technology : RC (Pi)
Number of Channels : 3
Center / Cutoff Frequency : -
Attenuation Value : 45dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms) : 47, 100
Current : -
Values : R = 47 Ohms, 100 Ohms, C = 11pF (Total)
ESD Protection : Yes
Operating Temperature : -35°C ~ 85°C
Applications : Data Lines for Mobile Devices
Voltage - Rated : -
Mounting Type : Surface Mount
Package / Case : 8-XFDFN Exposed Pad
Size / Dimension : 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height : 0.020" (0.50mm)

100 in stock
