Welcome to Weijie Semiconductor
- Inductors, Coils, Chokes
- Wireless Charging Coils
Part Number
Manufacturer
Description
Unit Price
In Stock

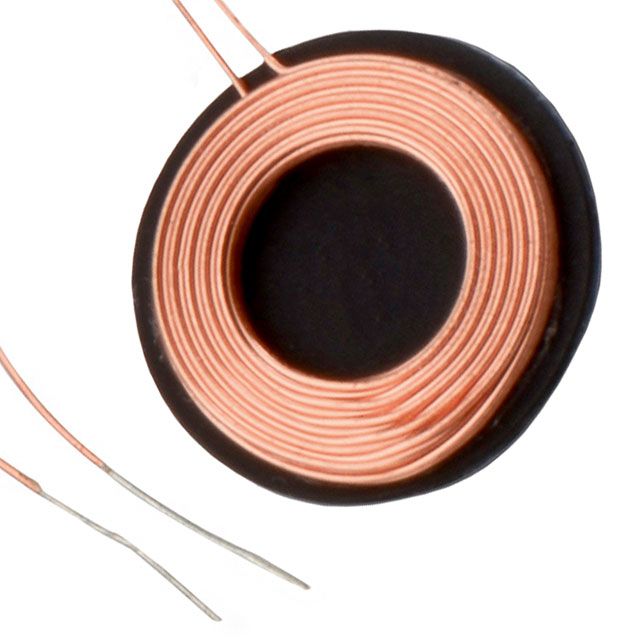

760308101208A
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 18µH
Tolerance : ±10%
DC Resistance (DCR) : 650 mOhm Max
Q @ Freq : 18 @ 125kHz
Current Rating : 700mA
Current - Saturation : 2A
Frequency - Self Resonant : 24MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.406" Dia x 0.066" H (10.30mm x 1.68mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 18µH
Tolerance : ±10%
DC Resistance (DCR) : 650 mOhm Max
Q @ Freq : 18 @ 125kHz
Current Rating : 700mA
Current - Saturation : 2A
Frequency - Self Resonant : 24MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.406" Dia x 0.066" H (10.30mm x 1.68mm)
0
799 in stock

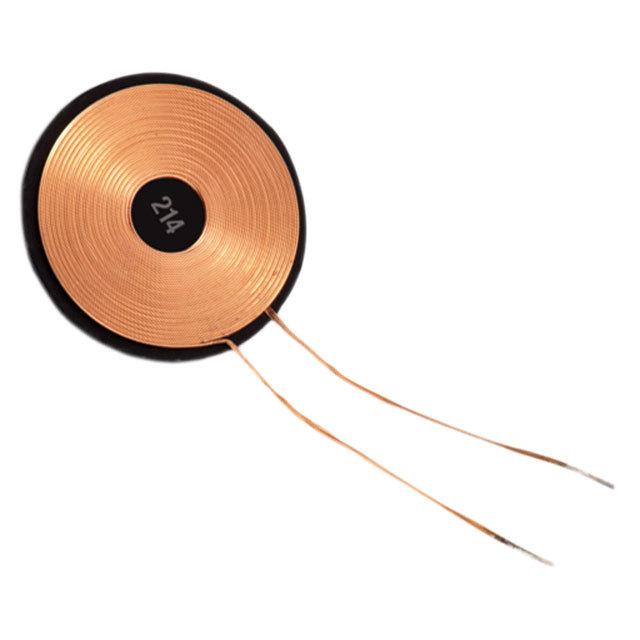

760308101214
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 26µH
Tolerance : ±10%
DC Resistance (DCR) : 520 mOhm Max
Q @ Freq : 25 @ 125kHz
Current Rating : 1.1A
Current - Saturation : 2A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.75" Dia x 0.03" H (19.0mm x 0.8mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 26µH
Tolerance : ±10%
DC Resistance (DCR) : 520 mOhm Max
Q @ Freq : 25 @ 125kHz
Current Rating : 1.1A
Current - Saturation : 2A
Frequency - Self Resonant : 11MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.75" Dia x 0.03" H (19.0mm x 0.8mm)
0
445 in stock

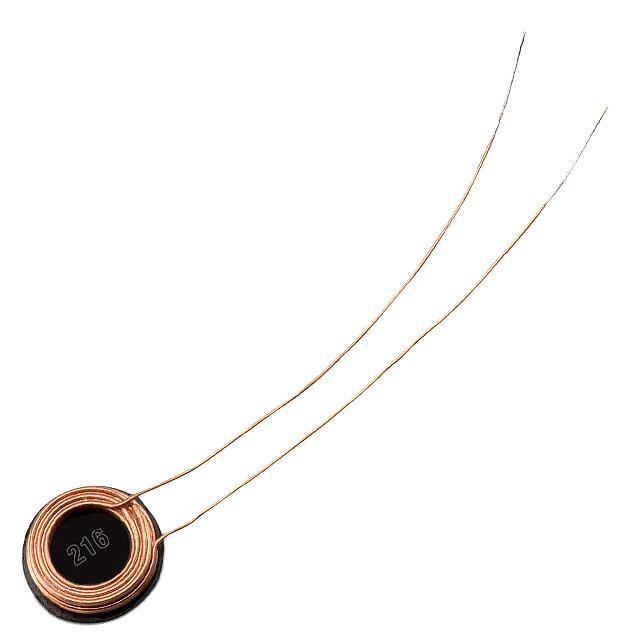

760308101216
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.2µH
Tolerance : ±10%
DC Resistance (DCR) : 440 mOhm Max
Q @ Freq : 10 @ 125kHz
Current Rating : 500mA
Current - Saturation : 1A
Frequency - Self Resonant : 32MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.24" Dia x 0.08" H (6.0mm x 2.0mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 7.2µH
Tolerance : ±10%
DC Resistance (DCR) : 440 mOhm Max
Q @ Freq : 10 @ 125kHz
Current Rating : 500mA
Current - Saturation : 1A
Frequency - Self Resonant : 32MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.24" Dia x 0.08" H (6.0mm x 2.0mm)
0
494 in stock

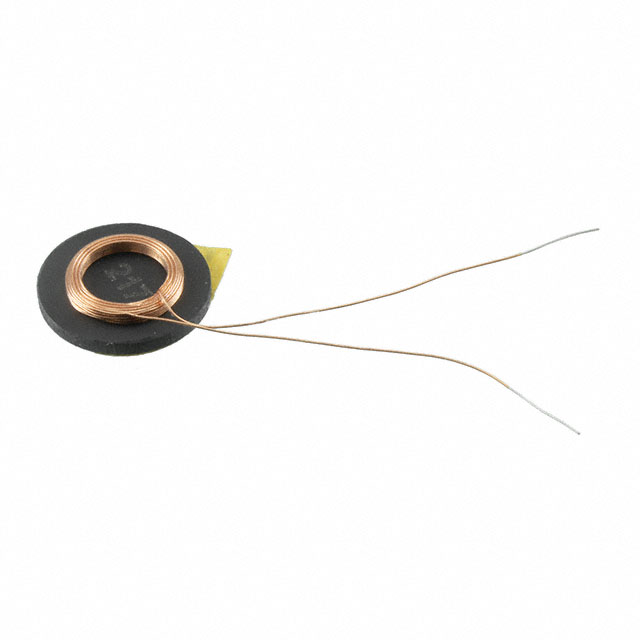

760308101217
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 24.2µH
Tolerance : ±10%
DC Resistance (DCR) : 1.4 Ohm Max
Q @ Freq : 13 @ 125kHz
Current Rating : 400mA
Current - Saturation : 1A
Frequency - Self Resonant : 14.5MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.41" Dia x 0.07" H (10.3mm x 1.9mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 24.2µH
Tolerance : ±10%
DC Resistance (DCR) : 1.4 Ohm Max
Q @ Freq : 13 @ 125kHz
Current Rating : 400mA
Current - Saturation : 1A
Frequency - Self Resonant : 14.5MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.41" Dia x 0.07" H (10.3mm x 1.9mm)
0
392 in stock

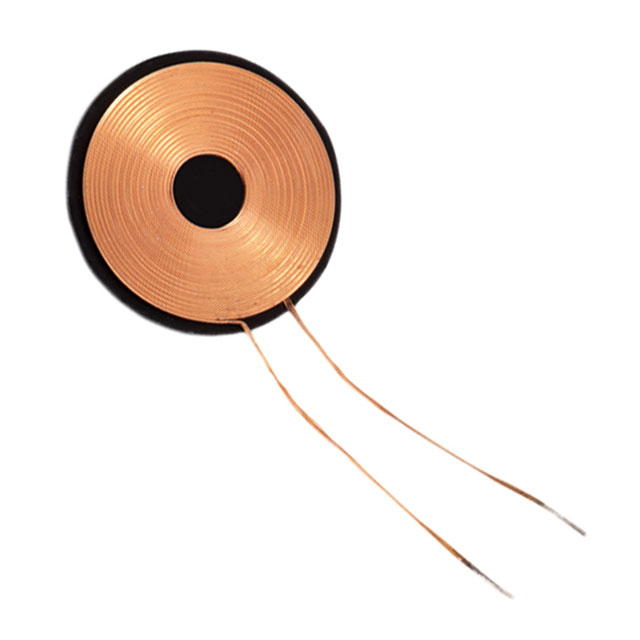

760308101219
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 11.8µH
Tolerance : ±10%
DC Resistance (DCR) : 750 mOhm Max
Q @ Freq : 13 @ 125kHz
Current Rating : 700mA
Current - Saturation : 1.5A
Frequency - Self Resonant : 22MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.59" Dia x 0.02" H (15.0mm x 0.6mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 11.8µH
Tolerance : ±10%
DC Resistance (DCR) : 750 mOhm Max
Q @ Freq : 13 @ 125kHz
Current Rating : 700mA
Current - Saturation : 1.5A
Frequency - Self Resonant : 22MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.59" Dia x 0.02" H (15.0mm x 0.6mm)
0
100 in stock

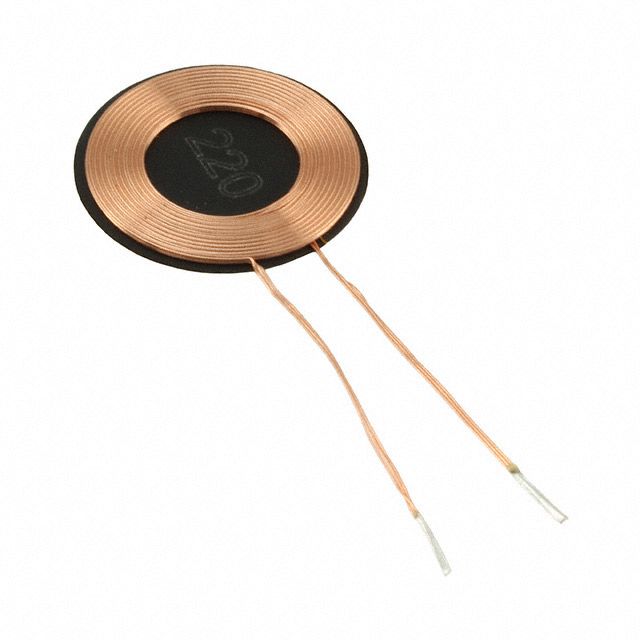

760308101220
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 12.6µH
Tolerance : ±10%
DC Resistance (DCR) : 340 mOhm Max
Q @ Freq : 20 @ 125kHz
Current Rating : 1.1A
Current - Saturation : 2.5A
Frequency - Self Resonant : 19MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.67" Dia x 0.03" H (17.0mm x 0.8mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 12.6µH
Tolerance : ±10%
DC Resistance (DCR) : 340 mOhm Max
Q @ Freq : 20 @ 125kHz
Current Rating : 1.1A
Current - Saturation : 2.5A
Frequency - Self Resonant : 19MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.67" Dia x 0.03" H (17.0mm x 0.8mm)
0
185 in stock

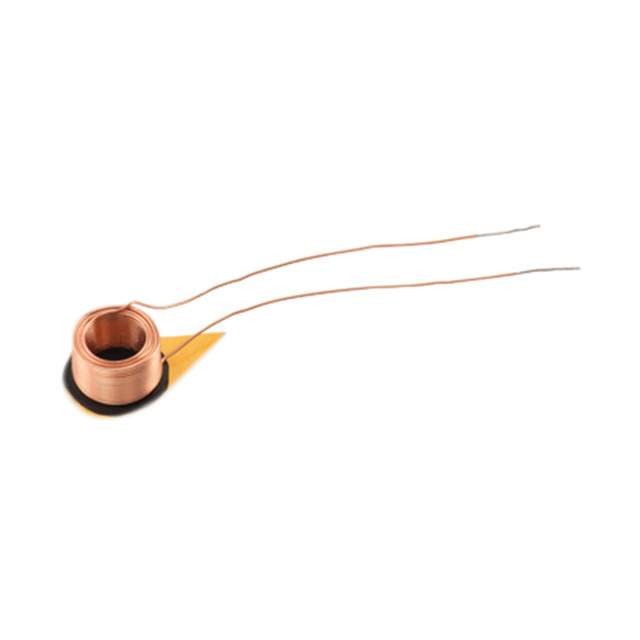

760308101221
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 24µH
Tolerance : ±10%
DC Resistance (DCR) : 1.15 Ohm Max
Q @ Freq : 16 @ 125kHz
Current Rating : 400mA
Current - Saturation : 1A
Frequency - Self Resonant : 10MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.24" Dia x 0.16" H (6.0mm x 4.0mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 24µH
Tolerance : ±10%
DC Resistance (DCR) : 1.15 Ohm Max
Q @ Freq : 16 @ 125kHz
Current Rating : 400mA
Current - Saturation : 1A
Frequency - Self Resonant : 10MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 0.24" Dia x 0.16" H (6.0mm x 4.0mm)
0
104 in stock

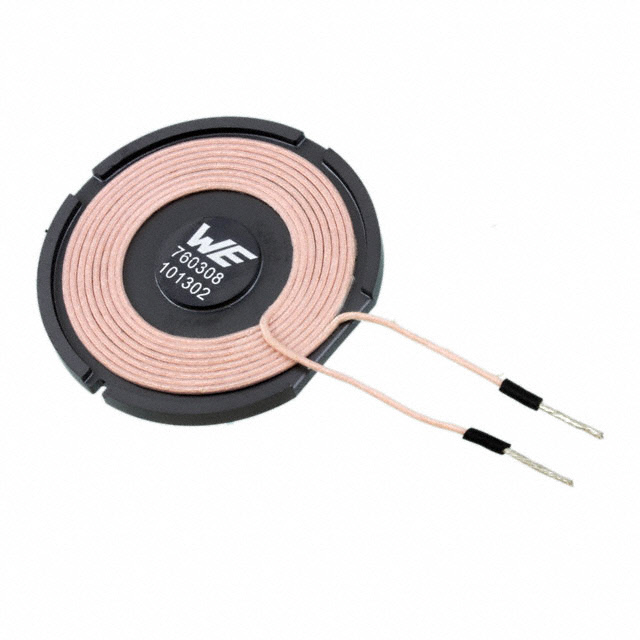

760308101302
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 5.3µH
Tolerance : ±10%
DC Resistance (DCR) : 33 mOhm
Q @ Freq : 100 @ 125kHz
Current Rating : 8A
Current - Saturation : 10A
Frequency - Self Resonant : 27MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" Dia x 0.19" H (50.0mm x 4.7mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 5.3µH
Tolerance : ±10%
DC Resistance (DCR) : 33 mOhm
Q @ Freq : 100 @ 125kHz
Current Rating : 8A
Current - Saturation : 10A
Frequency - Self Resonant : 27MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.97" Dia x 0.19" H (50.0mm x 4.7mm)
0
21 in stock

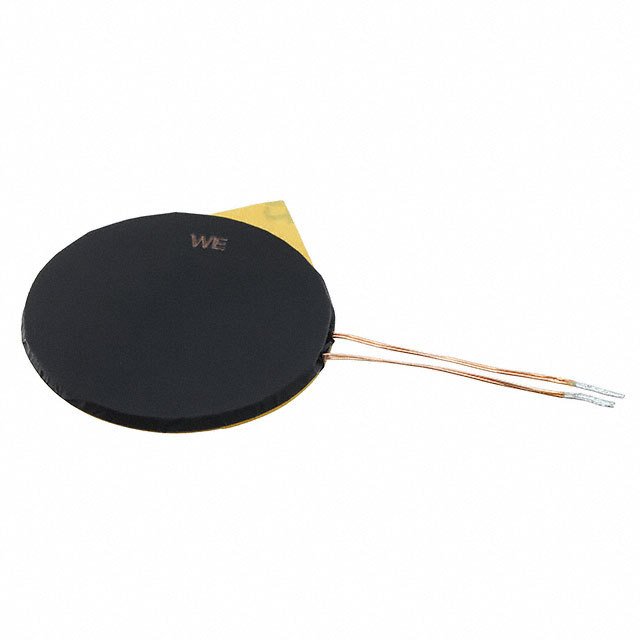

760308101303
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 47µH
Tolerance : ±10%
DC Resistance (DCR) : 460 mOhm
Q @ Freq : 25 @ 125kHz
Current Rating : 1.5A
Current - Saturation : 3A
Frequency - Self Resonant : 8MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.02" L x 1.02" W x 0.05" H (26.0mm x 26.0mm x 1.3mm)
Series : WE-WPCC
Part Status : Active
Function : Receiver
Type : 1 Coil, 1 Layer
Inductance : 47µH
Tolerance : ±10%
DC Resistance (DCR) : 460 mOhm
Q @ Freq : 25 @ 125kHz
Current Rating : 1.5A
Current - Saturation : 3A
Frequency - Self Resonant : 8MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.02" L x 1.02" W x 0.05" H (26.0mm x 26.0mm x 1.3mm)
0
784 in stock
760308101304
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 48 mOhm Max
Q @ Freq : 115 @ 125kHz
Current Rating : 6A
Current - Saturation : 10A
Frequency - Self Resonant : 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.85" Dia x 0.12" H (47.0mm x 3.0mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 6.3µH
Tolerance : ±10%
DC Resistance (DCR) : 48 mOhm Max
Q @ Freq : 115 @ 125kHz
Current Rating : 6A
Current - Saturation : 10A
Frequency - Self Resonant : 16MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 1.85" Dia x 0.12" H (47.0mm x 3.0mm)
0
122 in stock

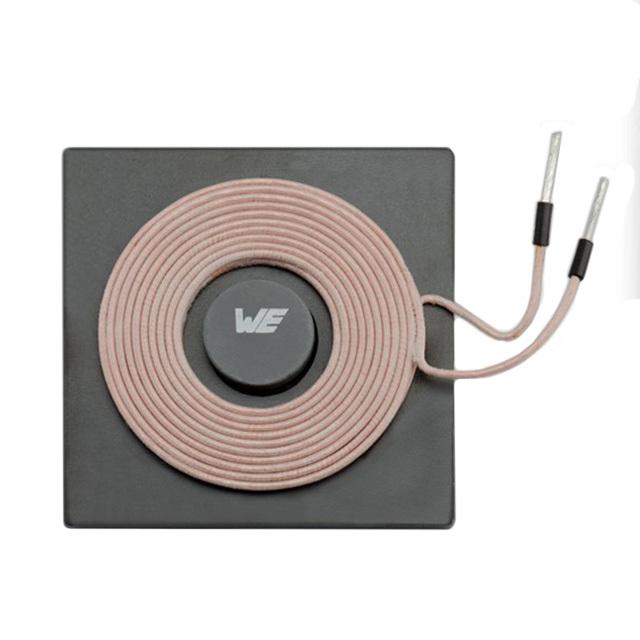

760308102142
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 5.8µH
Tolerance : ±10%
DC Resistance (DCR) : 12 mOhm Max
Q @ Freq : 100 @ 125kHz
Current Rating : 18A
Current - Saturation : 30A
Frequency - Self Resonant : 12MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 1 Layer
Inductance : 5.8µH
Tolerance : ±10%
DC Resistance (DCR) : 12 mOhm Max
Q @ Freq : 100 @ 125kHz
Current Rating : 18A
Current - Saturation : 30A
Frequency - Self Resonant : 12MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm)
0
8 in stock

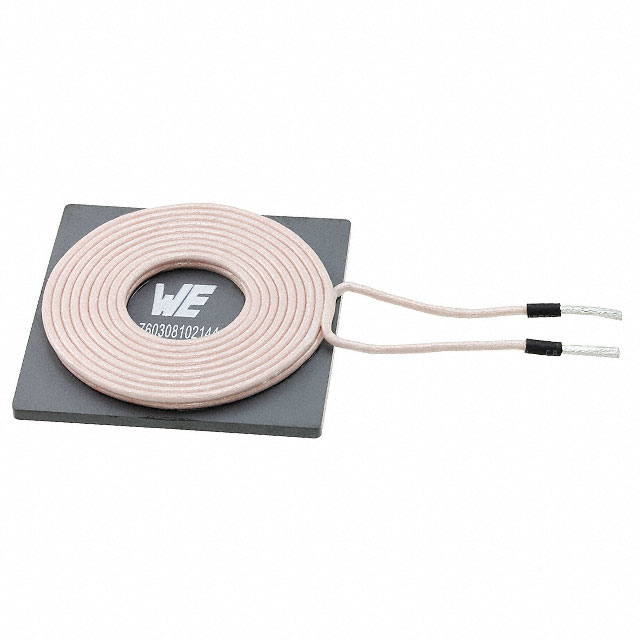

760308102144
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 2 Layer
Inductance : 19.5µH
Tolerance : ±10%
DC Resistance (DCR) : 45 mOhm Max
Q @ Freq : 220 @ 125kHz
Current Rating : 9.5A
Current - Saturation : 20A
Frequency - Self Resonant : 5MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.10" L x 2.10" W x 0.28" H (53.30mm x 53.30mm x 7.00mm)
Series : WE-WPCC
Part Status : Active
Function : Transmitter
Type : 1 Coil, 2 Layer
Inductance : 19.5µH
Tolerance : ±10%
DC Resistance (DCR) : 45 mOhm Max
Q @ Freq : 220 @ 125kHz
Current Rating : 9.5A
Current - Saturation : 20A
Frequency - Self Resonant : 5MHz
Operating Temperature : -20°C ~ 105°C
Size / Dimension : 2.10" L x 2.10" W x 0.28" H (53.30mm x 53.30mm x 7.00mm)
0
26 in stock
