Welcome to Weijie Semiconductor
Part Number
Manufacturer
Description
Unit Price
In Stock
DLC-2
Curtis Industries
Manufacturer : Curtis Industries
Series : DLC
Part Status : Active
Type : High/Low Level
Voltage - Supply : 240VAC
Sensitivity : 0 ~ 100kOhm
Features : Lockout Feature
Distance - Control To Sensor (Max) : -
Output Type : Relay (2)
Contact Form : SPST-NO (1 Form A), SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 120VAC
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : 0°C ~ 60°C
Series : DLC
Part Status : Active
Type : High/Low Level
Voltage - Supply : 240VAC
Sensitivity : 0 ~ 100kOhm
Features : Lockout Feature
Distance - Control To Sensor (Max) : -
Output Type : Relay (2)
Contact Form : SPST-NO (1 Form A), SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 120VAC
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : 0°C ~ 60°C
0
100 in stock
DLC-2-N4
Curtis Industries
Manufacturer : Curtis Industries
Series : DLC
Part Status : Active
Type : High/Low Level
Voltage - Supply : 240VAC
Sensitivity : 0 ~ 100kOhm
Features : Lockout Feature, NEMA 4 Rated Enclosure Included
Distance - Control To Sensor (Max) : -
Output Type : Relay (2)
Contact Form : SPST-NO (1 Form A), SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 120VAC
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : 0°C ~ 60°C
Series : DLC
Part Status : Active
Type : High/Low Level
Voltage - Supply : 240VAC
Sensitivity : 0 ~ 100kOhm
Features : Lockout Feature, NEMA 4 Rated Enclosure Included
Distance - Control To Sensor (Max) : -
Output Type : Relay (2)
Contact Form : SPST-NO (1 Form A), SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 120VAC
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : 0°C ~ 60°C
0
100 in stock
DLC-3
Curtis Industries
Manufacturer : Curtis Industries
Series : DLC
Part Status : Active
Type : High/Low Level
Voltage - Supply : 24VAC
Sensitivity : 0 ~ 100kOhm
Features : Lockout Feature
Distance - Control To Sensor (Max) : -
Output Type : Relay (2)
Contact Form : SPST-NO (1 Form A), SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 120VAC
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : 0°C ~ 60°C
Series : DLC
Part Status : Active
Type : High/Low Level
Voltage - Supply : 24VAC
Sensitivity : 0 ~ 100kOhm
Features : Lockout Feature
Distance - Control To Sensor (Max) : -
Output Type : Relay (2)
Contact Form : SPST-NO (1 Form A), SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 120VAC
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : 0°C ~ 60°C
0
100 in stock
DLC-3-N4
Curtis Industries
Manufacturer : Curtis Industries
Series : DLC
Part Status : Active
Type : High/Low Level
Voltage - Supply : 24VAC
Sensitivity : 0 ~ 100kOhm
Features : Lockout Feature, NEMA 4 Rated Enclosure Included
Distance - Control To Sensor (Max) : -
Output Type : Relay (2)
Contact Form : SPST-NO (1 Form A), SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 120VAC
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : 0°C ~ 60°C
Series : DLC
Part Status : Active
Type : High/Low Level
Voltage - Supply : 24VAC
Sensitivity : 0 ~ 100kOhm
Features : Lockout Feature, NEMA 4 Rated Enclosure Included
Distance - Control To Sensor (Max) : -
Output Type : Relay (2)
Contact Form : SPST-NO (1 Form A), SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 120VAC
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.250" (6.3mm)
Operating Temperature : 0°C ~ 60°C
0
100 in stock

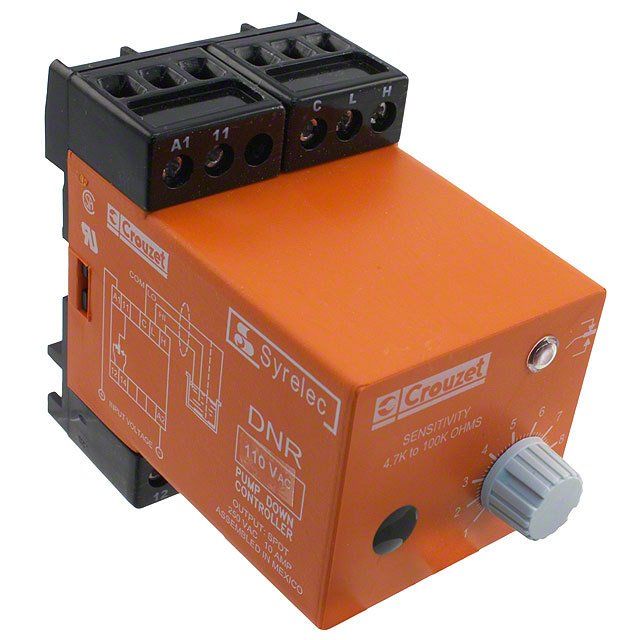

DNR110A
Crouzet
Manufacturer : Crouzet
Series : NR
Part Status : Obsolete
Type : High/Low Level
Voltage - Supply : 110VAC
Sensitivity : 4.7kOhm ~ 100kOhm
Features : Adjustable Sensitivity
Distance - Control To Sensor (Max) : -
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
Series : NR
Part Status : Obsolete
Type : High/Low Level
Voltage - Supply : 110VAC
Sensitivity : 4.7kOhm ~ 100kOhm
Features : Adjustable Sensitivity
Distance - Control To Sensor (Max) : -
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
0
100 in stock
DNR220A
Crouzet
Manufacturer : Crouzet
Series : NR
Part Status : Obsolete
Type : High/Low Level
Voltage - Supply : 220VAC
Sensitivity : 4.7kOhm ~ 100kOhm
Features : Adjustable Sensitivity
Distance - Control To Sensor (Max) : -
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
Series : NR
Part Status : Obsolete
Type : High/Low Level
Voltage - Supply : 220VAC
Sensitivity : 4.7kOhm ~ 100kOhm
Features : Adjustable Sensitivity
Distance - Control To Sensor (Max) : -
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
0
100 in stock
DNR24A
Crouzet
Manufacturer : Crouzet
Series : NR
Part Status : Obsolete
Type : High/Low Level
Voltage - Supply : 24VAC
Sensitivity : 4.7kOhm ~ 100kOhm
Features : -
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
Series : NR
Part Status : Obsolete
Type : High/Low Level
Voltage - Supply : 24VAC
Sensitivity : 4.7kOhm ~ 100kOhm
Features : -
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
0
100 in stock
DNRT110A
Crouzet
Manufacturer : Crouzet
Series : NRT
Part Status : Obsolete
Type : Constant Level
Voltage - Supply : 110VAC
Sensitivity : 0 ~ 100kOhm
Features : -
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
Series : NRT
Part Status : Obsolete
Type : Constant Level
Voltage - Supply : 110VAC
Sensitivity : 0 ~ 100kOhm
Features : -
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
0
100 in stock
DNRT220A
Crouzet
Manufacturer : Crouzet
Series : NRT
Part Status : Obsolete
Type : Constant Level
Voltage - Supply : 220VAC
Sensitivity : 0 ~ 100kOhm
Features : Delay Timer
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
Series : NRT
Part Status : Obsolete
Type : Constant Level
Voltage - Supply : 220VAC
Sensitivity : 0 ~ 100kOhm
Features : Delay Timer
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
0
100 in stock
DNRT24A
Crouzet
Manufacturer : Crouzet
Series : NRT
Part Status : Obsolete
Type : Constant Level
Voltage - Supply : 24VAC
Sensitivity : 0 ~ 100kOhm
Features : Delay Timer
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
Series : NRT
Part Status : Obsolete
Type : Constant Level
Voltage - Supply : 24VAC
Sensitivity : 0 ~ 100kOhm
Features : Delay Timer
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
0
100 in stock

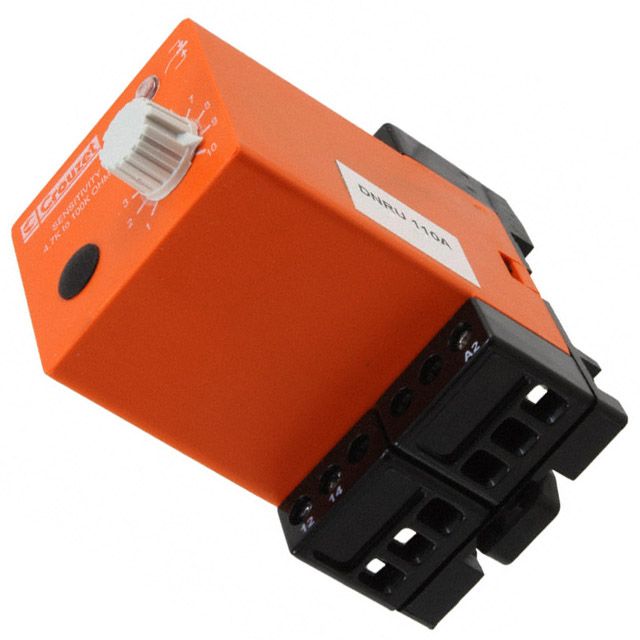

DNRU110A
Crouzet
Manufacturer : Crouzet
Series : NRU
Part Status : Obsolete
Type : High/Low Level
Voltage - Supply : 110VAC
Sensitivity : 4.7kOhm ~ 100kOhm
Features : Adjustable Sensitivity
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
Series : NRU
Part Status : Obsolete
Type : High/Low Level
Voltage - Supply : 110VAC
Sensitivity : 4.7kOhm ~ 100kOhm
Features : Adjustable Sensitivity
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
0
100 in stock
DNRU220A
Crouzet
Manufacturer : Crouzet
Series : NRU
Part Status : Obsolete
Type : High/Low Level
Voltage - Supply : 220VAC
Sensitivity : 4.7kOhm ~ 100kOhm
Features : Adjustable Sensitivity
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
Series : NRU
Part Status : Obsolete
Type : High/Low Level
Voltage - Supply : 220VAC
Sensitivity : 4.7kOhm ~ 100kOhm
Features : Adjustable Sensitivity
Distance - Control To Sensor (Max) : 91.44m
Output Type : Relay
Contact Form : SPDT (1 Form C)
Contact Rating @ Voltage : 10A @ 250VAC
Mounting Type : DIN Rail
Termination Style : Screw Terminal
Operating Temperature : -10°C ~ 60°C
0
100 in stock
