Part Number
Manufacturer
Description
Unit Price
In Stock

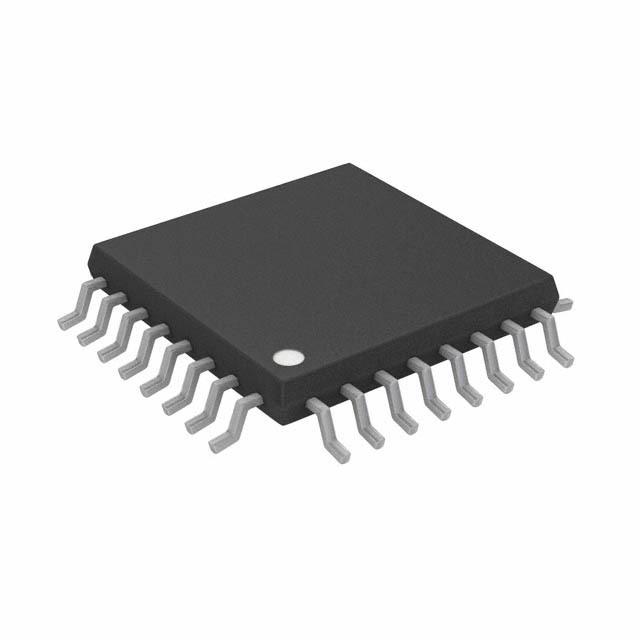

AD5764ASUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tray
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : ±11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±4 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
Packaging : Tray
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : ±11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±4 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
0
99 in stock
AD5764BSUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tray
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : ±11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±2 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
Packaging : Tray
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : ±11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±2 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
0
247 in stock
AD5764CSUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tray
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : ±11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
Packaging : Tray
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : ±11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
0
1031 in stock
AD5764CSUZ-REEL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Digi-Reel®
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : ±11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
Packaging : Digi-Reel®
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : ±11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
0
100 in stock
AD5764RBSUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tray
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External, Internal
Voltage - Supply, Analog : 11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±2 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
Packaging : Tray
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External, Internal
Voltage - Supply, Analog : 11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±2 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
0
151 in stock
AD5764RCSUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tray
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External, Internal
Voltage - Supply, Analog : 11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
Packaging : Tray
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External, Internal
Voltage - Supply, Analog : 11.4 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
0
245 in stock
AD5765CSUZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tray
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 105°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
Packaging : Tray
Alternate Packaging
Series : iCMOS®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 4
Settling Time : 10µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 2.7 V ~ 5.25 V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 105°C
Package / Case : 32-TQFP
Supplier Device Package : 32-TQFP (7x7)
Mounting Type : Surface Mount
0
24 in stock
AD5766BCBZ-RL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 16
Settling Time : 12µs
Output Type : Voltage - Unbuffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 2.97 V ~ 16 V
Voltage - Supply, Digital : -
INL/DNL (LSB) : ±16, ±1
Architecture : String DAC
Operating Temperature : -40°C ~ 105°C
Package / Case : 49-UFBGA, WLCSP
Supplier Device Package : 49-WLCSP
Mounting Type : Surface Mount
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 16
Settling Time : 12µs
Output Type : Voltage - Unbuffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 2.97 V ~ 16 V
Voltage - Supply, Digital : -
INL/DNL (LSB) : ±16, ±1
Architecture : String DAC
Operating Temperature : -40°C ~ 105°C
Package / Case : 49-UFBGA, WLCSP
Supplier Device Package : 49-WLCSP
Mounting Type : Surface Mount
0
100 in stock

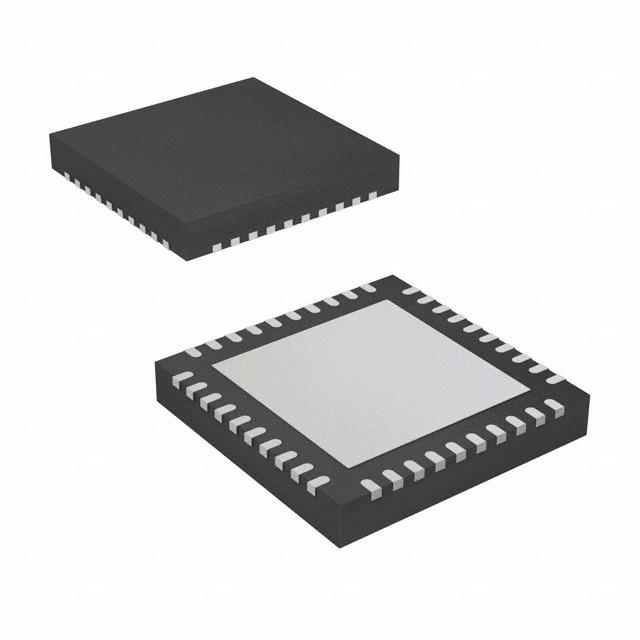

AD5766BCPZ-RL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 16
Settling Time : 12µs
Output Type : Voltage - Unbuffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 2.97 V ~ 16 V
Voltage - Supply, Digital : -
INL/DNL (LSB) : ±16, ±1
Architecture : String DAC
Operating Temperature : -40°C ~ 105°C
Package / Case : 40-WFQFN Exposed Pad, CSP
Supplier Device Package : 40-LFCSP (6x6)
Mounting Type : Surface Mount
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 16
Settling Time : 12µs
Output Type : Voltage - Unbuffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 2.97 V ~ 16 V
Voltage - Supply, Digital : -
INL/DNL (LSB) : ±16, ±1
Architecture : String DAC
Operating Temperature : -40°C ~ 105°C
Package / Case : 40-WFQFN Exposed Pad, CSP
Supplier Device Package : 40-LFCSP (6x6)
Mounting Type : Surface Mount
0
671 in stock

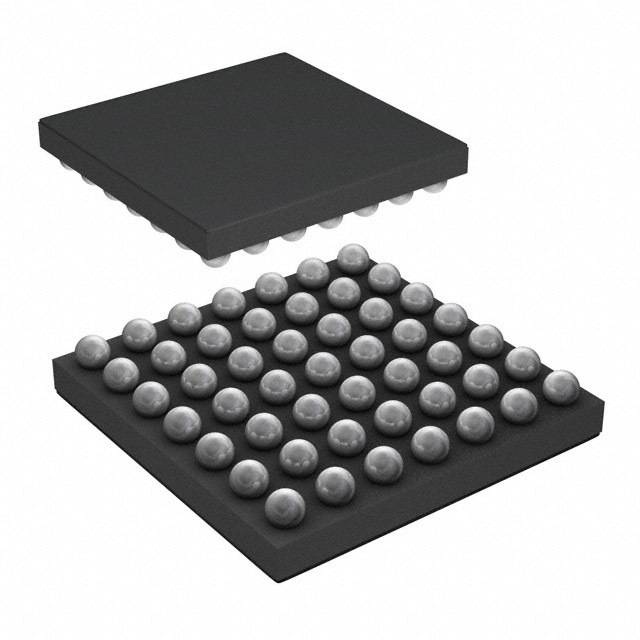

AD5767BCBZ-RL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 16
Settling Time : 12µs
Output Type : Voltage - Unbuffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 2.97 V ~ 16 V
Voltage - Supply, Digital : -
INL/DNL (LSB) : ±1, ±1
Architecture : String DAC
Operating Temperature : -40°C ~ 105°C
Package / Case : 49-UFBGA, WLCSP
Supplier Device Package : 49-WLCSP
Mounting Type : Surface Mount
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 16
Settling Time : 12µs
Output Type : Voltage - Unbuffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 2.97 V ~ 16 V
Voltage - Supply, Digital : -
INL/DNL (LSB) : ±1, ±1
Architecture : String DAC
Operating Temperature : -40°C ~ 105°C
Package / Case : 49-UFBGA, WLCSP
Supplier Device Package : 49-WLCSP
Mounting Type : Surface Mount
0
1387 in stock
AD5767BCPZ-RL7
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 16
Settling Time : 12µs
Output Type : Voltage - Unbuffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 2.97 V ~ 16 V
Voltage - Supply, Digital : -
INL/DNL (LSB) : ±1, ±1
Architecture : String DAC
Operating Temperature : -40°C ~ 105°C
Package / Case : 40-WFQFN Exposed Pad, CSP
Supplier Device Package : 40-LFCSP (6x6)
Mounting Type : Surface Mount
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 16
Settling Time : 12µs
Output Type : Voltage - Unbuffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 2.97 V ~ 16 V
Voltage - Supply, Digital : -
INL/DNL (LSB) : ±1, ±1
Architecture : String DAC
Operating Temperature : -40°C ~ 105°C
Package / Case : 40-WFQFN Exposed Pad, CSP
Supplier Device Package : 40-LFCSP (6x6)
Mounting Type : Surface Mount
0
709 in stock
AD5780ACPZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 18
Number of D/A Converters : 1
Settling Time : 3.5µs (Typ)
Output Type : Voltage - Unbuffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 7.5 V ~ 16.5 V, -2.5 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.5 V
INL/DNL (LSB) : ±2 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 125°C
Package / Case : 24-VFQFN Exposed Pad, CSP
Supplier Device Package : 24-LFCSP-VQ (4x5)
Mounting Type : Surface Mount
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 18
Number of D/A Converters : 1
Settling Time : 3.5µs (Typ)
Output Type : Voltage - Unbuffered
Differential Output : No
Data Interface : SPI, DSP
Reference Type : External
Voltage - Supply, Analog : 7.5 V ~ 16.5 V, -2.5 V ~ 16.5 V
Voltage - Supply, Digital : 2.7 V ~ 5.5 V
INL/DNL (LSB) : ±2 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 125°C
Package / Case : 24-VFQFN Exposed Pad, CSP
Supplier Device Package : 24-LFCSP-VQ (4x5)
Mounting Type : Surface Mount
0
303 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
