Part Number
Manufacturer
Description
Unit Price
In Stock
AD7548KNZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 1
Settling Time : 1.5µs (Typ)
Output Type : Current - Unbuffered
Differential Output : No
Data Interface : Parallel
Reference Type : External
Voltage - Supply, Analog : 5V, 11.4 V ~ 15.75 V
Voltage - Supply, Digital : 5V, 11.4 V ~ 15.75 V
INL/DNL (LSB) : ±0.5 (Max), ±0.5 (Max)
Architecture : R-2R
Operating Temperature : 0°C ~ 70°C
Package / Case : 20-DIP (0.300", 7.62mm)
Supplier Device Package : 20-PDIP
Mounting Type : Through Hole
Packaging : Tube
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 1
Settling Time : 1.5µs (Typ)
Output Type : Current - Unbuffered
Differential Output : No
Data Interface : Parallel
Reference Type : External
Voltage - Supply, Analog : 5V, 11.4 V ~ 15.75 V
Voltage - Supply, Digital : 5V, 11.4 V ~ 15.75 V
INL/DNL (LSB) : ±0.5 (Max), ±0.5 (Max)
Architecture : R-2R
Operating Temperature : 0°C ~ 70°C
Package / Case : 20-DIP (0.300", 7.62mm)
Supplier Device Package : 20-PDIP
Mounting Type : Through Hole
0
139 in stock
AD7549JNZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 2
Settling Time : 1.5µs
Output Type : Current - Unbuffered
Differential Output : No
Data Interface : Parallel
Reference Type : External
Voltage - Supply, Analog : 15V
Voltage - Supply, Digital : 15V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 20-DIP (0.300", 7.62mm)
Supplier Device Package : 20-PDIP
Mounting Type : Through Hole
Packaging : Tube
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 2
Settling Time : 1.5µs
Output Type : Current - Unbuffered
Differential Output : No
Data Interface : Parallel
Reference Type : External
Voltage - Supply, Analog : 15V
Voltage - Supply, Digital : 15V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 20-DIP (0.300", 7.62mm)
Supplier Device Package : 20-PDIP
Mounting Type : Through Hole
0
90 in stock

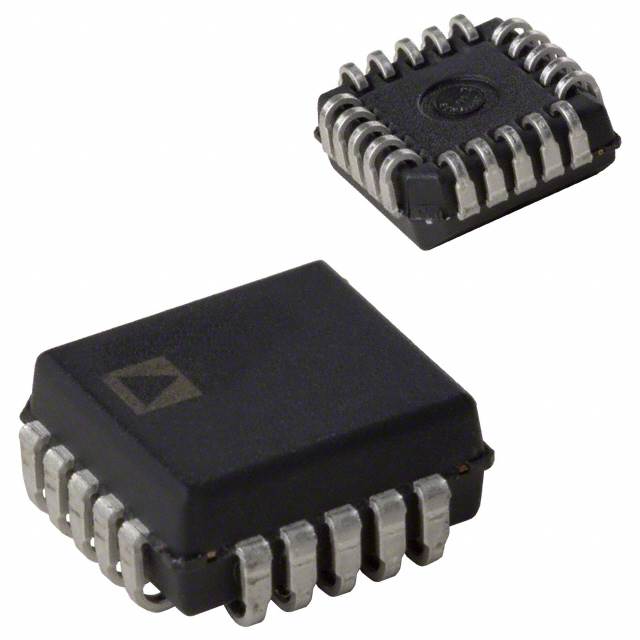

AD7549JPZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 2
Settling Time : 1.5µs
Output Type : Current - Unbuffered
Differential Output : No
Data Interface : Parallel
Reference Type : External
Voltage - Supply, Analog : 15V
Voltage - Supply, Digital : 15V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 20-LCC (J-Lead)
Supplier Device Package : 20-PLCC (9x9)
Mounting Type : Surface Mount
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 2
Settling Time : 1.5µs
Output Type : Current - Unbuffered
Differential Output : No
Data Interface : Parallel
Reference Type : External
Voltage - Supply, Analog : 15V
Voltage - Supply, Digital : 15V
INL/DNL (LSB) : ±1 (Max), ±1 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 20-LCC (J-Lead)
Supplier Device Package : 20-PLCC (9x9)
Mounting Type : Surface Mount
0
29 in stock

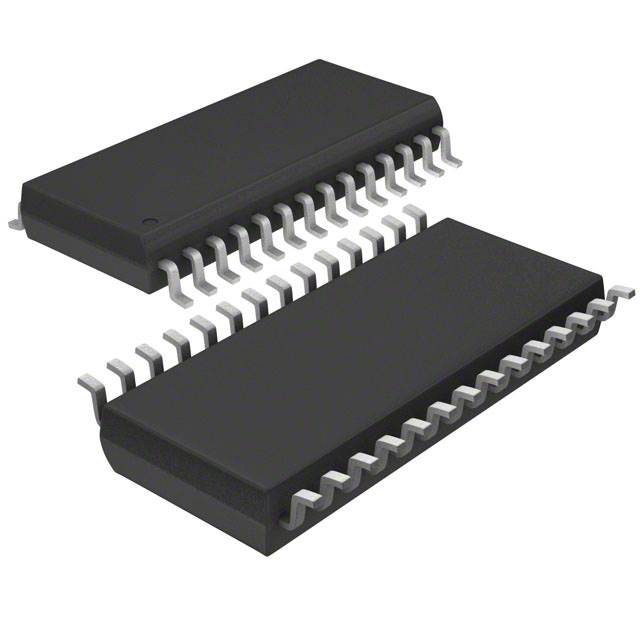

AD7564ARSZ-B
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 3.5µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 3 V ~ 5.5 V
Voltage - Supply, Digital : 3 V ~ 5.5 V
INL/DNL (LSB) : ±1 (Max), ±0.9 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 28-SSOP
Mounting Type : Surface Mount
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 3.5µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 3 V ~ 5.5 V
Voltage - Supply, Digital : 3 V ~ 5.5 V
INL/DNL (LSB) : ±1 (Max), ±0.9 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 28-SSOP
Mounting Type : Surface Mount
0
8 in stock
AD7564ARZ-B
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 3.5µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 3 V ~ 5.5 V
Voltage - Supply, Digital : 3 V ~ 5.5 V
INL/DNL (LSB) : ±1 (Max), ±0.9 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
Mounting Type : Surface Mount
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 3.5µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 3 V ~ 5.5 V
Voltage - Supply, Digital : 3 V ~ 5.5 V
INL/DNL (LSB) : ±1 (Max), ±0.9 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
Mounting Type : Surface Mount
0
12 in stock

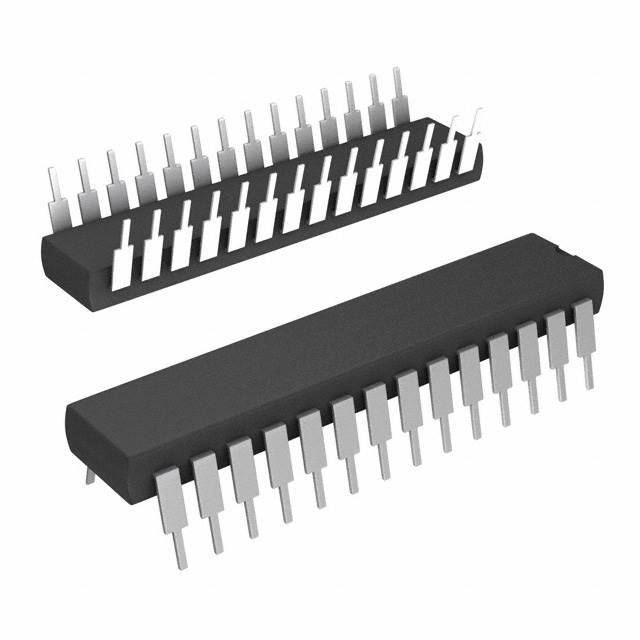

AD7564BNZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 550µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.5 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
Mounting Type : Through Hole
Packaging : Tube
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 550µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.5 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-DIP (0.600", 15.24mm)
Supplier Device Package : 28-PDIP
Mounting Type : Through Hole
0
52 in stock
AD7564BRSZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 550µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.5 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 28-SSOP
Mounting Type : Surface Mount
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 550µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.5 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 28-SSOP
Mounting Type : Surface Mount
0
35 in stock
AD7564BRSZ-REEL
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 550µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.5 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 28-SSOP
Mounting Type : Surface Mount
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 550µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.5 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package : 28-SSOP
Mounting Type : Surface Mount
0
1091 in stock
AD7564BRZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 550µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.5 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
Mounting Type : Surface Mount
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 4
Settling Time : 550µs (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.5 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
Mounting Type : Surface Mount
0
27 in stock

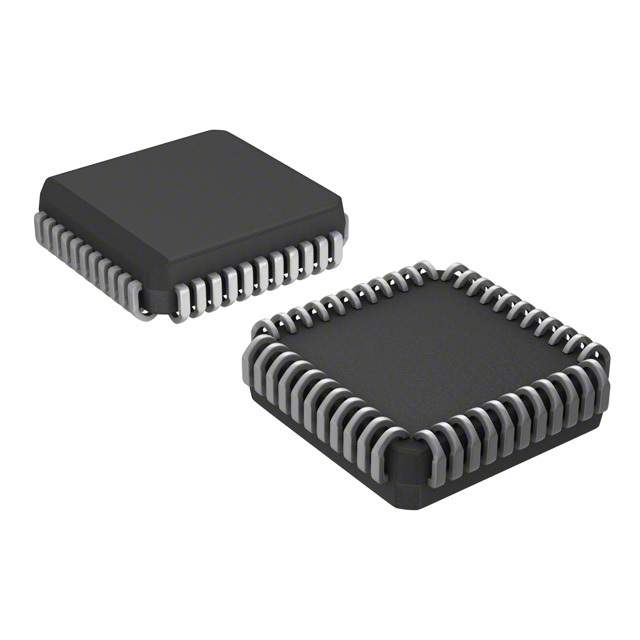

AD7568BPZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 8
Settling Time : 550ns (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.9 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 44-LCC (J-Lead)
Supplier Device Package : 44-PLCC (16.59x16.59)
Mounting Type : Surface Mount
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 8
Settling Time : 550ns (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.9 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 44-LCC (J-Lead)
Supplier Device Package : 44-PLCC (16.59x16.59)
Mounting Type : Surface Mount
0
110 in stock
AD7568BSZ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 8
Settling Time : 550ns (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.9 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 44-QFP
Supplier Device Package : 44-MQFP (10x10)
Mounting Type : Surface Mount
Packaging : Tray
Alternate Packaging
Series : -
Part Status : Active
Number of Bits : 12
Number of D/A Converters : 8
Settling Time : 550ns (Typ)
Output Type : Current - Unbuffered
Differential Output : Yes
Data Interface : SPI
Reference Type : External
Voltage - Supply, Analog : 5V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.5 (Max), ±0.9 (Max)
Architecture : R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 44-QFP
Supplier Device Package : 44-MQFP (10x10)
Mounting Type : Surface Mount
0
164 in stock
AD760AQ
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tube
Series : DACPORT®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 1
Settling Time : 13µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : Parallel, Serial
Reference Type : External, Internal
Voltage - Supply, Analog : ±14.25 V ~ 15.75 V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.2, ±0.2
Architecture : Current Steering, R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-CDIP (0.600", 15.24mm)
Supplier Device Package : 28-CDIP
Mounting Type : Through Hole
Packaging : Tube
Series : DACPORT®
Part Status : Active
Number of Bits : 16
Number of D/A Converters : 1
Settling Time : 13µs
Output Type : Voltage - Buffered
Differential Output : No
Data Interface : Parallel, Serial
Reference Type : External, Internal
Voltage - Supply, Analog : ±14.25 V ~ 15.75 V
Voltage - Supply, Digital : 5V
INL/DNL (LSB) : ±0.2, ±0.2
Architecture : Current Steering, R-2R
Operating Temperature : -40°C ~ 85°C
Package / Case : 28-CDIP (0.600", 15.24mm)
Supplier Device Package : 28-CDIP
Mounting Type : Through Hole
0
79 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
