Welcome to Weijie Semiconductor
- Integrated Circuits (ICs)
- Logic - Gates and Inverters
Part Number
Manufacturer
Description
Unit Price
In Stock

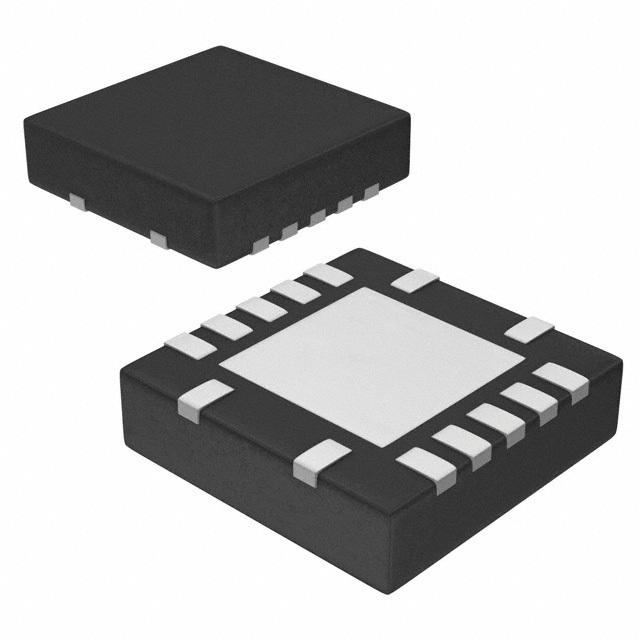

SN74LVC86ARGYR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : XOR (Exclusive OR)
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.65 V ~ 3.6 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.7 V ~ 0.8 V
Logic Level - High : 1.7 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.4ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-VQFN (3.5x3.5)
Package / Case : 14-VFQFN Exposed Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVC
Part Status : Active
Logic Type : XOR (Exclusive OR)
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 1.65 V ~ 3.6 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.7 V ~ 0.8 V
Logic Level - High : 1.7 V ~ 2 V
Max Propagation Delay @ V, Max CL : 4.4ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-VQFN (3.5x3.5)
Package / Case : 14-VFQFN Exposed Pad
0
695 in stock
SN74LVCU04ADBR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVCU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 1.65 V ~ 3.6 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.4 V ~ 0.65 V
Logic Level - High : 1.32 V ~ 2.88 V
Max Propagation Delay @ V, Max CL : 3.8ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SSOP
Package / Case : 14-SSOP (0.209", 5.30mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVCU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 1.65 V ~ 3.6 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.4 V ~ 0.65 V
Logic Level - High : 1.32 V ~ 2.88 V
Max Propagation Delay @ V, Max CL : 3.8ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SSOP
Package / Case : 14-SSOP (0.209", 5.30mm Width)
0
3299 in stock

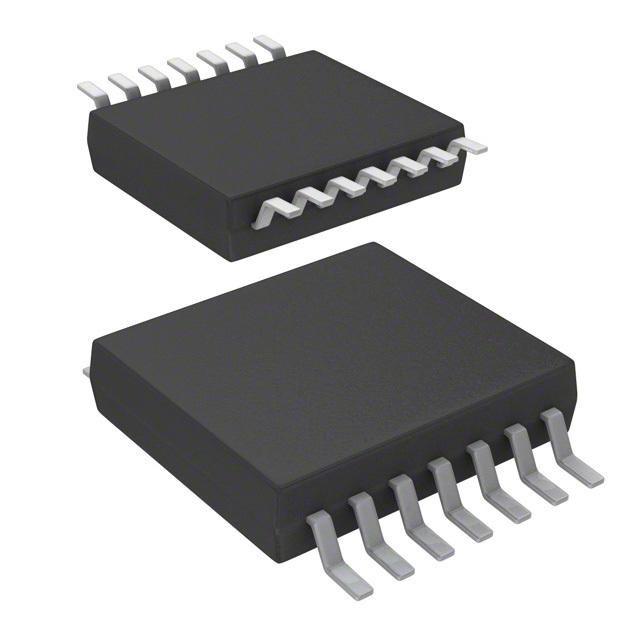

SN74LVCU04ADGVR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVCU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 1.65 V ~ 3.6 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.4 V ~ 0.65 V
Logic Level - High : 1.32 V ~ 2.88 V
Max Propagation Delay @ V, Max CL : 3.8ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TVSOP
Package / Case : 14-TFSOP (0.173", 4.40mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVCU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 1.65 V ~ 3.6 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.4 V ~ 0.65 V
Logic Level - High : 1.32 V ~ 2.88 V
Max Propagation Delay @ V, Max CL : 3.8ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TVSOP
Package / Case : 14-TFSOP (0.173", 4.40mm Width)
0
2659 in stock
SN74LVCU04ADR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVCU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 1.65 V ~ 3.6 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.4 V ~ 0.65 V
Logic Level - High : 1.32 V ~ 2.88 V
Max Propagation Delay @ V, Max CL : 3.8ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVCU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 1.65 V ~ 3.6 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.4 V ~ 0.65 V
Logic Level - High : 1.32 V ~ 2.88 V
Max Propagation Delay @ V, Max CL : 3.8ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
2841 in stock
SN74LVCU04APWR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVCU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 1.65 V ~ 3.6 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.4 V ~ 0.65 V
Logic Level - High : 1.32 V ~ 2.88 V
Max Propagation Delay @ V, Max CL : 3.8ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TSSOP
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVCU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 1.65 V ~ 3.6 V
Current - Quiescent (Max) : 10µA
Current - Output High, Low : 24mA, 24mA
Logic Level - Low : 0.4 V ~ 0.65 V
Logic Level - High : 1.32 V ~ 2.88 V
Max Propagation Delay @ V, Max CL : 3.8ns @ 3.3V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TSSOP
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
0
3861 in stock
SN74LVU04ADBR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.3V
Logic Level - High : 1.7V
Max Propagation Delay @ V, Max CL : 7ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SSOP
Package / Case : 14-SSOP (0.209", 5.30mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.3V
Logic Level - High : 1.7V
Max Propagation Delay @ V, Max CL : 7ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SSOP
Package / Case : 14-SSOP (0.209", 5.30mm Width)
0
1104 in stock
SN74LVU04ADR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.3V
Logic Level - High : 1.7V
Max Propagation Delay @ V, Max CL : 7ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.3V
Logic Level - High : 1.7V
Max Propagation Delay @ V, Max CL : 7ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
14 in stock

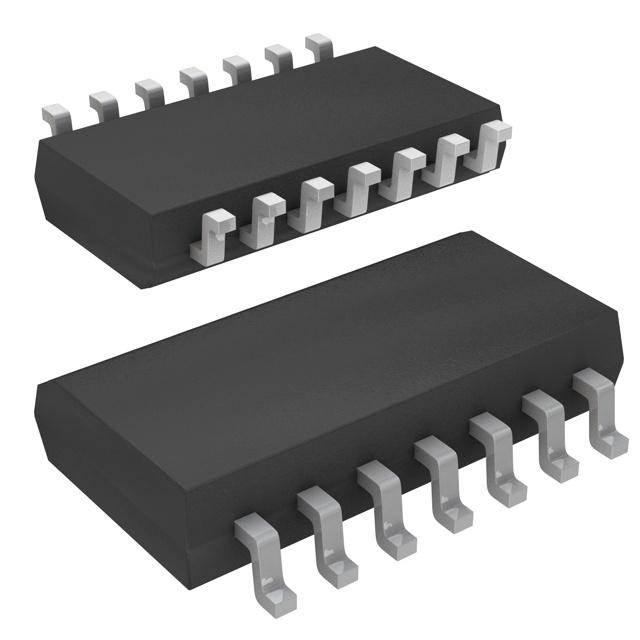

SN74LVU04ANSR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.3V
Logic Level - High : 1.7V
Max Propagation Delay @ V, Max CL : 7ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOP
Package / Case : 14-SOIC (0.209", 5.30mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.3V
Logic Level - High : 1.7V
Max Propagation Delay @ V, Max CL : 7ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOP
Package / Case : 14-SOIC (0.209", 5.30mm Width)
0
3565 in stock
SN74LVU04APWR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.3V
Logic Level - High : 1.7V
Max Propagation Delay @ V, Max CL : 7ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TSSOP
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74LVU
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 2 V ~ 5.5 V
Current - Quiescent (Max) : 20µA
Current - Output High, Low : 12mA, 12mA
Logic Level - Low : 0.3V
Logic Level - High : 1.7V
Max Propagation Delay @ V, Max CL : 7ns @ 5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-TSSOP
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
0
9020 in stock
SN74S00N
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : 74S
Part Status : Not For New Designs
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.75 V ~ 5.25 V
Current - Quiescent (Max) : -
Current - Output High, Low : 1mA, 20mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 5ns @ 5V, 50pF
Operating Temperature : 0°C ~ 70°C
Mounting Type : Through Hole
Supplier Device Package : 14-PDIP
Package / Case : 14-DIP (0.300", 7.62mm)
Packaging : Tube
Alternate Packaging
Series : 74S
Part Status : Not For New Designs
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.75 V ~ 5.25 V
Current - Quiescent (Max) : -
Current - Output High, Low : 1mA, 20mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 5ns @ 5V, 50pF
Operating Temperature : 0°C ~ 70°C
Mounting Type : Through Hole
Supplier Device Package : 14-PDIP
Package / Case : 14-DIP (0.300", 7.62mm)
0
241 in stock
SN74S02N
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Series : 74S
Part Status : Active
Logic Type : NOR Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.75 V ~ 5.25 V
Current - Quiescent (Max) : -
Current - Output High, Low : 1mA, 20mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 5ns @ 5V, 50pF
Operating Temperature : 0°C ~ 70°C
Mounting Type : Through Hole
Supplier Device Package : 14-PDIP
Package / Case : 14-DIP (0.300", 7.62mm)
Packaging : Tube
Series : 74S
Part Status : Active
Logic Type : NOR Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.75 V ~ 5.25 V
Current - Quiescent (Max) : -
Current - Output High, Low : 1mA, 20mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 5ns @ 5V, 50pF
Operating Temperature : 0°C ~ 70°C
Mounting Type : Through Hole
Supplier Device Package : 14-PDIP
Package / Case : 14-DIP (0.300", 7.62mm)
0
142 in stock
SN74S04DR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74S
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 4.75 V ~ 5.25 V
Current - Quiescent (Max) : -
Current - Output High, Low : 1mA, 20mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 5ns @ 5V, 50pF
Operating Temperature : 0°C ~ 70°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74S
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 4.75 V ~ 5.25 V
Current - Quiescent (Max) : -
Current - Output High, Low : 1mA, 20mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 5ns @ 5V, 50pF
Operating Temperature : 0°C ~ 70°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
796 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
