DRV8804DW DRV8804DW

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Unipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Low Side (4)
Interface : SPI
Technology : Power MOSFET
Step Resolution : -
Applications : General Purpose
Current - Output : 800mA
Voltage - Supply : 8.2 V ~ 60 V
Voltage - Load : 8.2 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 20-SOIC
0
1289 in stock

DRV8804PWPR DRV8804PWPR

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Unipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Low Side (4)
Interface : SPI
Technology : Power MOSFET
Step Resolution : -
Applications : General Purpose
Current - Output : 1A
Voltage - Supply : 8.2 V ~ 60 V
Voltage - Load : 8.2 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 16-HTSSOP
0
1766 in stock

DRV8805DW DRV8805DW

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Unipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Low Side (4)
Interface : Logic
Technology : Power MOSFET
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 800mA
Voltage - Supply : 8.2 V ~ 60 V
Voltage - Load : 8.2 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 20-SOIC
0
1139 in stock

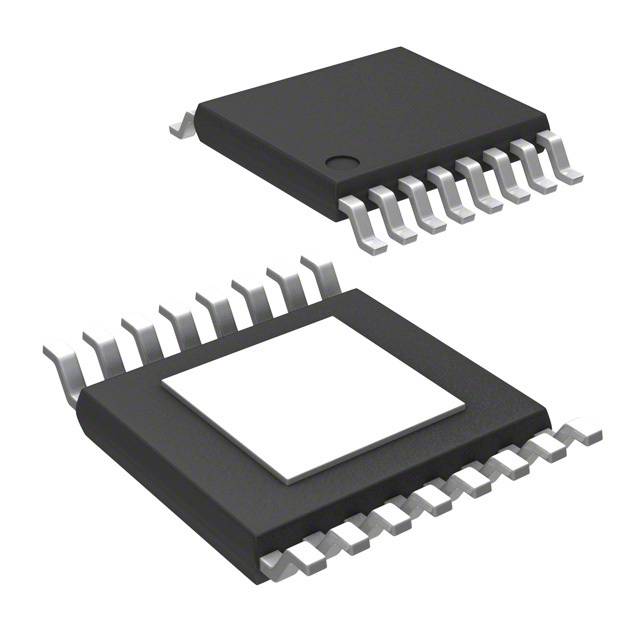

DRV8805PWP DRV8805PWP

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Unipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Low Side (4)
Interface : Logic
Technology : Power MOSFET
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 1A
Voltage - Supply : 8.2 V ~ 60 V
Voltage - Load : 8.2 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 16-HTSSOP
0
791 in stock

DRV8805PWPR DRV8805PWPR

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Unipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Low Side (4)
Interface : Logic
Technology : Power MOSFET
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 1A
Voltage - Supply : 8.2 V ~ 60 V
Voltage - Load : 8.2 V ~ 60 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 16-HTSSOP
0
3571 in stock

DRV8806PWPR DRV8806PWPR

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Unipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Low Side (4)
Interface : SPI
Technology : Power MOSFET
Step Resolution : -
Applications : General Purpose
Current - Output : 2A
Voltage - Supply : 8.2 V ~ 40 V
Voltage - Load : 8.2 V ~ 40 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 16-HTSSOP
0
1434 in stock

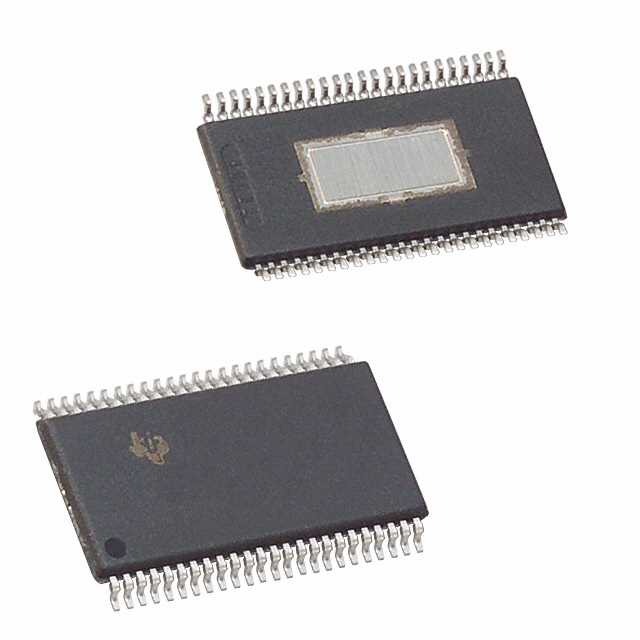

DRV8808DCA DRV8808DCA

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Obsolete
Motor Type - Stepper : -
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (6)
Interface : SPI
Technology : Power MOSFET
Step Resolution : -
Applications : General Purpose
Current - Output : 2.5A
Voltage - Supply : 7 V ~ 40 V
Voltage - Load : 18 V ~ 38 V
Operating Temperature : 0°C ~ 135°C (TJ)
Mounting Type : Surface Mount
Package / Case : 48-TFSOP (0.240", 6.10mm Width) Exposed Pad
Supplier Device Package : 48-HTSSOP
0
100 in stock

DRV8808DCAR DRV8808DCAR

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : -
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (6)
Interface : SPI
Technology : Power MOSFET
Step Resolution : -
Applications : General Purpose
Current - Output : 2.5A
Voltage - Supply : 7 V ~ 40 V
Voltage - Load : 18 V ~ 38 V
Operating Temperature : 0°C ~ 135°C (TJ)
Mounting Type : Surface Mount
Package / Case : 48-TFSOP (0.240", 6.10mm Width) Exposed Pad
Supplier Device Package : 48-HTSSOP
0
1154 in stock

DRV8809PAP DRV8809PAP

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tray
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (8)
Interface : SPI
Technology : Power MOSFET
Step Resolution : 1 ~ 1/16
Applications : General Purpose
Current - Output : 800mA
Voltage - Supply : 7 V ~ 40 V
Voltage - Load : 18 V ~ 40 V
Operating Temperature : 0°C ~ 120°C (TJ)
Mounting Type : Surface Mount
Package / Case : 64-TQFP Exposed Pad
Supplier Device Package : 64-HTQFP (10x10)
0
319 in stock

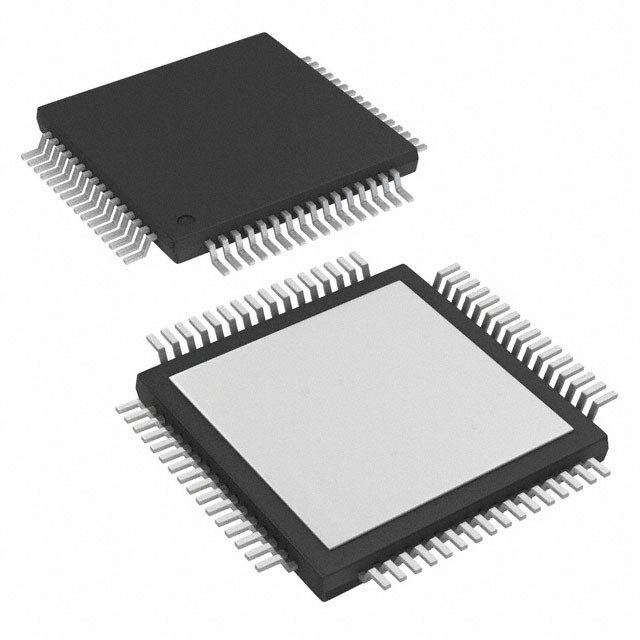

DRV8810PAP DRV8810PAP

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tray
Series : -
Part Status : Obsolete
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (8)
Interface : SPI
Technology : Power MOSFET
Step Resolution : 1 ~ 1/16
Applications : General Purpose
Current - Output : 800mA
Voltage - Supply : 7 V ~ 40 V
Voltage - Load : 18 V ~ 40 V
Operating Temperature : 0°C ~ 120°C (TJ)
Mounting Type : Surface Mount
Package / Case : 64-TQFP Exposed Pad
Supplier Device Package : 64-HTQFP (10x10)
0
100 in stock

DRV8811PWP DRV8811PWP

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Logic
Technology : Power MOSFET
Step Resolution : 1, 1/2, 1/4, 1/8
Applications : General Purpose
Current - Output : 1.9A
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 8 V ~ 38 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 28-HTSSOP
0
730 in stock

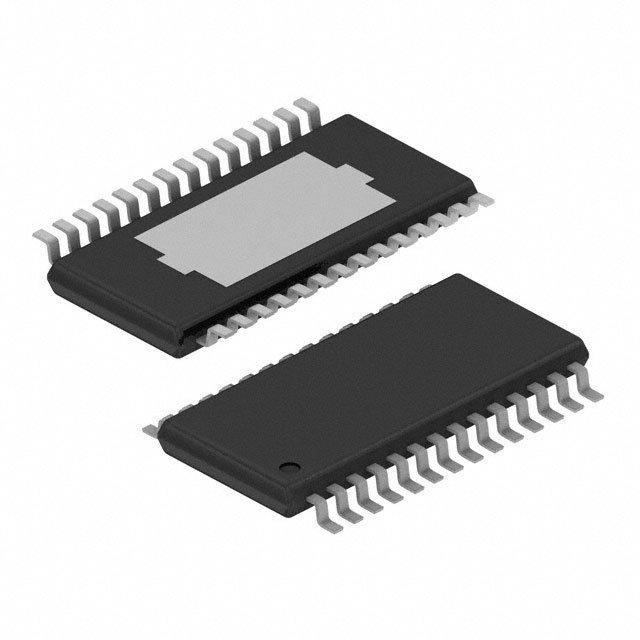

DRV8811PWPR DRV8811PWPR

Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Logic
Technology : Power MOSFET
Step Resolution : 1, 1/2, 1/4, 1/8
Applications : General Purpose
Current - Output : 1.9A
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 8 V ~ 38 V
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package : 28-HTSSOP
0
19101 in stock
