AP2156MPG-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 2
Ratio - Input:Output : 1:2
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 500mA
Rds On (Typ) : 90 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOP-EP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 2
Ratio - Input:Output : 1:2
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 500mA
Rds On (Typ) : 90 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOP-EP
0
115 in stock
AP2156SG-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 2
Ratio - Input:Output : 1:2
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 500mA
Rds On (Typ) : 100 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 2
Ratio - Input:Output : 1:2
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 500mA
Rds On (Typ) : 100 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
0
74129 in stock
AP2161AW-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-25
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-25
0
100 in stock
AP2161DFMG-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 90 mOhm
Input Type : Non-Inverting
Features : Load Discharge, Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-DFN2018 (2.0x1.8)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 90 mOhm
Input Type : Non-Inverting
Features : Load Discharge, Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-DFN2018 (2.0x1.8)
0
5972 in stock
AP2161DM8G-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Load Discharge, Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Load Discharge, Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
392 in stock
AP2161DMPG-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Load Discharge, Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOP-EP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Load Discharge, Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOP-EP
0
100 in stock

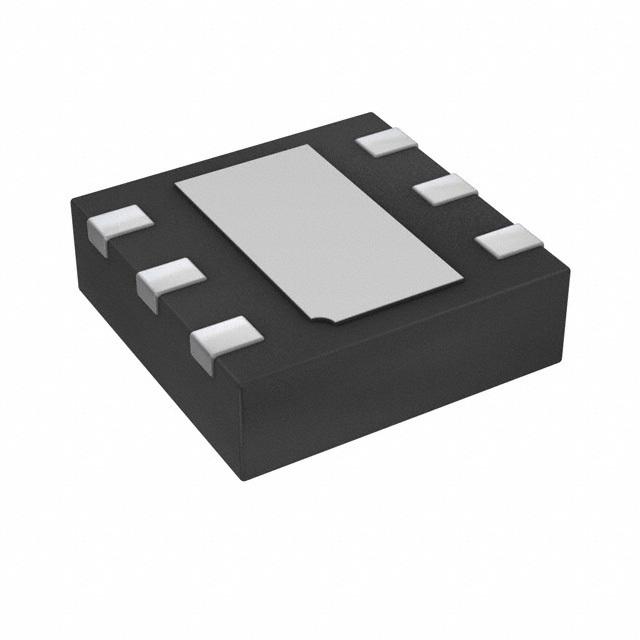

AP2161FMG-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 90 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-DFN2018 (2.0x1.8)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 90 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-DFN2018 (2.0x1.8)
0
2316 in stock
AP2161MPG-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOP-EP
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOP-EP
0
3646 in stock
AP2161SG-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
0
2495 in stock
AP2161WG-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-25
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Type : USB Switch
Number of Outputs : 1
Ratio - Input:Output : 1:1
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 95 mOhm
Input Type : Non-Inverting
Features : Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-25
0
1862 in stock
AP2162AFGEG-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Type : USB Switch
Number of Outputs : 2
Ratio - Input:Output : 1:2
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 85 mOhm
Input Type : Non-Inverting
Features : Load Discharge, Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UDFN Exposed Pad
Supplier Device Package : U-DFN3030-8 (Type E)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Type : USB Switch
Number of Outputs : 2
Ratio - Input:Output : 1:2
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 85 mOhm
Input Type : Non-Inverting
Features : Load Discharge, Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UDFN Exposed Pad
Supplier Device Package : U-DFN3030-8 (Type E)
0
2573 in stock
AP2162AMPG-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Switch Type : USB Switch
Number of Outputs : 2
Ratio - Input:Output : 1:2
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 85 mOhm
Input Type : Non-Inverting
Features : Load Discharge, Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOP-EP
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
Switch Type : USB Switch
Number of Outputs : 2
Ratio - Input:Output : 1:2
Output Configuration : High Side
Output Type : P-Channel
Interface : On/Off
Voltage - Load : 2.7 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd) : Not Required
Current - Output (Max) : 1A
Rds On (Typ) : 85 mOhm
Input Type : Non-Inverting
Features : Load Discharge, Status Flag
Fault Protection : Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package : 8-MSOP-EP
0
3803 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
