SI8420BD-D-IS
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Channel Type : Unidirectional
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 150Mbps
Propagation Delay tpLH / tpHL (Max) : 11ns, 11ns
Pulse Width Distortion (Max) : 3ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 2/0
Channel Type : Unidirectional
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 150Mbps
Propagation Delay tpLH / tpHL (Max) : 11ns, 11ns
Pulse Width Distortion (Max) : 3ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
0
35 in stock
SI8421AB-C-IS
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tube
Series : -
Part Status : Not For New Designs
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 25kV/µs (Typ)
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 3.8ns, 2.8ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Tube
Series : -
Part Status : Not For New Designs
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 25kV/µs (Typ)
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 3.8ns, 2.8ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
986 in stock
SI8421AB-D-IS
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Not For New Designs
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 25kV/µs (Typ)
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 3.8ns, 2.8ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Not For New Designs
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 25kV/µs (Typ)
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 3.8ns, 2.8ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
27378 in stock
SI8421AB-D-ISR
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 25kV/µs (Typ)
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 3.8ns, 2.8ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 25kV/µs (Typ)
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 3.8ns, 2.8ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock

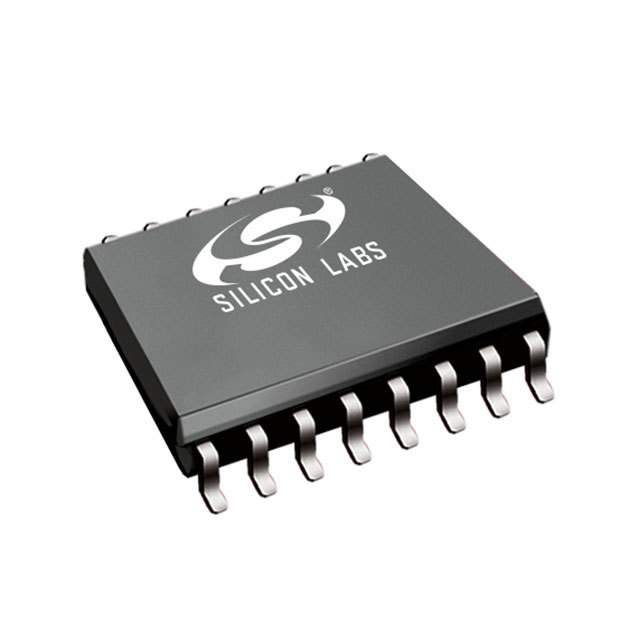

SI8421AD-D-IS
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
0
62 in stock
SI8421AD-D-ISR
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
0
750 in stock
SI8421BB-D-IS
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Not For New Designs
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 25kV/µs (Typ)
Data Rate : 150Mbps
Propagation Delay tpLH / tpHL (Max) : 9.5ns, 9.5ns
Pulse Width Distortion (Max) : 2.5ns
Rise / Fall Time (Typ) : 3.8ns, 2.8ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Not For New Designs
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 25kV/µs (Typ)
Data Rate : 150Mbps
Propagation Delay tpLH / tpHL (Max) : 9.5ns, 9.5ns
Pulse Width Distortion (Max) : 2.5ns
Rise / Fall Time (Typ) : 3.8ns, 2.8ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
6865 in stock
SI8421BB-D-ISR
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 25kV/µs (Typ)
Data Rate : 150Mbps
Propagation Delay tpLH / tpHL (Max) : 9.5ns, 9.5ns
Pulse Width Distortion (Max) : 2.5ns
Rise / Fall Time (Typ) : 3.8ns, 2.8ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 25kV/µs (Typ)
Data Rate : 150Mbps
Propagation Delay tpLH / tpHL (Max) : 9.5ns, 9.5ns
Pulse Width Distortion (Max) : 2.5ns
Rise / Fall Time (Typ) : 3.8ns, 2.8ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock
SI8421BD-D-IS
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 150Mbps
Propagation Delay tpLH / tpHL (Max) : 11ns, 11ns
Pulse Width Distortion (Max) : 3ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 150Mbps
Propagation Delay tpLH / tpHL (Max) : 11ns, 11ns
Pulse Width Distortion (Max) : 3ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
0
100 in stock
SI8422AB-D-IS
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
2198 in stock
SI8422AB-D-ISR
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
100 in stock
SI8422AD-D-IS
Energy Micro (Silicon Labs)
Manufacturer : Silicon Labs
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Capacitive Coupling
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Data Rate : 1Mbps
Propagation Delay tpLH / tpHL (Max) : 35ns, 35ns
Pulse Width Distortion (Max) : 25ns
Rise / Fall Time (Typ) : 2ns, 2ns
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
0
1673 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
