- Isolators
- Isolators - Gate Drivers
Part Number
Manufacturer
Description
Unit Price
In Stock
TLP5752(TP,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2.5A, 2.5A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, CSA, cUL, UL
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2.5A, 2.5A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, CSA, cUL, UL
0
41 in stock
TLP5754(D4,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 3A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, CSA, cUL, UL, VDE
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 3A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, CSA, cUL, UL, VDE
0
126 in stock
TLP5754(D4-TP,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 3A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, CSA, cUL, UL, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 3A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, CSA, cUL, UL, VDE
0
700 in stock

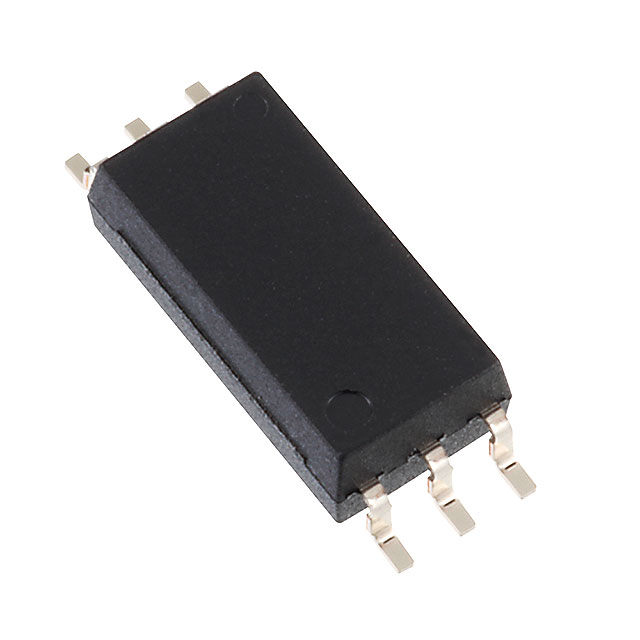

TLP5754(E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 3A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, CSA, cUL, UL
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 3A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, CSA, cUL, UL
0
310 in stock
TLP5754(TP,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 3A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, CSA, cUL, UL
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 3A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, CSA, cUL, UL
0
2592 in stock
TLP5771(TP,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 1A, 1A
Current - Peak Output : 1A
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, cUR, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 1A, 1A
Current - Peak Output : 1A
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, cUR, UR, VDE
0
2495 in stock
TLP5772(TP,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2.5A, 2.5A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, cUR, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2.5A, 2.5A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, cUR, UR, VDE
0
2841 in stock
TLP5774(TP,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 3A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, cUR, UR, VDE
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 35kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 3A, 3A
Current - Peak Output : 4A
Voltage - Forward (Vf) (Typ) : 1.65V
Current - DC Forward (If) (Max) : 8mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 6-SO
Approvals : CQC, cUR, UR, VDE
0
3908 in stock
.jpg "Show details for TLP700(F)")
TLP700(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 1.5A, 1.5A
Current - Peak Output : 2A
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : UR
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 1.5A, 1.5A
Current - Peak Output : 2A
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : UR
0
675 in stock
.jpg "Show details for TLP700H(F)")
TLP700H(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 250ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP
Approvals : cUL, UL
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 250ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP
Approvals : cUL, UL
0
116 in stock
.jpg "Show details for TLP701(TP,F)")
TLP701(TP,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : cUL, UL
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : cUL, UL
0
1377 in stock
.jpg "Show details for TLP701A(F)")
TLP701A(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 350ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : cUL, UL
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 350ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : cUL, UL
0
509 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
