Part Number
Manufacturer
Description
Unit Price
In Stock
FOD8163
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : -
Rise / Fall Time (Typ) : 10ns, 20ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : -
Rise / Fall Time (Typ) : 10ns, 20ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SOP
0
1985 in stock

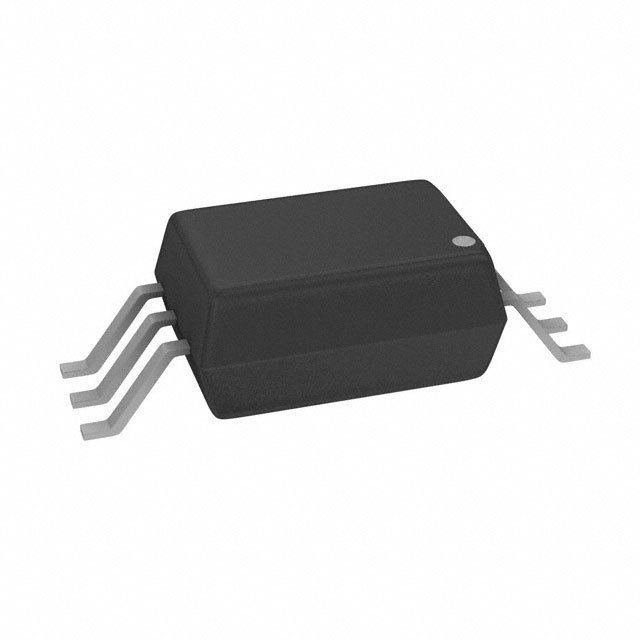

FOD8163R2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 90ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 90ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SOP
0
422 in stock
FOD8163T
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 90ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 90ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SOP
0
93 in stock
FOD8163TR2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 90ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 90ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SOP
0
557 in stock
FODM611
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
0
4031 in stock

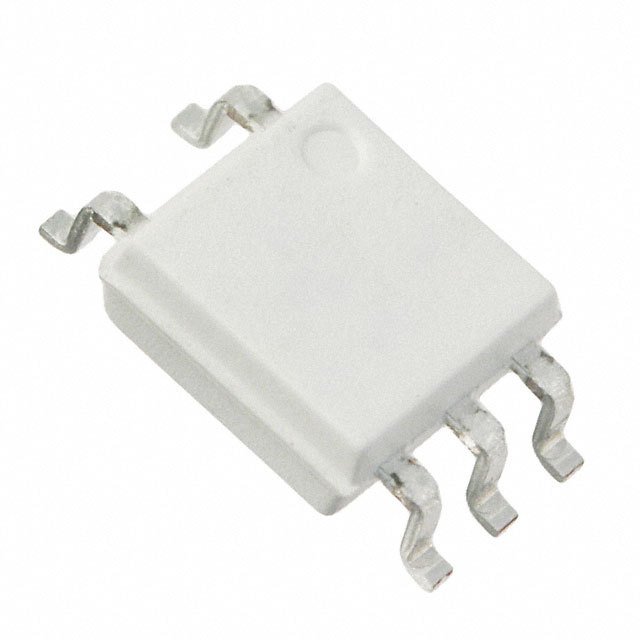

FODM611R2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
0
2660 in stock
FODM8061
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
0
5373 in stock

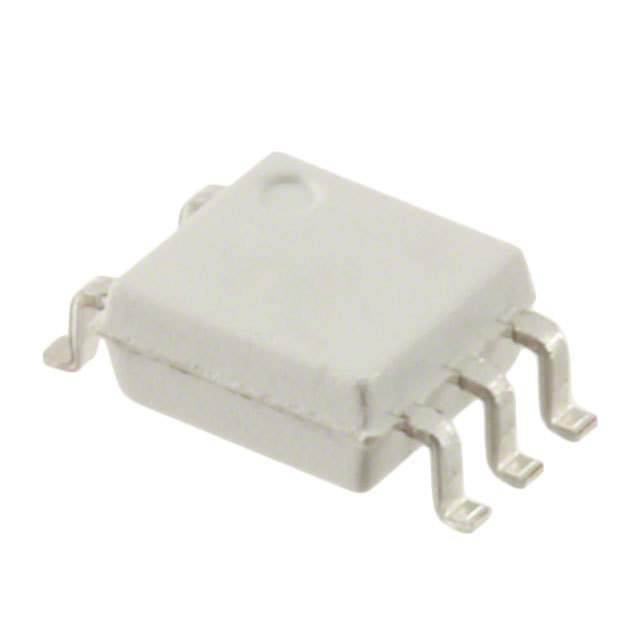

FODM8061R2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
0
1847 in stock
FODM8061R2V
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
0
2500 in stock
FODM8061V
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 80ns, 80ns
Rise / Fall Time (Typ) : 20ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
0
3336 in stock
FODM8071
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 20Mbps
Propagation Delay tpLH / tpHL (Max) : 55ns, 55ns
Rise / Fall Time (Typ) : 5.8ns, 5.3ns
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 20Mbps
Propagation Delay tpLH / tpHL (Max) : 55ns, 55ns
Rise / Fall Time (Typ) : 5.8ns, 5.3ns
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
0
2728 in stock
FODM8071R2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 20Mbps
Propagation Delay tpLH / tpHL (Max) : 55ns, 55ns
Rise / Fall Time (Typ) : 5.8ns, 5.3ns
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Input Type : DC
Output Type : Push-Pull, Totem Pole
Current - Output / Channel : 10mA
Data Rate : 20Mbps
Propagation Delay tpLH / tpHL (Max) : 55ns, 55ns
Rise / Fall Time (Typ) : 5.8ns, 5.3ns
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
0
7693 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
