- Isolators
- Optoisolators - Logic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
HCPL2611
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 50ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 50ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
1162 in stock
HCPL-2611-020E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 24ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 24ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
16 in stock
HCPL-2611-300E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 24ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 24ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
2124 in stock
HCPL-2611-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 24ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 24ns, 10ns
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
391 in stock
HCPL2611M
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 50ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 50ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
816 in stock
HCPL2611S
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 50ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 50ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
447 in stock

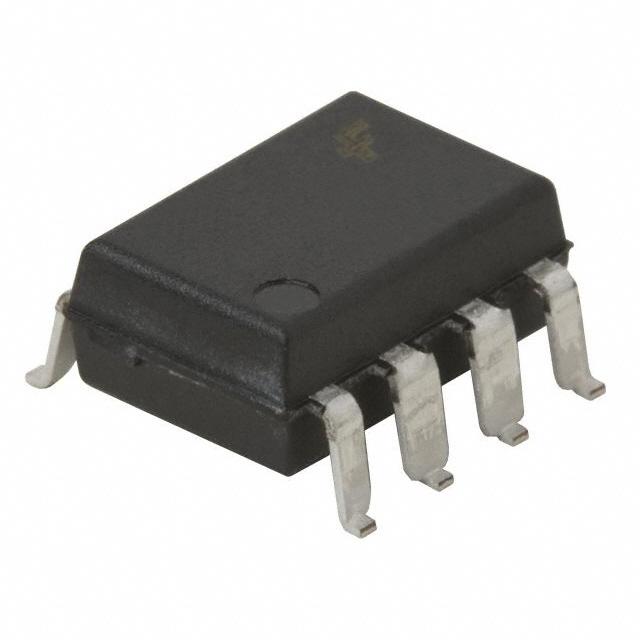

HCPL2611SV
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 50ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 50ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
796 in stock

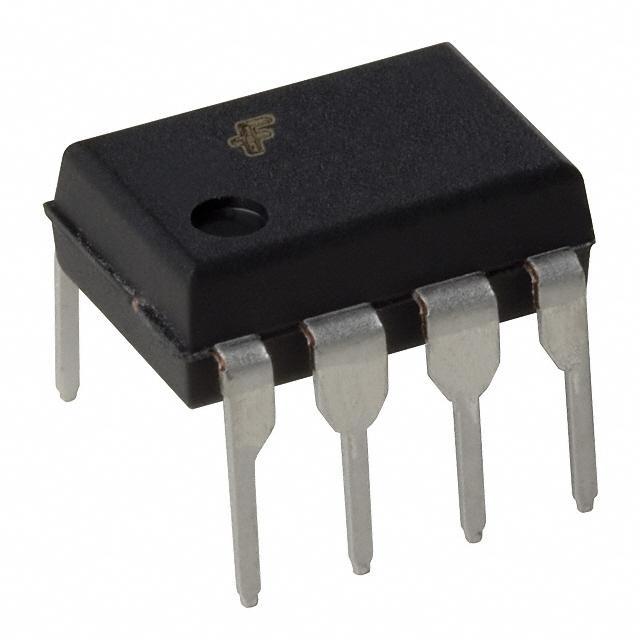

HCPL2611V
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 50ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Input Type : DC
Output Type : Open Collector
Current - Output / Channel : 50mA
Data Rate : 10Mbps
Propagation Delay tpLH / tpHL (Max) : 75ns, 75ns
Rise / Fall Time (Typ) : 50ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
833 in stock
HCPL-261A-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 42ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 10mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 42ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 10mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
2033 in stock
HCPL-261A-560E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 42ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 10mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 42ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 10mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
3000 in stock
HCPL-261N-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 42ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 10mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 42ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 10mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
2148 in stock
HCPL-261N-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 42ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 10mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Inputs - Side 1/Side 2 : 1/0
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 1kV/µs
Input Type : DC
Output Type : Open Collector, Schottky Clamped
Current - Output / Channel : 50mA
Data Rate : 10MBd
Propagation Delay tpLH / tpHL (Max) : 100ns, 100ns
Rise / Fall Time (Typ) : 42ns, 12ns
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 10mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
1975 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
