- Isolators
- Optoisolators - Transistor, Photovoltaic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
PS2801-4-F3-A
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 5µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.1V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 5µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.1V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SSOP
0
20084 in stock

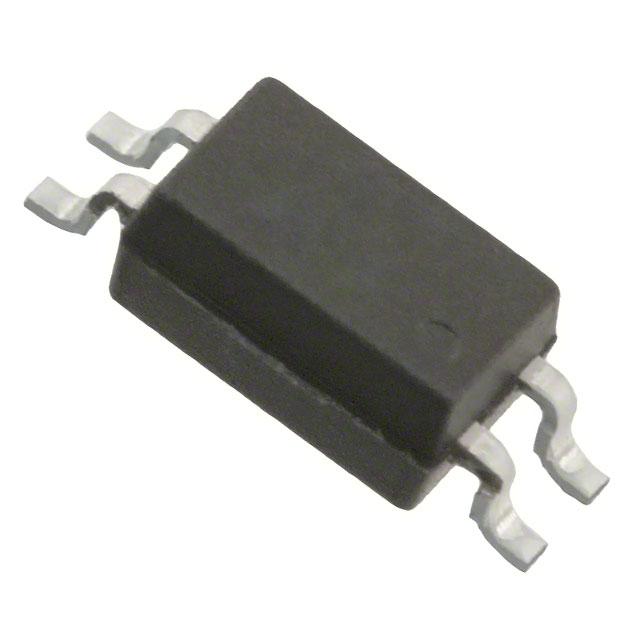

PS2801A-1-A
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Bulk
Series : NEPOC
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
Packaging : Bulk
Series : NEPOC
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
0
5357 in stock
PS2801A-4-A
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Tube
Series : NEPOC
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : -
Packaging : Tube
Series : NEPOC
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : -
0
3338 in stock
PS2801C-1-A
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Bulk
Series : NEPOC
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
Packaging : Bulk
Series : NEPOC
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
0
100 in stock
PS2801C-1-A
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Strip
Alternate Packaging
Series : NEPOC
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
Packaging : Strip
Alternate Packaging
Series : NEPOC
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
0
1906 in stock
PS2801C-1-F3-A
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
0
8788 in stock
PS2801C-1-L-A
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Strip
Series : -
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
Packaging : Strip
Series : -
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
0
2150 in stock
PS2801C-1-L-A
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Strip
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
Packaging : Strip
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
0
100 in stock
PS2801C-1-P-A
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Strip
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 150% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
Packaging : Strip
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 150% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
0
2017 in stock
PS2801C-1-V-A
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SSOP
0
544 in stock
PS2801C-4-A
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SSOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SSOP
0
4619 in stock
PS2801C-4-F3-A
CEL (California Eastern Laboratories)
Manufacturer : CEL
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 10µs, 7µs
Rise / Fall Time (Typ) : 5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SSOP
0
37778 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
