- Isolators
- Optoisolators - Transistor, Photovoltaic Output
Part Number
Manufacturer
Description
Unit Price
In Stock

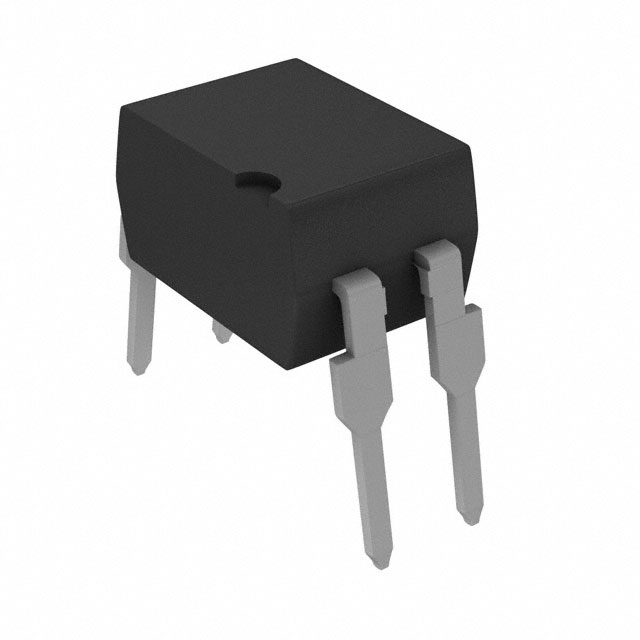

QT851
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 6µs, 8µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 350V
Current - Output / Channel : 100mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 80mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 6µs, 8µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 350V
Current - Output / Channel : 100mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 80mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
100 in stock
QT852
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 1000% @ 1mA
Current Transfer Ratio (Max) : 15000% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 250µs, 95µs (Max)
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 350V
Current - Output / Channel : 150mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 80mA
Vce Saturation (Max) : 1.2V
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 1000% @ 1mA
Current Transfer Ratio (Max) : 15000% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 250µs, 95µs (Max)
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 350V
Current - Output / Channel : 150mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 80mA
Vce Saturation (Max) : 1.2V
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
100 in stock

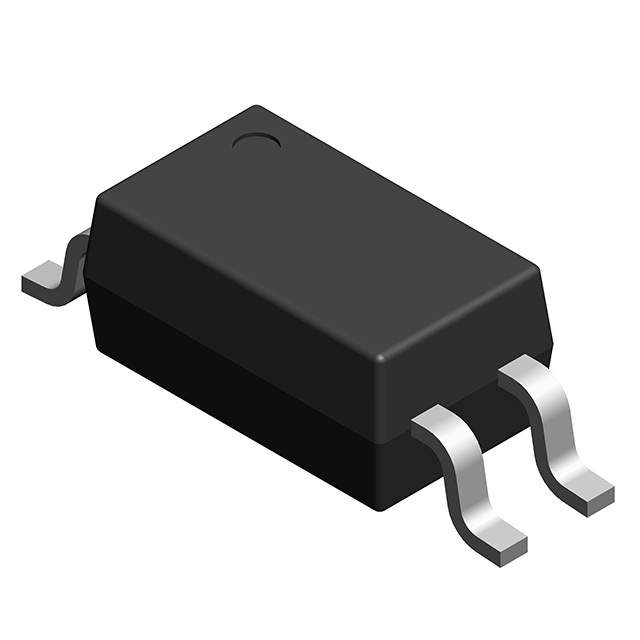

QTH214T1
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 1mA
Current Transfer Ratio (Max) : 300% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 6µs, 8µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.24V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 1mA
Current Transfer Ratio (Max) : 300% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 6µs, 8µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.24V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-Mini-Flat
0
100 in stock
QTH217T1
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 6µs, 8µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.24V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 6µs, 8µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.24V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-Mini-Flat
0
100 in stock
QTM354T1
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 1mA
Current Transfer Ratio (Max) : 300% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 6µs, 8µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.24V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package : 4-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 1mA
Current Transfer Ratio (Max) : 300% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 6µs, 8µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.24V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package : 4-Mini-Flat
0
100 in stock
QTM357T1
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 1mA
Current Transfer Ratio (Max) : 600% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 6µs, 8µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.24V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package : 4-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 1mA
Current Transfer Ratio (Max) : 600% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 6µs, 8µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.24V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package : 4-Mini-Flat
0
100 in stock
QTM415T1
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 600% @ 1mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 300µs, 250µs (Max)
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 35V
Current - Output / Channel : 80mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 1V
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package : 4-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 600% @ 1mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 300µs, 250µs (Max)
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 35V
Current - Output / Channel : 80mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 1V
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package : 4-Mini-Flat
0
100 in stock
QTM452T1
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 350ns, 300ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 350ns, 300ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
0
100 in stock
QTM453T1
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 350ns, 300ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 350ns, 300ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-Mini-Flat
0
100 in stock
SFH1617A-3
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
4000 in stock
SFH1690AT
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 150% @ 5mA
Turn On / Turn Off Time (Typ) : 5µs, 3µs
Rise / Fall Time (Typ) : 3µs, 4µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 150% @ 5mA
Turn On / Turn Off Time (Typ) : 5µs, 3µs
Rise / Fall Time (Typ) : 3µs, 4µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP
0
1950 in stock
SFH1690BT
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 5µs, 3µs
Rise / Fall Time (Typ) : 3µs, 4µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 5µs, 3µs
Rise / Fall Time (Typ) : 3µs, 4µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP
0
14000 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
